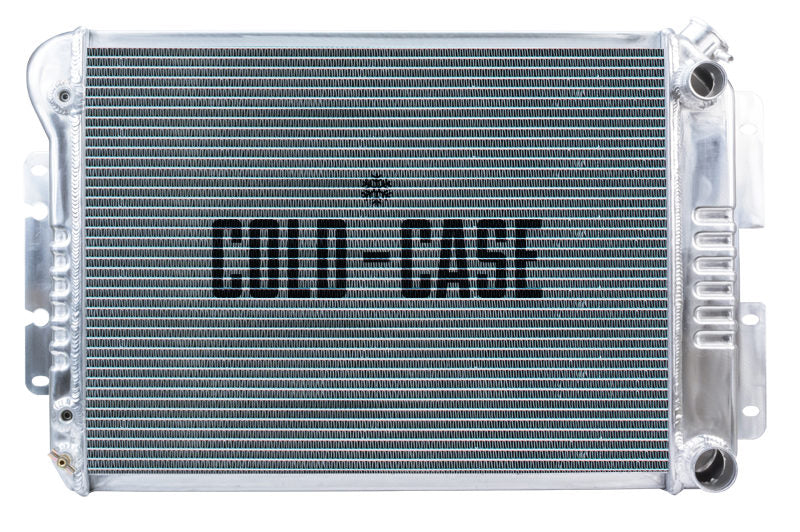

Cold Case Radiators CHC547A-1 - 67-69 Camaro/Firebird LS Swap With 35mm Hoses Aluminum Radiator

Cold Case Radiators CHC547A-1 - 67-69 Camaro/Firebird LS Swap With 35mm Hoses Aluminum Radiator

1967-1969 F-Body (LS SWAP) With 35mm Hoses Aluminum Performance DUAL FLOW Radiator. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

Fits:
67-69 Camaro/Firebird LS SWAP

Details:

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Dual Flow Design
• Direct fitment for 67-69 F-Body cars with LS motors
• Old Part Number: RPE547A

Radiator Specs

• Core Height 16.85 inch
• Core Width 23 inch
• Overall Height 19 inch
• Overall Width 30 inch
• Overall Thickness 3 inch
• Upper Hose 1.37 inch
• Lower Hose 1.37 inch
• Tubes (2) 1.25 inch Tubes
