Cold Case Radiators - CHC545AB
1970-1981 Chevrolet Camaro cars equiped with automatic transmission coolers. Black Night Rider Series

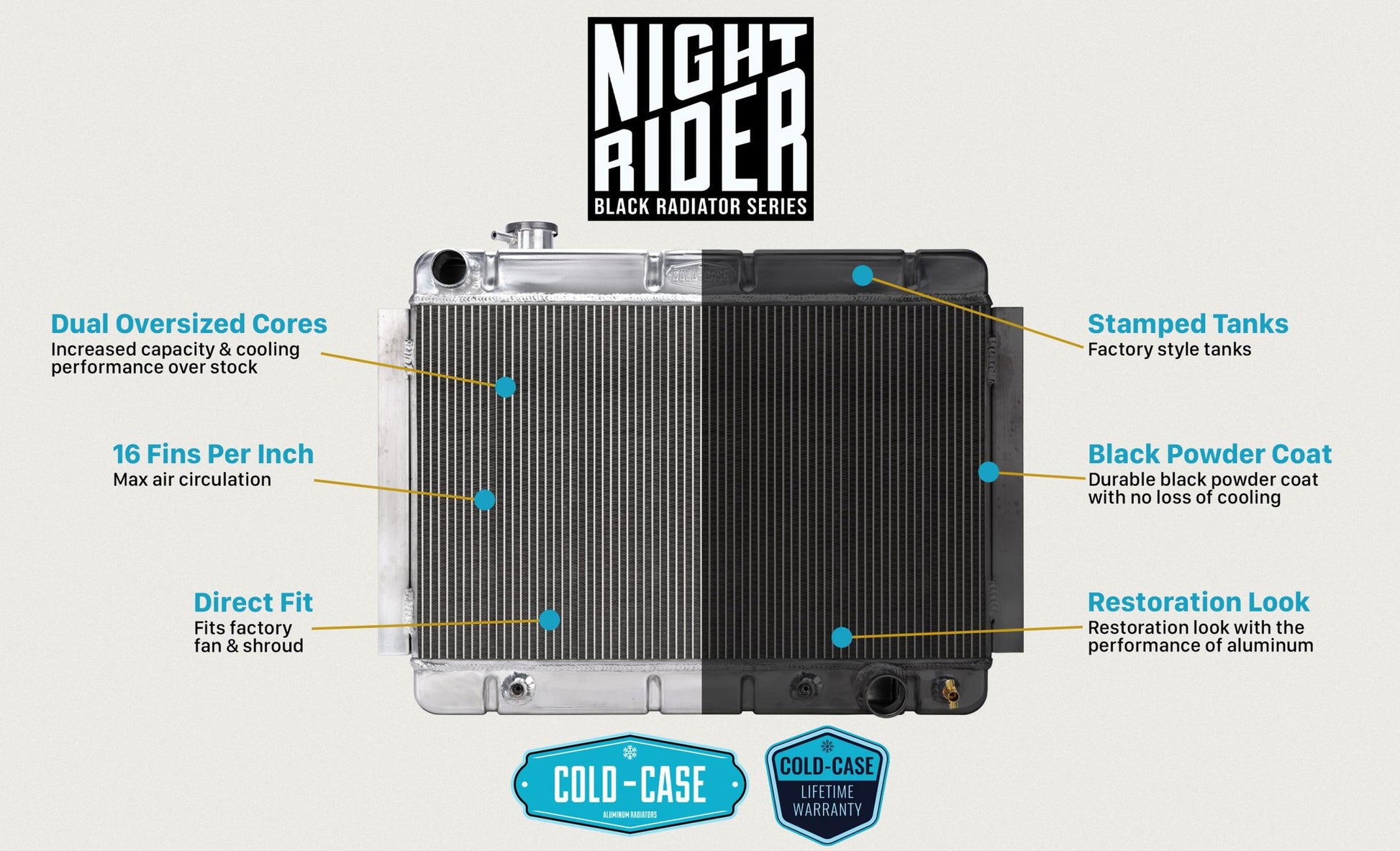

Our Night Rider Black series radiators blend performance with original appearance to give you the best of both worlds. You will be hard pressed to find a difference between an original versus a Cold-Case.
These Cold-Case radiators are Tig welded 100 percent aluminum and feature OEM appearing stamped tanks. Perfect for that restored car wanting the appearance of stock without sacrificing performance.
- 100 percent TIG welded
- (2) 1.25 inch Tubes
- All Aluminum powder coated black
- OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic trans
- Direct fitment for 70-81 Camaro
- Works with factory fan shroud
Radiator Specs:
- Core Height 16.85 inch
- Core Width 27 inch
- Overall Height 19 inch
- Overall Width 32.5 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.65 inch
- Trans Cooler Fitting: 5/16 Inch Inverted Flare
