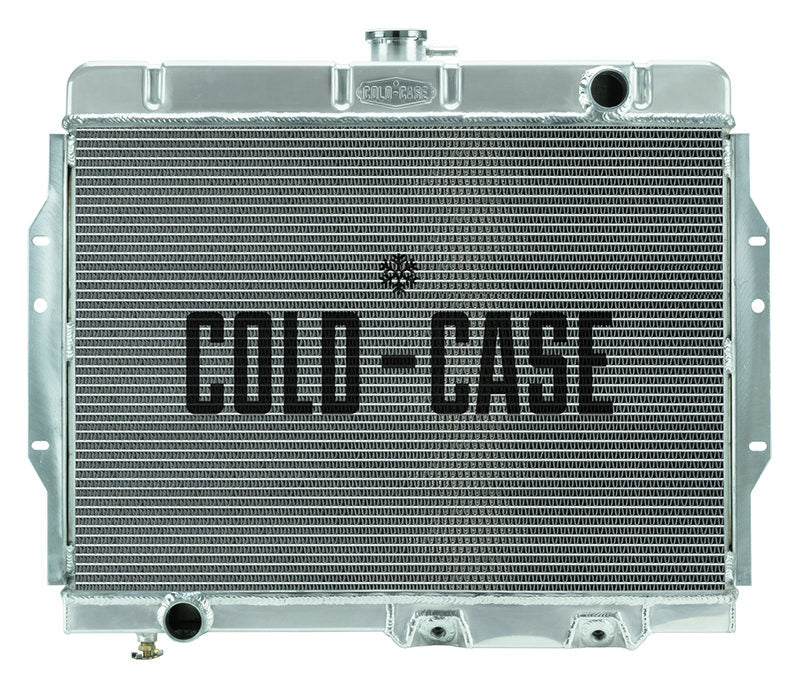

Cold Case Radiators AMC100A - 68-70 AMC Javelin Aluminum Performance Radiator AT/MT Cars

Cold Case Radiators AMC100A - 68-70 AMC Javelin Aluminum Performance Radiator AT/MT Cars

1968-1970 AMC Javelin Aluminum Performance Radiator. AT/MT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Fits:
68-70 AMC Javelin

May fit some 71-74 cars as well.

Details:

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Auto/Manual transmission

Radiator Specs

• Core Height: 15.12 inch
• Core Width: 17 inch
• Overall Height: 22.5 inch
• Overall Width: 26.35 inch
• Overall Thickness:3 inch

• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.50 inch
