Classic Instruments NO66VSW - Velocity White 1966-67 Nova Package

Classic Instruments NO66VSW - Velocity White 1966-67 Nova Package

Classic Instruments Velocity White 1966-67 Nova Package

Velocity White 1966-67 Nova Package

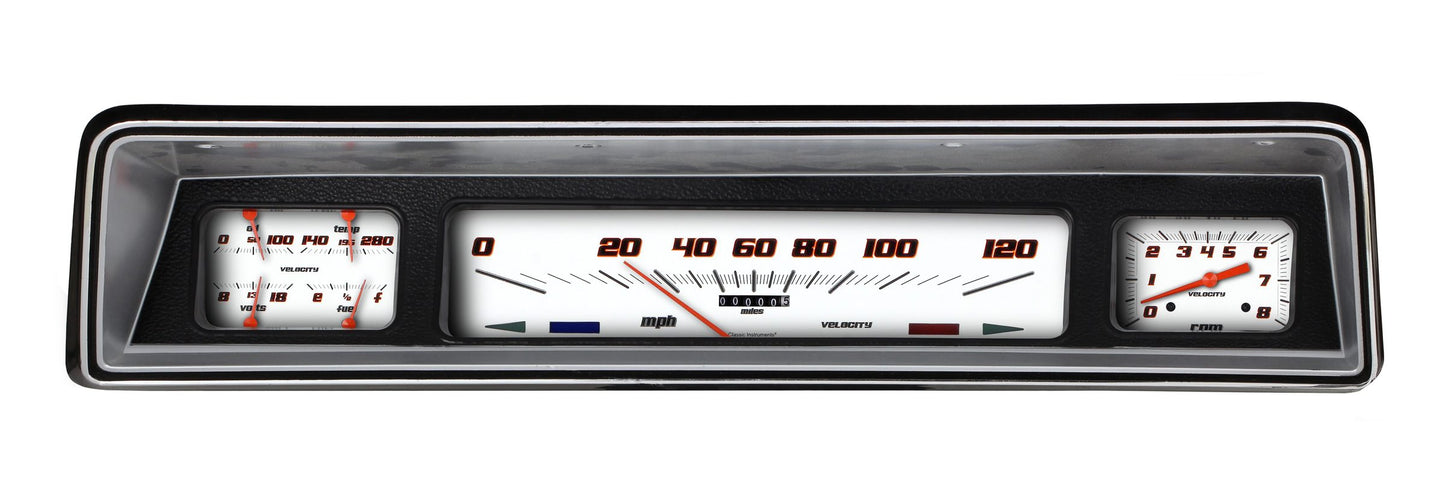

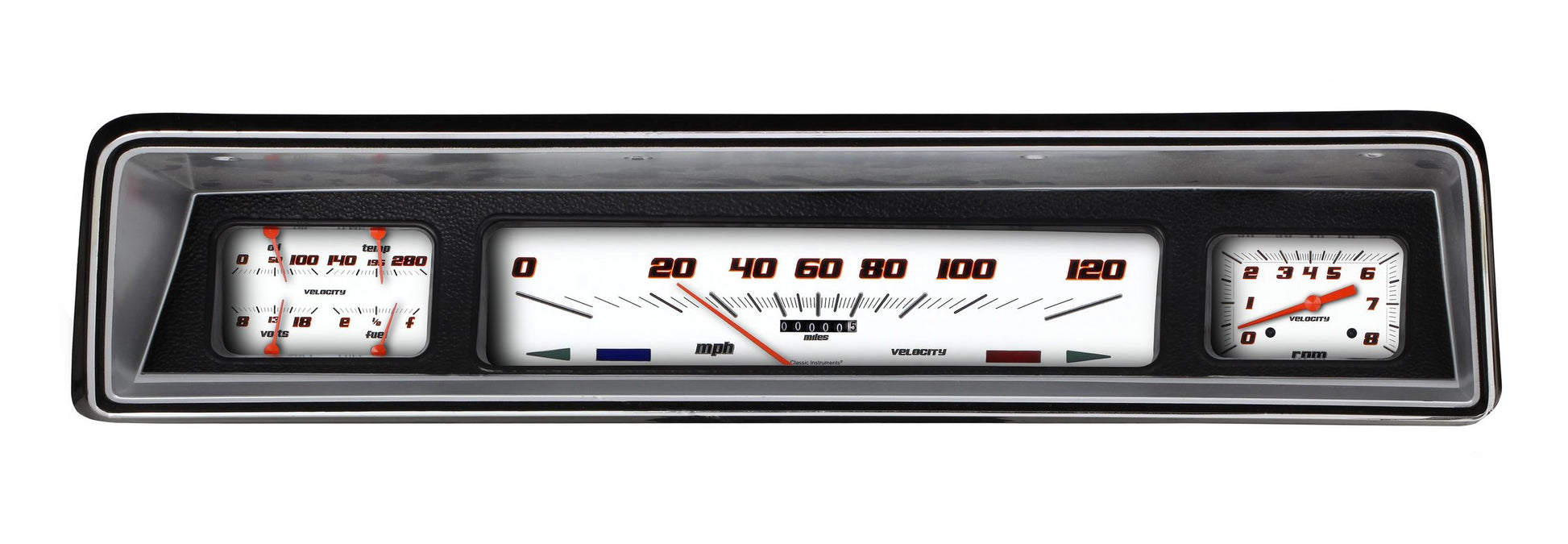

The Velocity White 1966-67 Nova direct-fit cluster features a speedometer, tachometer, fuel level, temperature, oil pressure, and volt gauges; along with indicator lights. All the gauges are electronic operation and the molded plastic housing has been design with factory fitment in mind. The cluster mounts in the original factory bezel and uses the original diffuser plate, both of which will need to be re-used from your original cluster.

• Speedometer calibration is quick and easy with push-button control
• Built-in ECM signal filter switch

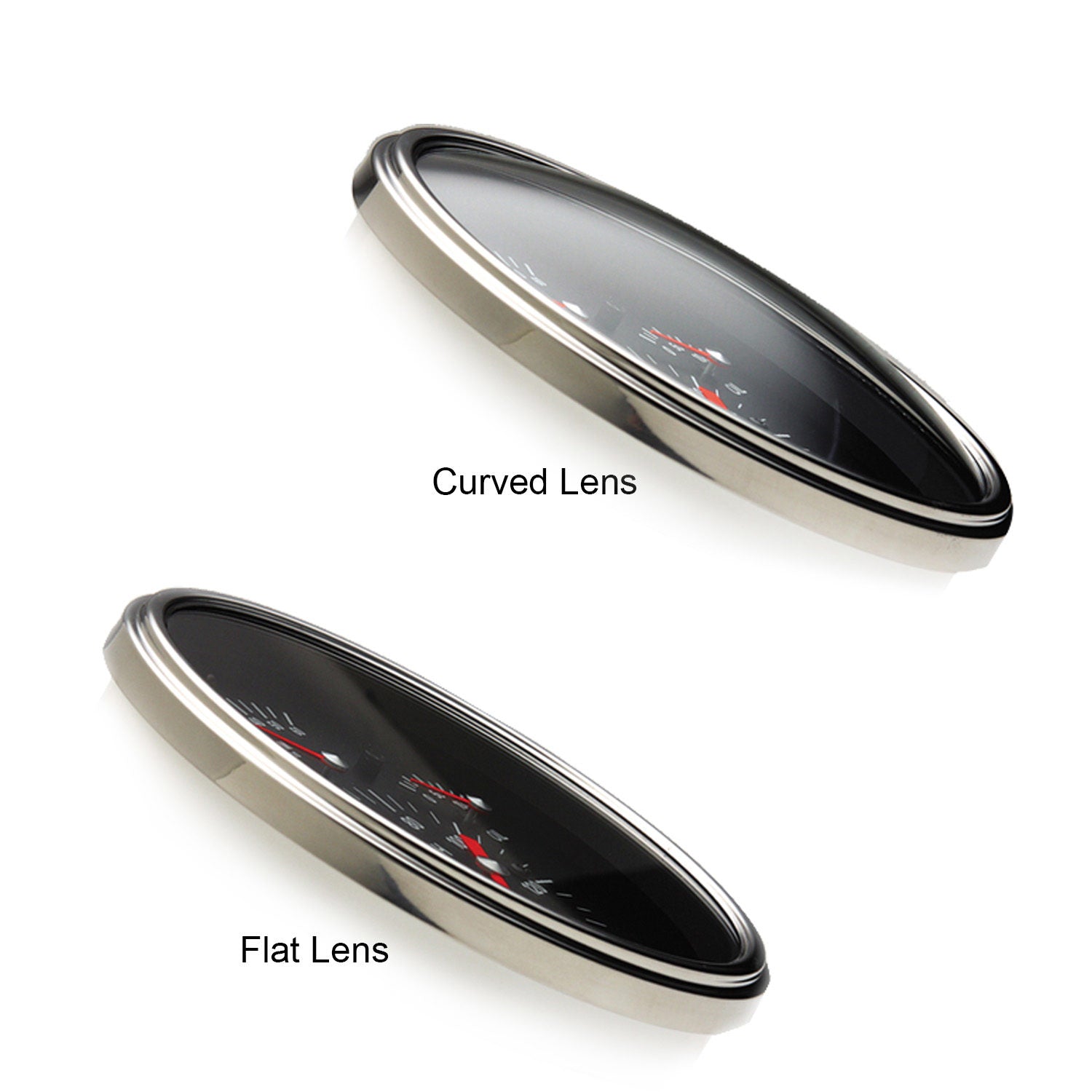

• A new, laser-cut plastic lens is provided with the cluster
• Programmable fuel gauge compatible with any ohm range, featuring a selector switch on the back of the cluster. Works with stock (0-90 ohm), any factory, or Classic Instruments fuel sending units.
• Classic Instruments’ Zeus Speedometer Technology is built-in meaning the cluster requires no external control boxes and works directly with ECM or VSS signals
• Green LED turn signal indicators, red warning light, and a blue high beam indicator
• Wiring is handled with a single wire harness connection on the back of the cluster
• The wire harness includes a separate power (12V) and ground lead to allow the customer the flexibility to add things such as a check engine, emergency brake, open door, or low oil pressure indicator
• A separate connection and harness for an external shift light on the back of the cluster
