Classic Instruments NO66B-LS - Black Direct Fit Series Package

Classic Instruments NO66B-LS - Black Direct Fit Series Package

Classic Instruments Black Direct Fit Series Package

The Black Direct Fit Series for 1966-1967 Chevy II / Nova LS Sending Units

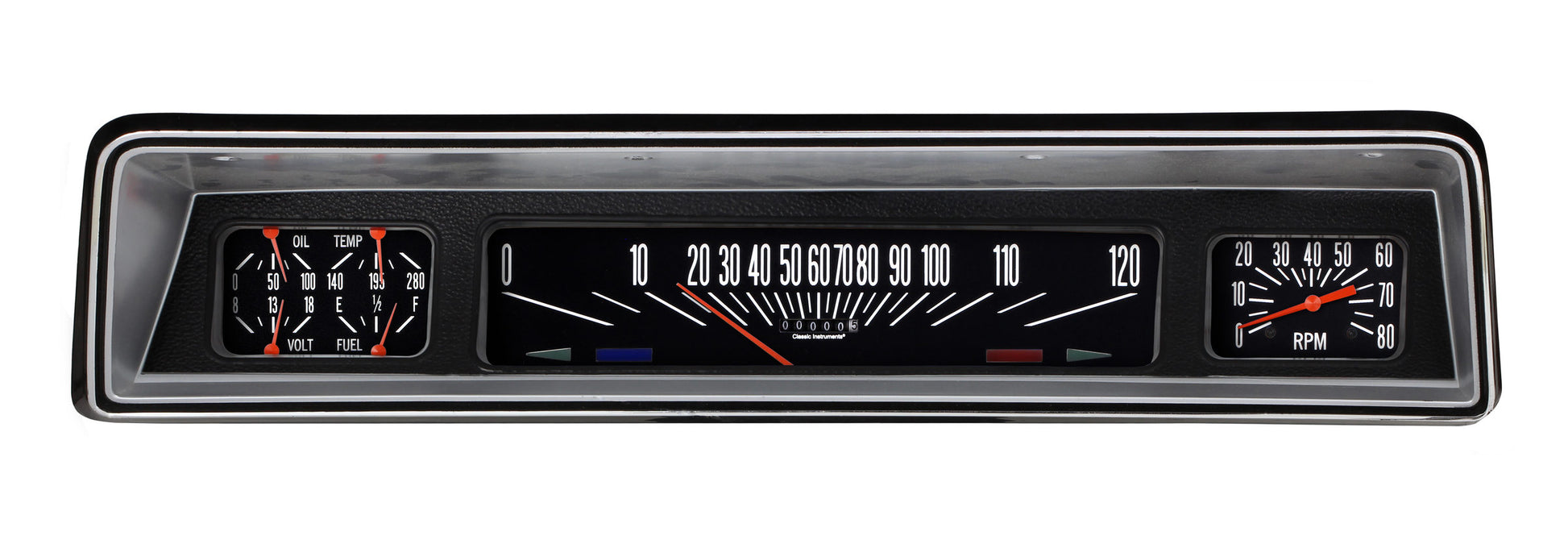

The Black 1966-67 Nova direct-fit cluster features a speedometer, tachometer, fuel level, temperature, oil pressure, and volt gauges; along with indicator lights. All the gauges are electronic operation and the molded plastic housing has been designed with factory fitment in mind. The cluster mounts in the original factory bezel and uses the original diffuser plate, both of which will need to be re-used from your original cluster.

• On the back of the cluster there is a separate harness and connection for an external shift light
• The Zeus Speedometer Technology built into Classic Instruments' cluster eliminates the need for external control boxes and works directly with ECMs or VSSs
• Wire harness includes separate power (12V) and ground leads for things like check engine, emergency brake, open door, or low oil pressure indicators.
• A push-button calibration system makes it easy to calibrate the speedometer
• Wiring harness constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors
• Green LED turn signal indicators, red warning light, and a blue high beam indicator

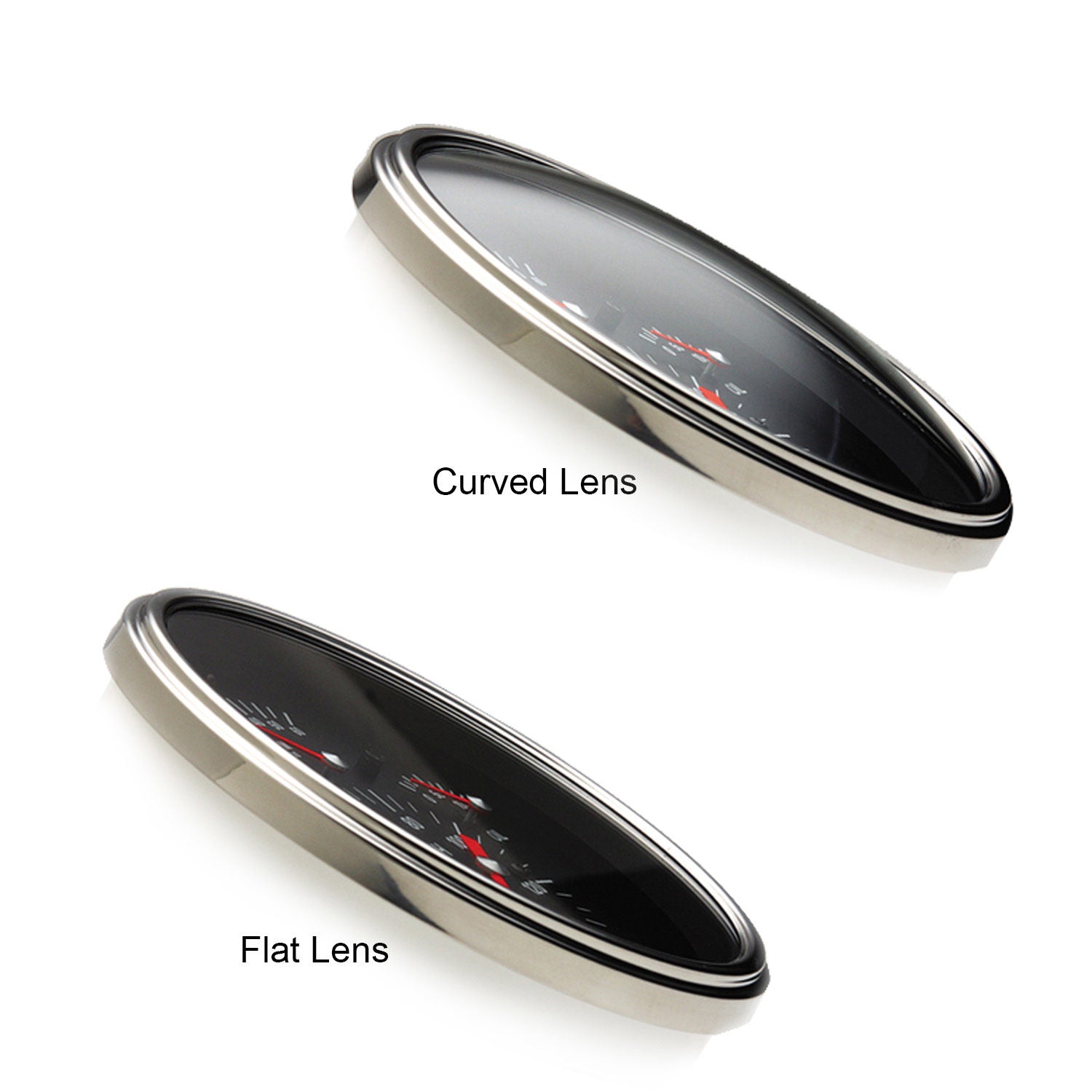

• New, laser-cut plastic lens is provided with the cluster
• The cluster has a single harness connection on the back for wiring
• Built-in ECM signal filter switch
