Centerforce KDF931042 - Dual Friction ?, High Performance Clutch and Flywheel Kit, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 700 ft/lbs Capacity, 12in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl

Centerforce KDF931042 - Dual Friction ?, High Performance Clutch and Flywheel Kit, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 700 ft/lbs Capacity, 12in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl

Centerforce | KDF931042
SKU: BDPL-KDF931042
Regular price $1,175.95 USD
Regular price $1,469.99 USD Sale price $1,175.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Centerforce KDF931042 - Dual Friction ?, High Performance Clutch and Flywheel Kit, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 700 ft/lbs Capacity, 12in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl

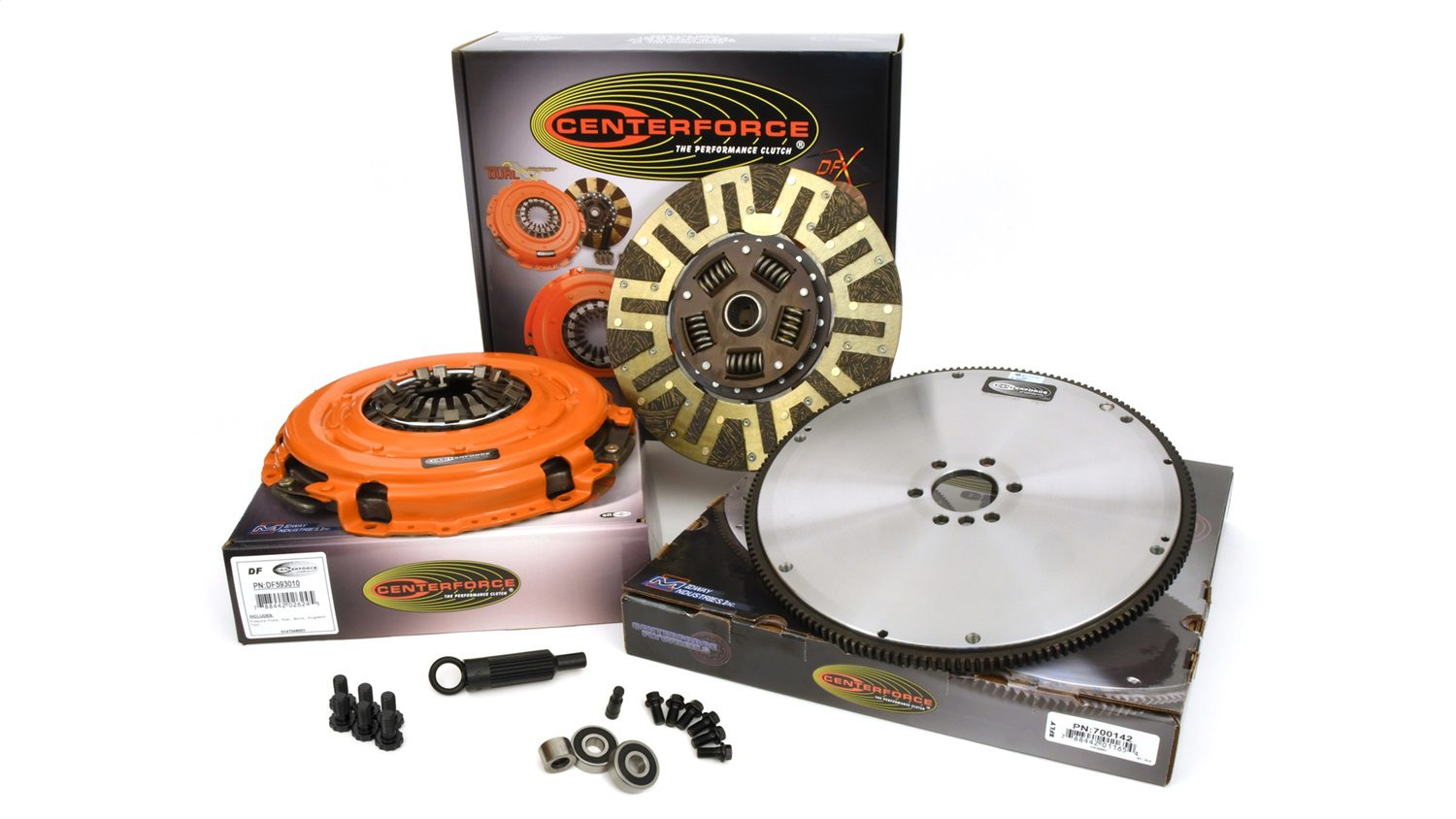

Clutch Kit - Dual Friction - Single Disc - 12 in Diameter - 1-1/8 in x 26 Spline - Sprung Hub - Steel Flywheel - Organic / Carbon - GM LS-Series - Kit

The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

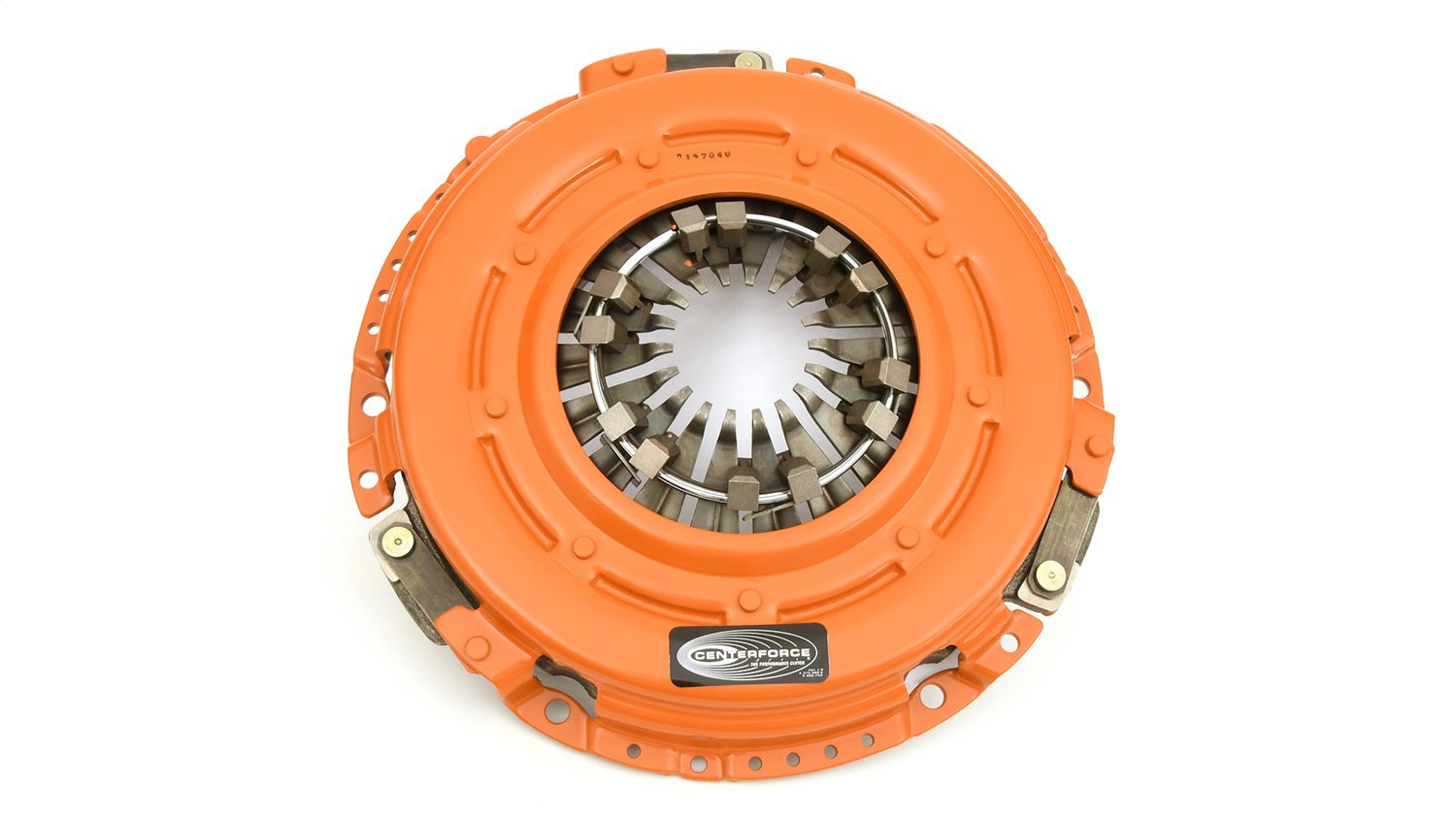

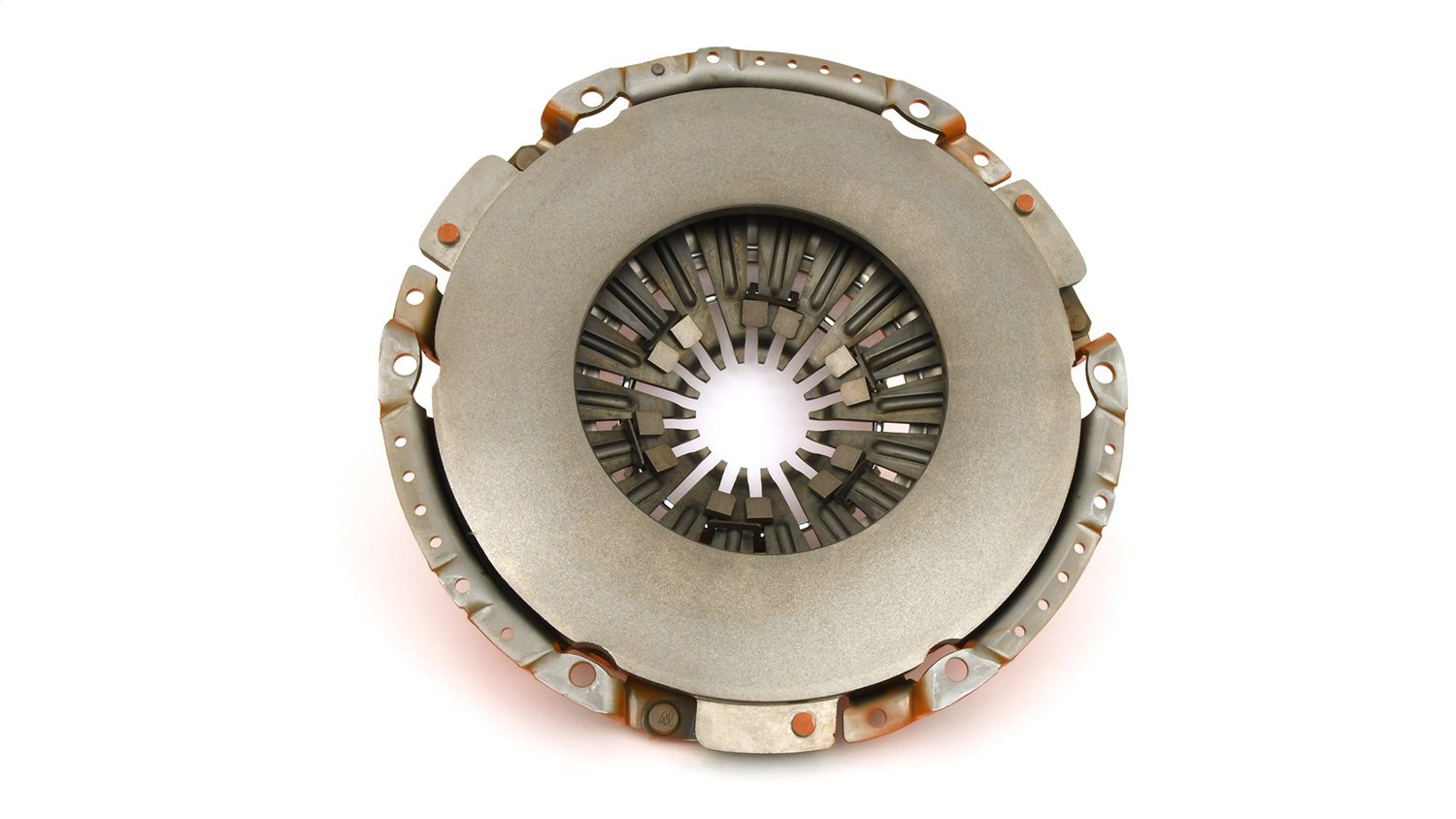

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

  • 12" Diameter
  • 304.8mm Diameter
  • 1-1/8" x 26 Spline Input Shaft
  • Holds Up To 700 ft/lbs of Torque

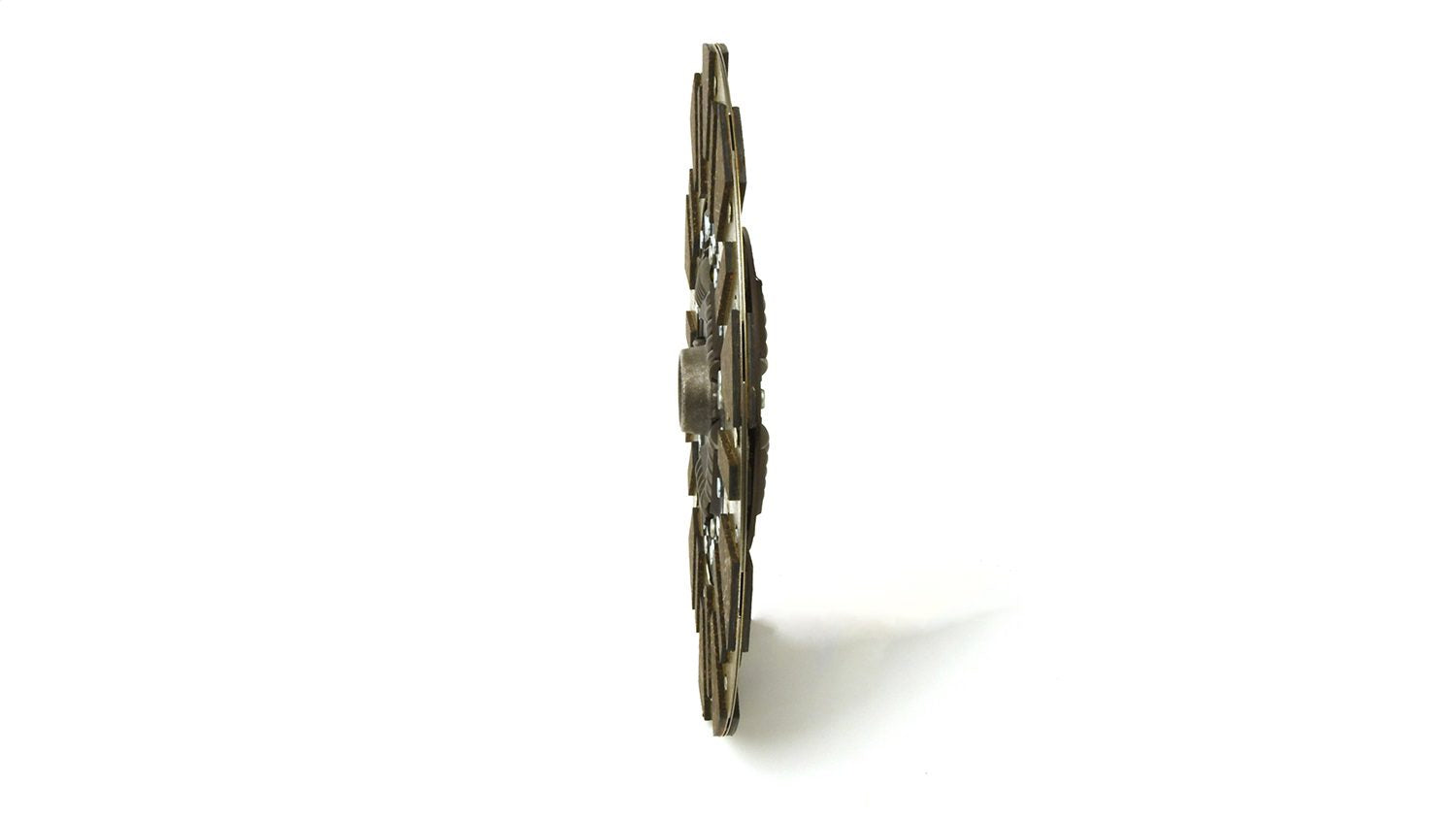

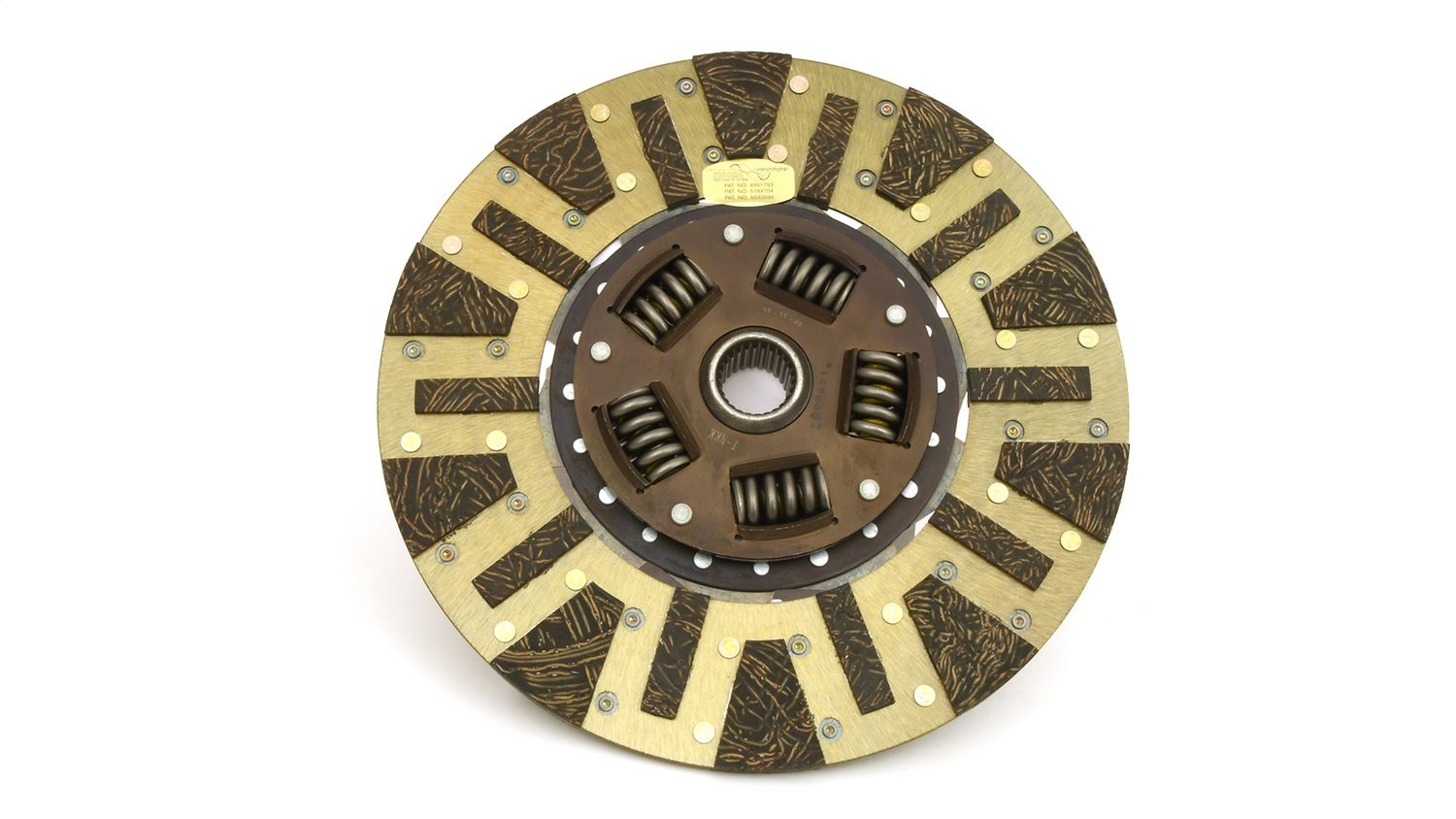

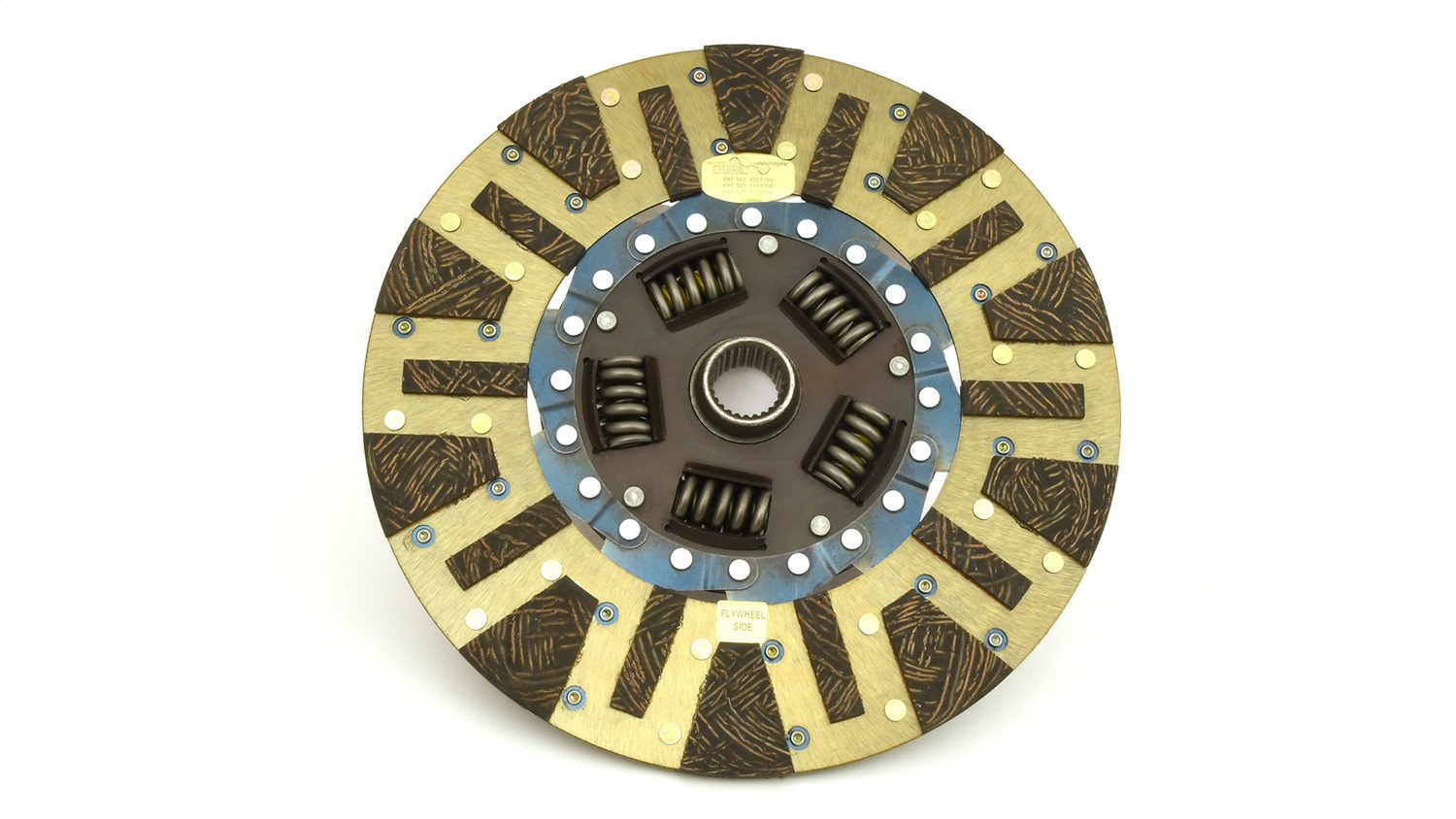

  • Sprung Hub Disc with Organic/Carbon Composite Material

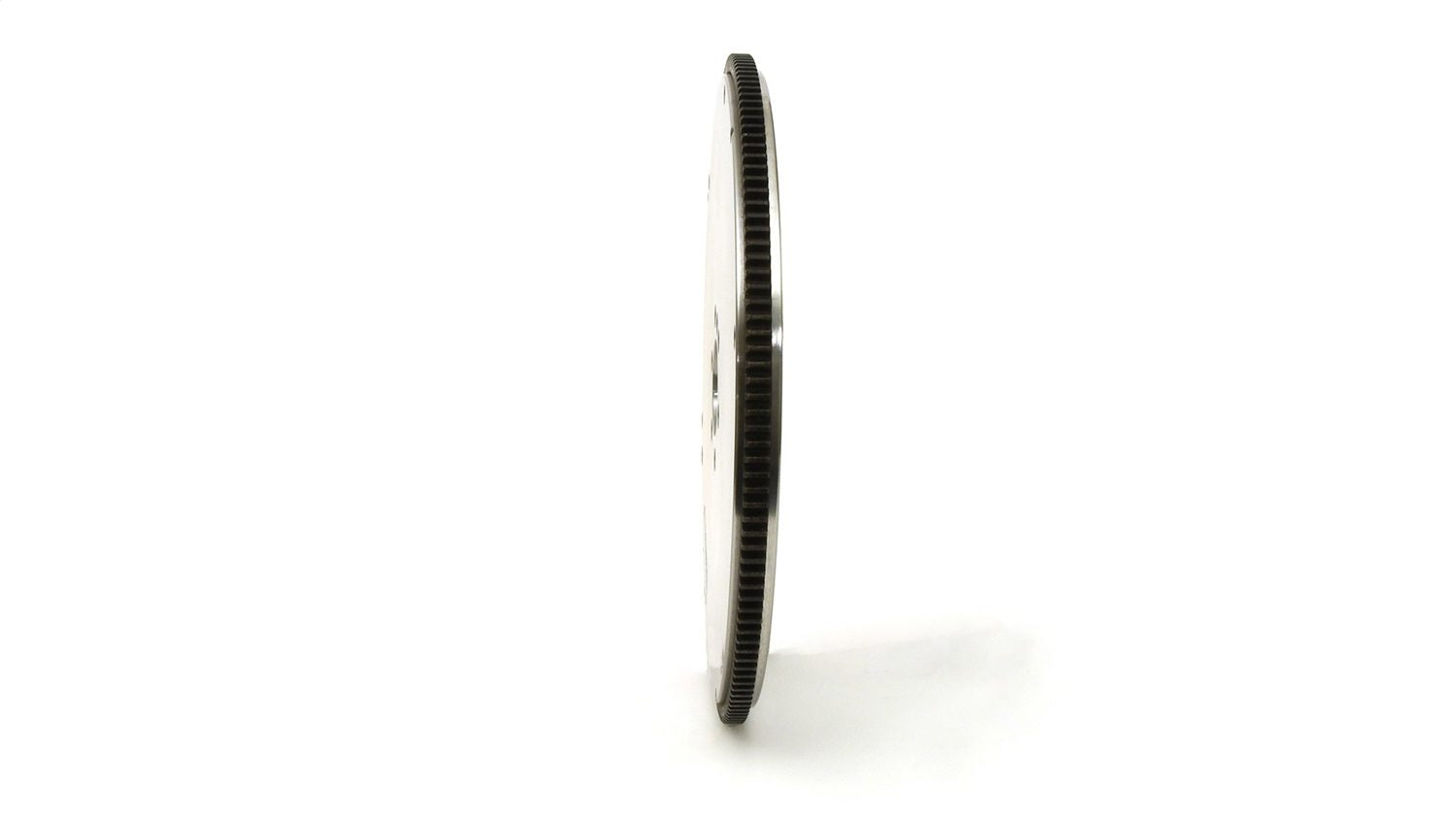

  • 168 Tooth R.Gear, 6 Bolt Crank, and 0 oz Counter Balance
Torque Capacity: 700
Tooth Quantity: 168
Disc Type Sprung Solid: Sprung
Input Shaft Diameter: 1-1/8
Counterweight Assist: YES
Input Spline Quantity: 26
Disc Material: Organic/Carbon composite
Disc Type: Segmented face
Clutch Bolt Pattern: 14
Ring Gear O.D.: 14.105
Clutch Disc Diameter: 12

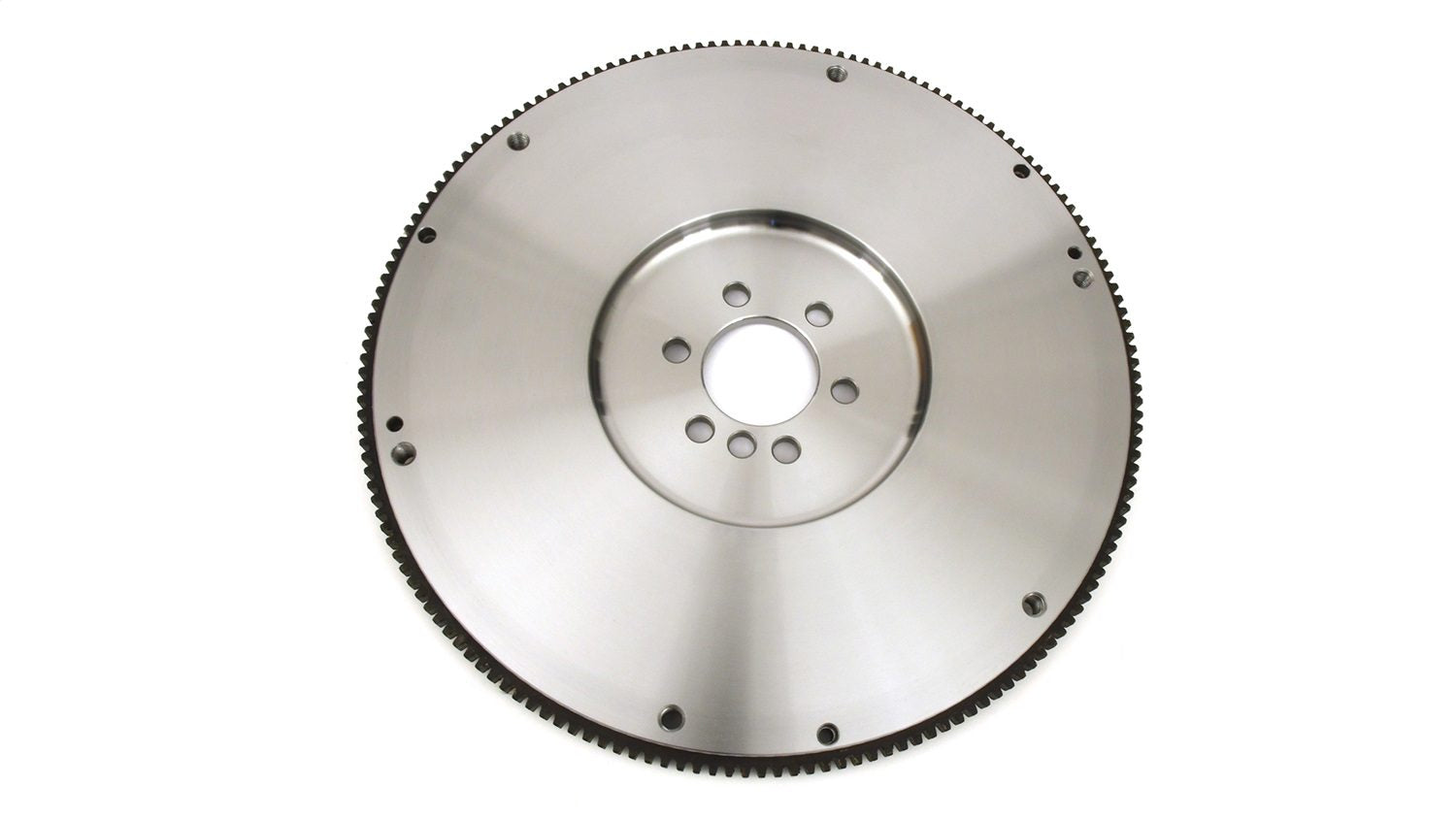

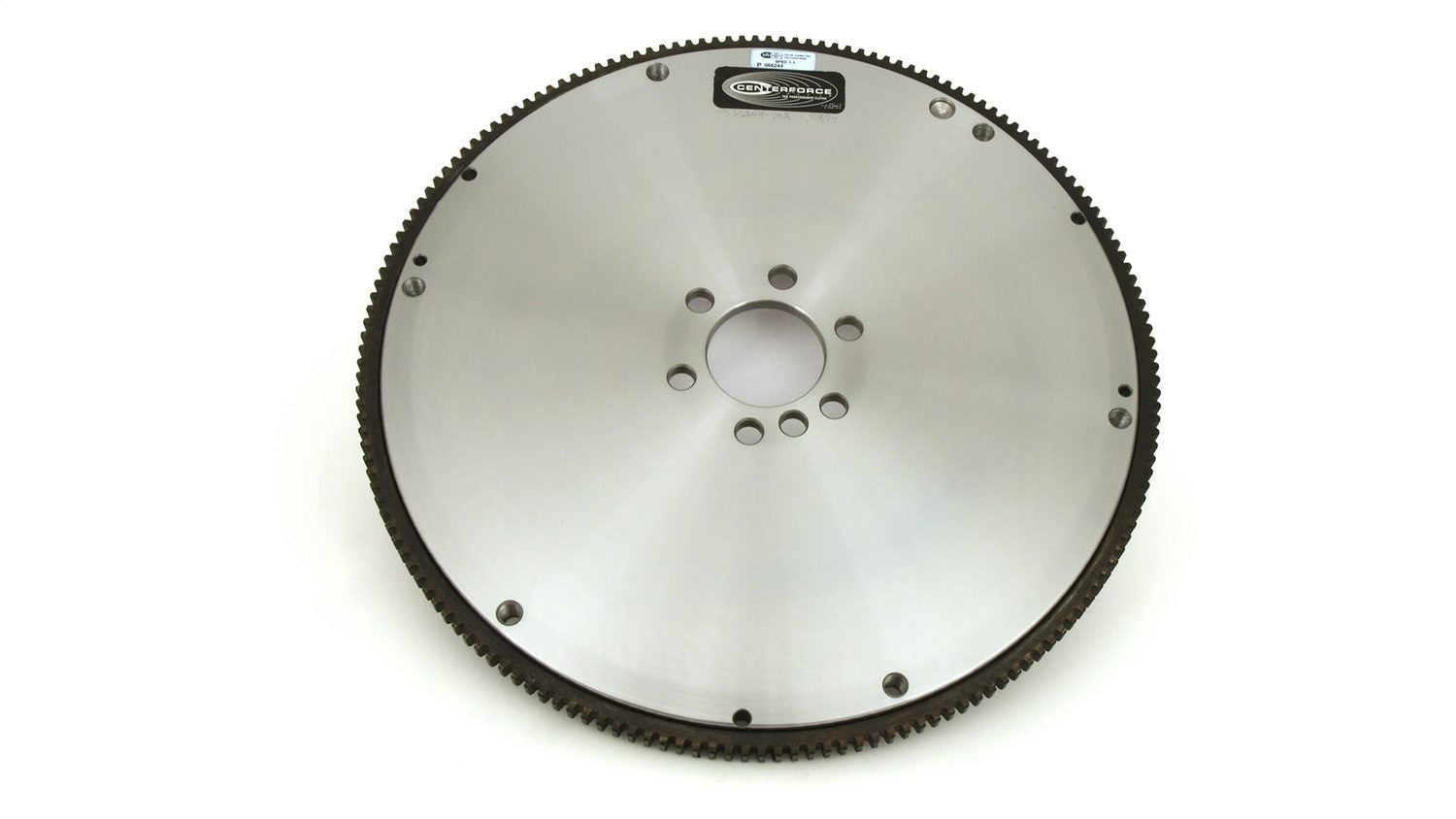

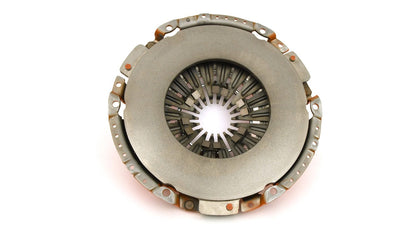

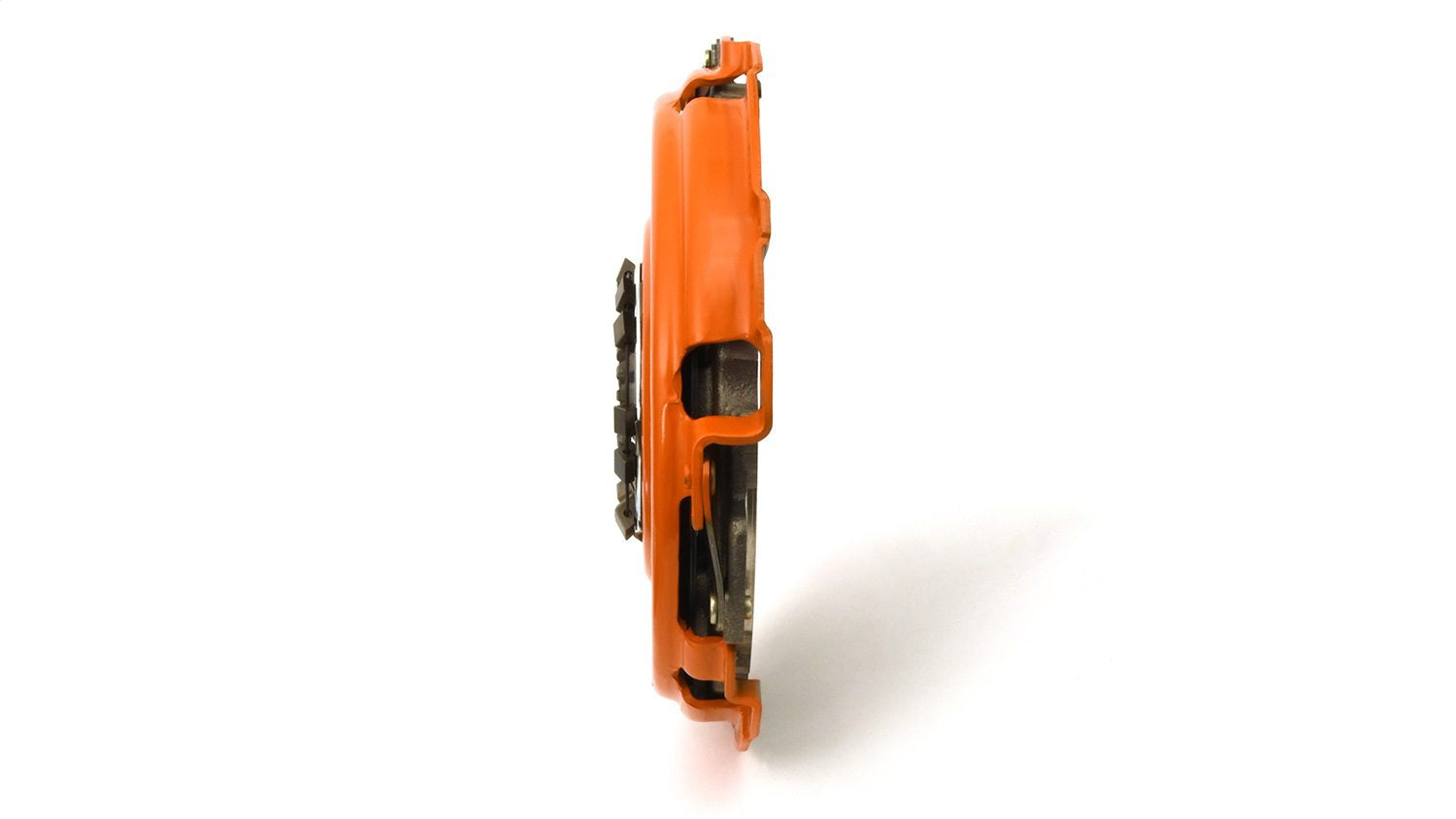

Material: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
Crankshaft Bolt Hole Quantity: 6
Flywheel Crank Flange Register: 2.068
Flywheel Counter Balance Weight: 0
Flywheel Crank Bolt Size: M11 x 1.50 x 23
Installed Height: 2.895
Pilot Bushing Included: Yes
Alignment Tool Included: Yes
Mounting Hardware Included: Yes
Made In The USA: Assembled
