Centerforce KDF148174 - Dual Friction ?, High Performance Clutch and Flywheel Kit, 83.60 lbs, 146 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 563 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Wrangler 3.8L

Centerforce KDF148174 - Dual Friction ?, High Performance Clutch and Flywheel Kit, 83.60 lbs, 146 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 563 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Wrangler 3.8L

Centerforce | KDF148174
SKU: BDPL-KDF148174
Regular price $1,102.95 USD
Regular price $1,378.99 USD Sale price $1,102.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

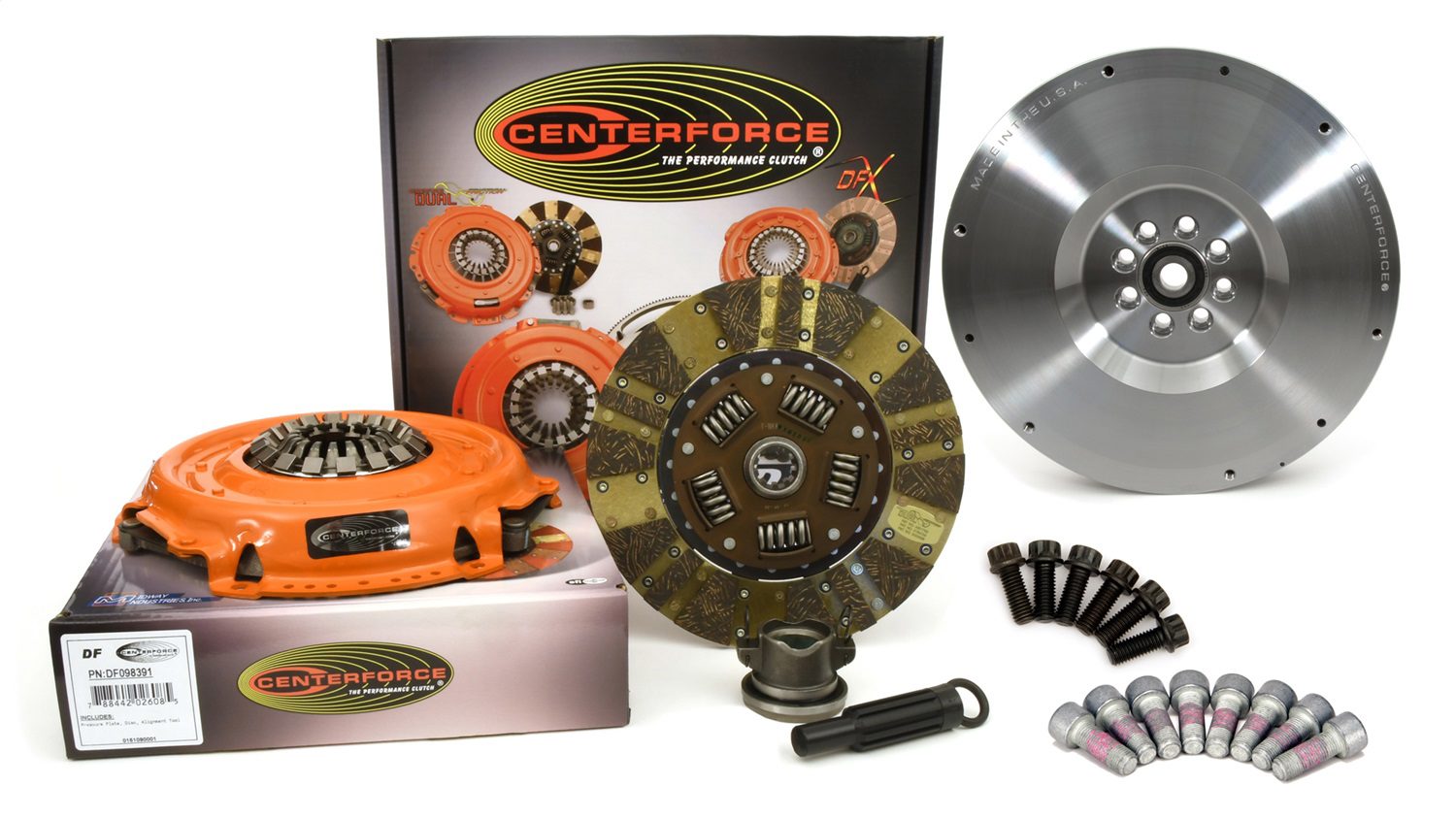

Centerforce KDF148174 - Dual Friction ?, High Performance Clutch and Flywheel Kit, 83.60 lbs, 146 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 563 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Wrangler 3.8L

Clutch Kit - Dual Friction - Single Disc - 10.4 in Diameter - 1-1/8 in x 10 Spline - Sprung Hub - Steel Flywheel - Organic / Carbon - Jeep Wrangler JK 2007-11 - Kit

The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

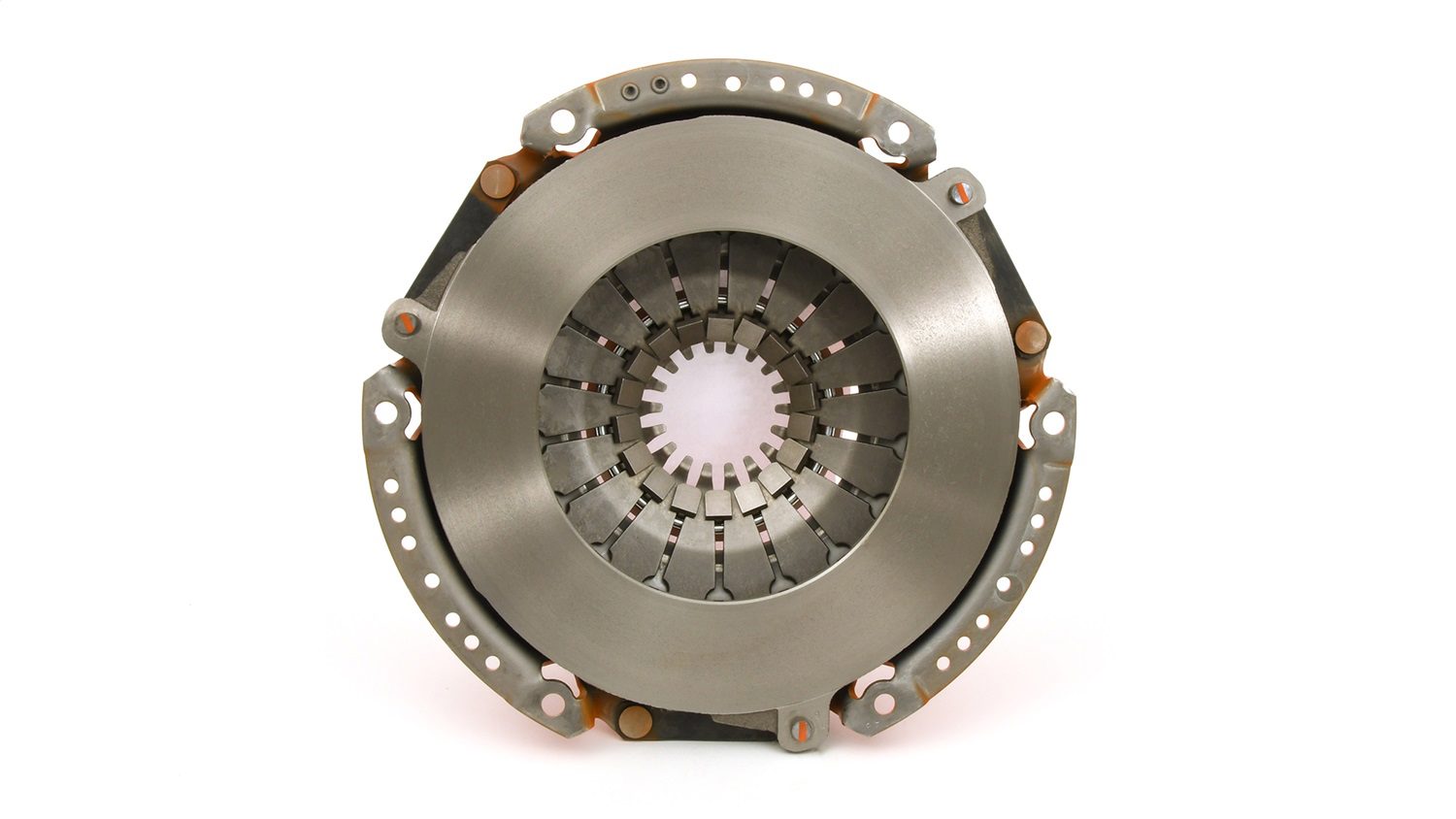

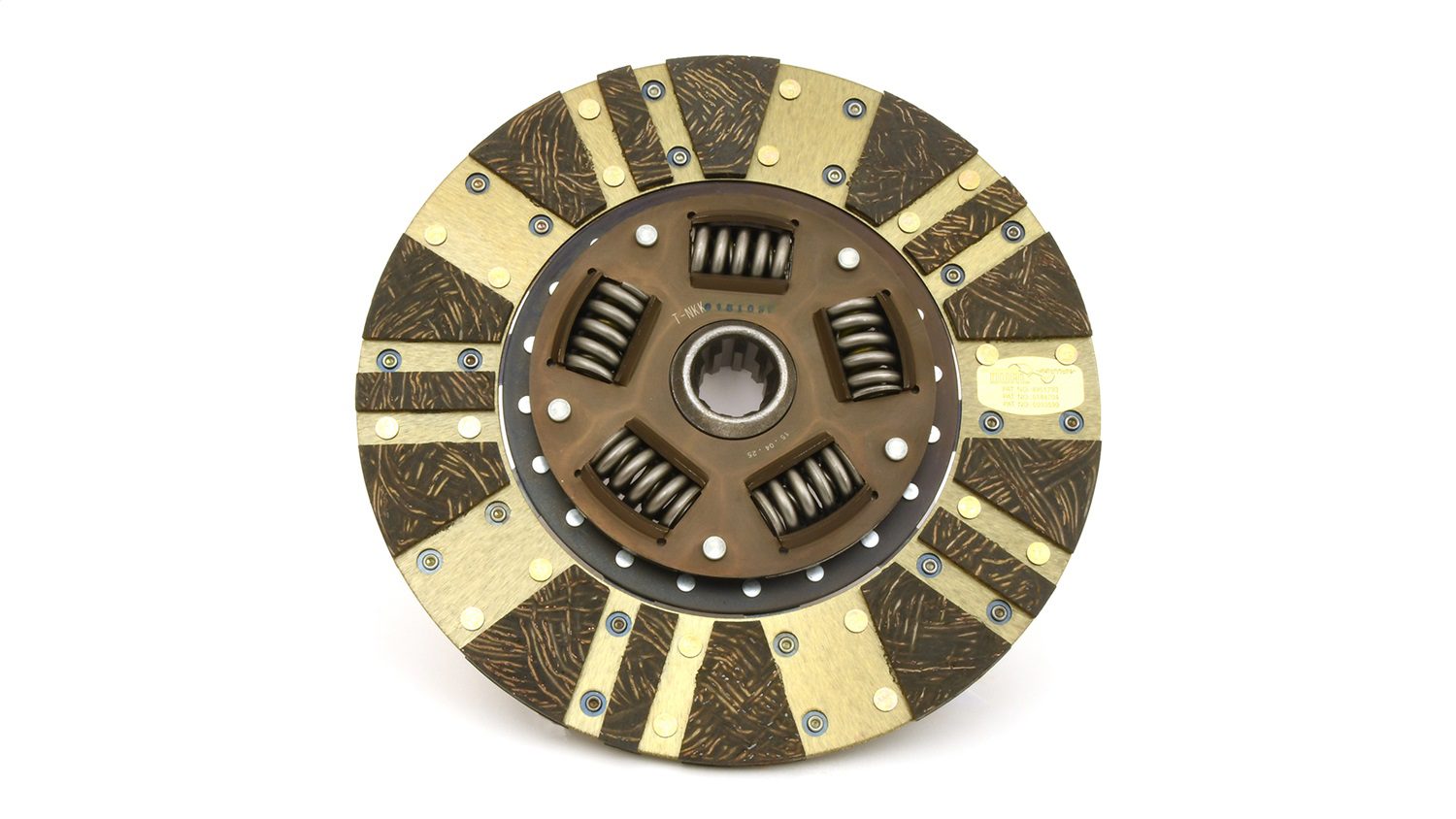

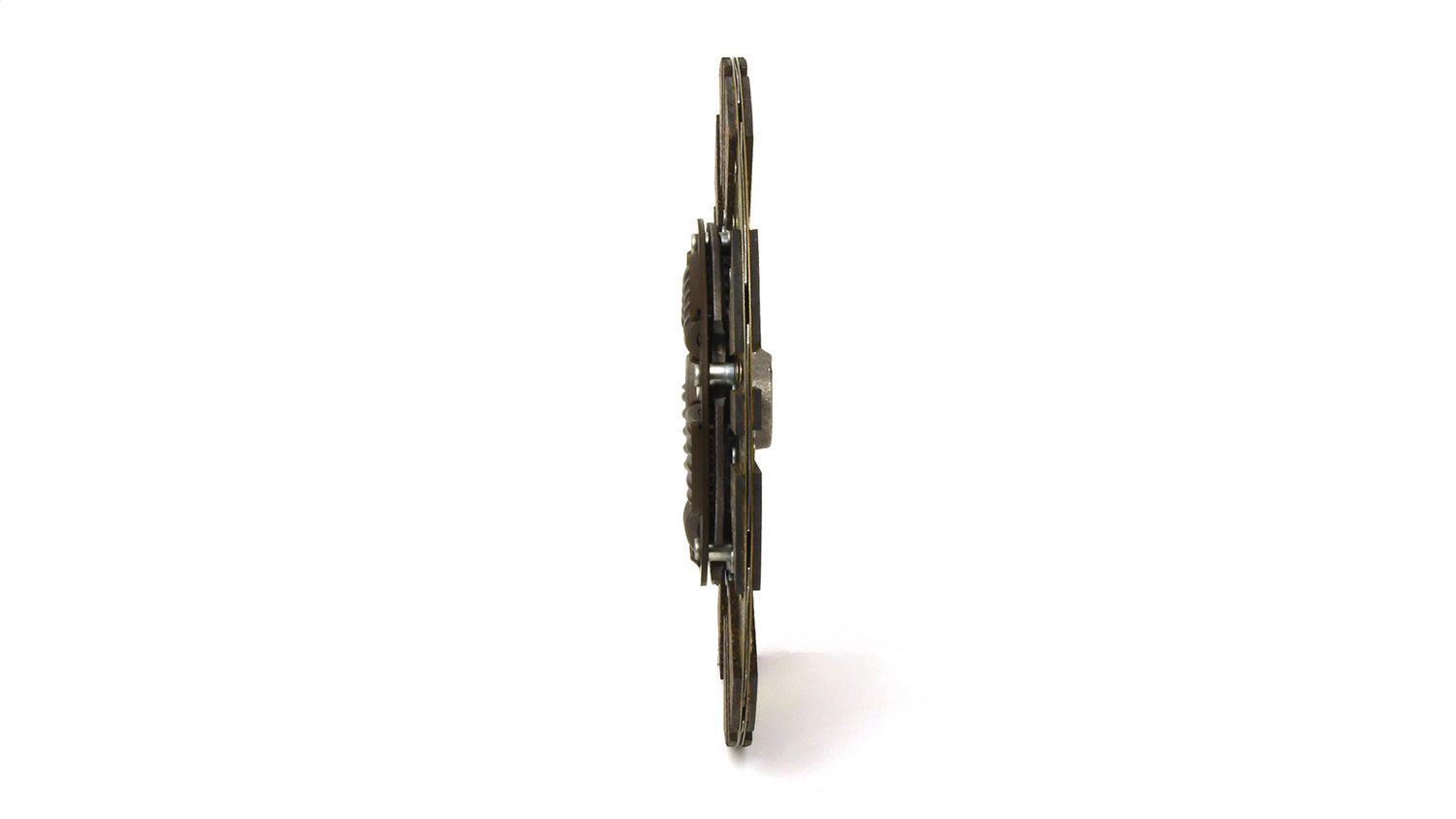

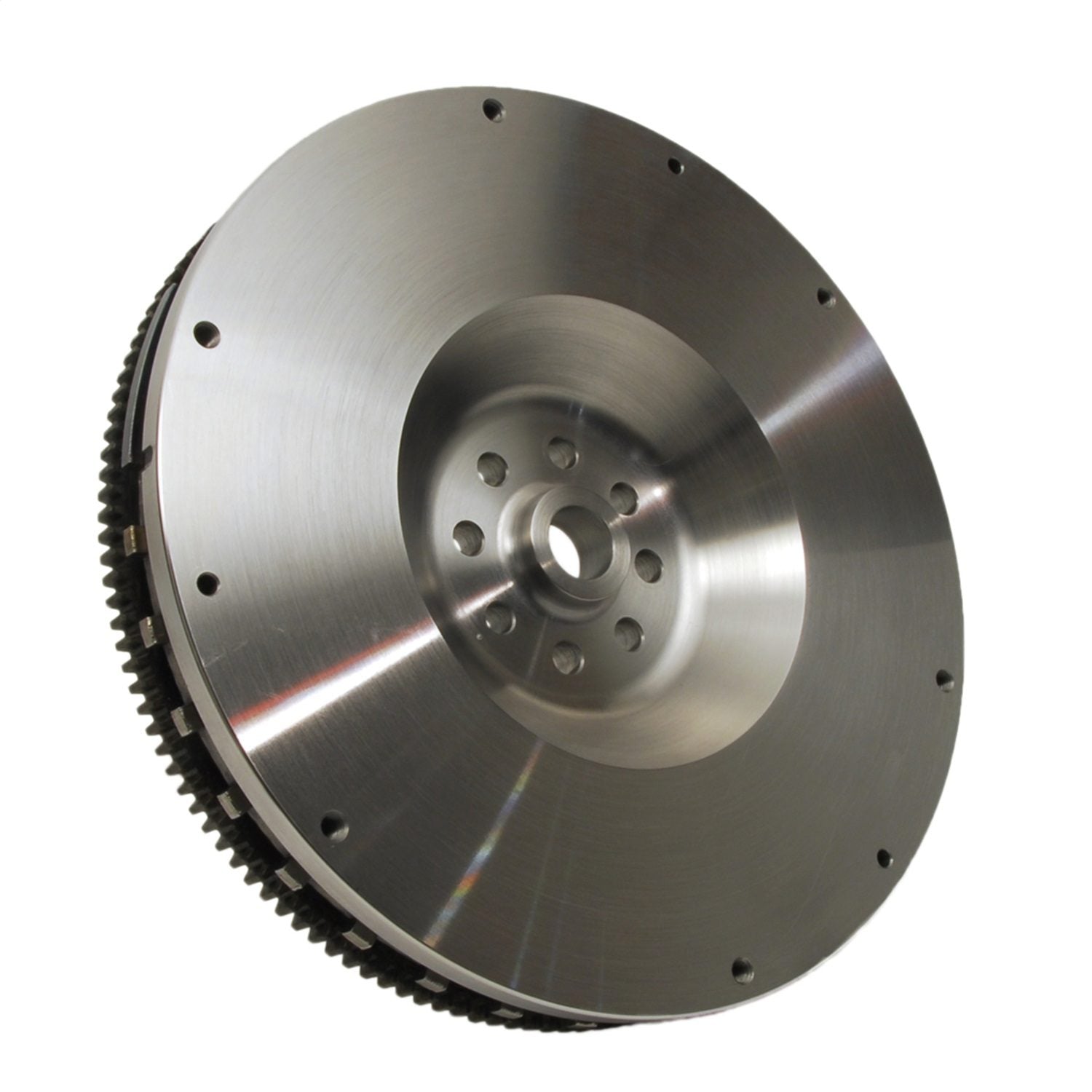

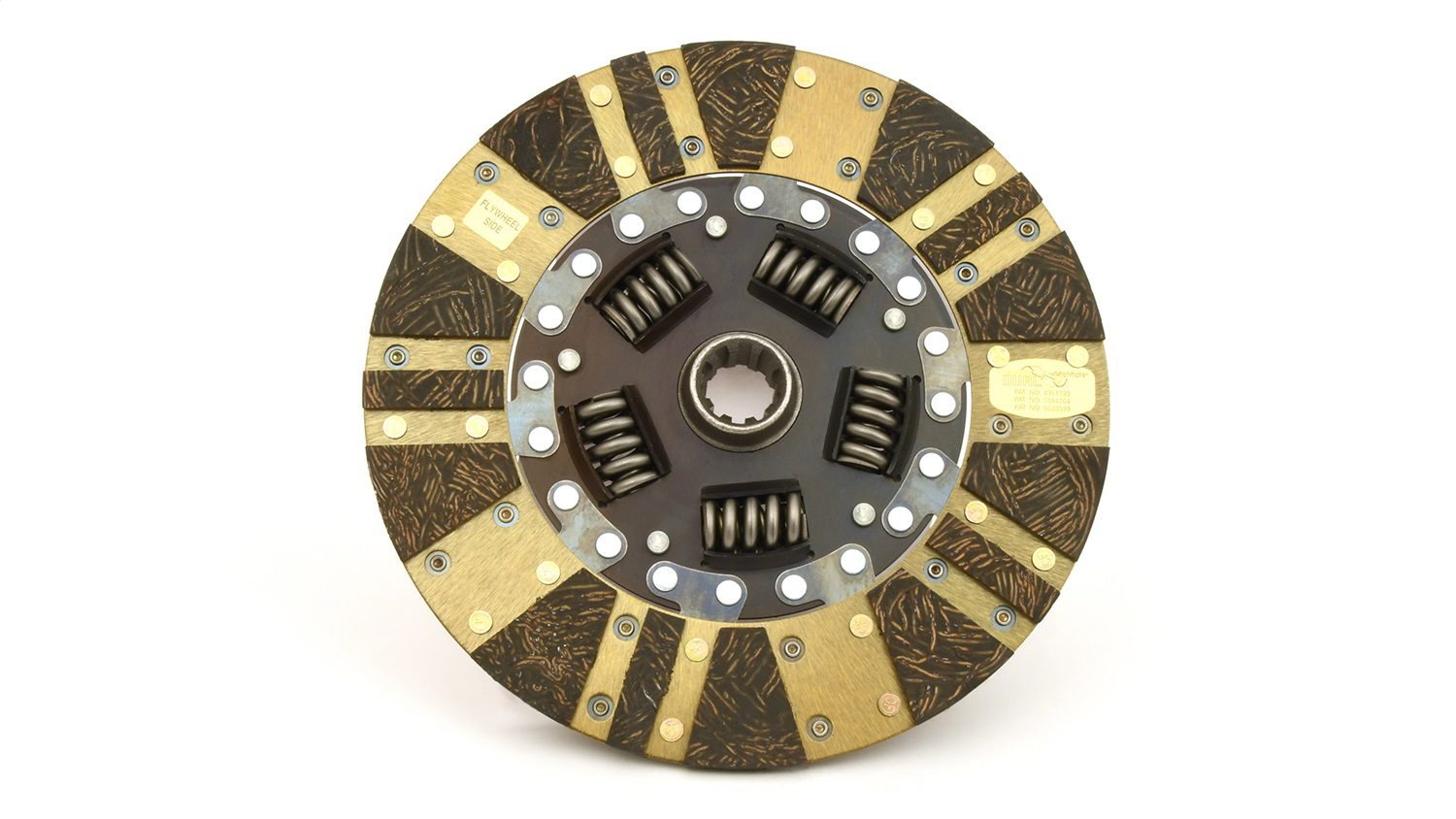

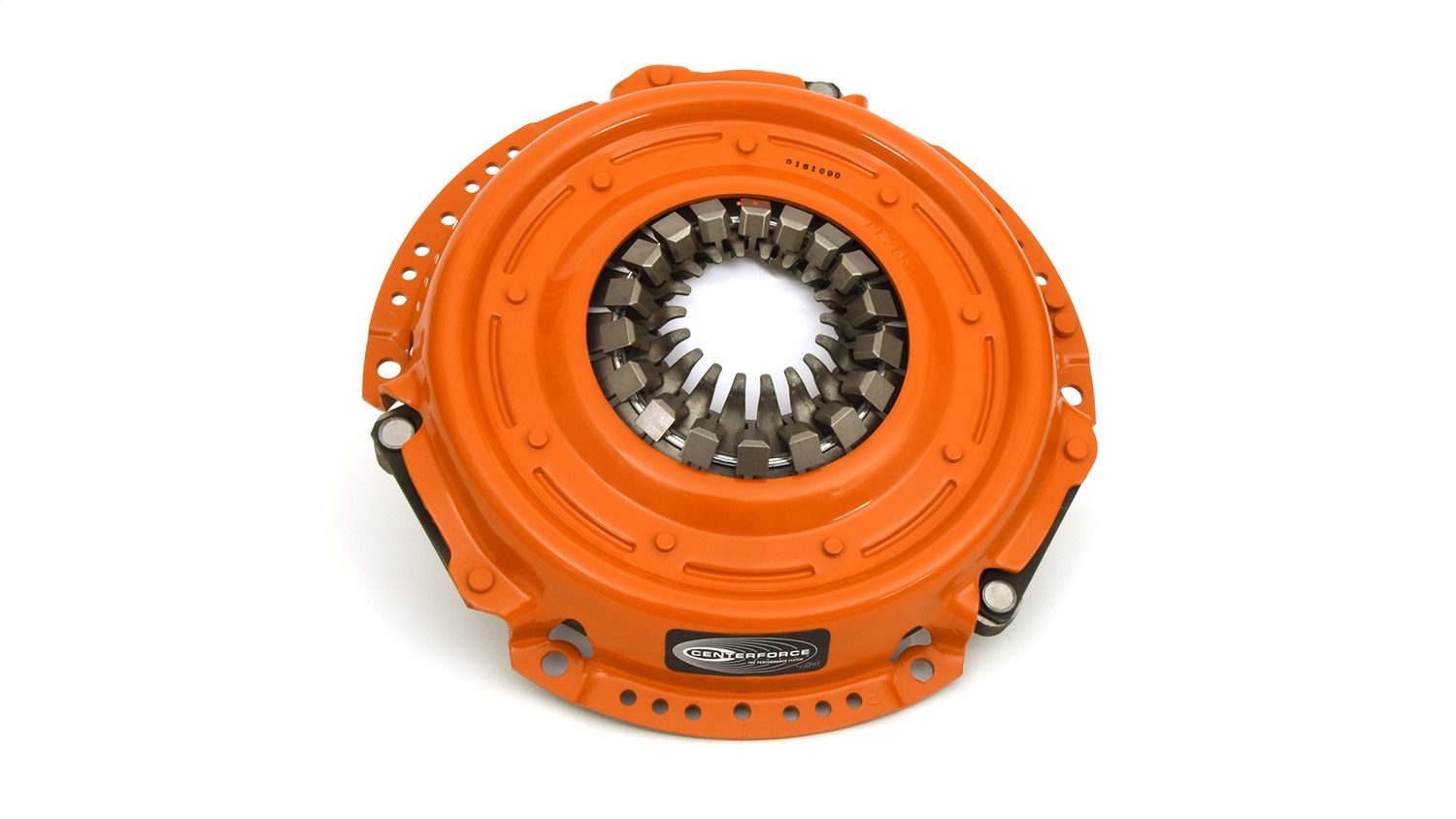

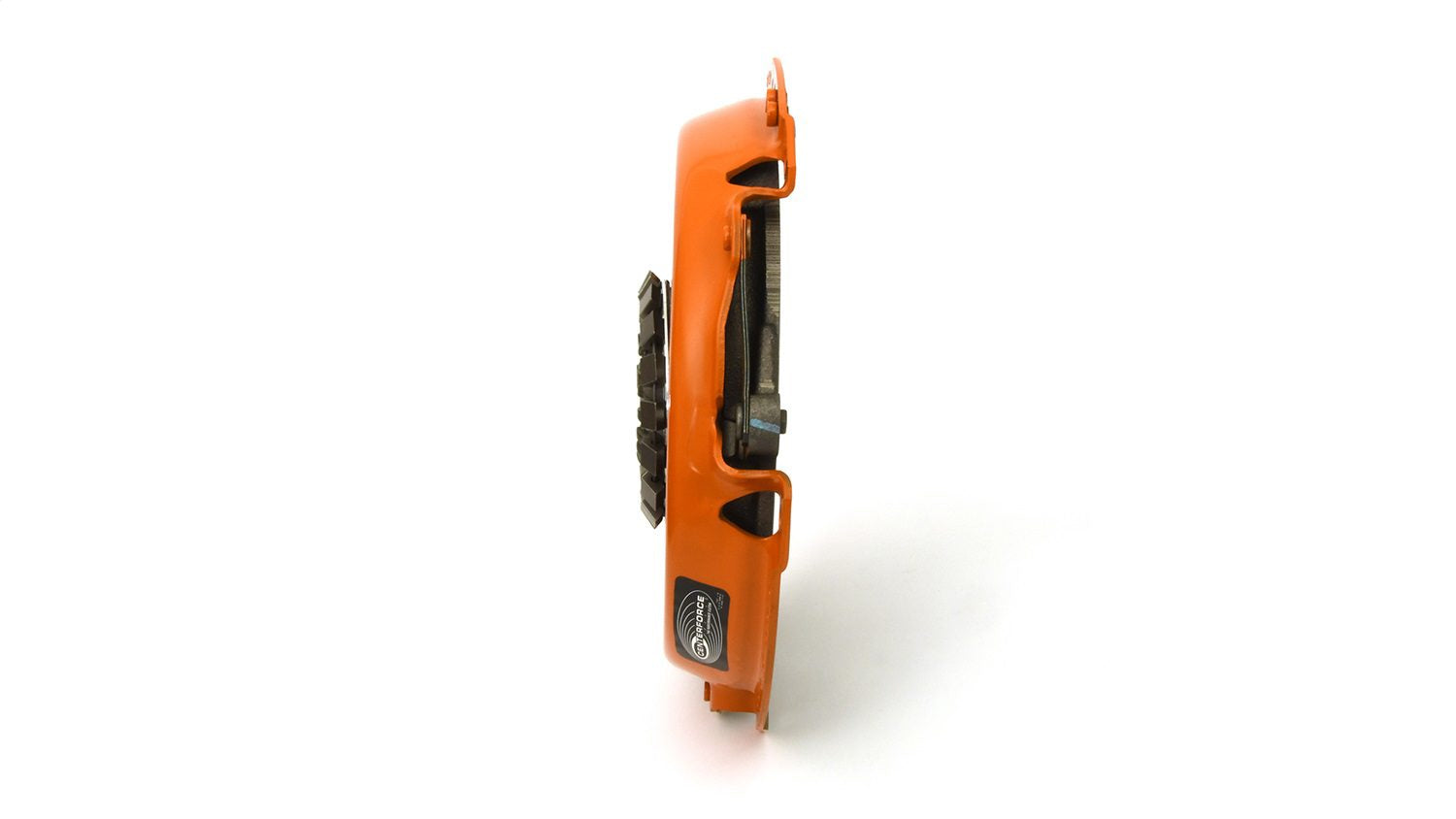

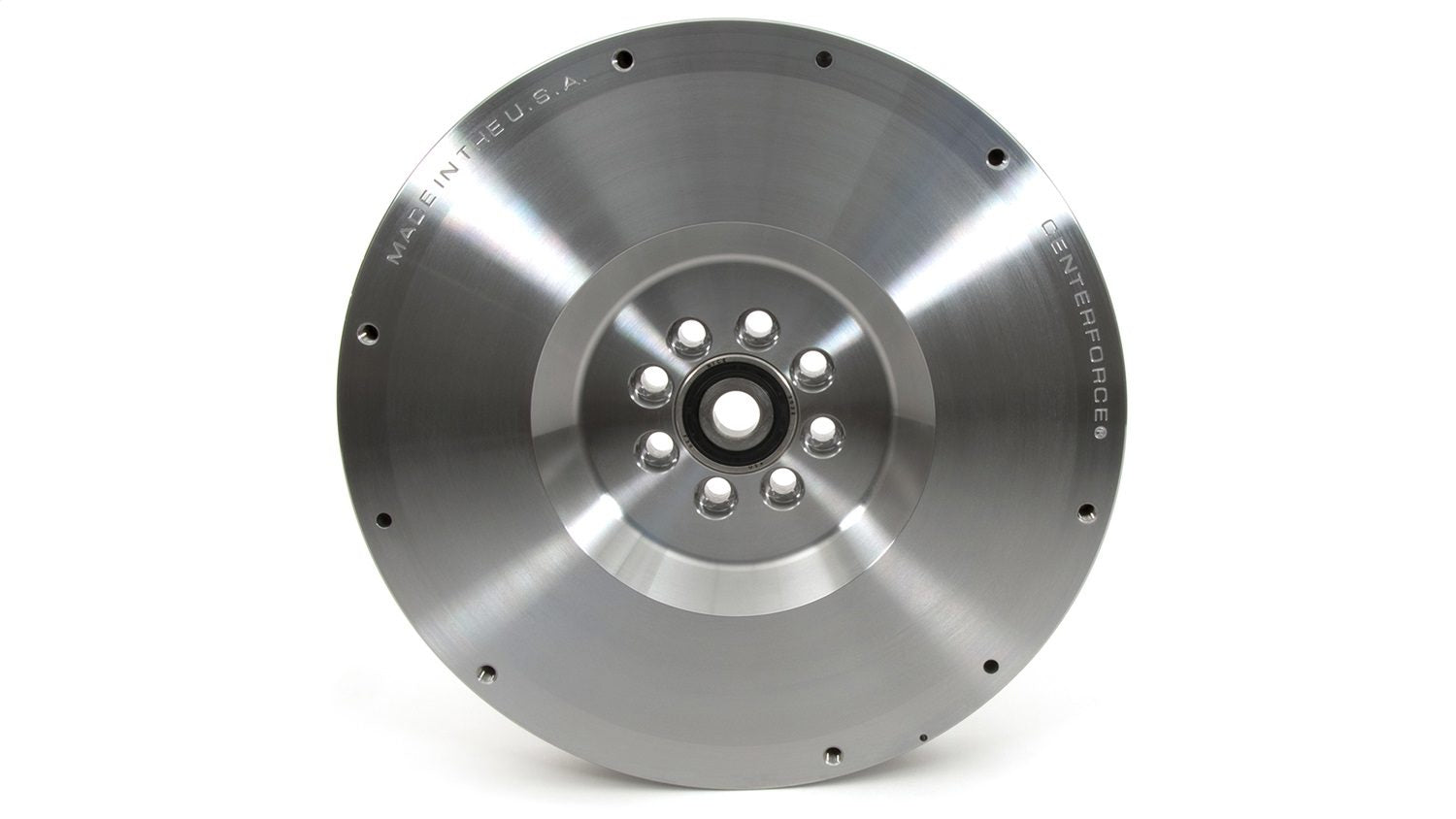

Experience unparalleled performance with the Centerforce Dual Friction Clutch Kit, designed to meet the demands of both street and off-road enthusiasts. This kit features a performance-matched pressure plate and disc combination, utilizing patented technologies to deliver exceptional holding capacity and durability. The high-strength cast iron pressure plate, combined with a high inertia billet steel flywheel, ensures maximum performance and reliability. The high inertia design helps the engine maintain its RPM in rough terrain, providing smoother and more consistent power delivery. The Dual Friction disc, with an organic full facing on one side and an organic segmented facing on the other, provides increased holding capacity and longevity, making it ideal for both street and mild competition applications. The Centerforce Dual Friction Clutch Kit includes all necessary assembly hardware, ensuring a straightforward installation process. With its advanced centrifugal weight system, this clutch kit offers smooth engagement and exceptional street characteristics without sacrificing pedal effort and driver control. Whether you?re navigating city streets or tackling rugged off-road trails, the Centerforce Dual Friction Clutch Kit delivers the ultimate in performance and reliability. Upgrade your vehicle today and feel the difference in power and control. Are you ready to elevate your driving experience?

  • 10.4" Diameter
  • 264.2mm Diameter
  • 1-1/8" x 10 Spline Input Shaft
  • Holds Up To 563 ft/lbs of Torque
  • Weighs 83.60 lbs
  • Sprung Hub Disc with Organic/Carbon Composite Material
  • 146 Tooth R.Gear, 8 Bolt Crank, and 0 oz Counter Balance
Out of Package Weight: 83.60
Torque Capacity: 563
Tooth Quantity: 146
Disc Type Sprung Solid: Sprung
Input Shaft Diameter: 1-1/8
Counterweight Assist: YES
Input Spline Quantity: 10
Disc Material: Organic/Carbon composite
Disc Type: Segmented face
Ring Gear O.D.: 12.345
Clutch Disc Diameter: 10.4
Dowel Pin Quantity Cover To Flywheel: 3
Material: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
Clutch Bolt Type: Shouldered
Crankshaft Bolt Hole Quantity: 8
Flywheel Crank Flange Register: 1.889
Flywheel Counter Balance Weight: 0

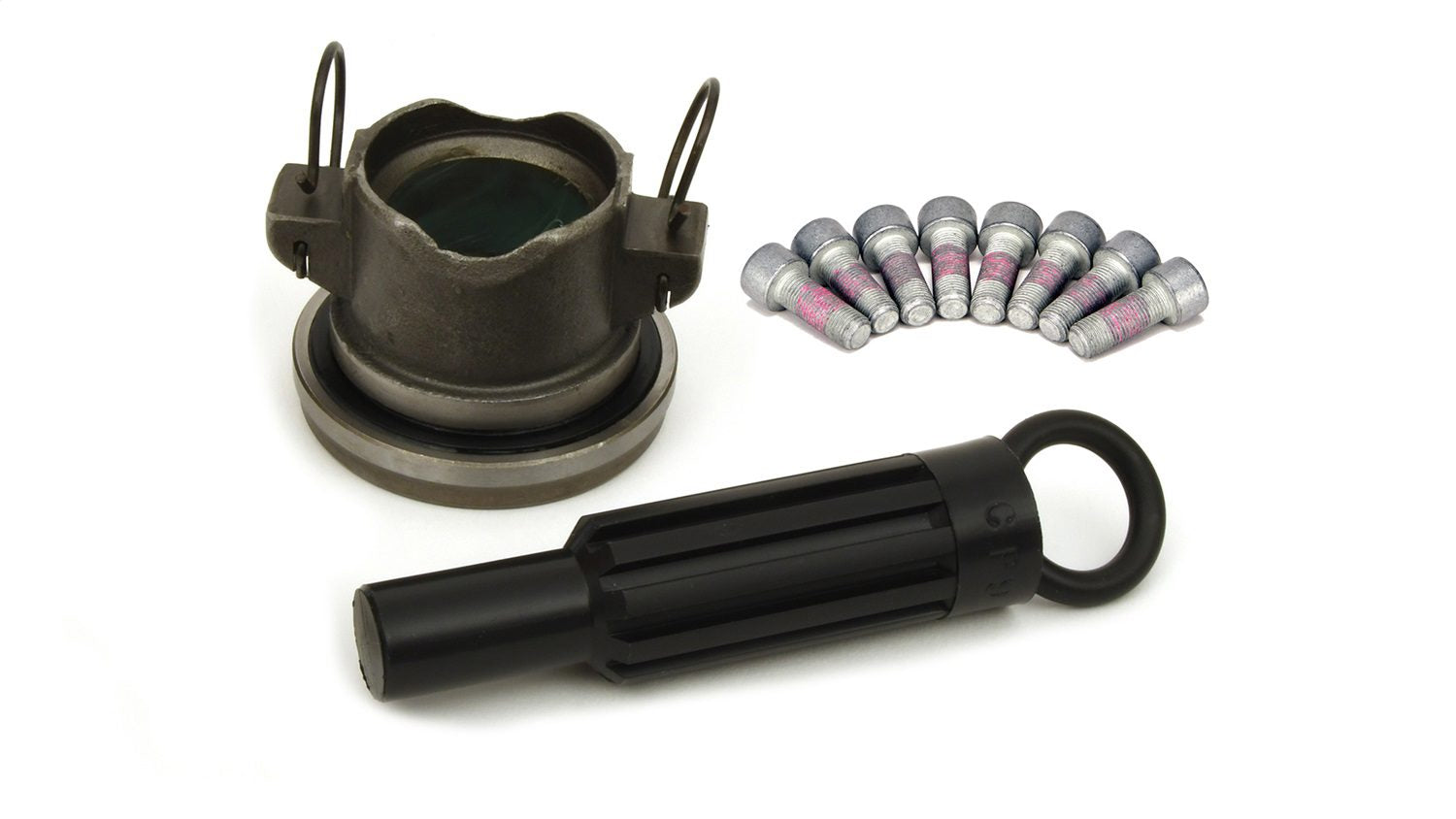

Release Bearing Included: Yes
Pilot Bushing Included: Yes
Alignment Tool Included: Yes
Mounting Hardware Included: Yes
Made In The USA: Assembled
