Centerforce - KCF524816

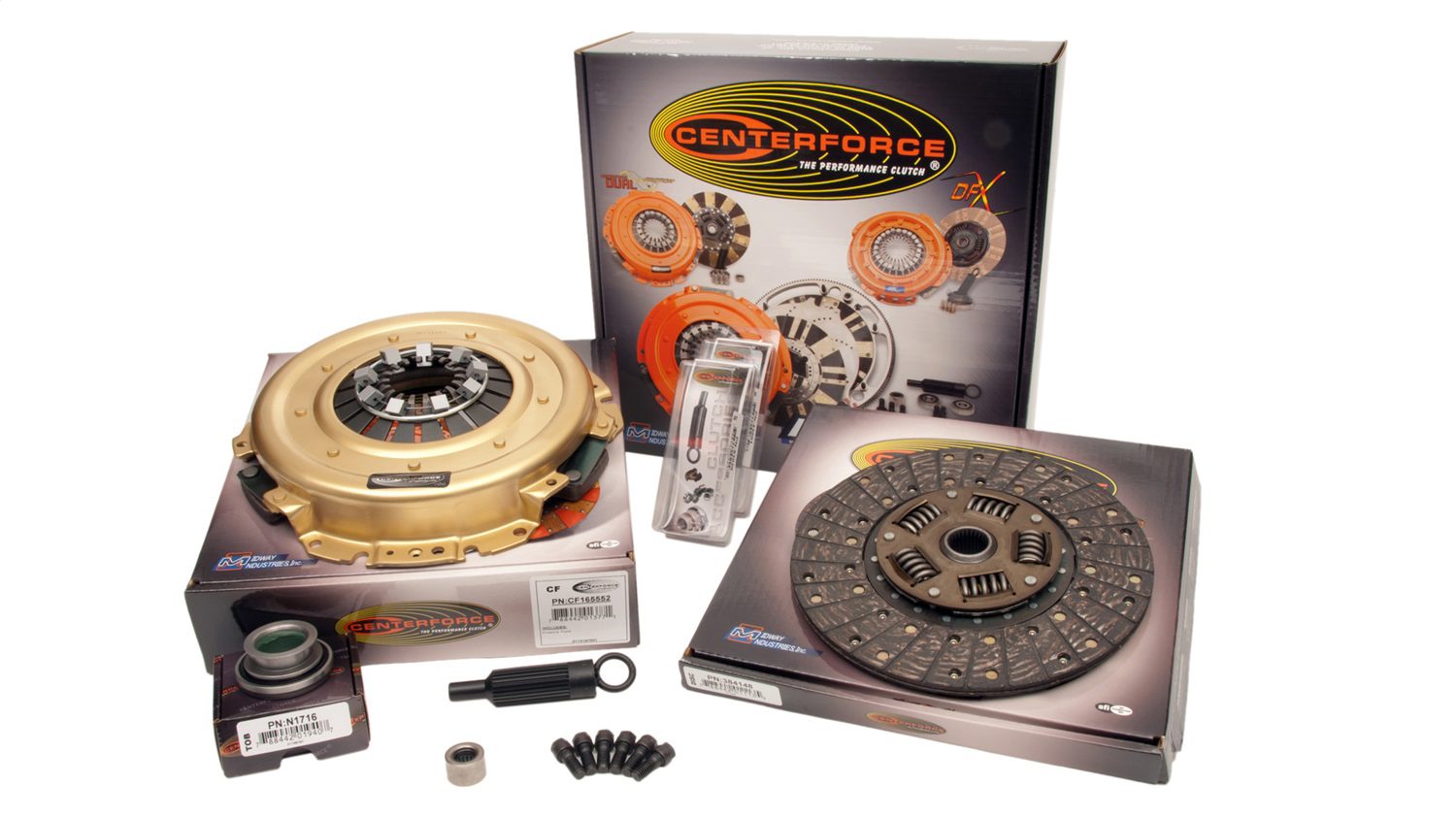

Centerforce(R) I, Clutch Kit
The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
- 11" Diameter
- 279.4mm Diameter
- 1-1/8" x 26 Spline Input Shaft
- Holds Up To 522 ft/lbs of Torque
- Sprung Hub Disc with Organic Material
- Centrifugally Assisted
- High Quality Friction Material
- Light Pedal Effort
- Smooth Engagement
Pilot Bushing Included: Yes
Release Bearing Included: Yes
Torque Capacity: 522
Alignment Tool Included: Yes
Clutch Bolt Pattern: 3
Clutch Bolt Size: 3/8 - 16 X 0.900
Clutch Bolt Type: Shouldered
Clutch Disc Diameter: 11
Clutch Disc Diameter: 279.4
Counterweight Assist: YES
Disc Material: Organic
Disc Type Sprung Solid: Sprung
Disc Type: Full face
Flywheel Step Type: Flat
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 26
Made In The USA: Assembled
Material: Nodular Iron Pressure Plate / Organic Friction
Mounting Hardware Included: Yes
