Carli Suspension CS-FRAD-LVL-23 - Carli 2023+ Ford F250/350 4x4 Radius Arm Drop Brackets - 3.5in Lift

Carli Suspension CS-FRAD-LVL-23 - Carli 2023+ Ford F250/350 4x4 Radius Arm Drop Brackets - 3.5in Lift

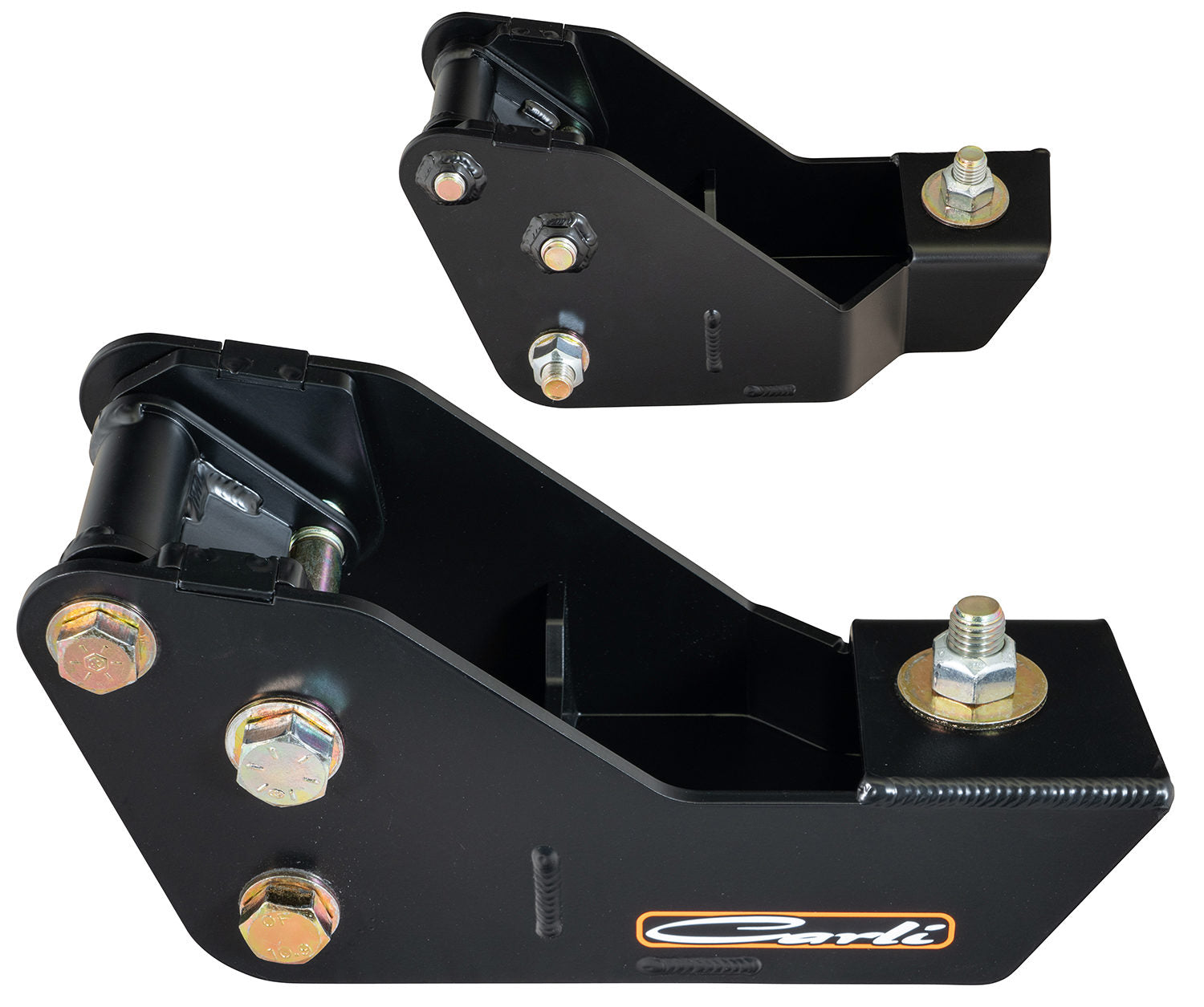

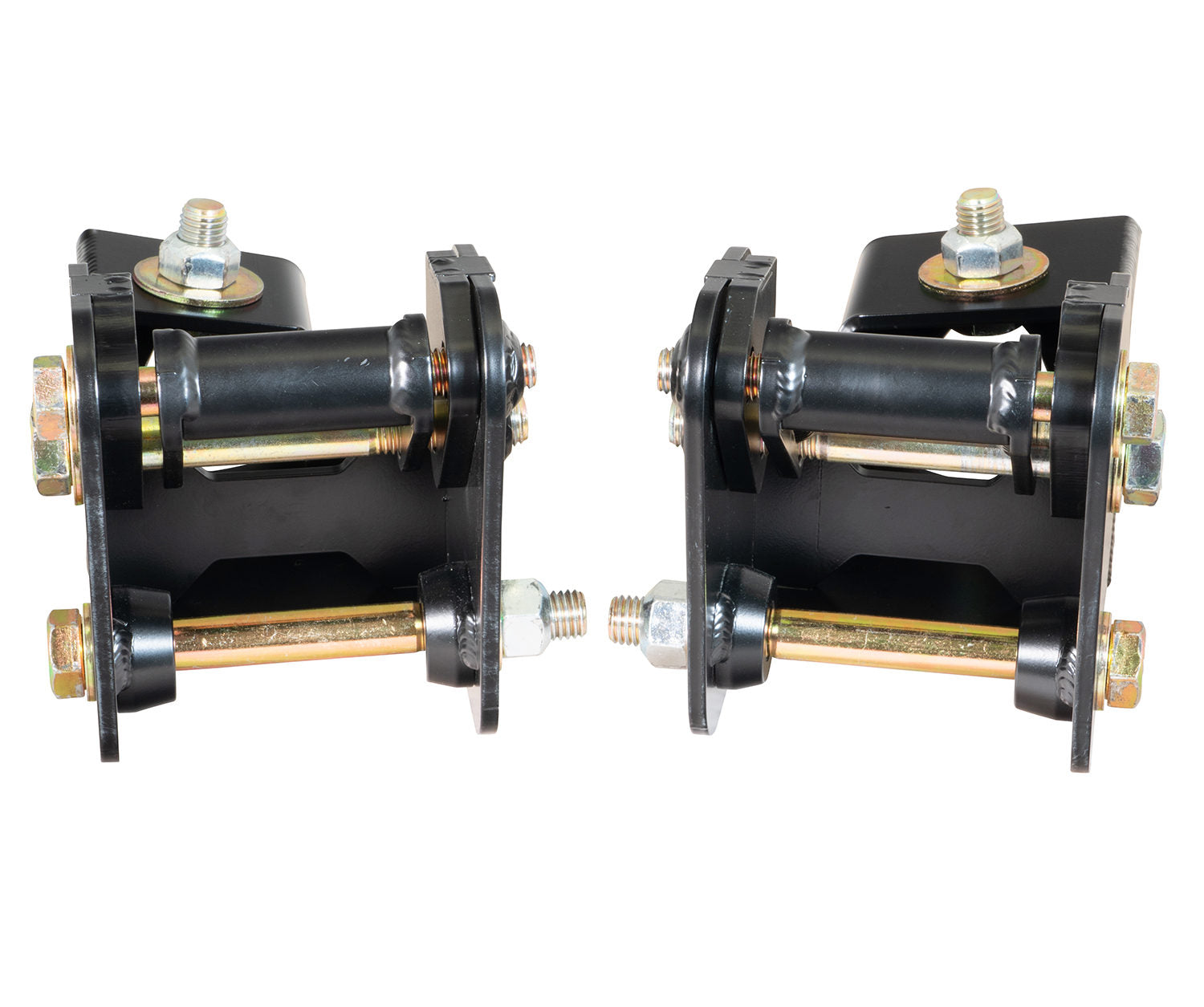

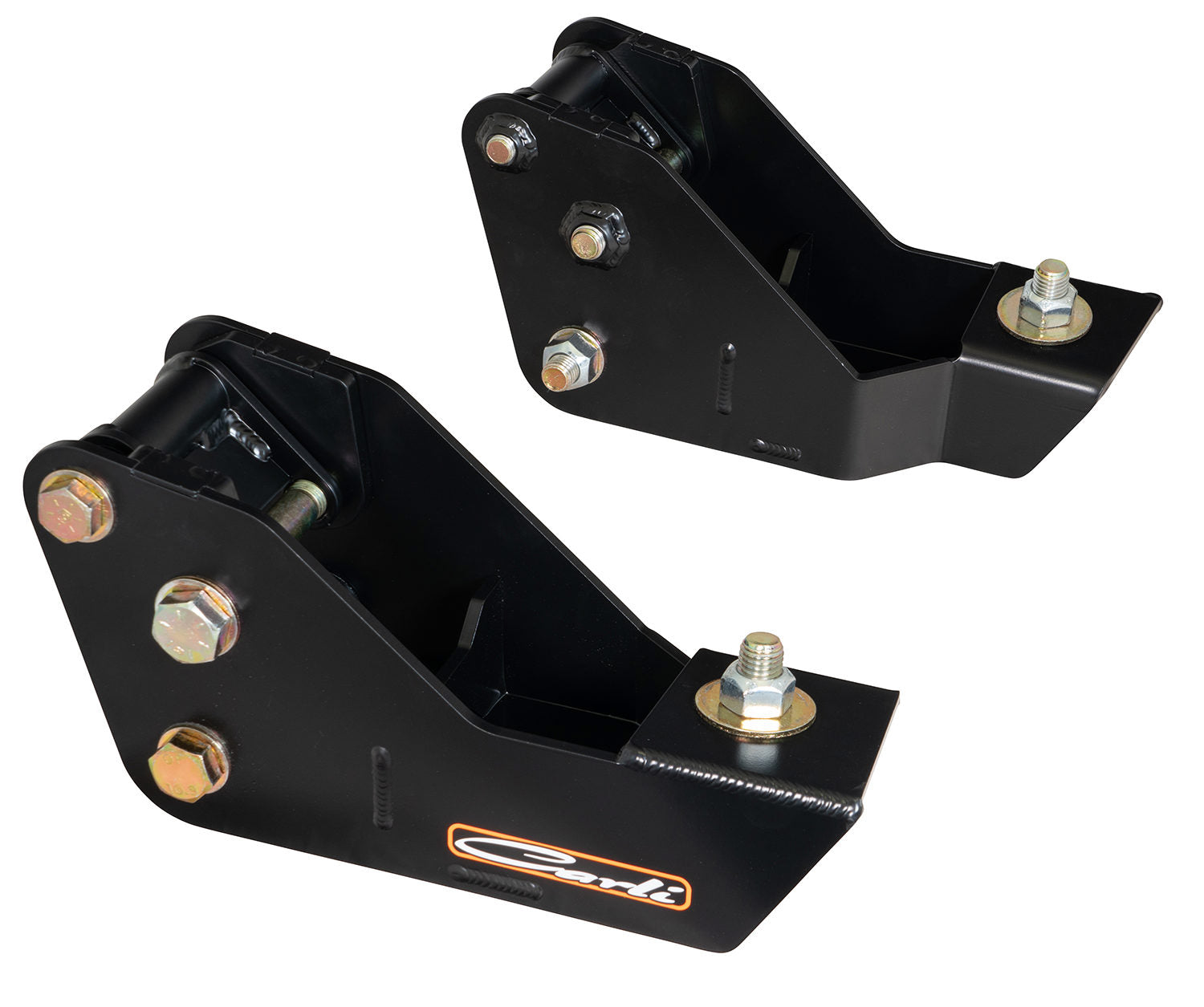

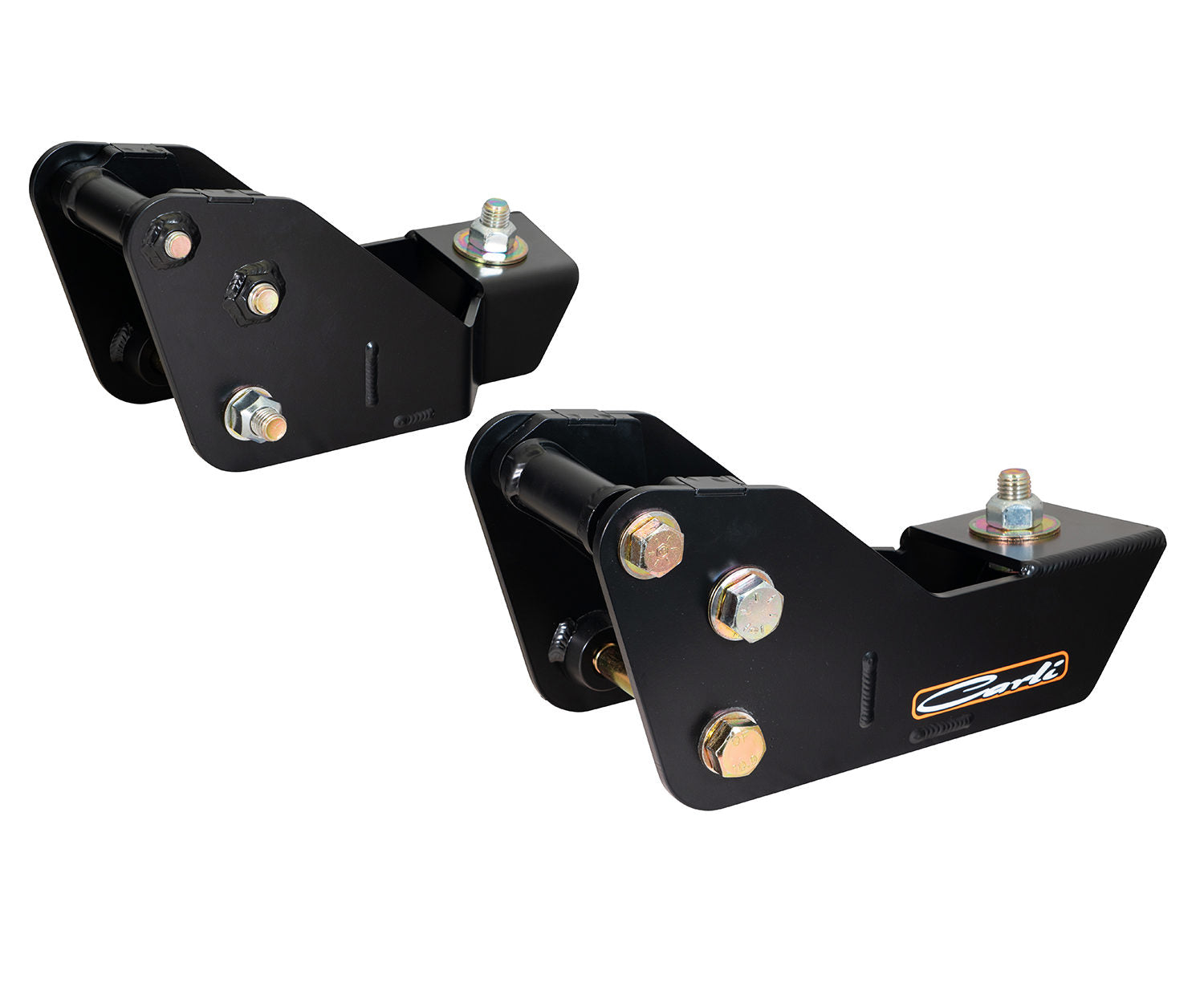

CARLI 23+ FORD F250/350 4X4 RADIUS ARM DROP BRACKETS - 3.5" LIFT

Designed for perfect fitment on the updated 2023+ Ford Superduty trucks, these drops will correct geometry with 3.5" lifts.

When lifting the front of the Super Duty 3 – 3.5″, the factory caster is reduced by approximately 1.5°. For the 2020-23 Super Duty, we provide a 2° caster shim which is enough to restore this caster and add a touch more – unfortunately, this “touch more” is rarely enough for proper tracking. This leaves us recommending our Adjustable Radius Arms proven to add an additional 2.5° of caster (when maxed). Combining the Carli Arms and 2° shims results in a Super Duty on 37″ tires that holds a lane, and returns to center after a turn, better than a stock truck.

• Drops pivot point for ideal radius arm angle on 3.5" lifts.
• Fabricated 1/4" steel construction ensures maximum strength.
• Complete bolt-on installation with no welding required.
• Durable black powdercoat finish.
