Canton 23-110R - Aluminum Universal Dry Sump Tank Right Fittings

Canton 23-110R - Aluminum Universal Dry Sump Tank Right Fittings

Oil Tank - Dry Sump - 10 qt - 14.75 in Tall x 7.75 in Wide x 6.75 in Deep - 12 AN in Female O-Ring Inlet - 12 AN in Female O-Ring Outlet - Passenger Side Fittings - Each

Canton 23-110R Aluminum Universal Dry Sump Tank Right Fittings

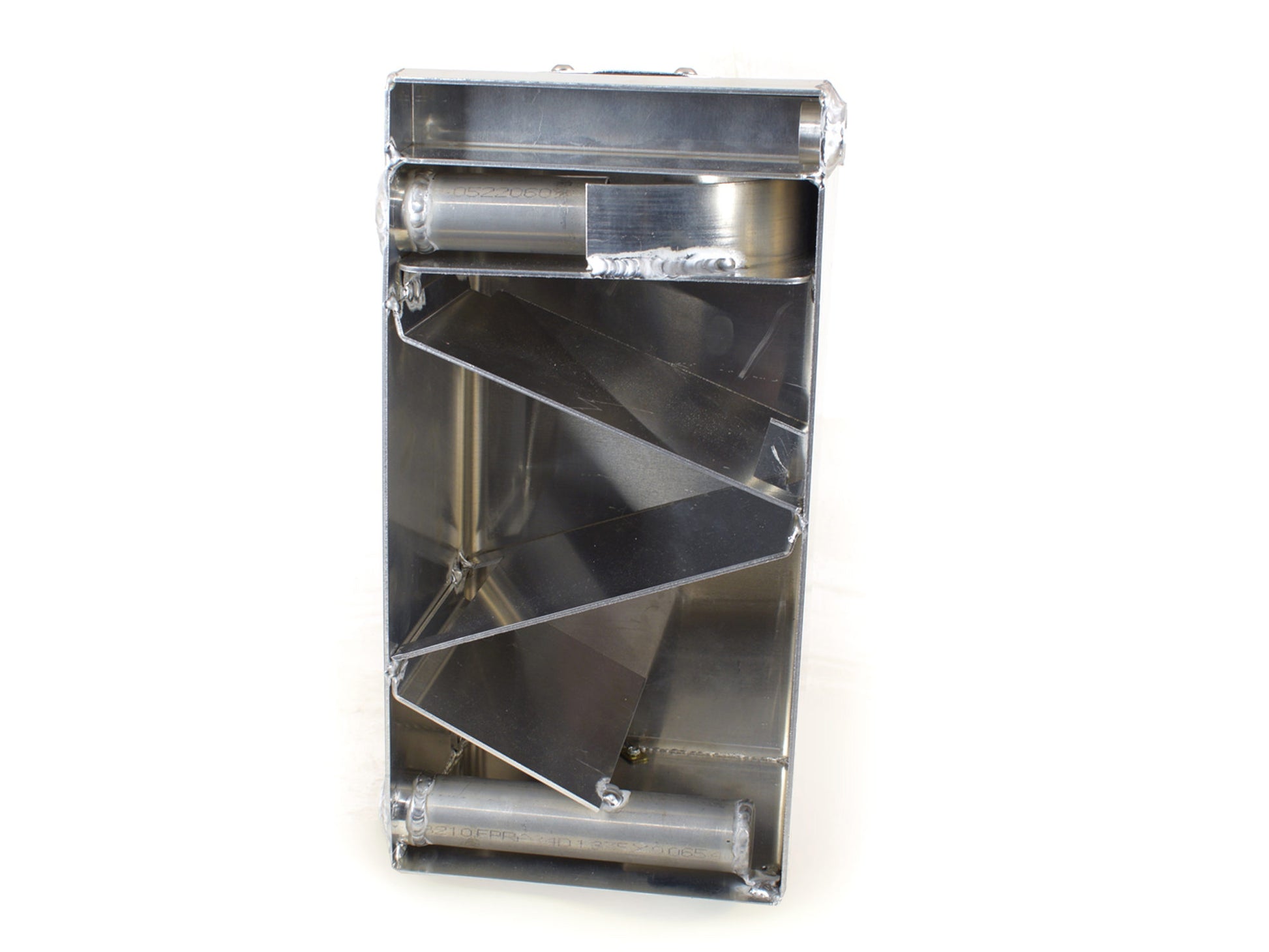

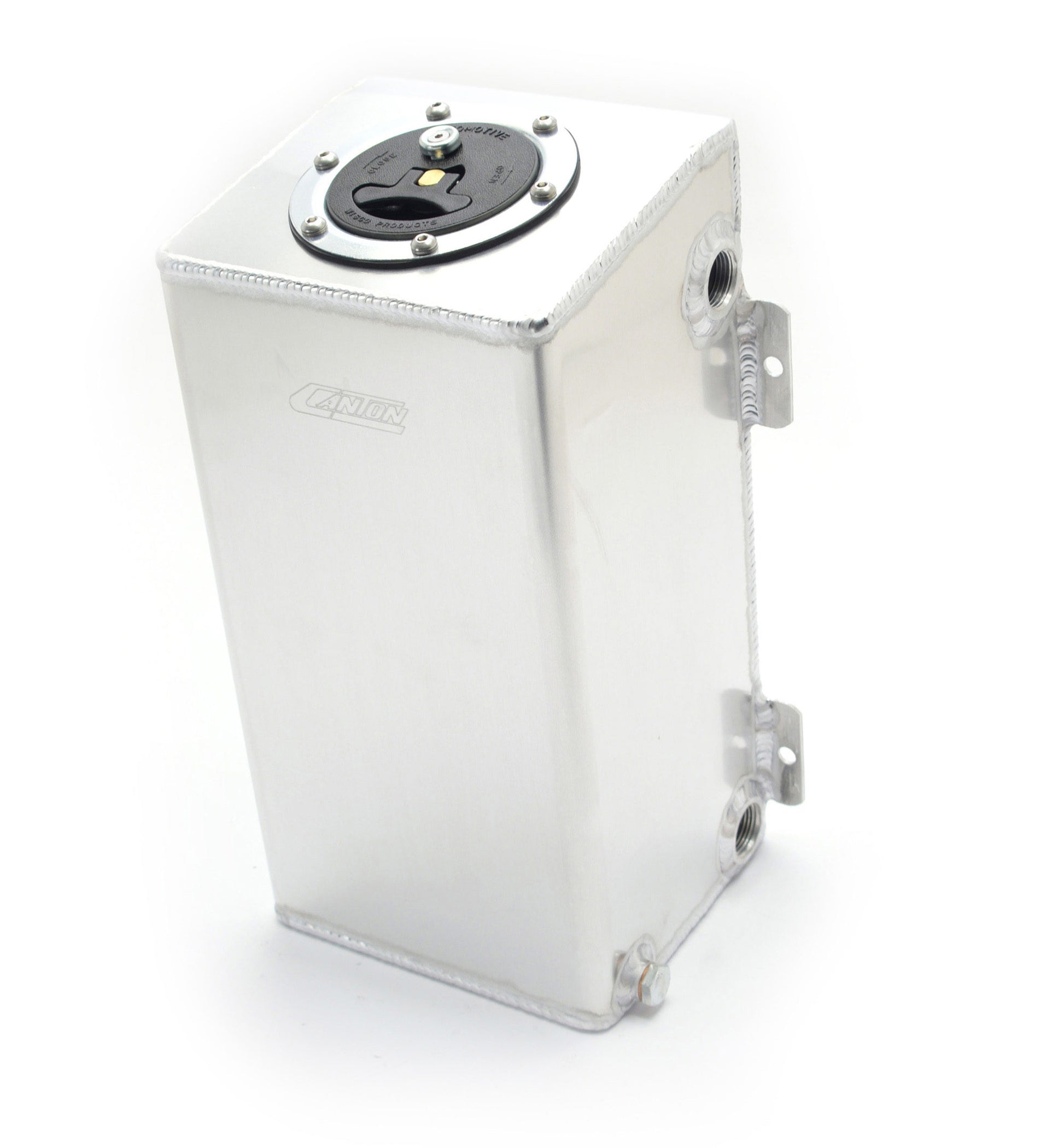

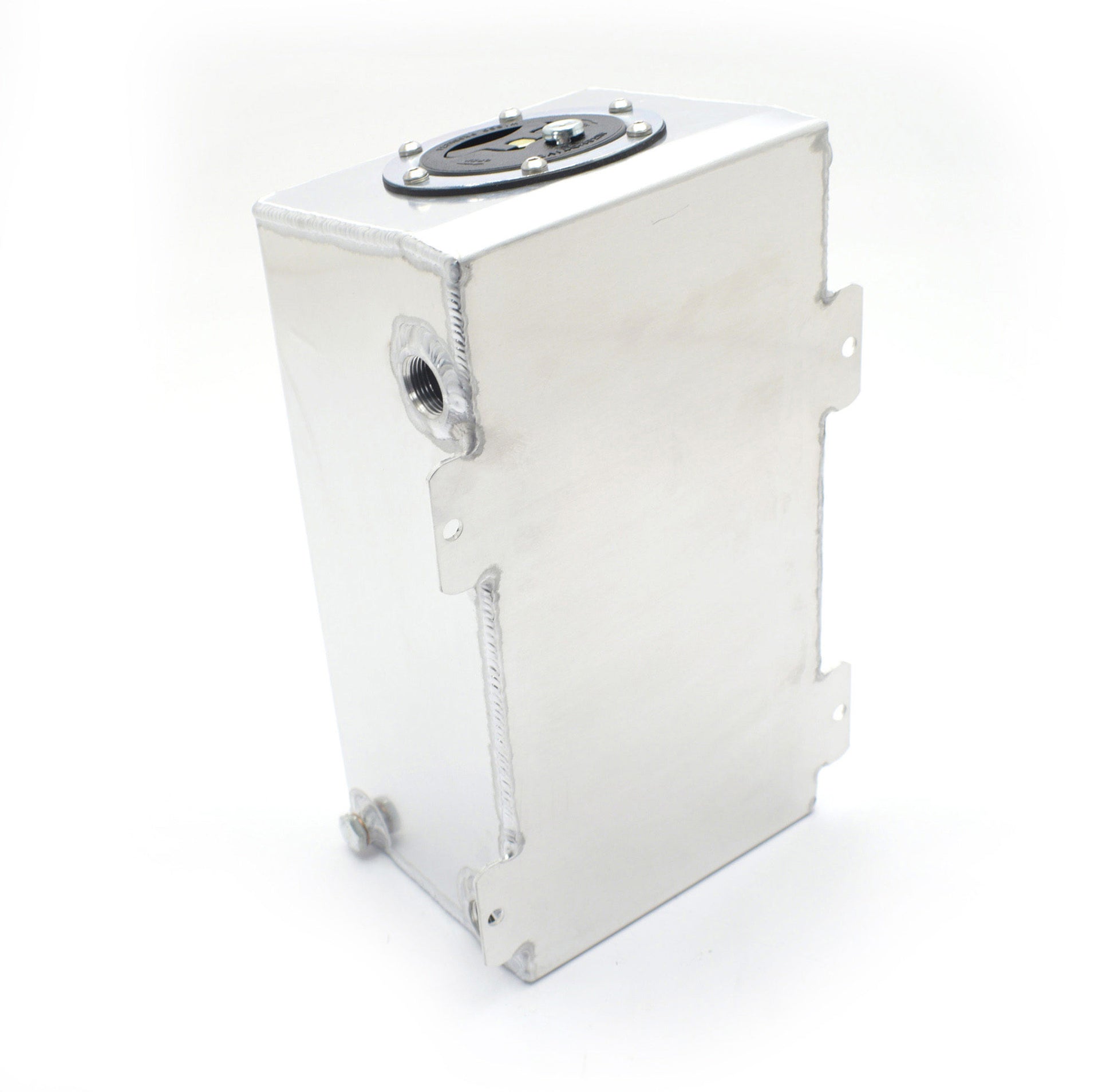

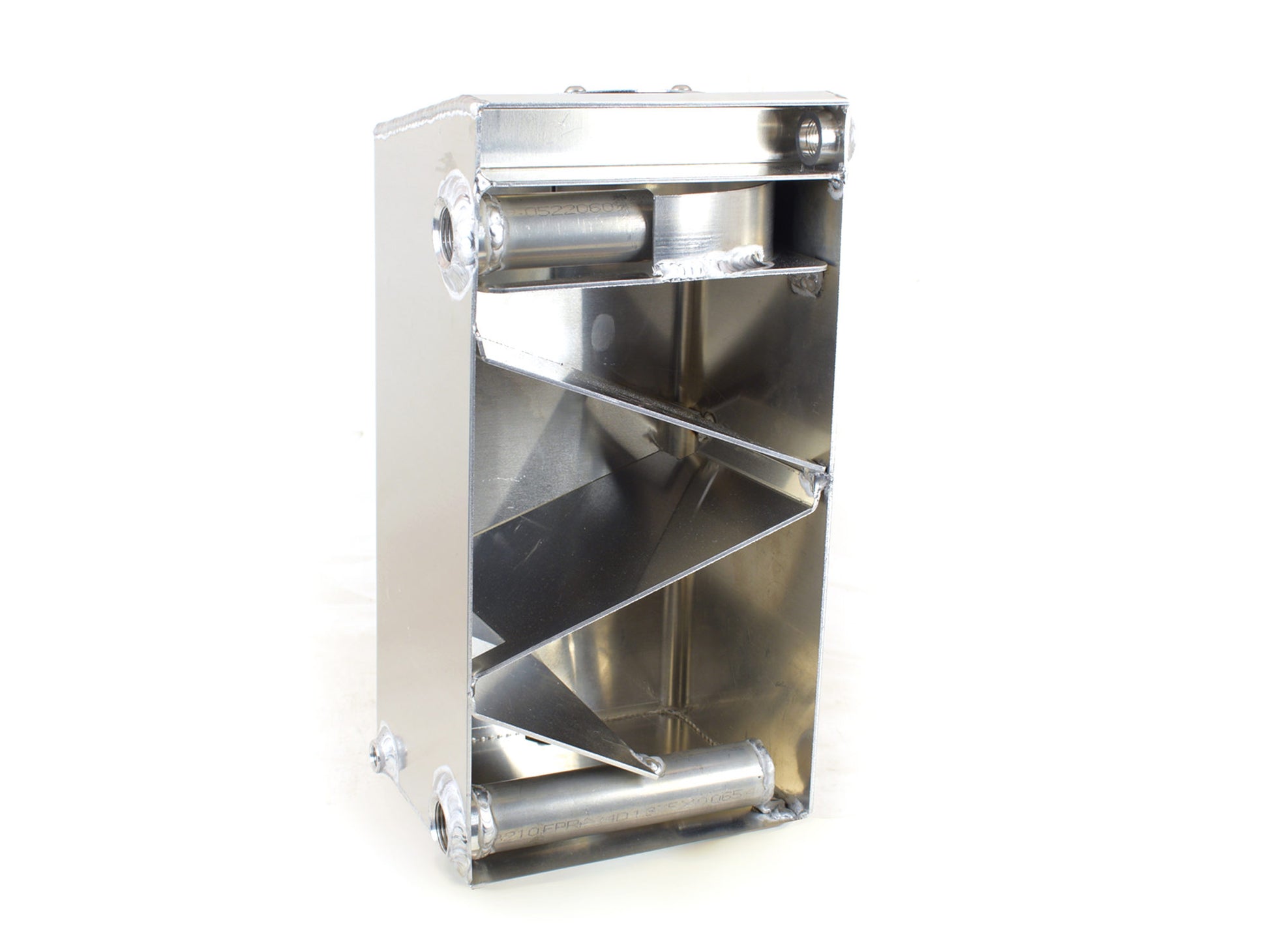

This 10 qt universal dry sump tank has right side fittings. This universal dry sump tank features three stage deaeration baffling, a spiral oil runner, and a integral mounting flange. It?s 1-1/16" female oil return and oil feed ports accept -12 port o-ring fittings, which allow the use of -8 AN through -16 AN adapter fittings. The tank also includes a 1/2"-20 drain port with magnetic drain plug and a 1/2" N.P.T. vent port. Tank is 7.75" wide by 6.75" deep by 14.75" tall and will hold up to 10 quarts of oil.

• 8.5 qt universal dry sump tank has right side fittings
• Made In USA
• Tank is 7.75" wide by 6.75" deep by 14.75" tall and will hold up to 10 quarts of oil
