Canton 15-794 - Oil Pan For Ford 4.6L 5.4L Kit Car Road Race Shallow T Sump Pan
Engine Oil Pan - Rear Sump - 7 qt - 5 in Deep - Steel - Zinc Plated - Ford Modular - Each
Canton 15-794 Oil Pan For Ford 4.6L 5.4L Kit Car Road Race Shallow T Sump Pan

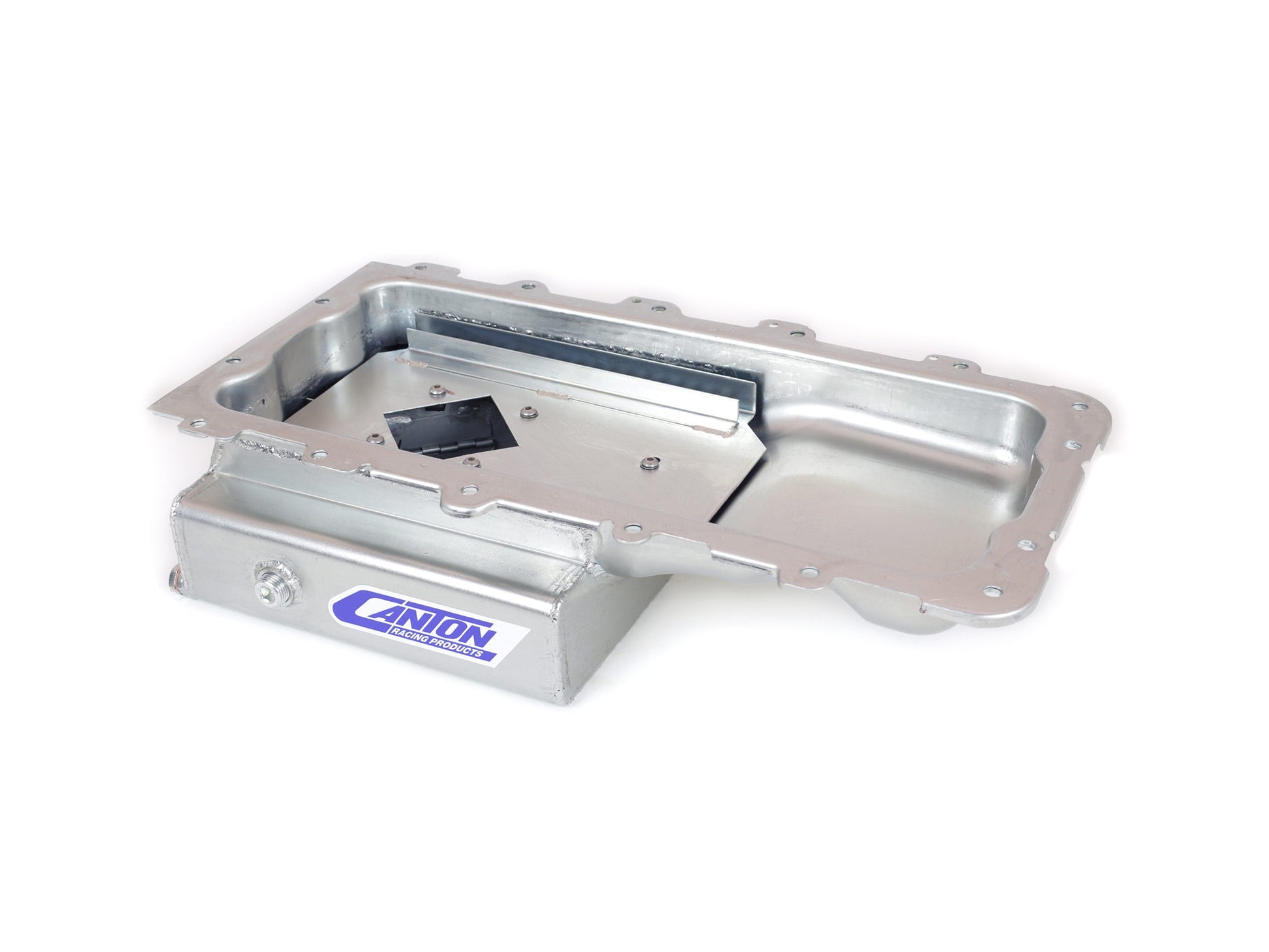

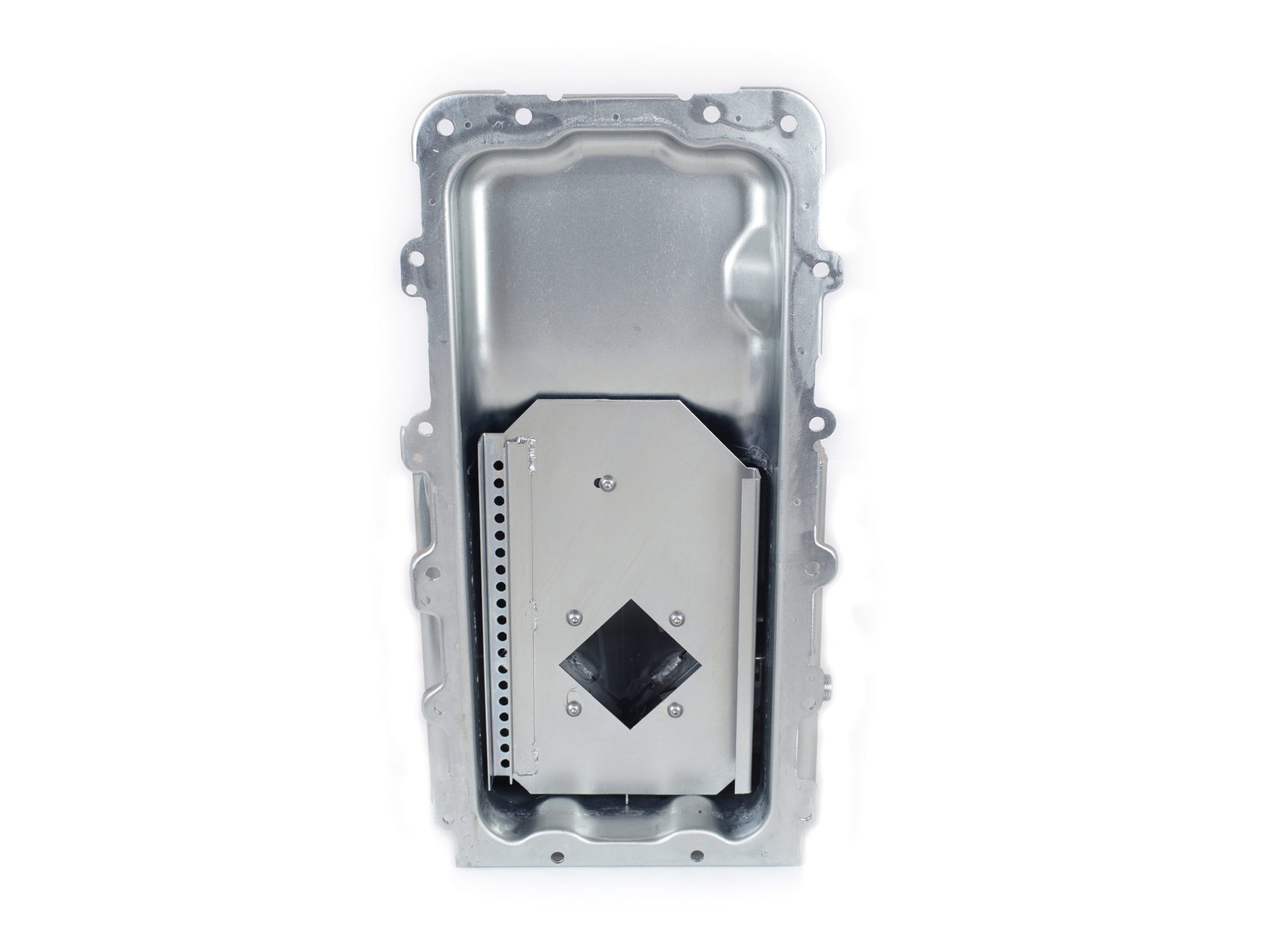

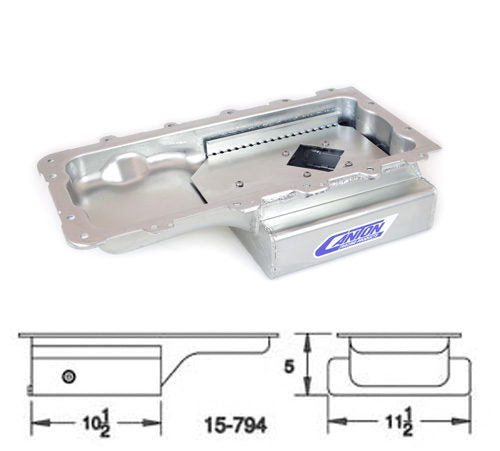

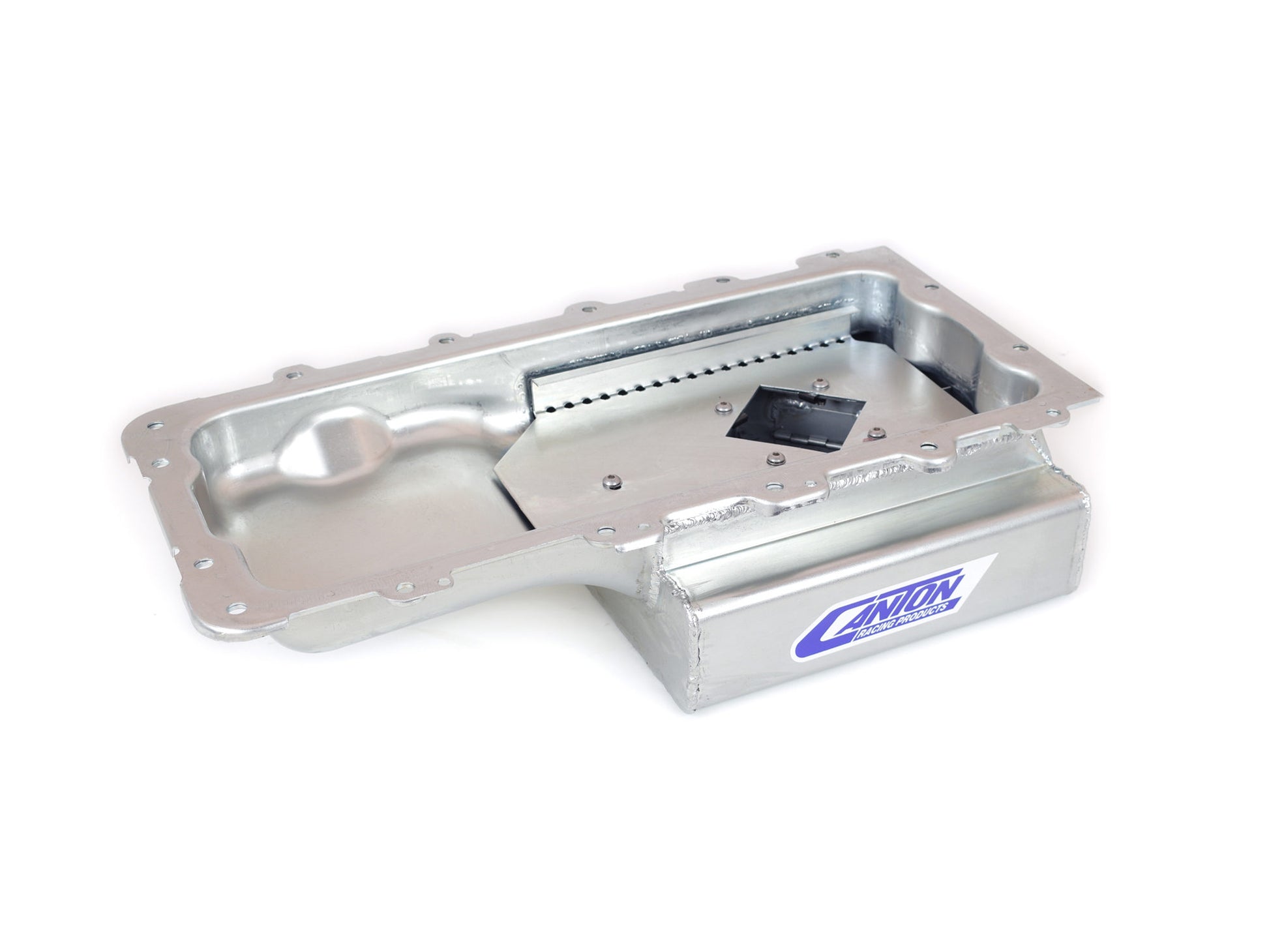

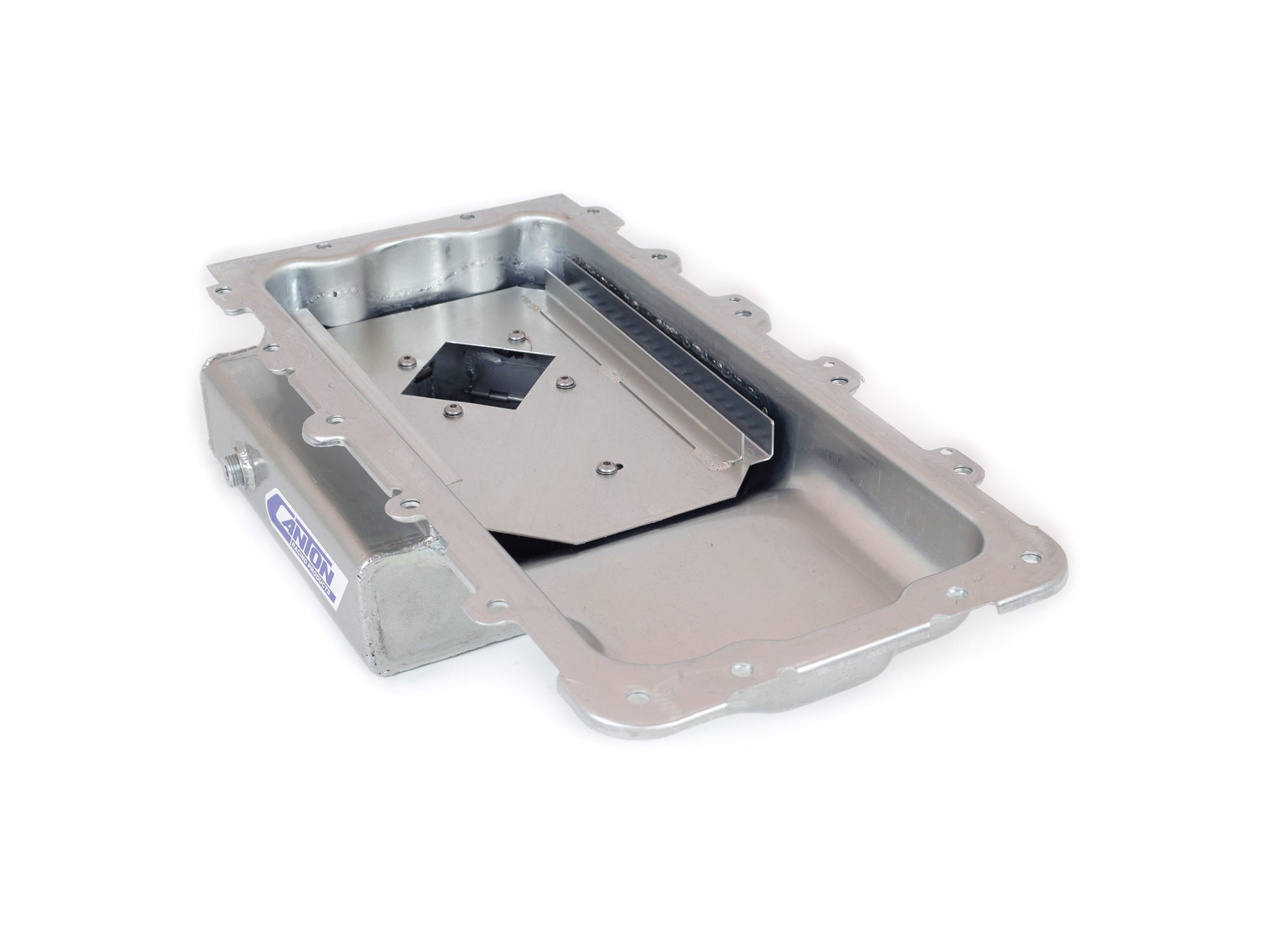

This ?T? style modular rear sump road race oil pan is designed to install a Ford 4.6L/5.4L into a kit car without losing ground clearance. It has 5" deep, 11-1/2" wide by 10-1/2" long sump and a 7 quart system capacity. This pan requires our 15-795 2V pickup.
- 7 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
Baffled: Yes
Hardware Included: No
Sump Width: 11.5 inches
Sump Depth: 5 inches
Stoke: 106MM
Recommended Accessory 3: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
Recommended Accessory 2: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
Recommended Accessory 1: 15-795 - Pickup for 4.6L/5.4L 2V Oil Pump
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 1: 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: No
Windage Tray Included: No
