Canton - 15-502
Engine Oil Pan - Street / Strip / Road Race - Rear Sump - 6 qt - 8.25 in Deep - Steel - Cadmium - Oldsmobile V8 - Each

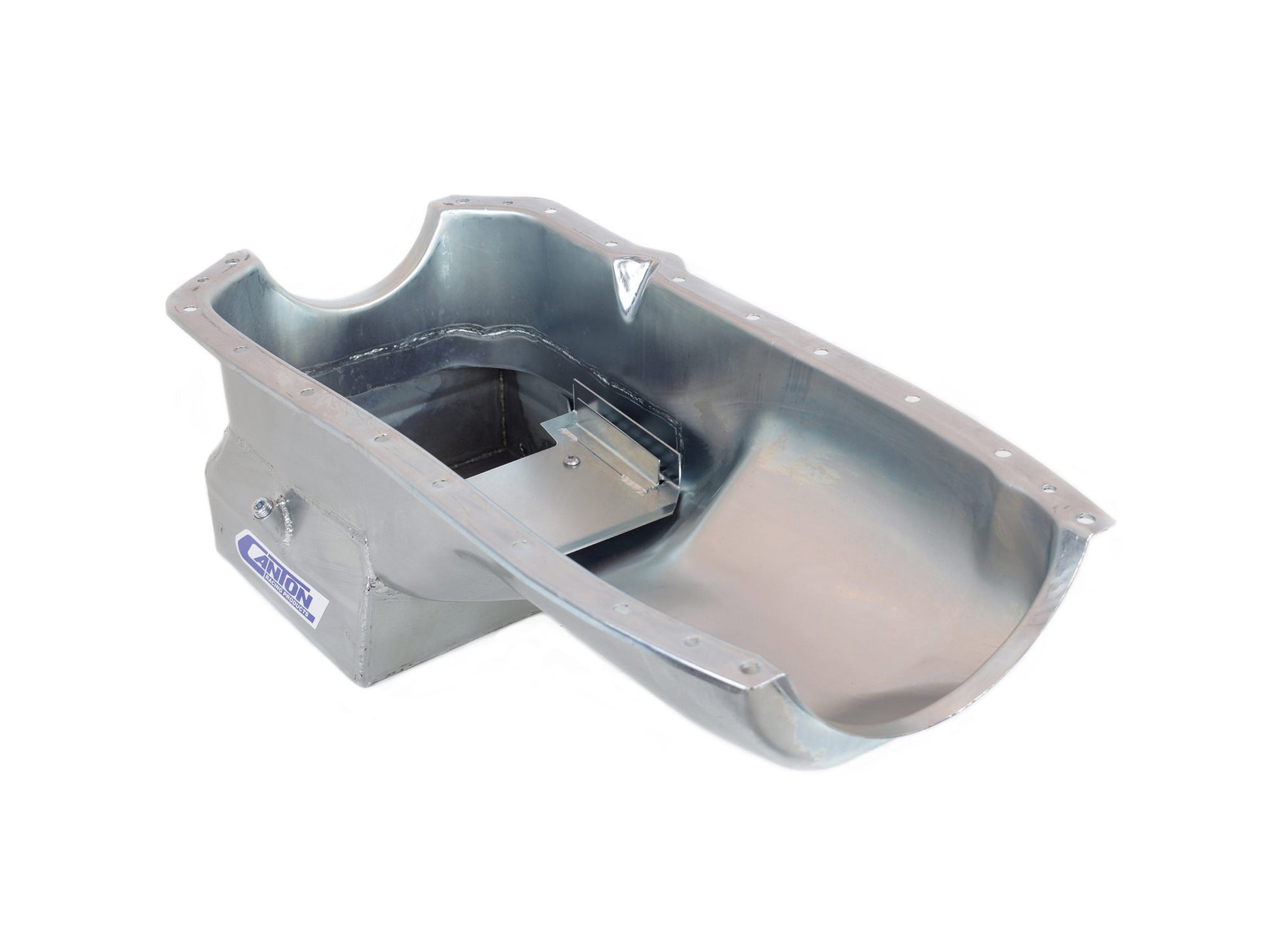

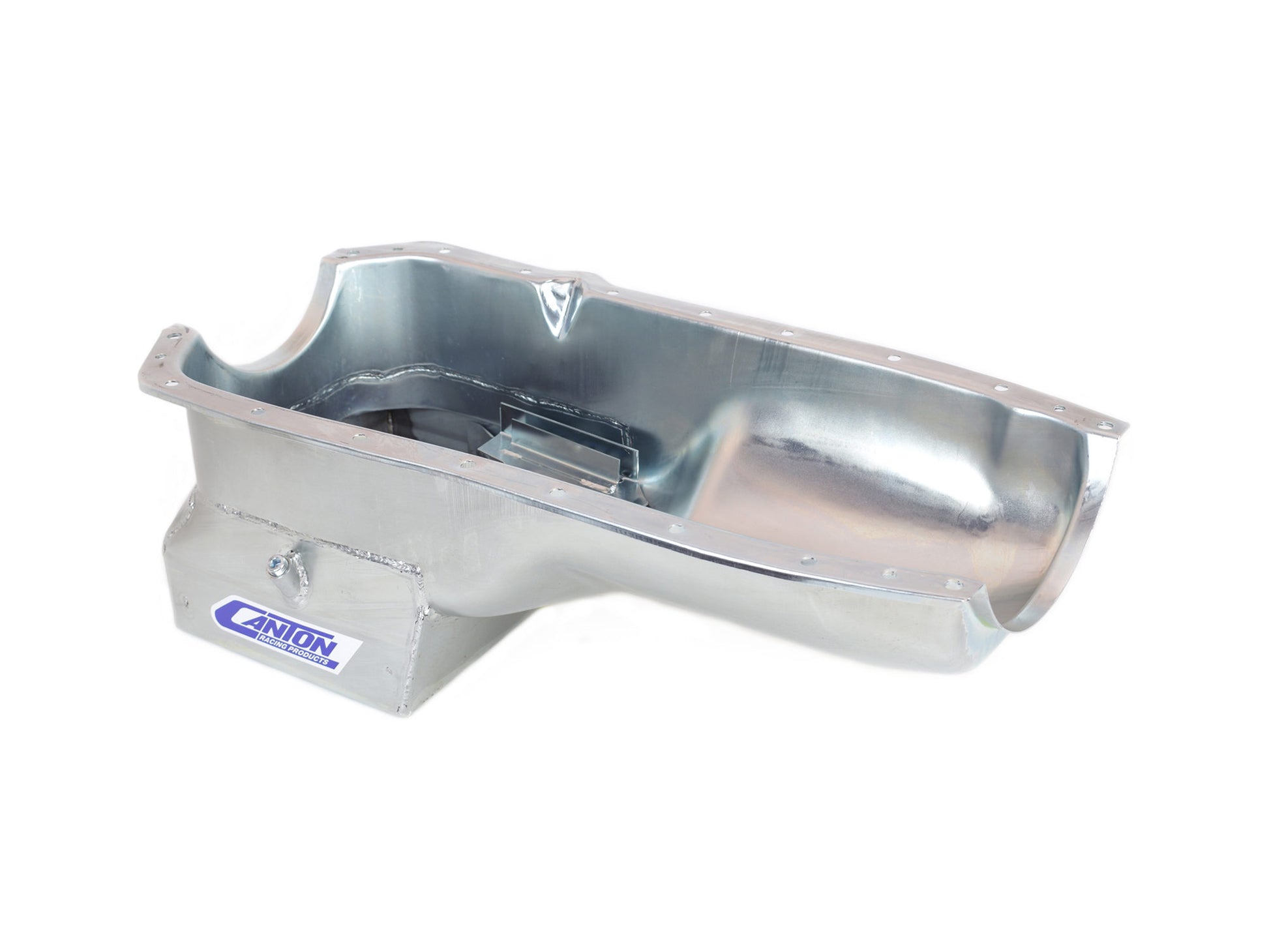

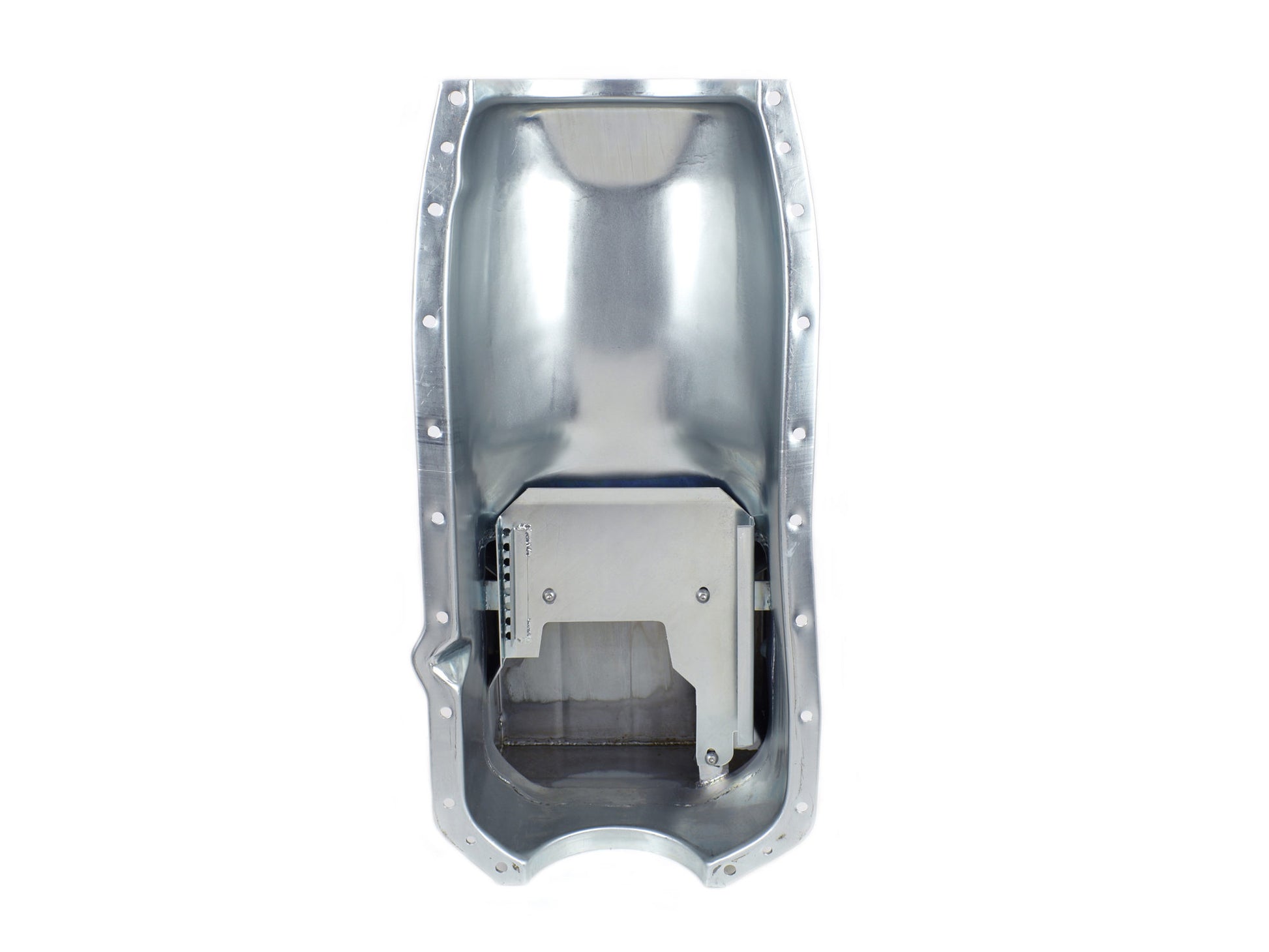

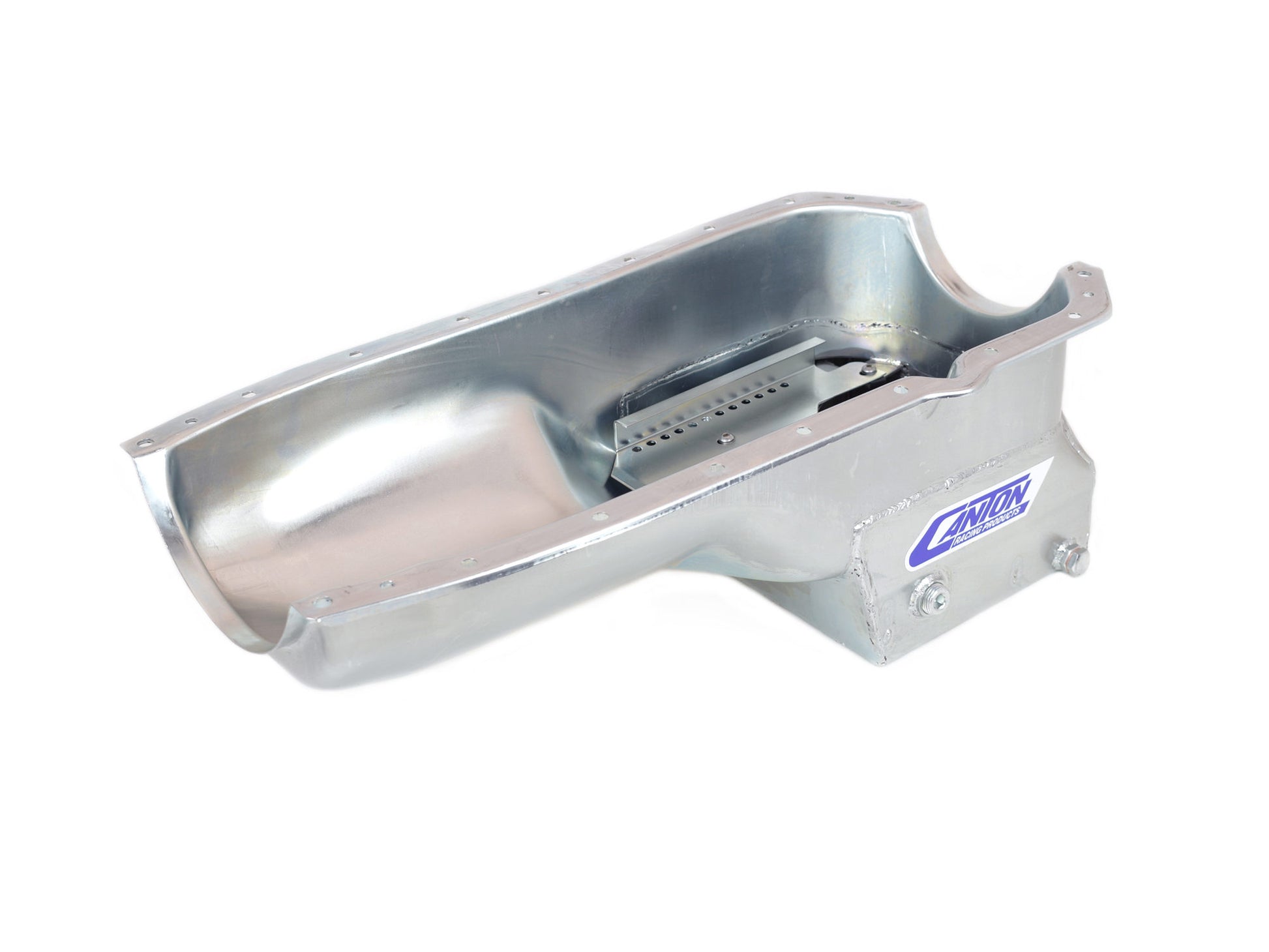

Canton 15-502 Oil Pan Oldsmobile 307-455 Street Road and Drag Race Pan Baffled
This Oldsmobile 307-455 oil pan is designed for performance street, drag race, or road race applications. It has an 8-1/4" deep by 8" long sump for a 6 quart system capacity. This pan requires our 15-503 pickup.
- 6 qt System Capacity
- Triple Trap Door Baffle
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Baffled: Yes
Hardware Included: No
Sump Width: 9.5 inches
Sump Depth: 8.25 inches
Stoke: 4.5 inches
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 15-503 - Pickup
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: No
Gasket or Seal Included: No
Capacity: 6 Quart System Capacity
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Triple Trap Door Baffles
Feature 1: 6 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
