Canton 15-450 - Oil Pan For Pontiac 301-455 Shallow Road Race Pan
Engine Oil Pan - Street / Strip / Road Race - Rear Sump - 6 qt - 7 in Deep - Steel - Cadmium - Pontiac V8 - Each
Canton 15-450 Oil Pan For Pontiac 301-455 Shallow Road Race Pan

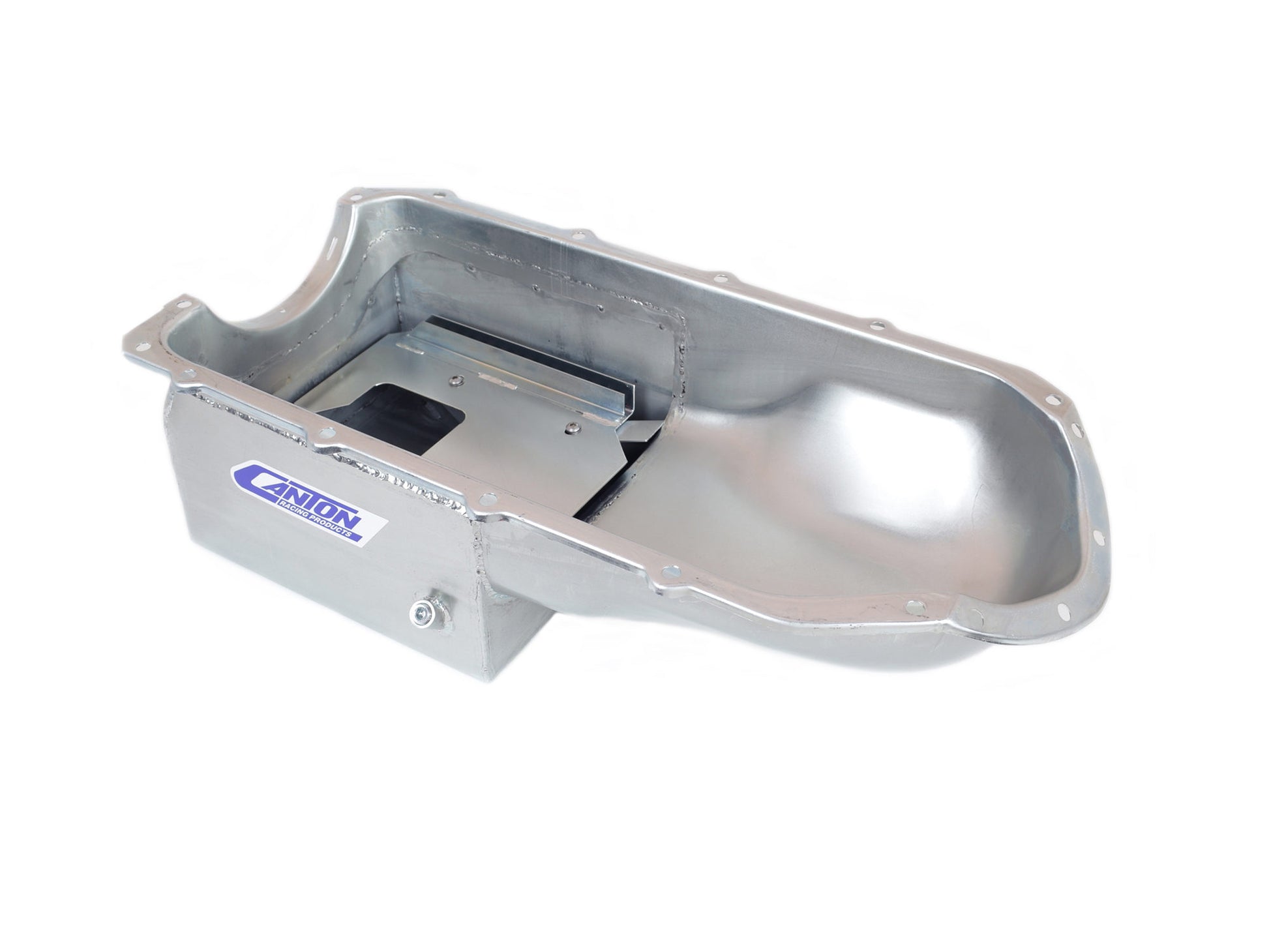

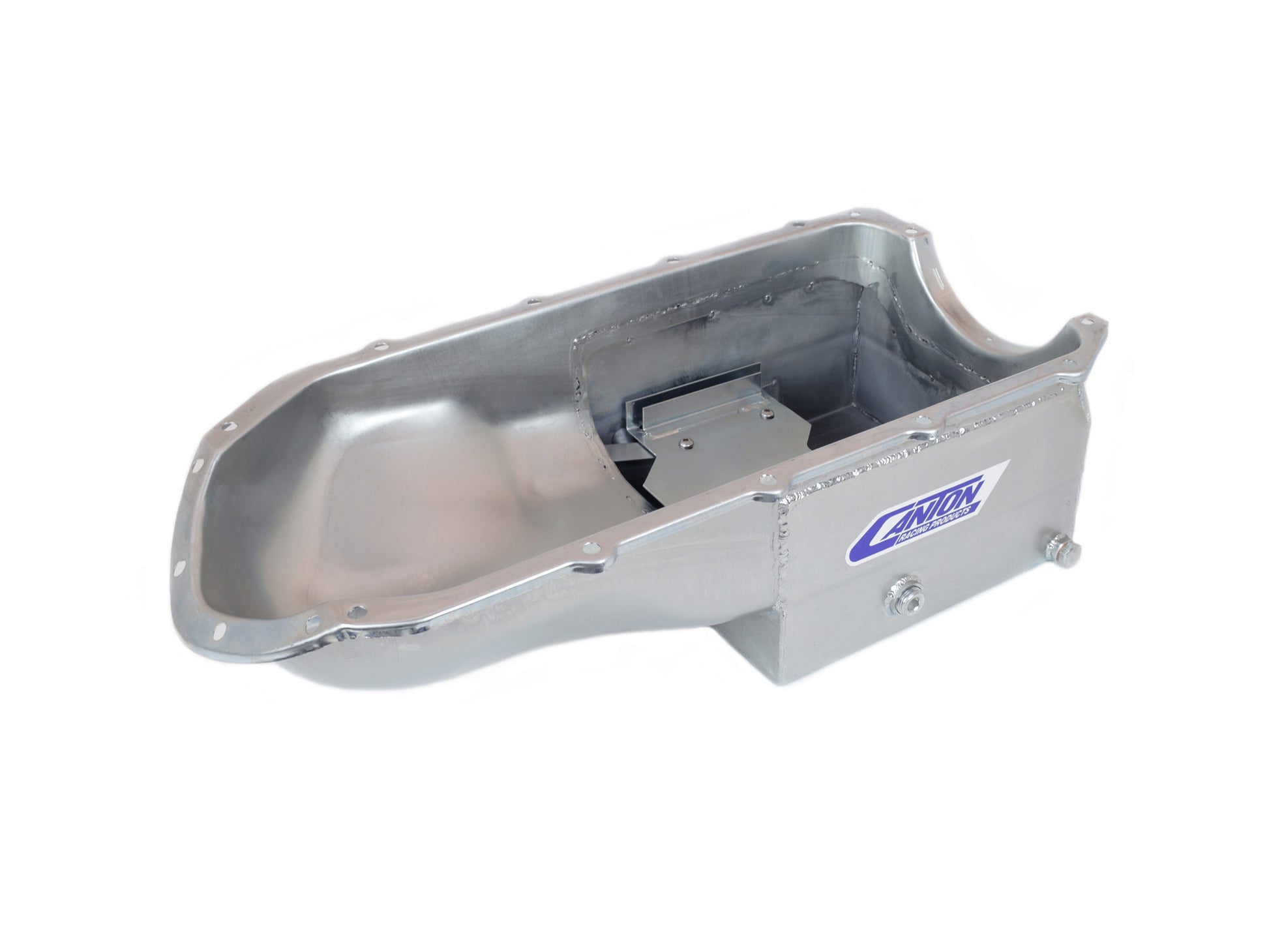

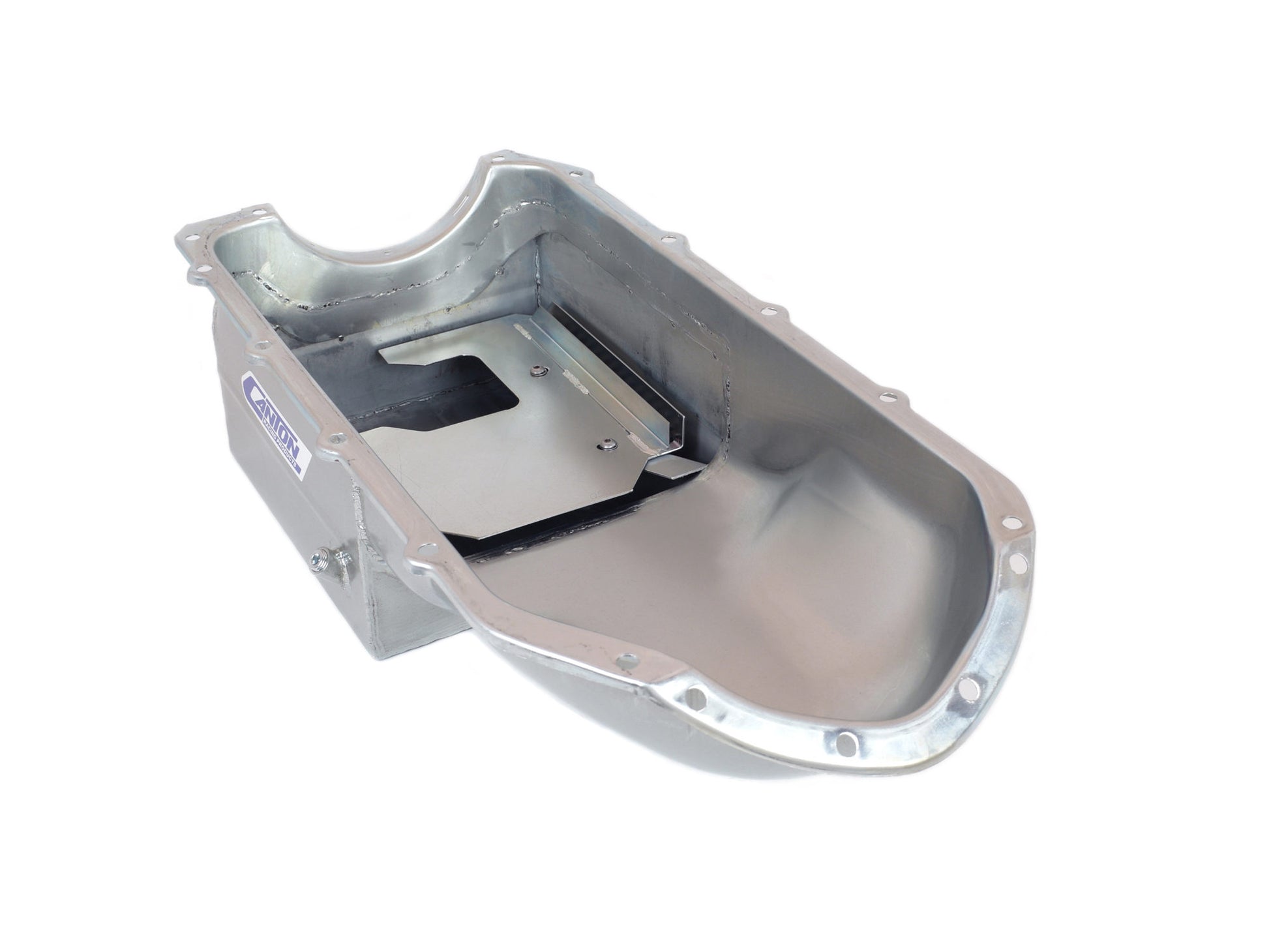

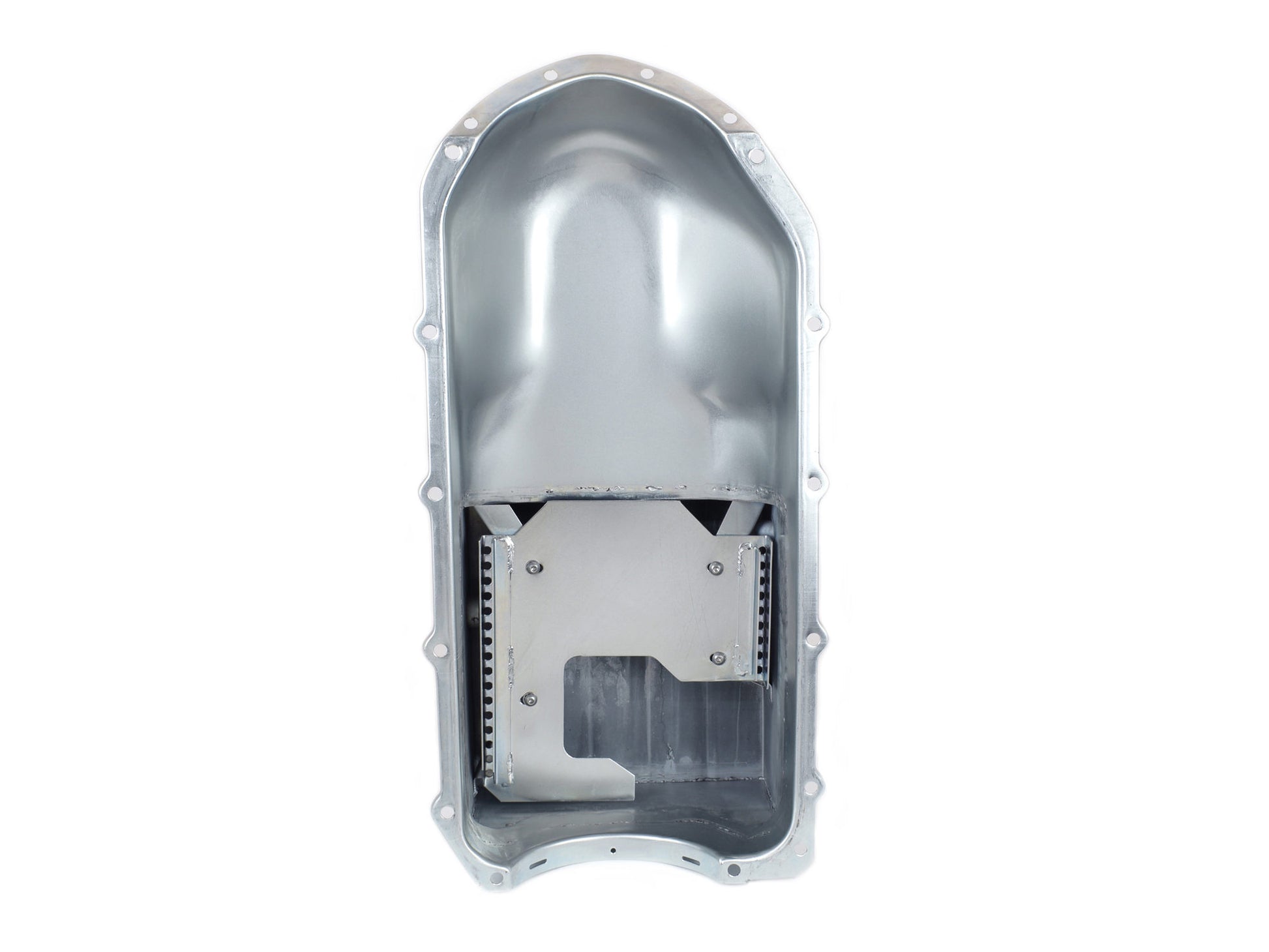

This shallow pan for Pontiac 301-455 engines and fits all popular chassis except G.T.O.s and '67-'69 Firebirds. It has a 7" deep, 10-1/2" long sump for a 6 quart system capacity. Cannot be used with some stock exhaust systems (measure for clearance). This pan requires our 15-451 pickup.
- 6 qt System Capacity
- Triple Trap Door Baffle
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Baffled: Yes
Hardware Included: No
Sump Depth: 7 inches
Stoke: 4.5 inches
Recommended Accessory 4: 88-400 - Pontiac Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 15-451 - Pickup with 3/4" Inlet for M-54DS or M-10541 Oil Pumps
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: No
Gasket or Seal Included: No
Capacity: 6 Quart System Capacity
Finish: Silver Plating
Feature 6: Magnetic Drain Plug
Feature 5: Provision For Our Pan Mounted Dipstick
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Triple Trap Door Baffle
Feature 1: 6 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
