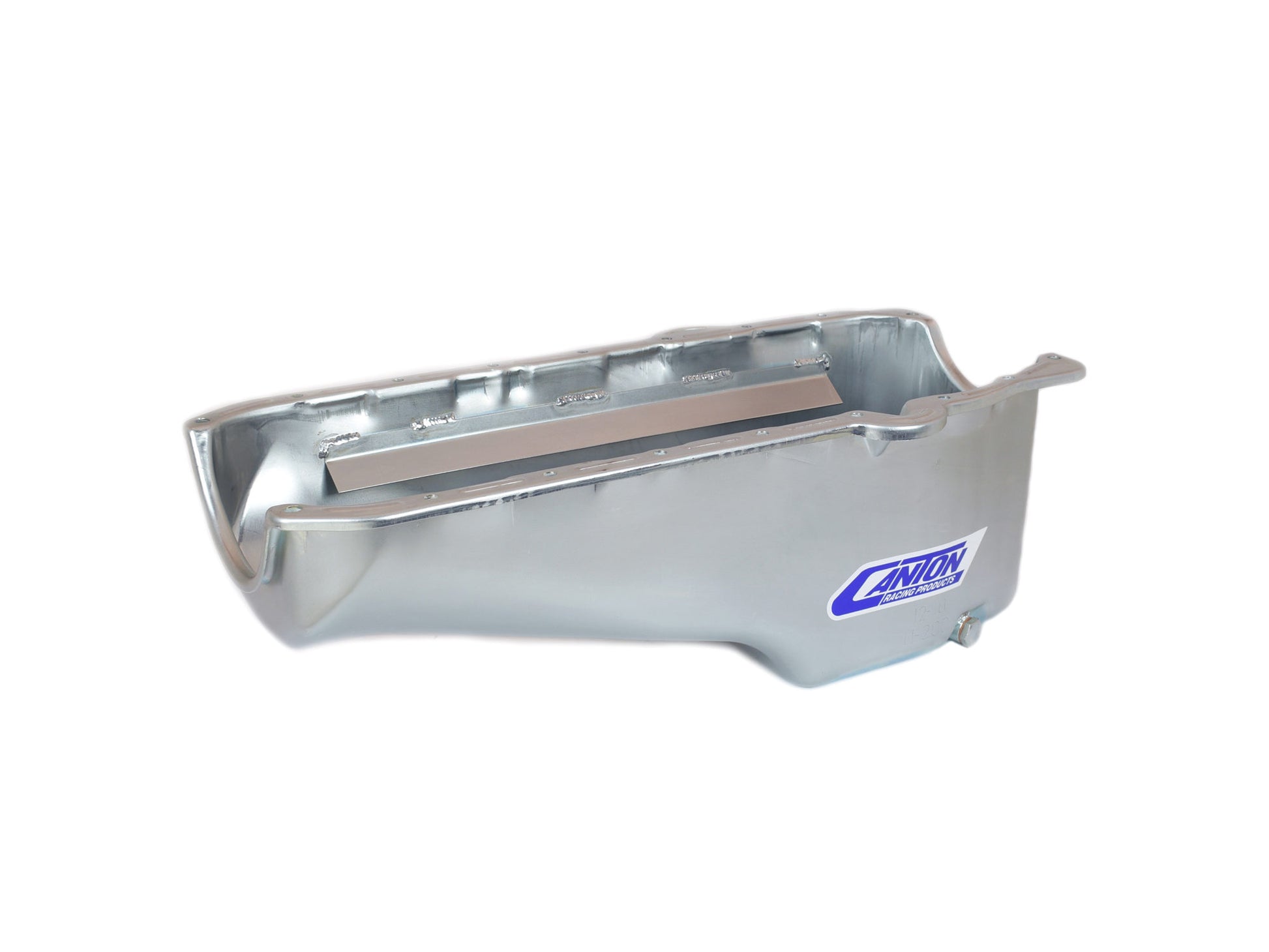

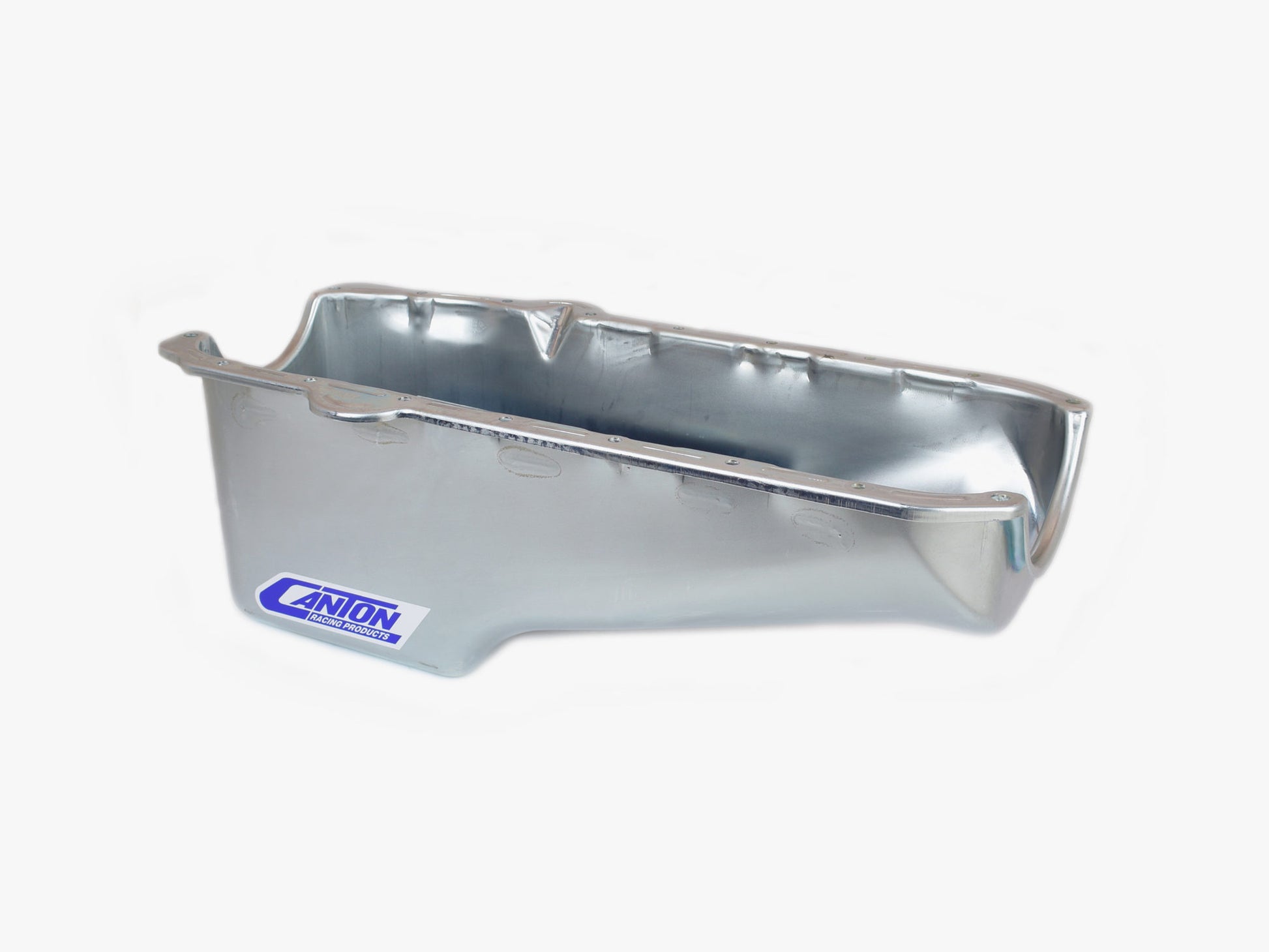

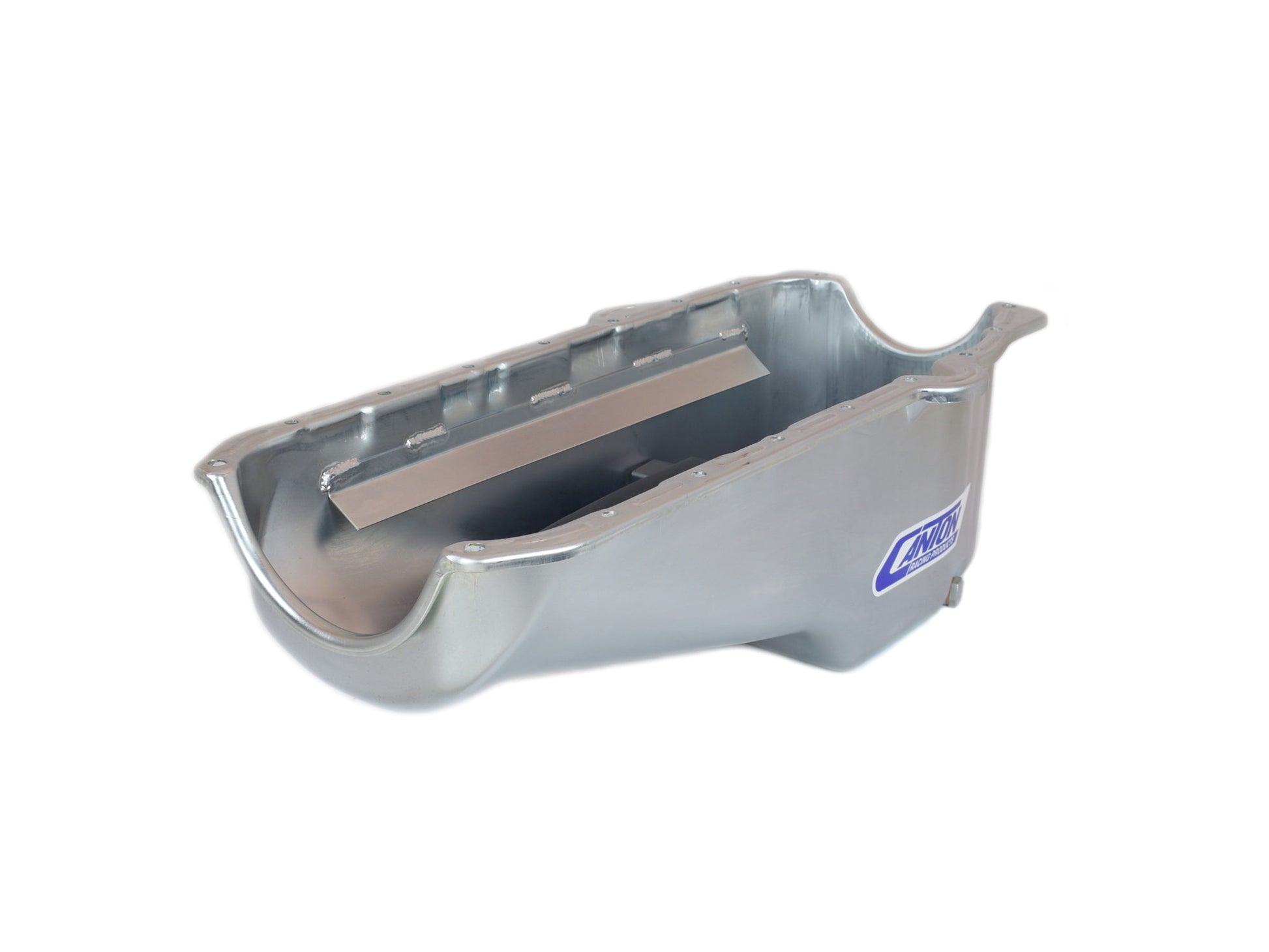

Canton 11-200 - Oil Pan Small Block Chevy Stock Appearing Circle Track Pan

Canton 11-200 - Oil Pan Small Block Chevy Stock Appearing Circle Track Pan

Canton | 11-200
SKU: BGTF-11-200
$266.00 USD
$319.20 USD $266.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Canton 11-200 - Oil Pan Small Block Chevy Stock Appearing Circle Track Pan

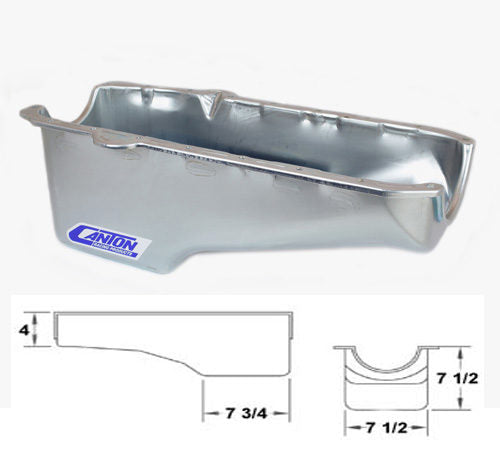

Engine Oil Pan - Stock Appearing Oval Track - Rear Sump - 5 qt - 7.5 in Deep - Steel - Cadmium - 2-Piece Seal - Small Block Chevy - Each

Canton 11-200 Oil Pan Small Block Chevy Stock Appearing Circle Track Pan

This circle track stock appearing pan is for pre-?80 Small Block Chevys with left side dipstick. It is designed for circle track applications where a stock appearing oil pan is required, such as strictly stocks or mini-stocks. Stock dimensions are capacity are retained, but Canton's specially designed baffling system ensures increased oil control. This pan requires our 20-002 pickup.

  • 7.5" Deep
  • 5 qt System Capacity

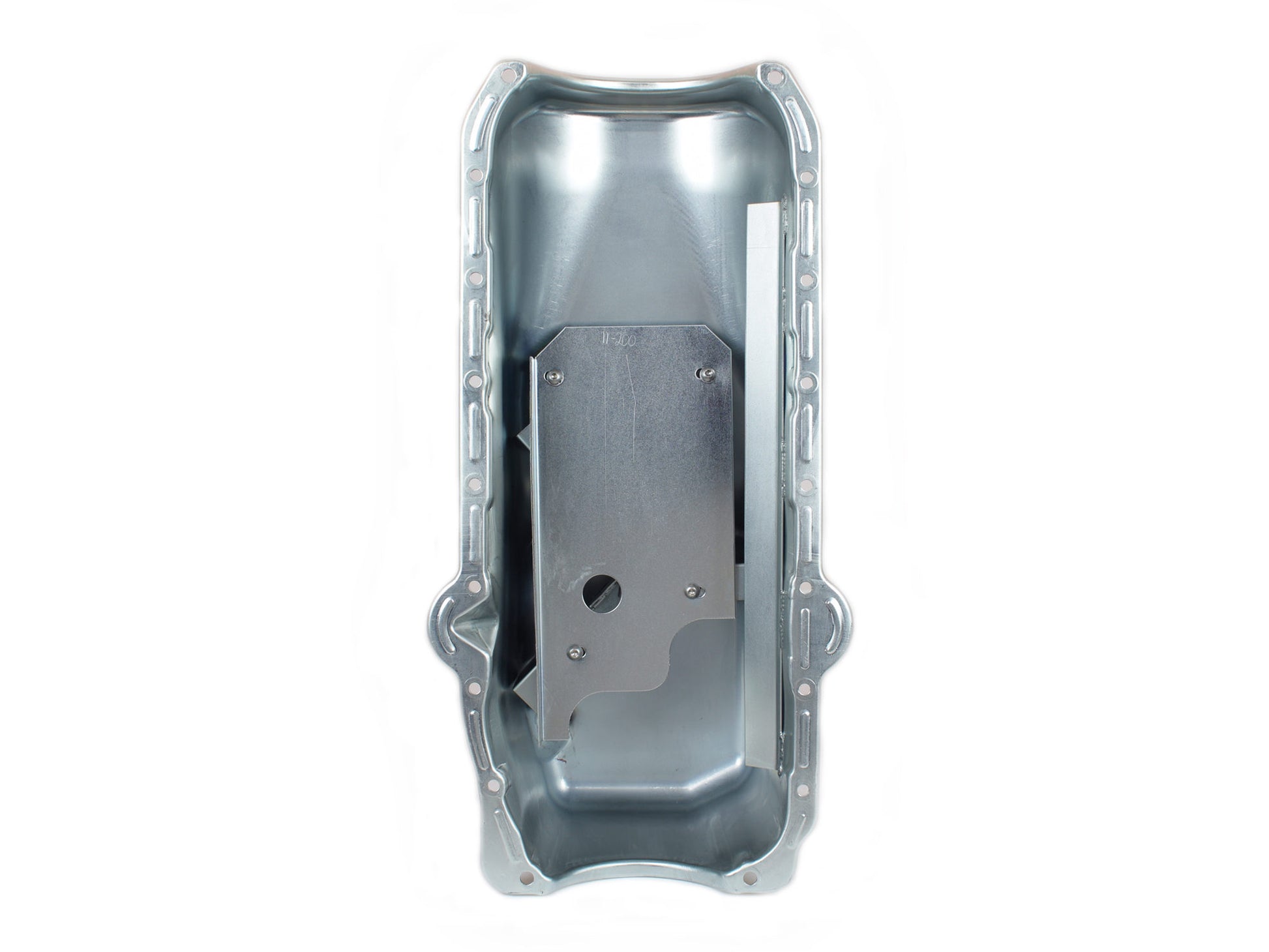

  • Double Trap Door Baffles
  • Crank Scraper
  • Removable Windage/Anti-Slosh Baffle
  • Magnetic Drain Plug
Hardware Included: No
Dipstick Port: No
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: Built in Crank Scraper
Feature 3: Removable Windage / Anti-Slosh Baffle
Feature 2: Baffled with Double Trap Door Baffles
Feature 1: Retains Stock Oil Pan Dimensions
Engine: For S.B. Chevy Pre-1980 Blocks
Drain Plug Included: Yes
Crank Scraper Included: Yes
Kicked Out: No
Capacity: Stock System Capacity
Baffled: Yes
Windage Tray Included: No
Stoke: 3.75 inches
Recommended Accessory 2: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Recommended Accessory 1: 20-002 - Pickup For Small Block Standard Volume Only - M-55 or M-55A Oil Pumps
Pickup Included: No
Material: 16 Gauge Steel
Gasket or Seal Included: No
