Camburg - CAM-020102

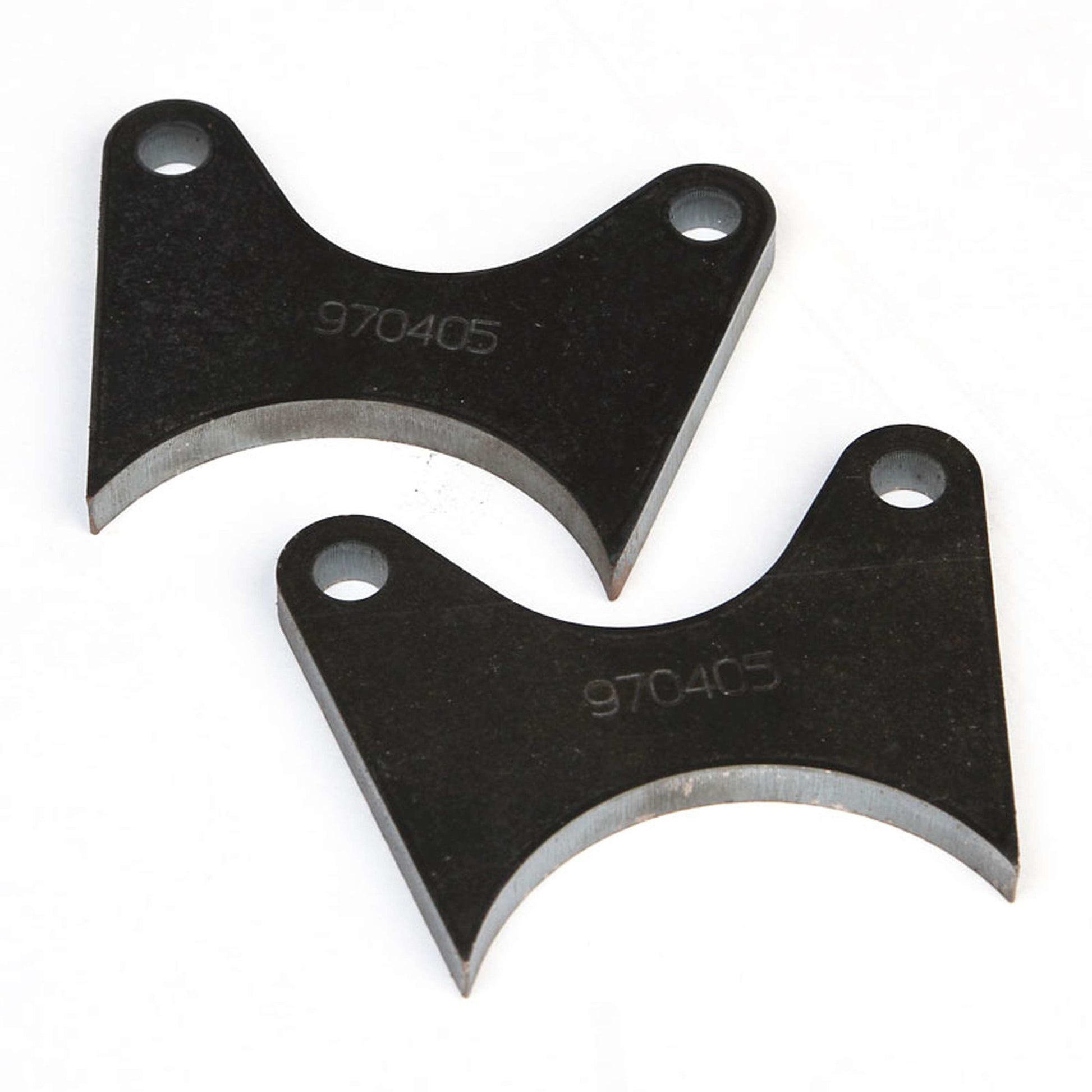

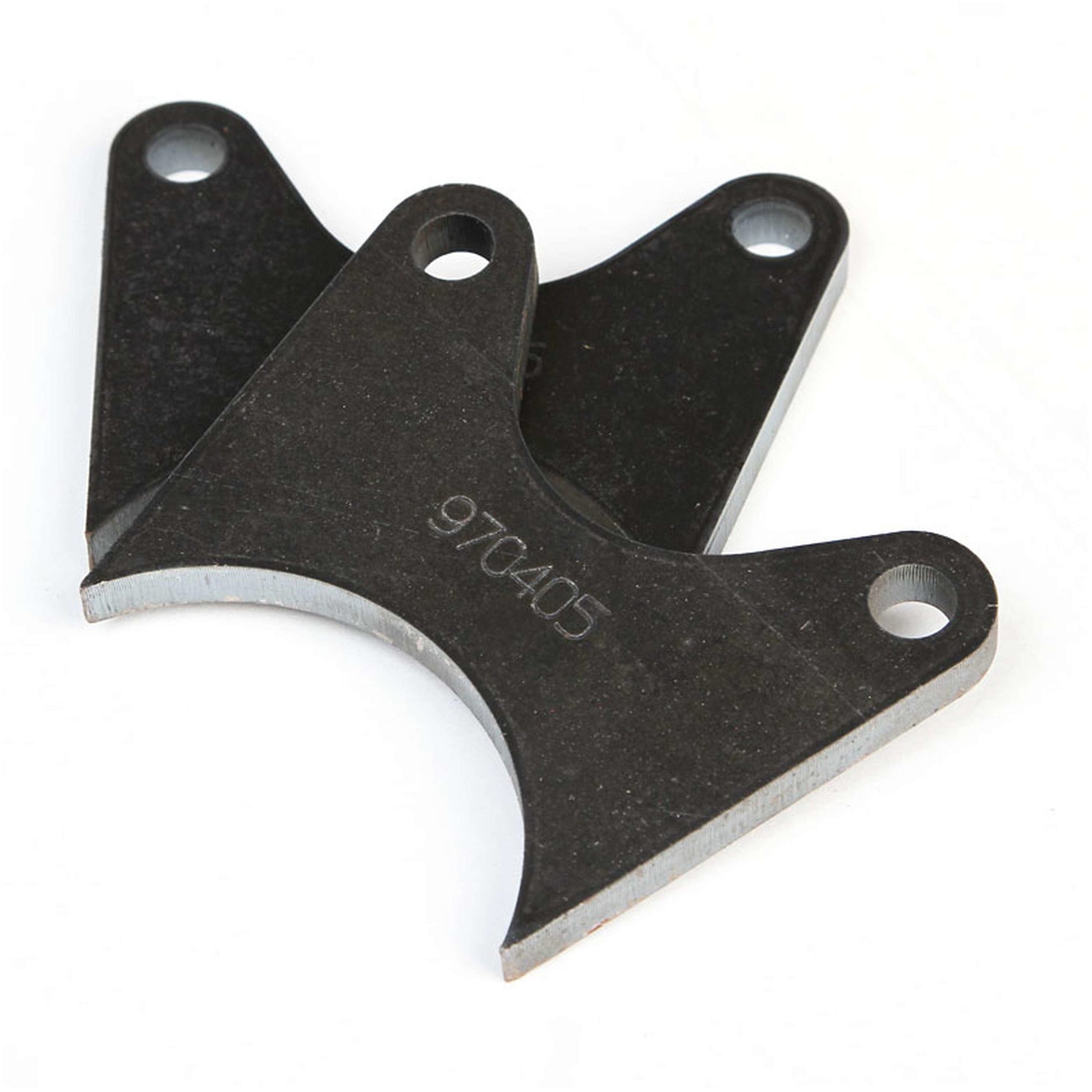

Camburg 4.00" Rear Axle housing Brake Caliper Tabs (12" Rotor x 3.50" Spacing)

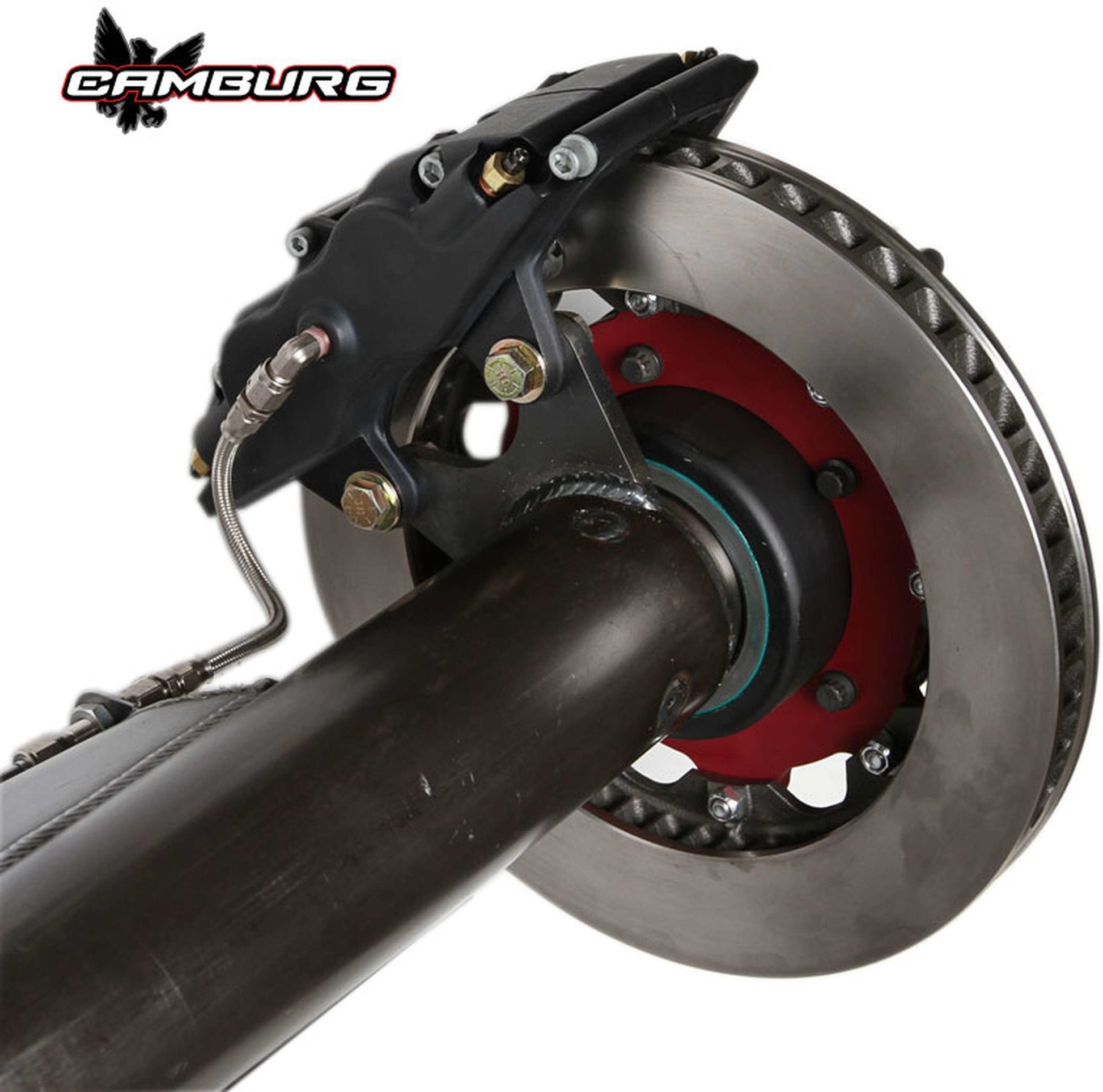

These are the brake caliper tabs we use when building a Camburg rear end. These are designed for Wilwood's 3.5" lug spacing. They also work with radial mount calipers with the proper machined adapters. These are CNC laser cut from thick 3/8" steel and are setup to be through bolted with a 7/16" bolt. These can be MIG or TIG welded. Select your axle housing tube size and the brake rotor diameter. These tabs work with the following calipers. Wilwood 4 Piston Superlite Wilwood 6 Piston Superlite with adapter #250-6309 Wilwood Aero6 with adapter #250-14046 Wilwood Aero6-ST with adapter #250-14046.

  • Can be MIG or TIG welded
  • CNC Laser cut
  • 3/8" Steel

Bolt size: 7/16
Lug Spacing: 3.5
Material: Steel
Mounting Hardware Included: No
Rotor Size: 12
Thickness: 3/8
