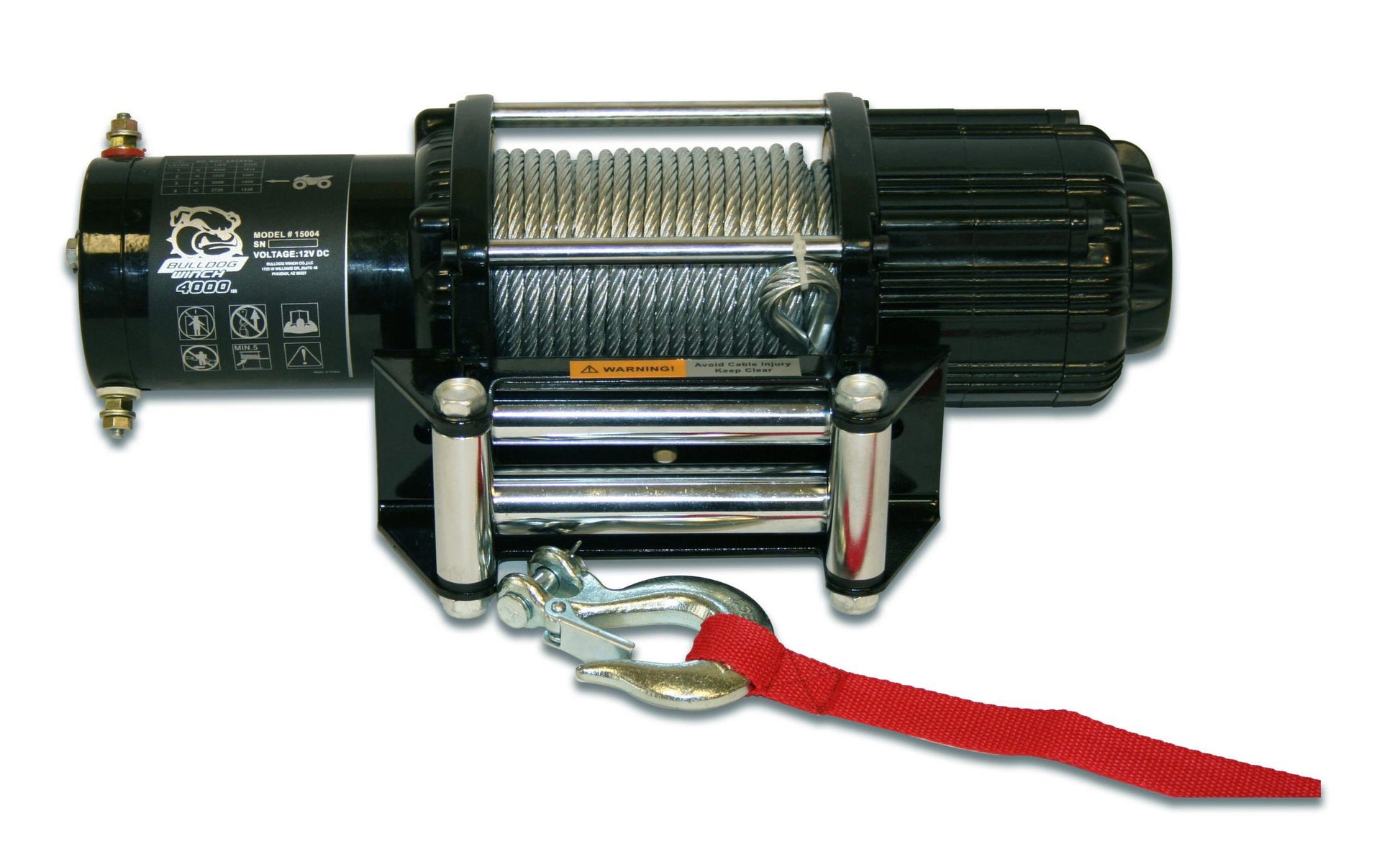

Bulldog Winch - 15004
4,000 LB UTV Winch 55 Ft Wire Rope Two Switches Mounting Channel Roller Fairlead Bulldog Winch. Oversize Drum with 55ft of wire rope. Larger 6.6 inch x 3 inch 4-Bolt Mounting Pattern. Designed for side-by-sides and larger ATV's. Includes 2 Different Switches
Details:
- Pull capacity: 4,000 LB
- 7/32 x 55 Foot Wire rope
- Motor: 1.8 HP Permanent Magnet
- Switch: 250A Sealed contactor
- Controller: Handlebar Mounted mini rocker switch included
- Battery Leads: 6 GA
- Gear Train: 3 stage Planetary
- Gear Ratio: 136:1
- Clutch: Freespooling
- Brake: Automatic load hold mechanical in drum
- Overall Dimensions: 16.3 X 4.6 X 4.6 inch (415 X 117 X 117mm)
- Drum Diameter x L: 2 X 4.8 inch (51 X 122mm)
- Mounting Bolt Pattern: 6.6 X 3 inch (168 X 76mm)
- Warranty: 2 Year Limited
