Brothers Trucks TAC72AS - Dropped Trailing Arm Crossmember - Anti-Squat - Shortbed

Brothers Trucks TAC72AS - Dropped Trailing Arm Crossmember - Anti-Squat - Shortbed

Brothers Trucks Dropped Trailing Arm Crossmember - Anti-Squat - Shortbed

Compatible with 1963-1972 Chevrolet/GMC C10/C15

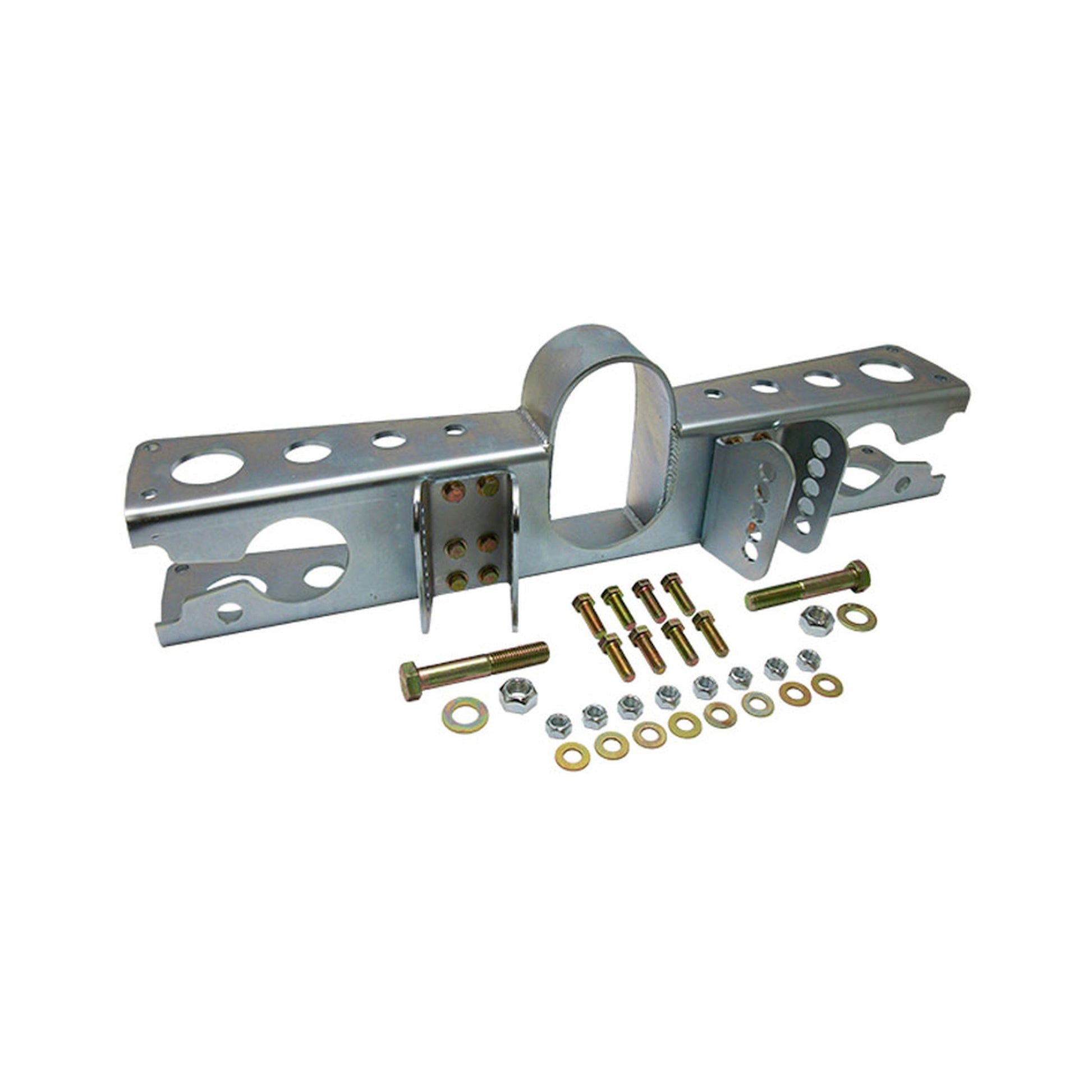

This crossmember is designed for 2WD 1/2-ton trucks that have been lowered 4-inches or more, and have the rear trailing arm and rear coil spring rear suspension. This part increases ground clearance on your lowered truck. Anti-squat bolt-on mounts allow for the use of 5 different trailing arm settings. The lower hole is for factory trailing arm position, and is adjustable for up to 4 degrees of anti squat allowing more drive off of corners for better performance. Designed for shortbed applications with one-piece driveshafts. Long bed trucks can also use this part, but will require modifications to drill and mount the factory carrier bearing for the driveshaft.

• Laser cut from 3/16-inch thick 1018 grade steel
• Hoop design eliminates any interference with drive shaft on lowered trucks
• Bolt in directly to your stock location
• Works with factory and aftermarket trailing arms
• Anti squat provisions included

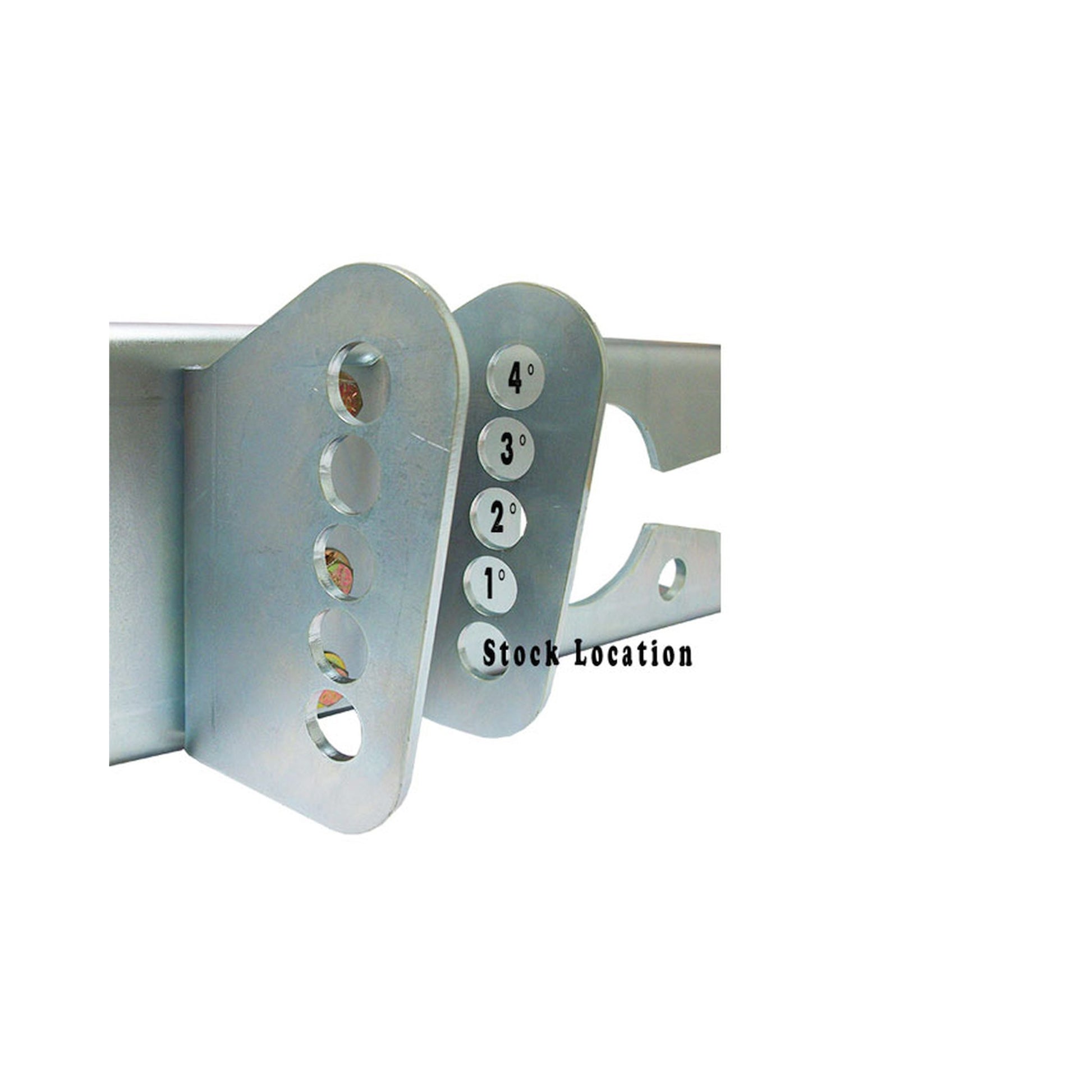

• Adjustable from factory position up to 4 degrees anti squat
• Integrated exhaust passages allow up to 3-inch dual exhaust
• No welding required for an easy installation
• Includes grade 8 hardware
• Fits 1/2-ton RWD trucks with trailing arm and coil spring rear suspension
• Designed for short bed trucks, but can also be used on longbed trucks with modifications to drill and mount the factory carrier bearing for the driveshaft
