Brothers Trucks DMCB72FLS - Dropped Crossmember Suspension Kit - LS Engine

Brothers Trucks DMCB72FLS - Dropped Crossmember Suspension Kit - LS Engine

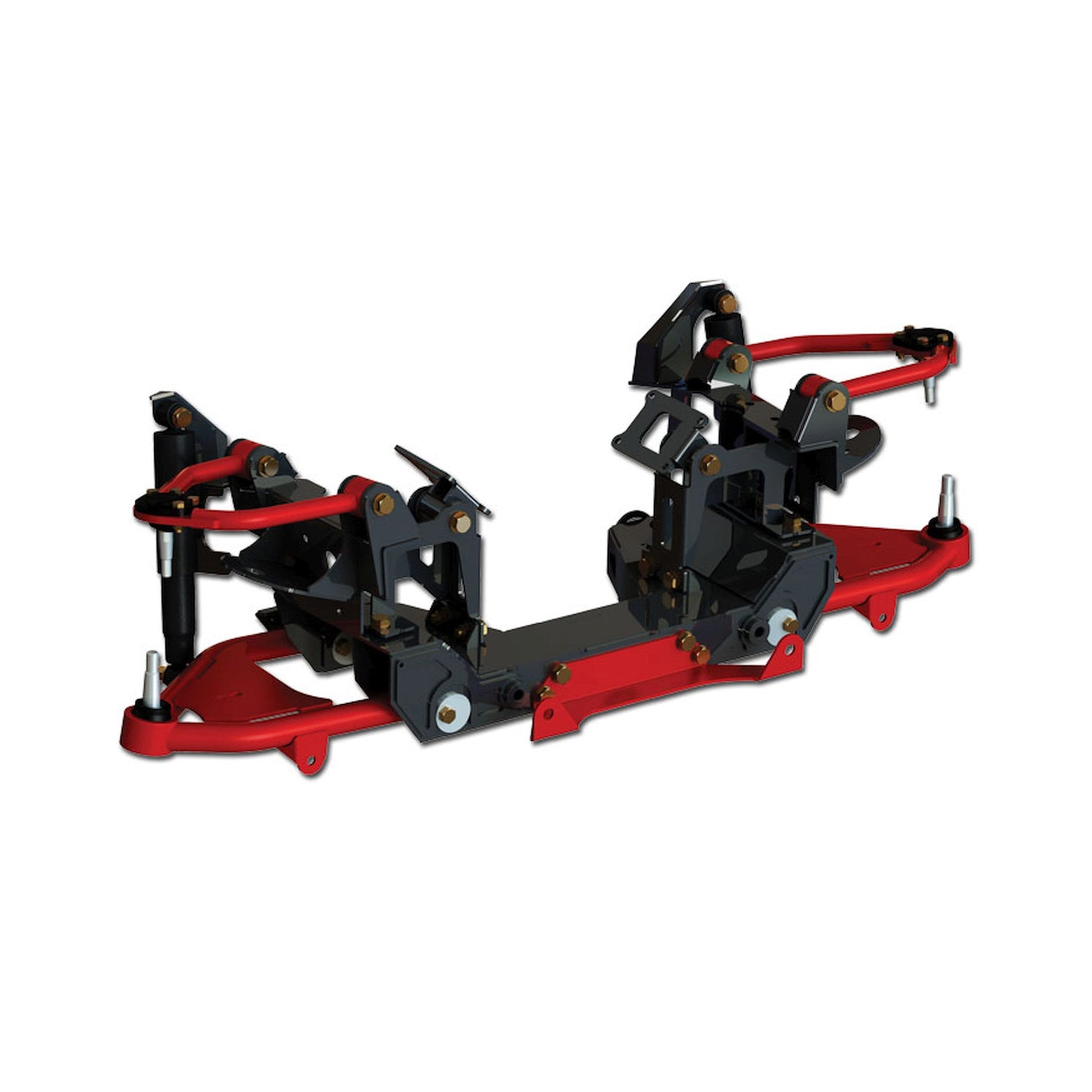

Brothers Trucks Dropped Crossmember Suspension Kit - LS Engine

Compatible with 1963-1972 Chevrolet/GMC C10/C15

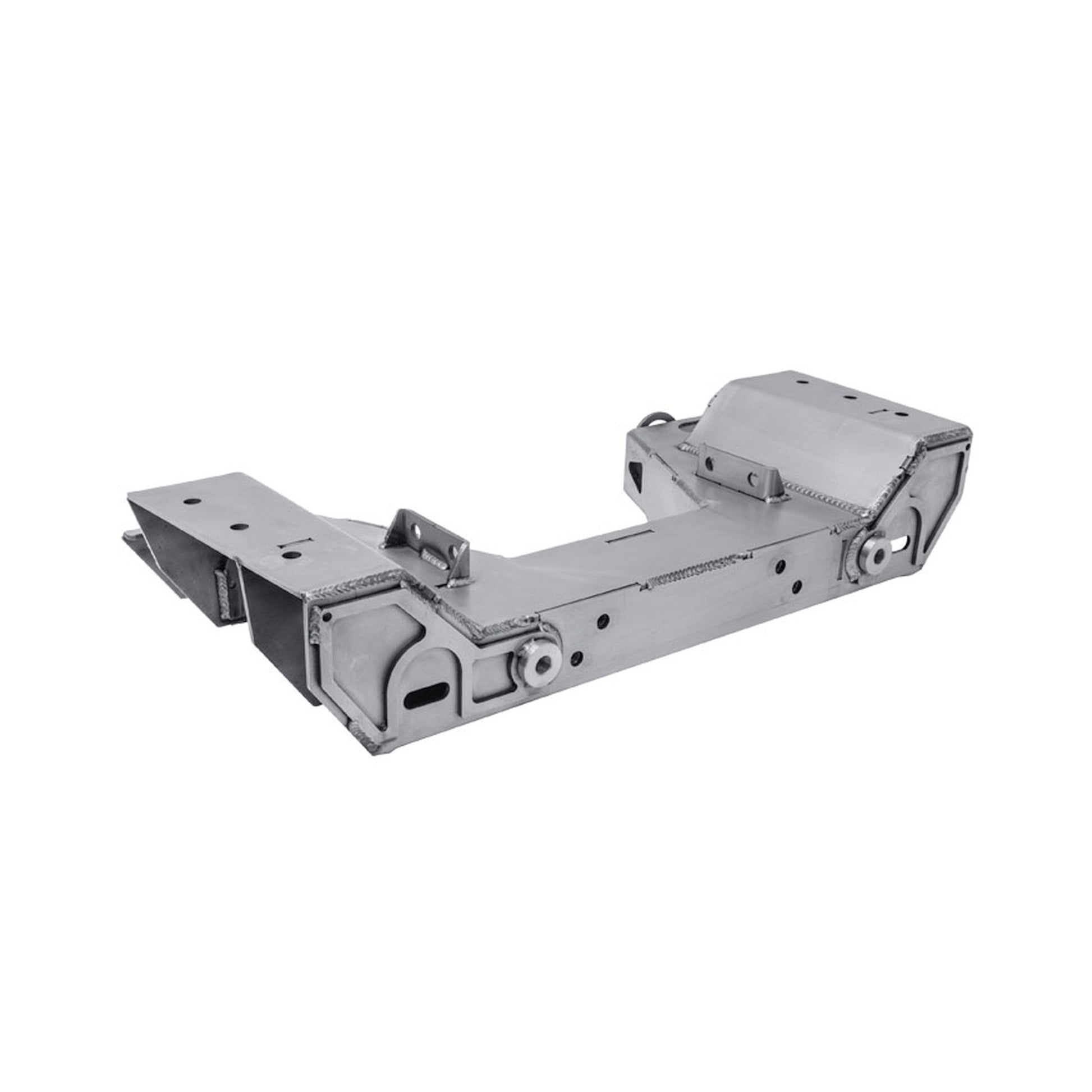

This kit has changed the way you can setup your classic truck. Utilizes improved geometry, and engineered for less hassle. This suspension system makes your truck about 2.5-inch per side and moves the wheel in from the factory location. By utilizing the rack-n-pinion steering, you get smoother steering to give you a more modern late model driving experience. Just some of the advantages of this kit are that no rack notch is needed and kit is 100% bolt-on. The lower a-arms have cam bolts for easy alignment/adjustment without shims. The new crossmember keeps engine low in the frame to increase hood clearance. The rack-n-pinion uses tapered pins for the spindle so there is no need to drill spindle for the steering arm. Complete kit includes the main crossmember with structural components, motor mounts (LS engine on this kit), tubular control arms with bushings, ball joints, shock relocation brackets, power rack-n-pinion with hardware & tapered pins with heim end for spindles, shocks, air bags, and transmission crossmember. Steering linkage, power steering hose kit, and sway bar sold separately.

• 100% bolt-in crossmember with suspension system
• Engine mounts for LS engines
• Rack & Pinion steering
• Tubular upper and lower control arms with new ball joints
• Lower A-arms are adjustable without any shims

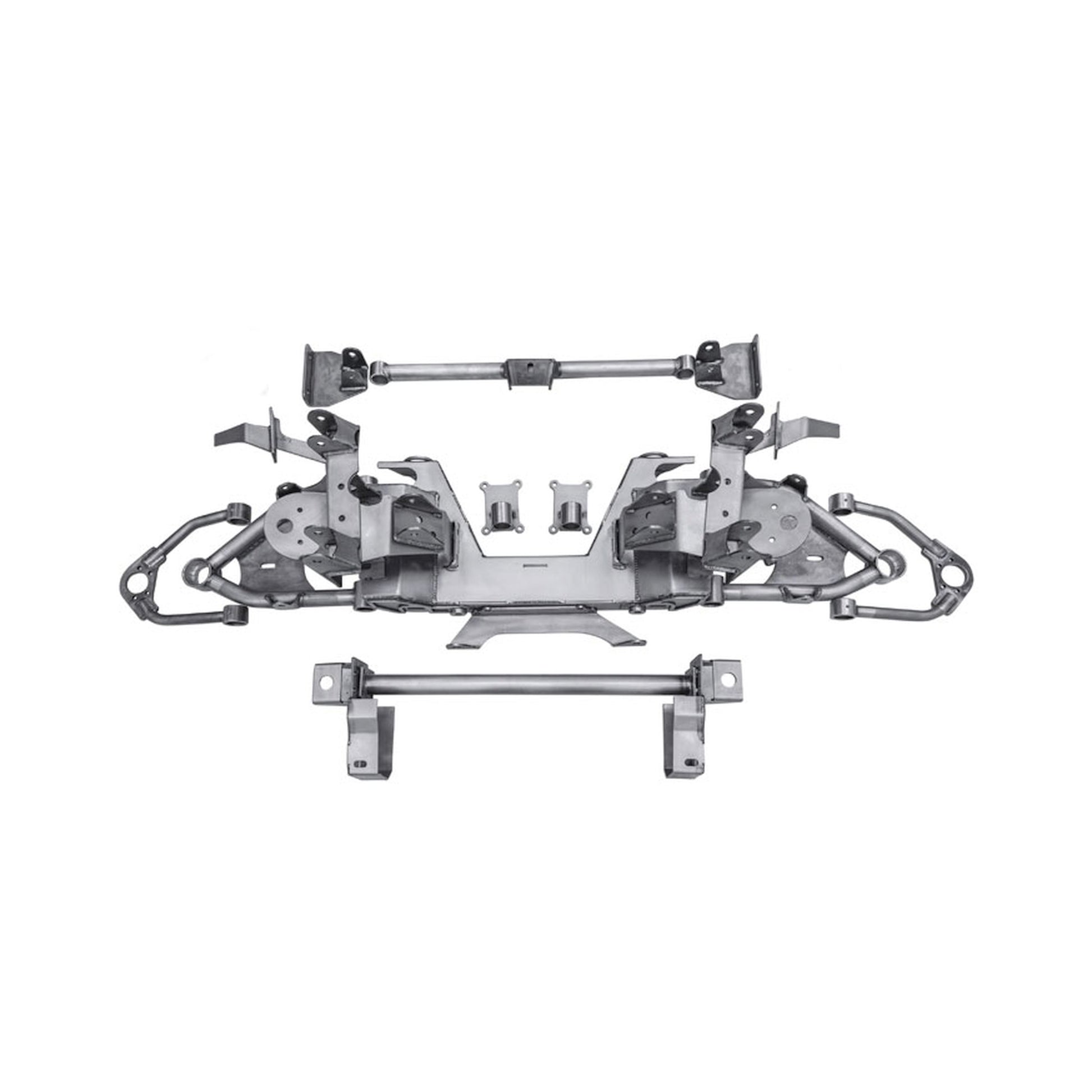

• Includes: crossmember with structural components, LS motor mounts, tubular control arms, ball joints, shock relocation brackets, power rack & pinion, and more
• Steering linkage, power steering hose kit and sway bar are sold separately
