Boostline FD6057-866 - Connecting Rod Set, Ford Barra, 6.057 in. Length, ARP 2000, Set of 6

Boostline FD6057-866 - Connecting Rod Set, Ford Barra, 6.057 in. Length, ARP 2000, Set of 6

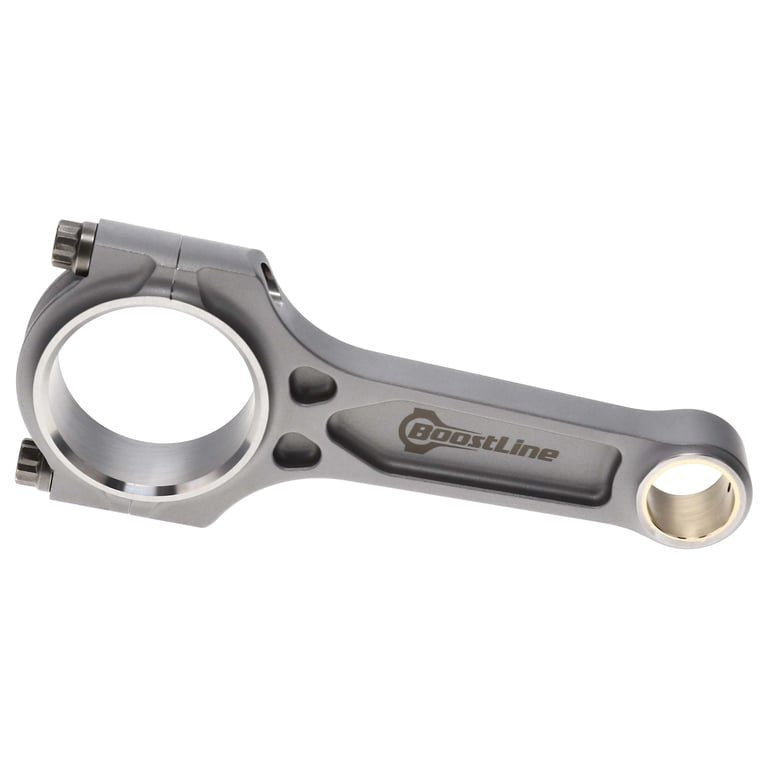

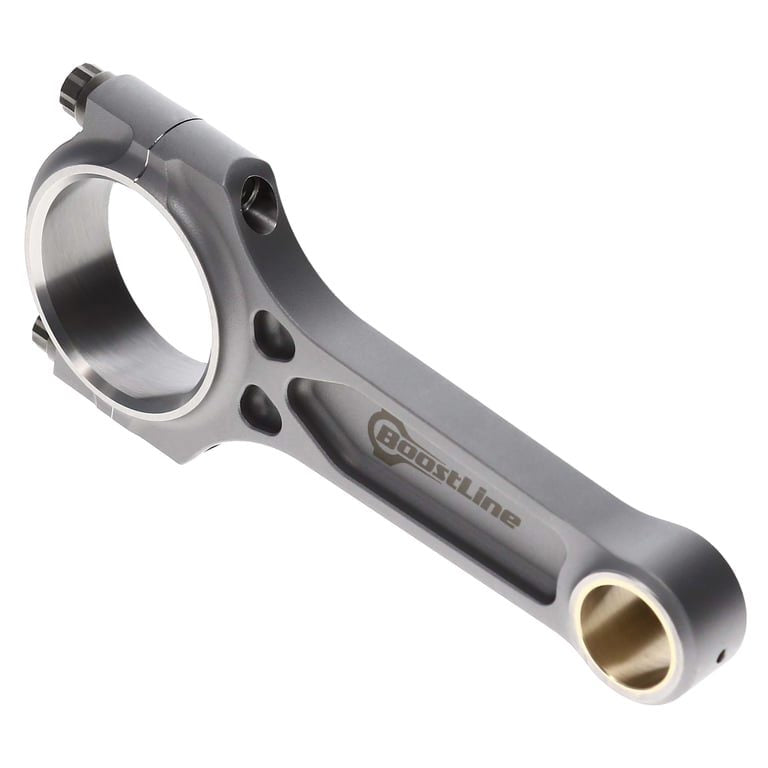

Boostline Ford Barra 4.0L XR6 Connecting Rod Set, 6.057 in. Length, .866 in. Pin, 2.242 in. Journal, 3/8 in. ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 6

BoostLine connecting rods are designed and built for the stressful demands of high-powered, forced induction and nitrous Ford Barra engines. Proven in the lab and on the track in 1500 HP six-cylinder applications, BoostLine rods are forged from premium 4340 steel and utilize a patented, three-pocket design, maximizing strength while minimizing rotating weight. This revolutionary design dramatically improves each rods’ big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs, benefits crucial to durability in four-digit-horsepower engines. Each rod is equipped standard with industry leading ARP hardware and is subject to a 26-point, CMM inspection with all critical dimensions provided via an inspection card provided with every set of BoostLine rods. BoostLine connecting rods are the complete package for everything from powerful marine engines to all-out race cars.

• Purpose-Built For Boost / High Boost Ford Barra 4.0L Applications
• Forged From Ultra-Strong 4340 Steel
• Patented Three-Pocket Design
• Capable of 1500+ HP
• 3/8 x 1.600 in. ARP 2000 Fasteners
• High Quality APMCO Bronze Pin Bushing
• 26 Point Detailed CMM Inspection Report Included
