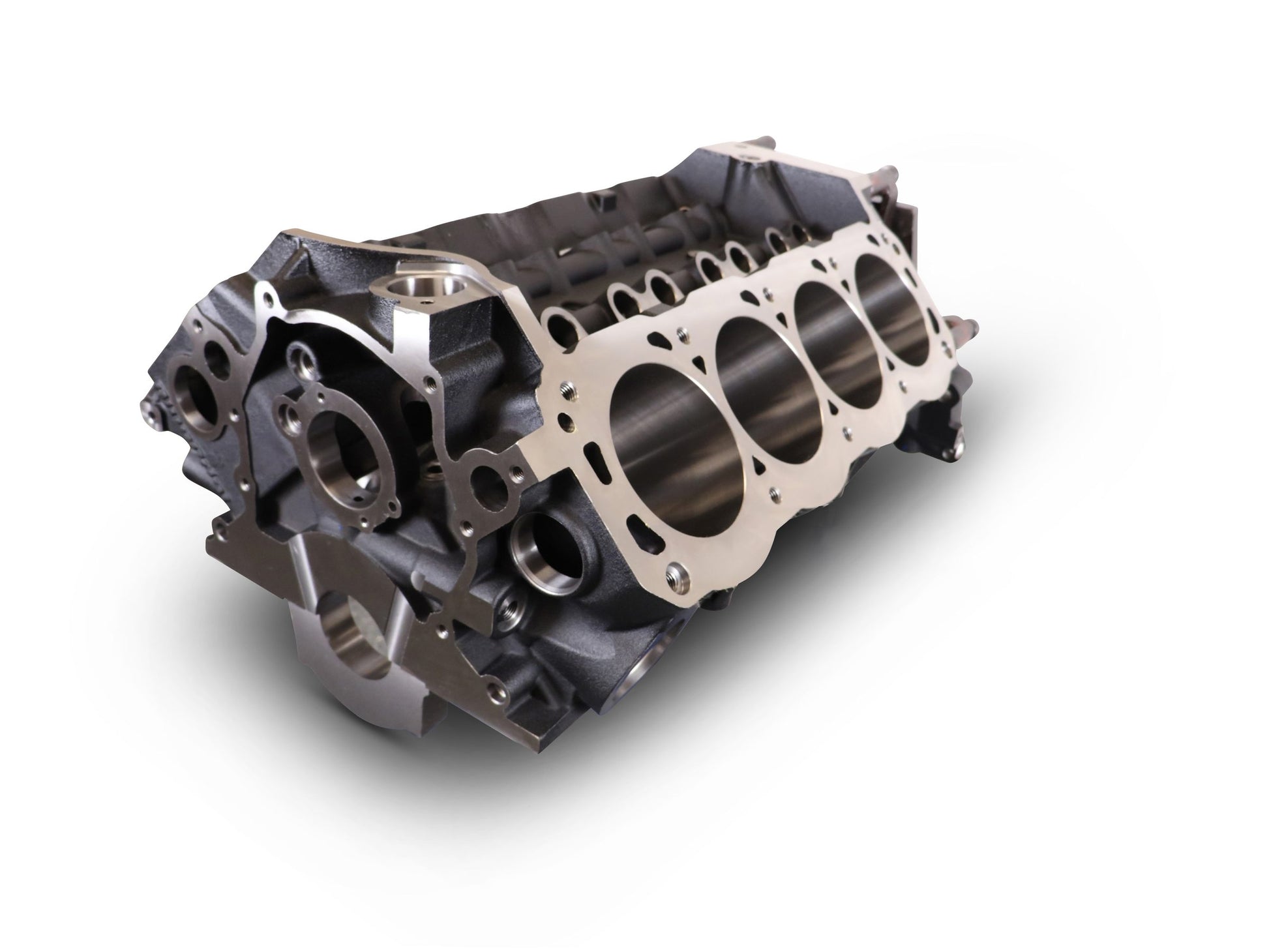

Blueprint Engines BPP12110342 - Small Block Ford Compatible 302 Bare Block – 8.200 Deck x 4.000 Bore, SIAM, Ductile Cast Main Caps
Blueprint Engines BPP12110342 - Small Block Ford Compatible 302 Bare Block – 8.200 Deck x 4.000 Bore, SIAM, Ductile Cast Main Caps
SKU: FMKG-BPP12110342
Regular price
$2,599.00 USD
Regular price
$2,858.90 USD
Sale price
$2,599.00 USD
Shipping calculated at checkout.
3 in stock
Quantity
Couldn't load pickup availability
Blueprint Engines BPP12110342 - Small Block Ford Compatible 302 Bare Block – 8.200 Deck x 4.000 Bore, SIAM, Ductile Cast Main Caps
Engine - Bare Block - 4.000 in Bore - 8.200 in Deck - 4 Bolt Main - 1-Piece / 2-Piece Seal - Cast Iron Main Caps - Cast Iron - Natural - Small Block Ford - Each
BluePrint Engines Small Block Ford Compatible 302 Bare Block – 8.200 Deck x 4.000 Bore, SIAM, Ductile Cast Main Caps
BluePrint Engines Bare Block - 363 c.i. - SBF 302, SIAM, 8.200 x 4.000, CAST MC
- BluePrint Engines Bare Block - 363 c.i. - SBF 302, SIAM, 8.200 x 4.000, CAST MC
Oil Filter: OEM
Main Fastener Tensile Strength: 180,000 to 210,000 PSI
P1 Main Stud Kit P/N:: TBD
Arp Main Stud Kit P/N:: TBD
Material (Block): EN-GJL-250 Iron
Oil System: Priority Main
Oil Pump: OEM
Oil Pan: OEM
Main Bearing Caps: Ductile Cast Iron 4-Bolt Splayed
Fuel Pump: OEM
Starter: OEM
Stroke (Max): 3.400"
Timing Cover: OEM
Weight With Main Caps: 170-190lbs
Quantity: Sold Individually
Main Cap Bolts: 7/16-14 Inner / 3/8-16 splayed
Main Bearing Bore (Line Honed): 2.4420"-2.4412"
Configuration: 302
Cubic Inch (Max): 363
Cylinder Bore (Rough): 4.120" to 4.122"
Cylinder Bore (Max): 4.165"
Cam Bearing Bore Id: 2.2046"+/- .0005"
Cam Bearings: Durabond 351HP
Camshaft Position: OEM
Cam Drive / Timing Set: OEM equivalent
Cam Retaining Plate: OEM
Cylinder Wall Thickness: .160" nominal @ 4.165" bore
Lifter Retainer (If Not Using Tie Bar Lifters): OEM W/Roller Provisions
Water Jacket Style: Siamese
Cylinder Skirt Length: 5.090" Nominal
Deck Height: 8.200" +.005" / -.000"
Deck Thickness:: .600" Nominal
Freeze / Core Plugs: 1-5/8" x 10 BPE # 10110016
Head Bolt Threads: 7/16-14 x 1.35 Deep
Lifter Bores: .8757" +/- .0005"
