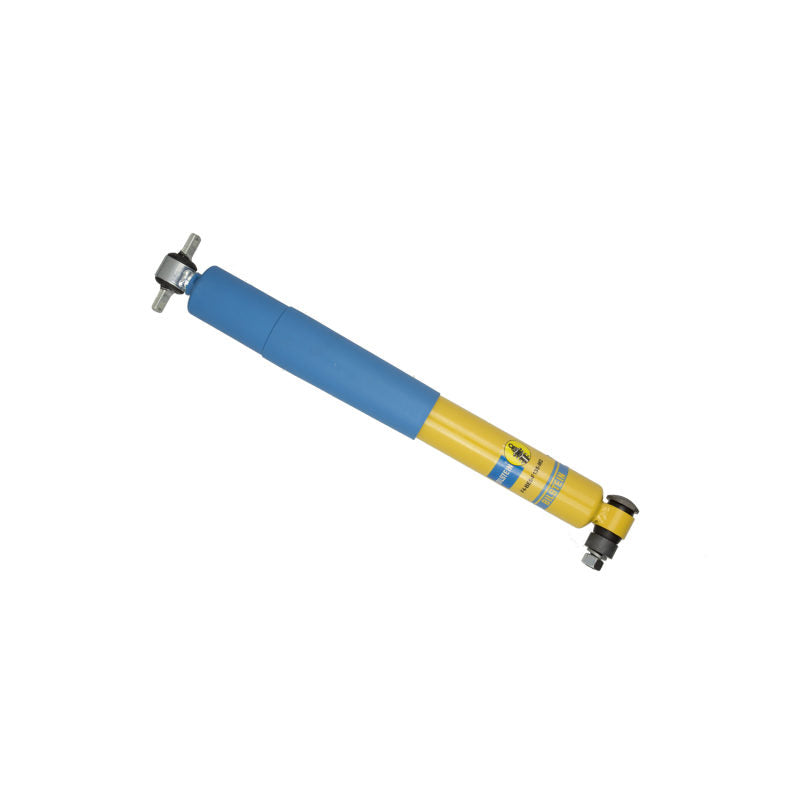

Bilstein F4-BE5-F135-M2 - Motorsport AK Series GM G/H Body Rear Monotube Shock Absorber

Bilstein F4-BE5-F135-M2 - Motorsport AK Series GM G/H Body Rear Monotube Shock Absorber

Bilstein | F4-BE5-F135-M2
SKU: BIL-F4-BE5-F135-M2
Regular price $125.16 USD
Regular price $137.68 USD Sale price $125.16 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein F4-BE5-F135-M2 - Motorsport AK Series GM G/H Body Rear Monotube Shock Absorber

Shock - AK Series - Monotube - 13.11 in Compressed / 20.28 in Extended - 1.81 in OD - Digressive - Steel - Yellow Paint - Rear - Street Stock - Each

46mm Monotube Shock Absorber

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Body Material: Steel
Collapsed Length (IN): 13.11
Spring Seat Included: No
Collapsed Length (MM): 333.0
Extended Length (IN): 20.28
Boot Included: Blue Straight
Adjustable Damping: Non-Adjustable
Stroke/Travel Length (IN): 7.17
Lower Mount Type: Cantilever
Upper Mount Type: Bar Pin
Body Design: Stock Mount Smooth Body
Piston Type: Digressive
Segment: Motorsports
Internal Design: Monotube
Compression @0.26m/s: 295
Finish: Yellow Paint
Rebound @0.26m/s: 785
Extended Length (MM): 515.0
Series: AK Series
PartType: Shocks / Struts
Stroke/Travel Length (mm): 182.1
Piston Diameter: 46mm
Shaft Diameter: 11mm
