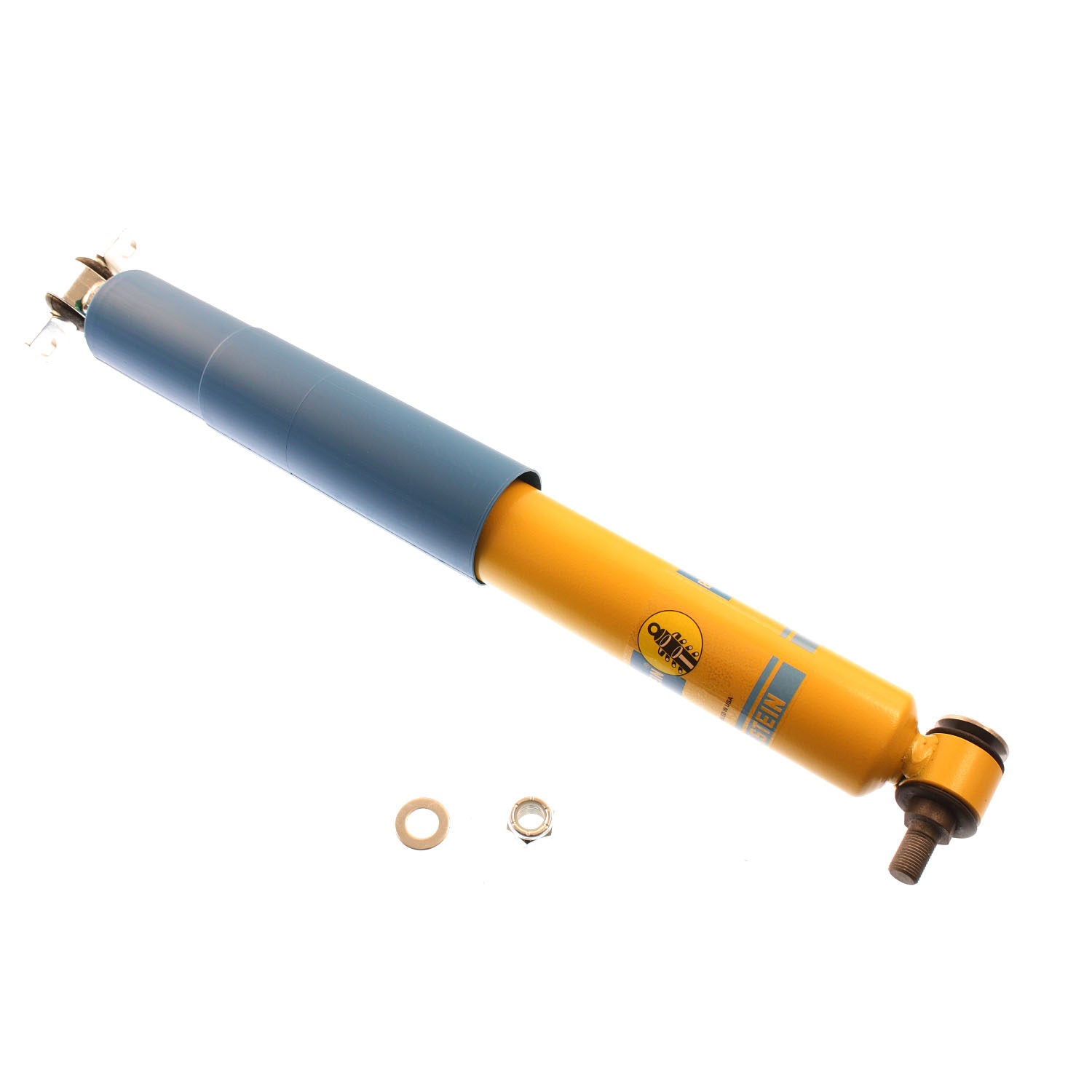

Bilstein - F4-BE5-F132-M0
Shock - AK Series - Monotube - 13.11 in Compressed / 20.28 in Extended - Linear - Steel - Yellow Paint - Each
46mm Monotube Shock Absorber
Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Direct fit (OE) mounting design
Piston Type: Digressive
Collapsed Length (MM): 333.0
Lower Mount Type: Cantilever
Rebound @0.26m/s: 430
Rebound @0.52m/s: 670
Compression @0.26m/s: 335
Series: AK Series
Boot Included: Blue Straight
Spring Seat Included: No
PartType: Shocks / Struts
Segment: Motorsports
Body Design: Stock Mount Smooth Body
Compression @0.52m/s: 520
Upper Mount Type: Bar Pin
Body Material: Steel
Body Diameter (ID): 46mm
Extended Length (IN): 20.28
Adjustable Damping: Non-Adjustable
Collapsed Length (IN): 13.11
Internal Design: Monotube
Finish: Yellow Paint
Extended Length (MM): 515.0
