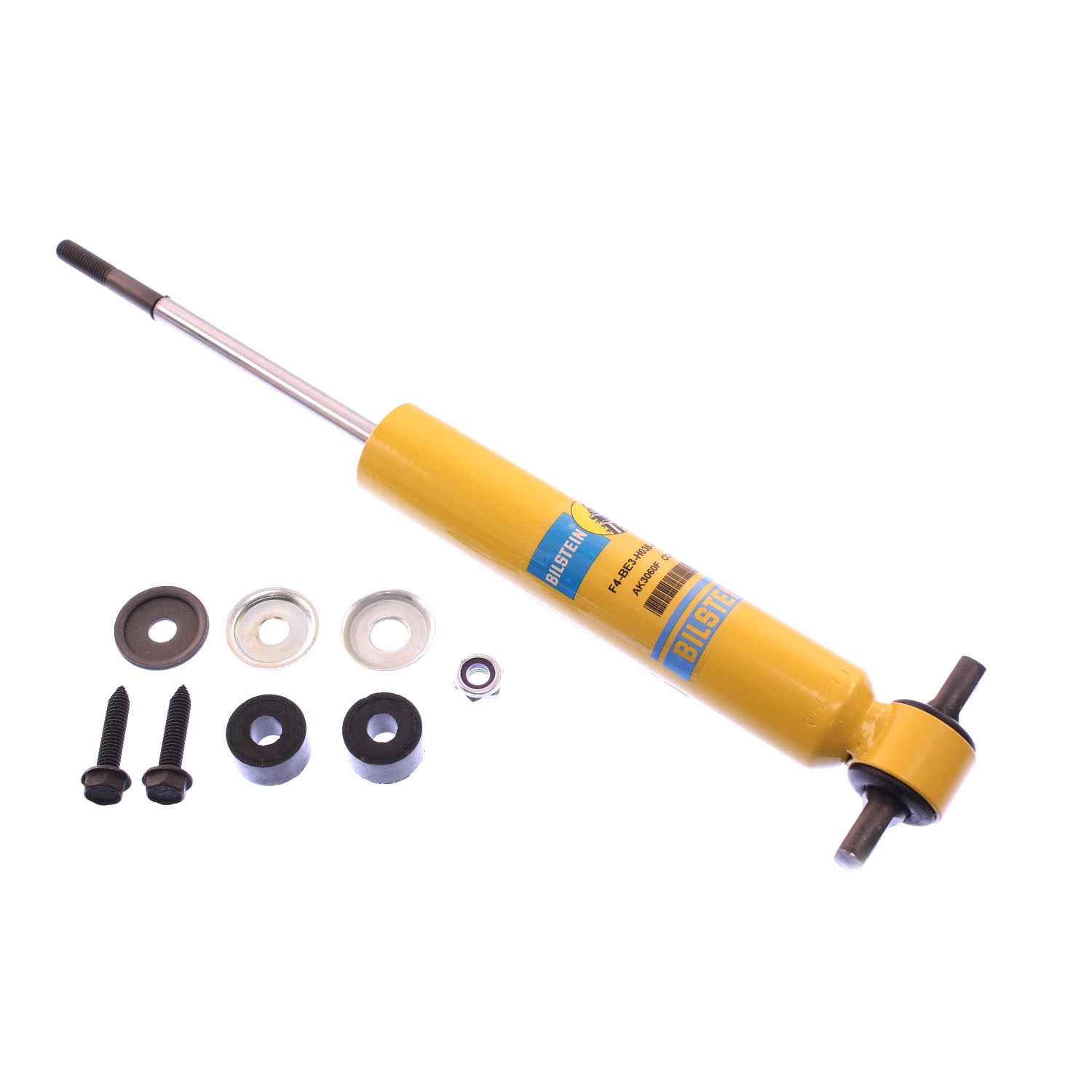

Bilstein F4-BE3-H035-M0 - Shock Absorbers

AK Series - Suspension Shock Absorber

36mm Monotube Shock Absorber

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Body Material: Steel
Internal Design: Monotube
Collapsed Length (IN): 8.73
Spring Seat Included: No
Compression @0.26m/s: 980
Finish: Yellow Paint
Extended Length (IN): 13.46
Rebound @0.26m/s: 565
Rebound @0.52m/s: 770
Boot Included: No
Extended Length (MM): 342.0
Adjustable Damping: Non-Adjustable
Series: AK Series
Stroke/Travel Length (IN): 4.73
PartType: Shocks / Struts
Lower Mount Type: Bar Pin
Collapsed Length (MM): 221.8
Stroke/Travel Length (mm): 120.1
Upper Mount Type: Stem
Body Design: Stock Mount Smooth Body
Compression @0.52m/s: 1150
Piston Diameter: 36mm
Piston Type: Digressive
Shaft Diameter: 11mm
Segment: Motorsports
