Bilstein F4-BE3-E249-M0 - Shock Absorbers

Bilstein F4-BE3-E249-M0 - Shock Absorbers

Bilstein | F4-BE3-E249-M0
SKU: BIL-F4-BE3-E249-M0
Regular price $108.97 USD
Regular price $119.87 USD Sale price $108.97 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

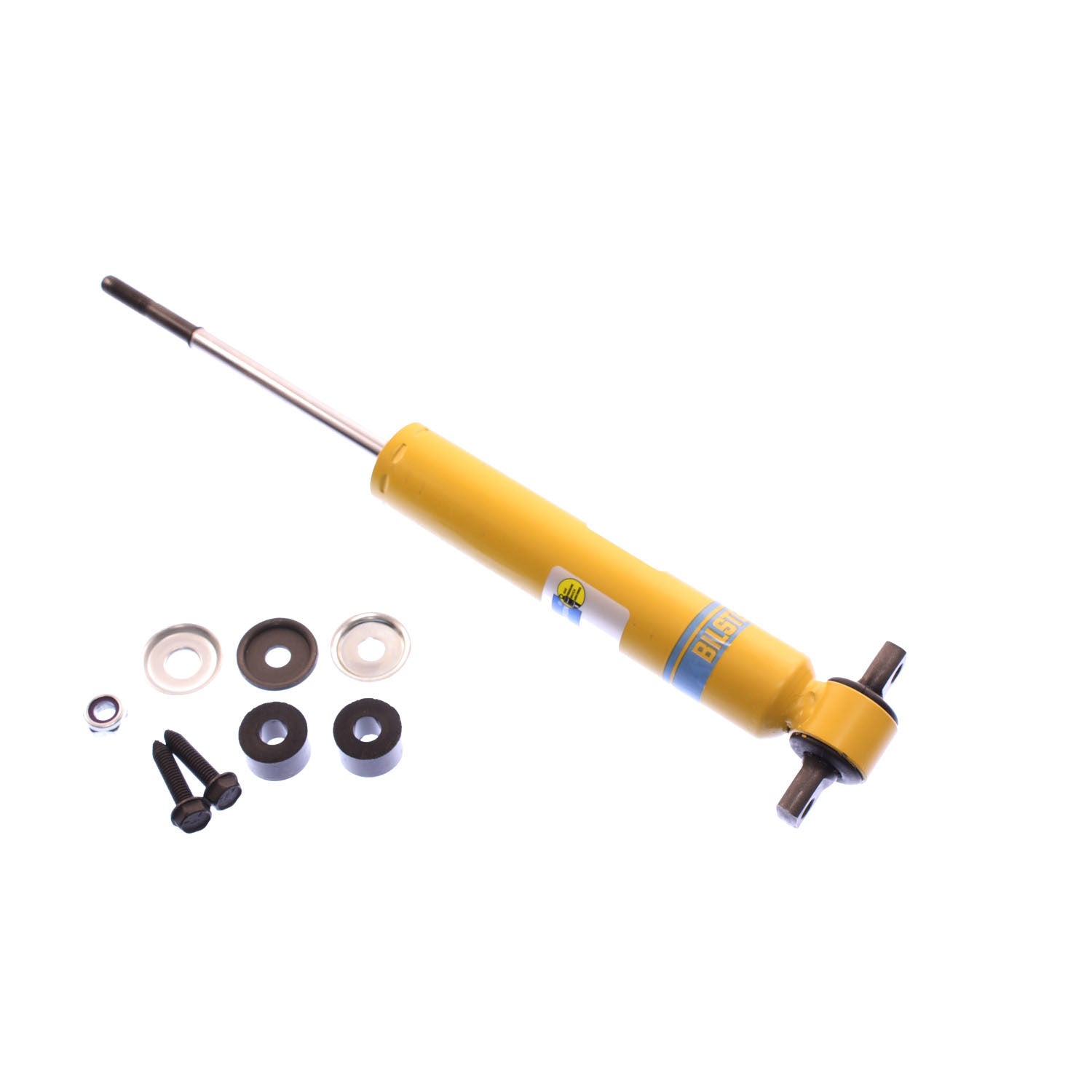

Bilstein F4-BE3-E249-M0 - Shock Absorbers

Shock - AK Series - Monotube - 8.73 in Compressed / 13.46 in Extended - Linear - Steel - Yellow Paint - Front - GM G-Body 1973-88 - Each

36mm Monotube Shock Absorber

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Segment: Motorsports
Extended Length (IN): 13.46
Collapsed Length (IN): 8.73
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Internal Design: Monotube
Upper Mount Type: Stem
Extended Length (MM): 342.0
Stroke/Travel Length (IN): 4.73
Body Design: Stock Mount Smooth Body
PartType: Shocks / Struts
Series: AK Series
Body Material: Steel
Stroke/Travel Length (mm): 120.1
Rebound @0.26m/s: 1595
Rebound @0.52m/s: 2610
Collapsed Length (MM): 221.8
Compression @0.26m/s: 975
Boot Included: No
Compression @0.52m/s: 1415
Shaft Diameter: 11mm
Finish: Yellow Paint
Piston Diameter: 36mm
Lower Mount Type: Bar Pin
Piston Type: Linear
