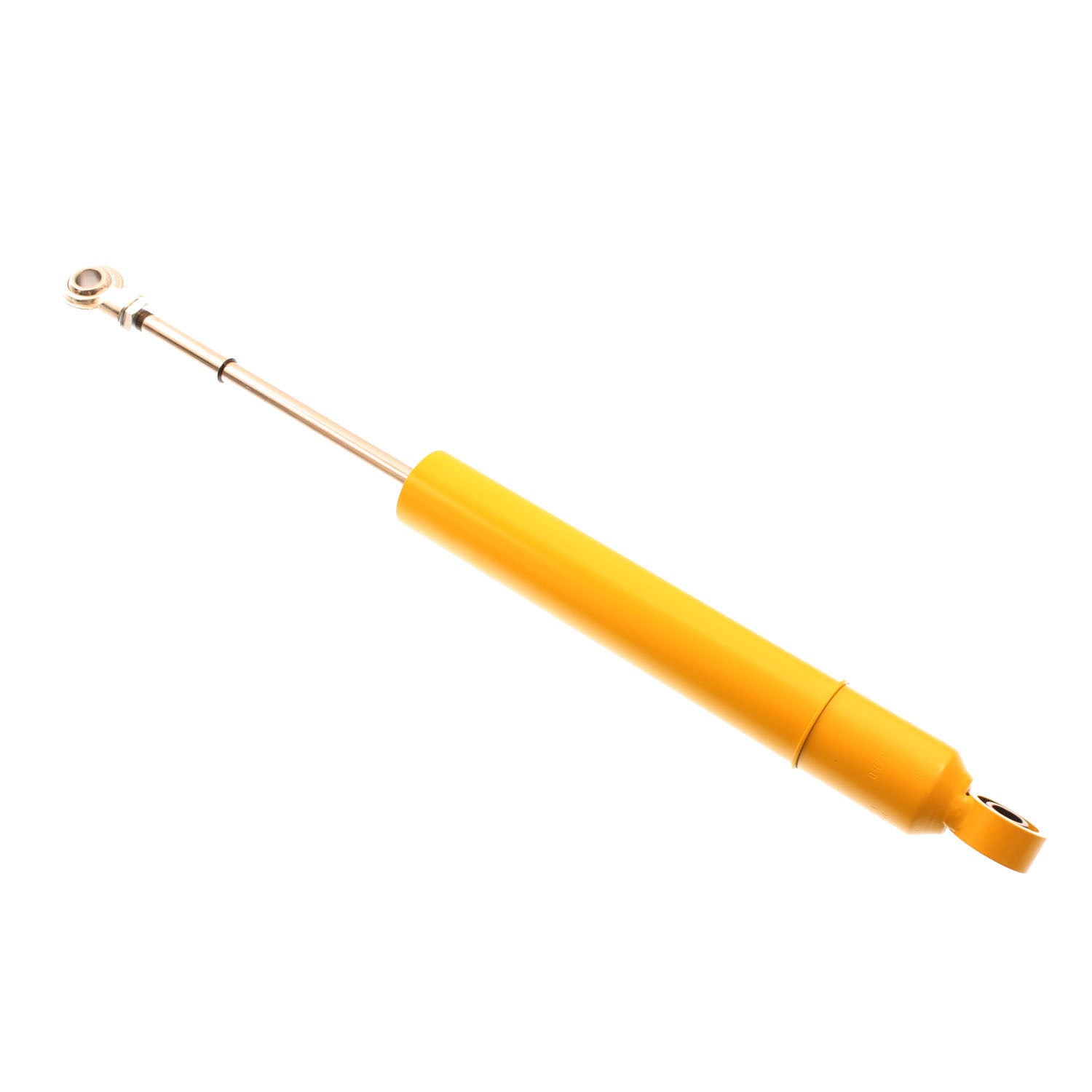

Bilstein F4-BE3-C239-H0 - Shock Absorbers

Bilstein F4-BE3-C239-H0 - Shock Absorbers

Bilstein | F4-BE3-C239-H0
SKU: BIL-F4-BE3-C239-H0
Regular price $105.99 USD
Regular price $152.09 USD Sale price $105.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Bilstein F4-BE3-C239-H0 - Shock Absorbers

Shock - G Series - Monotube - 12.67 in Compressed / 19.86 in Extended - 1.42 in OD - 5.5-5.5 Valve - Digressive - Steel - Yellow Paint - Each

36mm Monotube Shock Absorber

Bilstein G Series shock absorbers feature a steel monotube body with a 36mm piston designed for a variety of motorsports applications. These shock absorbers are available in 6 and 7 inch strokes with multiple valve setting options that provide optimal weight transfer and feel. They can also be converted to a coilover design (kit sold separately) for multiple platforms on dirt and asphalt. G Series shock absorbers are ideal for racers needing a lightweight high performance option with fade free handling and control.

  • 36mm monotube design ensures consistent, fade-free performance in all conditions
  • Available for standard and coilover applications
  • Designed for Stock Cars, IMCA/UMP Modified, Midgets, Mini-Sprints, Modified Lites and Dwarf Cars
Internal Design: Monotube
Collapsed Length (IN): 12.68
Finish: Yellow Paint
Rebound @0.26m/s: 1170
Extended Length (MM): 504.5
Series: G Series
Collapsed Length (MM): 322.0
Upper Mount Type: 1/2in Heim
Body Design: Smooth Body (Non-coilover)
Valving Identifier: 5555
Piston Type: Digressive
Segment: Motorsports
Spring Hardware: B4-BOA-0000187
Body Material: Steel
Spring Seat Included: No
Compression @0.26m/s: 920
Extended Length (IN): 19.86
Boot Included: No
Adjustable Damping: Non-Adjustable
Stroke/Travel Length (IN): 7.19
PartType: Shocks / Struts
Lower Mount Type: 1/2in Heim
Stroke/Travel Length (mm): 182.6
Piston Diameter: 36mm
Shaft Diameter: 11mm
