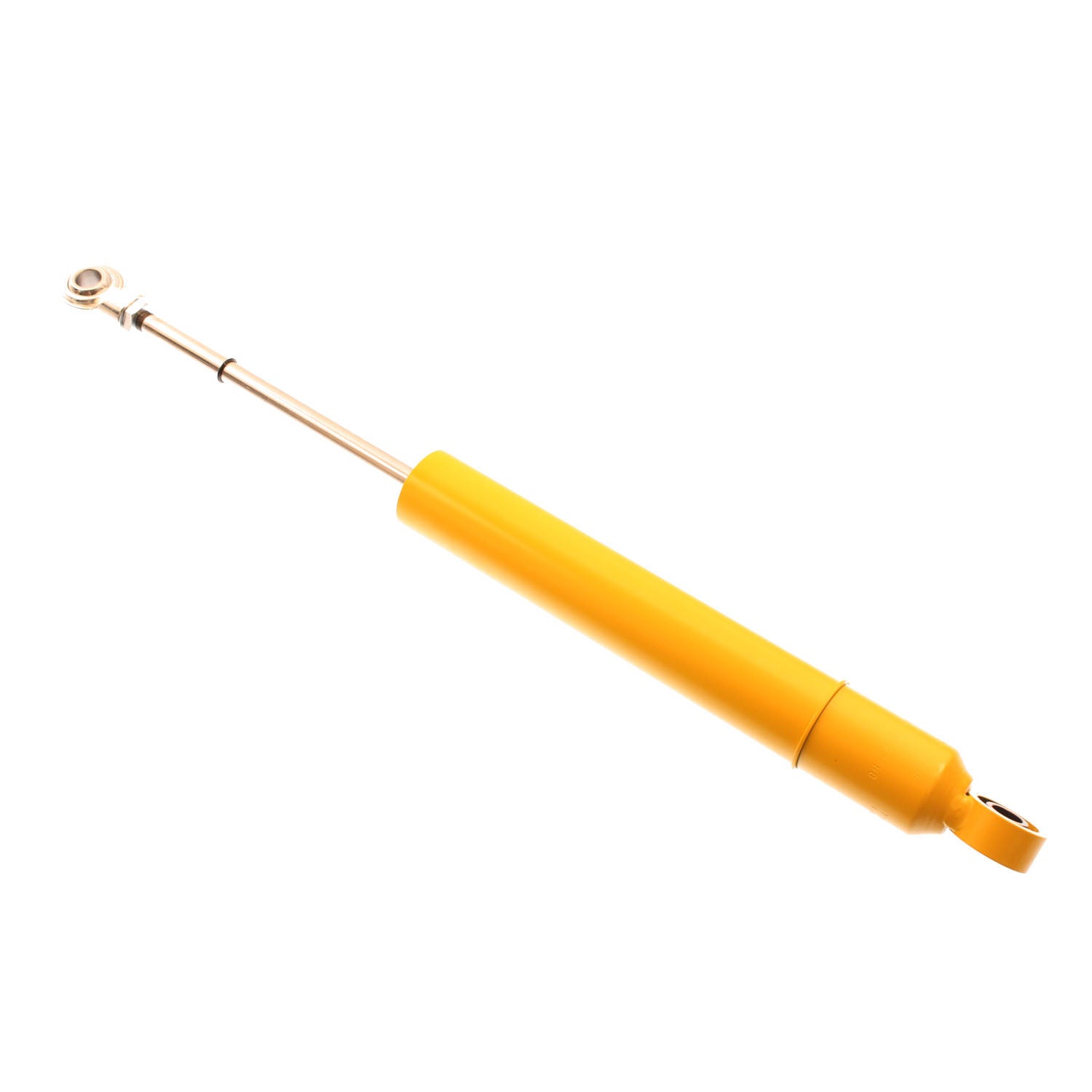

Bilstein - F4-BE3-A213-M0
Shock - G Series - Monotube - 11.38 in Compressed / 17.19 in Extended - 1.42 in OD - C2-R4 Valve - Digressive - Steel - Yellow Paint - Each
36mm Monotube Shock Absorber
Bilstein G Series shock absorbers feature a steel monotube body with a 36mm piston designed for a variety of motorsports applications. These shock absorbers are available in 6 and 7 inch strokes with multiple valve setting options that provide optimal weight transfer and feel. They can also be converted to a coilover design (kit sold separately) for multiple platforms on dirt and asphalt. G Series shock absorbers are ideal for racers needing a lightweight high performance option with fade free handling and control.
- 36mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications
- Available for standard and coilover applications
Extended Length (IN): 17.19
Series: G Series
Adjustable Damping: Non-Adjustable
Piston Type: Digressive
Rebound @0.26m/s: 450
Boot Included: No
Lower Mount Type: 1/2in Heim
Extended Length (MM): 436.5
PartType: Shocks / Struts
Segment: Motorsports
Spring Seat Included: No
Compression @0.26m/s: 740
Collapsed Length (IN): 11.38
Valving Identifier: 2040
Body Material: Steel
Body Diameter (ID): 36mm
Spring Hardware: B4-BOA-0000187
Finish: Yellow Paint
Collapsed Length (MM): 289.0
Internal Design: Monotube
Upper Mount Type: 1/2in Heim
Body Design: Smooth Body (Non-coilover)
