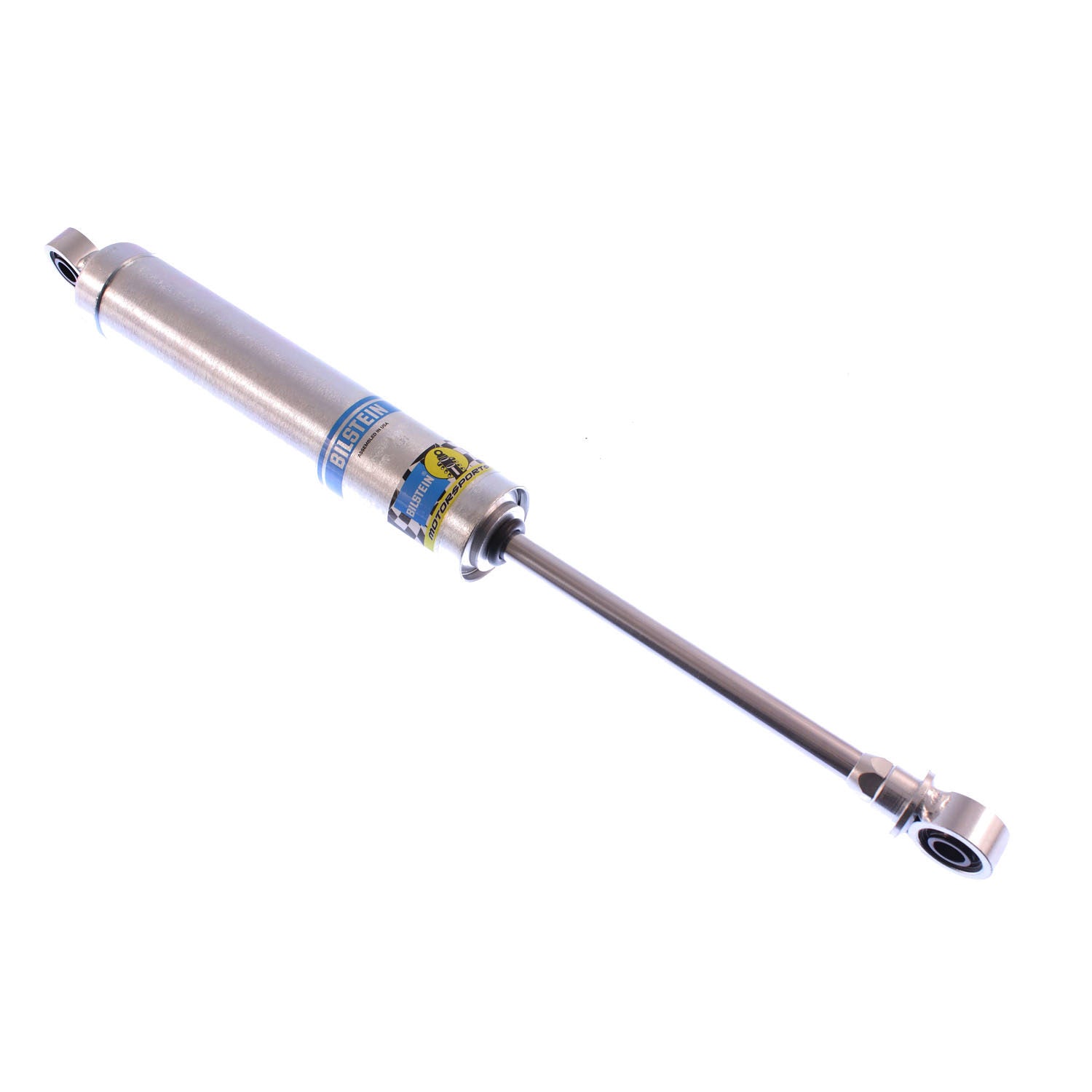

Bilstein F4-B46-0201-H0 - Shock Absorbers

SL Series - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

  • Plated steel body for durability and superior heat dissipation
  • 46mm piston design for maximum damping control
  • Standard 1/2” graphite heims
Body Material: Steel
Internal Design: Monotube
Collapsed Length (IN): 11.08
Spring Seat Included: No
Collapsed Length (MM): 281.5
Finish: Zinc Plated
Extended Length (IN): 16.28
Boot Included: No
Extended Length (MM): 413.5
Adjustable Damping: Non-Adjustable
Series: SL Series
Stroke/Travel Length (IN): 5.20
PartType: Shocks / Struts
Lower Mount Type: 1/2in Heim
Stroke/Travel Length (mm): 132.1
Upper Mount Type: 1/2in Heim
Piston Diameter: 46mm
Piston Type: Custom
Shaft Diameter: 14mm
Body Design: Smooth Body (Non-coilover)
Segment: Motorsports
