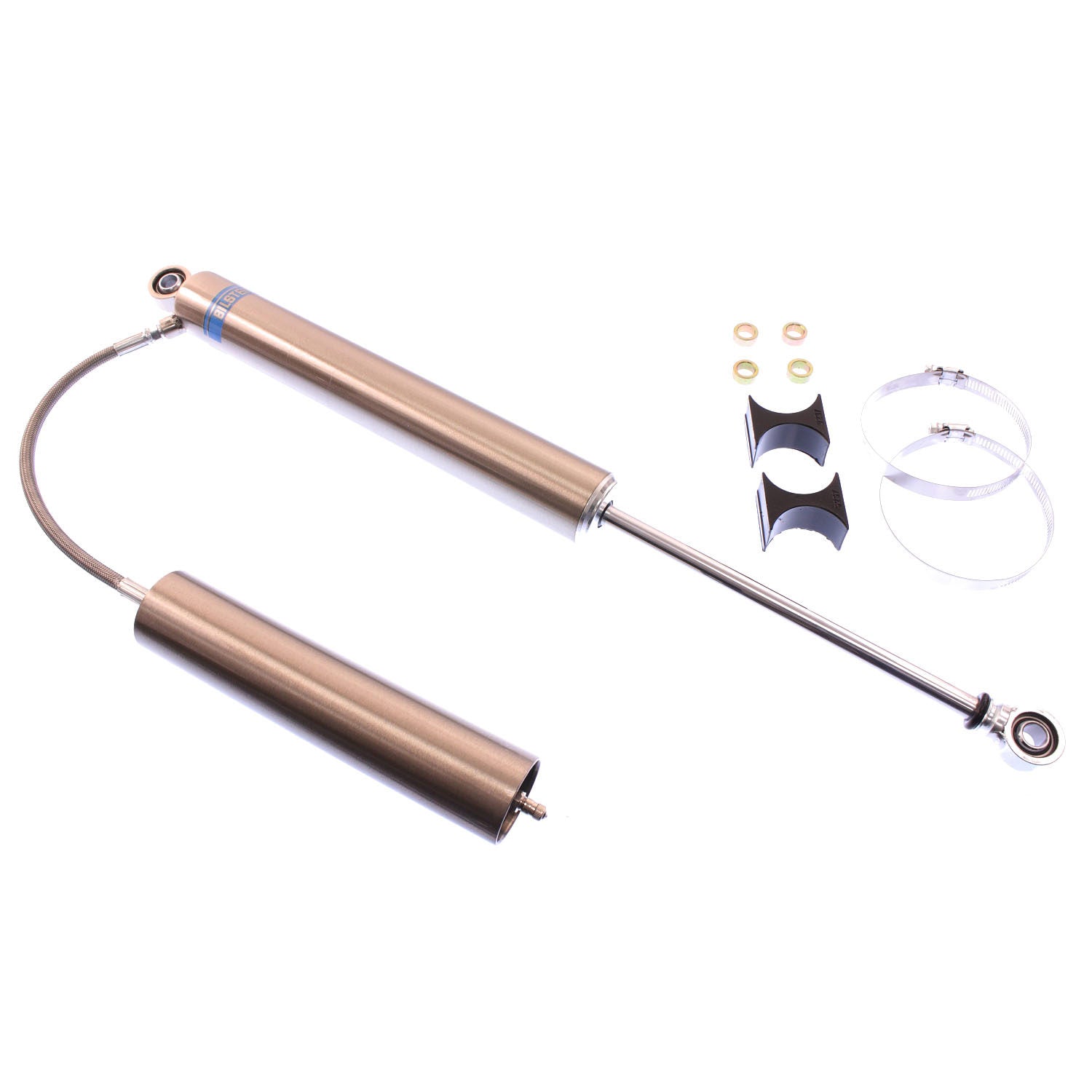

Bilstein B46-0350R - Motorsport 12in. TRVL RSRVR SHK PLTD 360/80 46mm Monotube Shock Absorber

Bilstein B46-0350R - Motorsport 12in. TRVL RSRVR SHK PLTD 360/80 46mm Monotube Shock Absorber

Bilstein | B46-0350R
SKU: BIL-B46-0350R
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Bilstein B46-0350R - Motorsport 12in. TRVL RSRVR SHK PLTD 360/80 46mm Monotube Shock Absorber

M 7100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

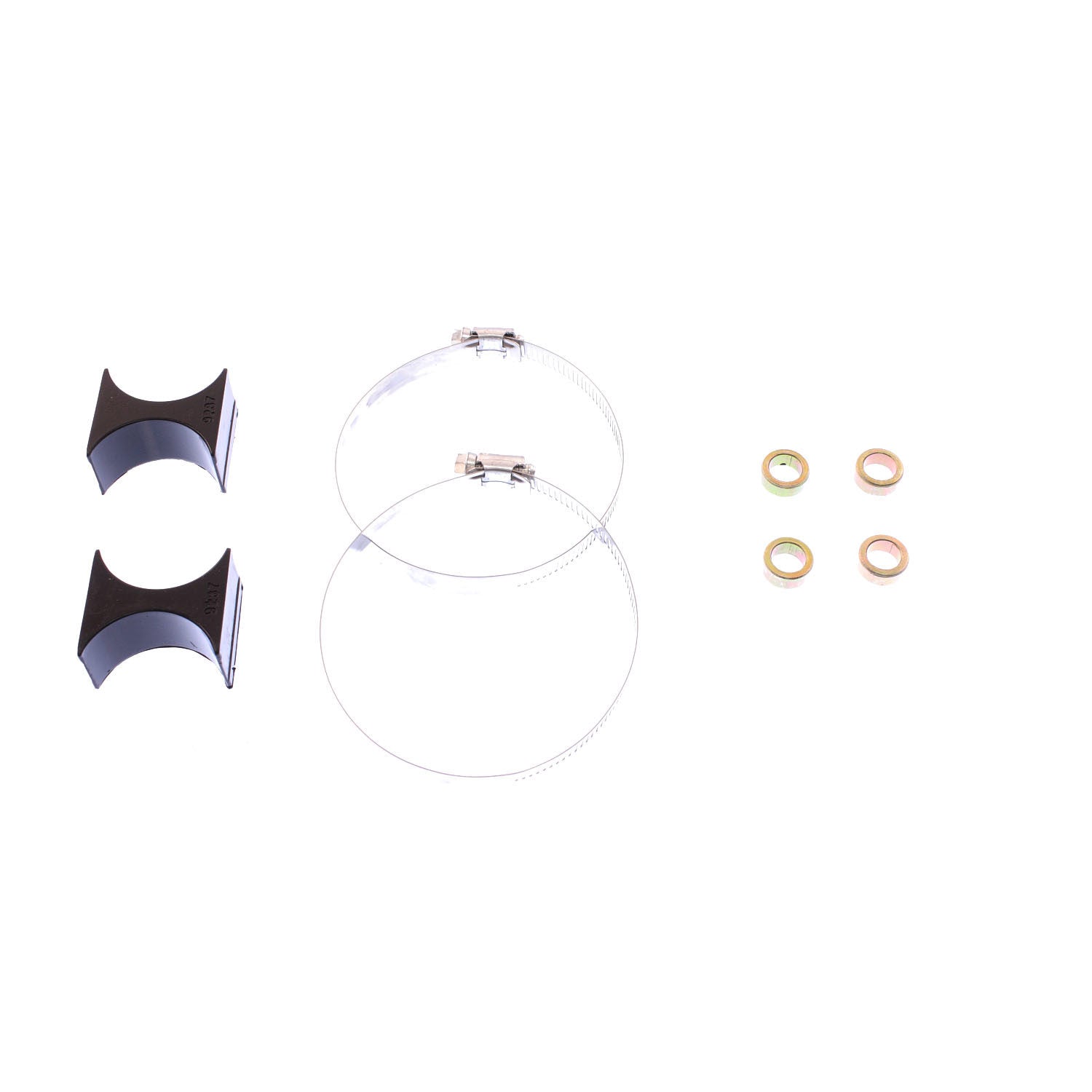

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness
Segment: Motorsports
Extended Length (IN): 31.10
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
Collapsed Length (IN): 19.53
Spring Seat Included: No
Extended Length (MM): 789.9
Internal Design: Monotube
Upper Mount Type: 1/2in Heim
Stroke/Travel Length (IN): 11.57
Body Design: Smooth Body (Non-Coilover)
PartType: Shocks / Struts
Series: M 7100
Stroke/Travel Length (mm): 293.9
Rebound @0.52m/s: 3600
Collapsed Length (MM): 496.1
Reservoir: Yes
Compression @0.52m/s: 800
Finish: Nickel Plated with Clear Powder Coat
Piston Diameter: 46mm
Lower Mount Type: 1/2in Heim
Shaft Diameter (mm): 14.0
