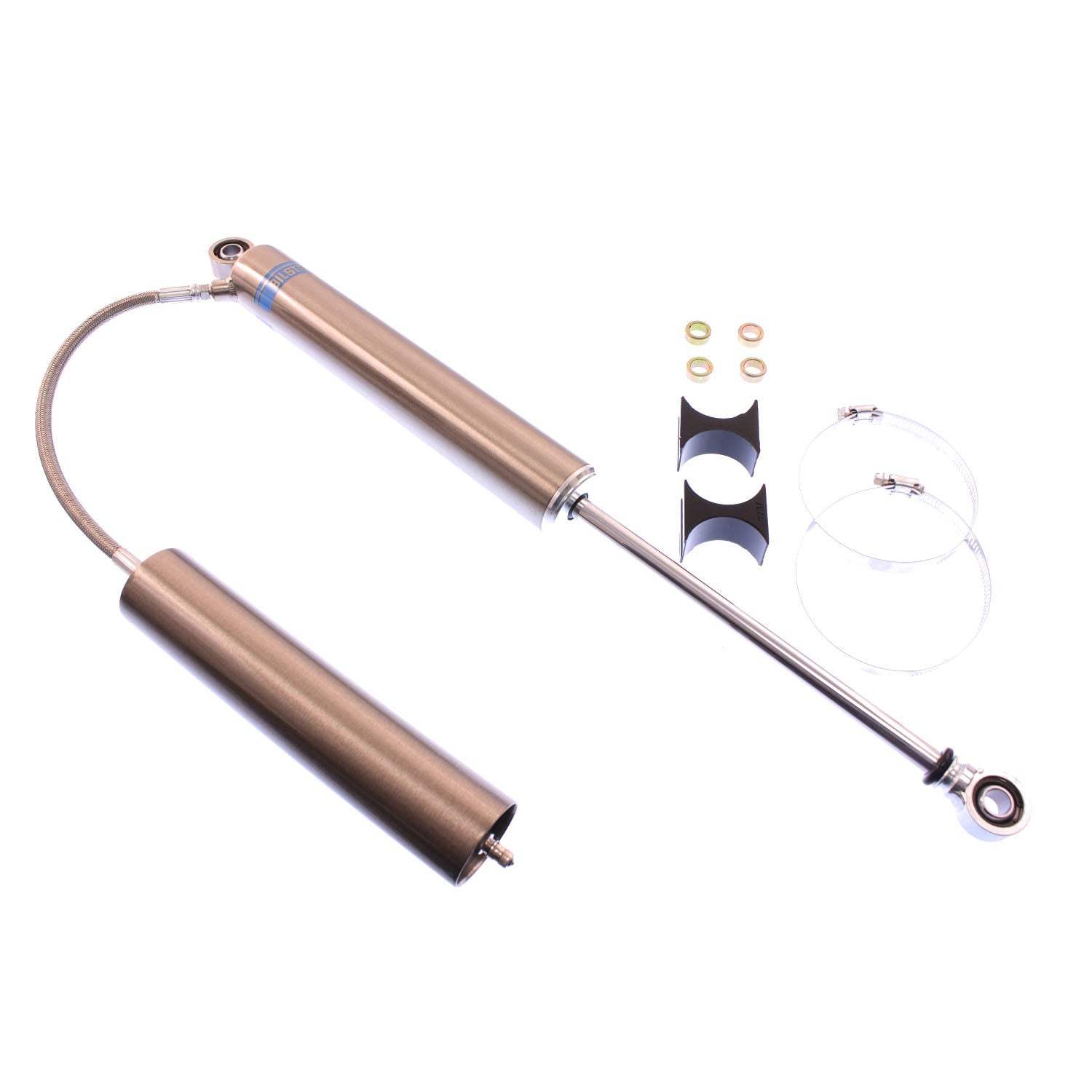

Bilstein AK7110SB06 - Motorsport RSVR.SHOCK 8in. 10in. SFT 360/80 46mm Monotube Shock Absorber

Bilstein AK7110SB06 - Motorsport RSVR.SHOCK 8in. 10in. SFT 360/80 46mm Monotube Shock Absorber

Bilstein | AK7110SB06
SKU: BIL-AK7110SB06
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Bilstein AK7110SB06 - Motorsport RSVR.SHOCK 8in. 10in. SFT 360/80 46mm Monotube Shock Absorber

M 7100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

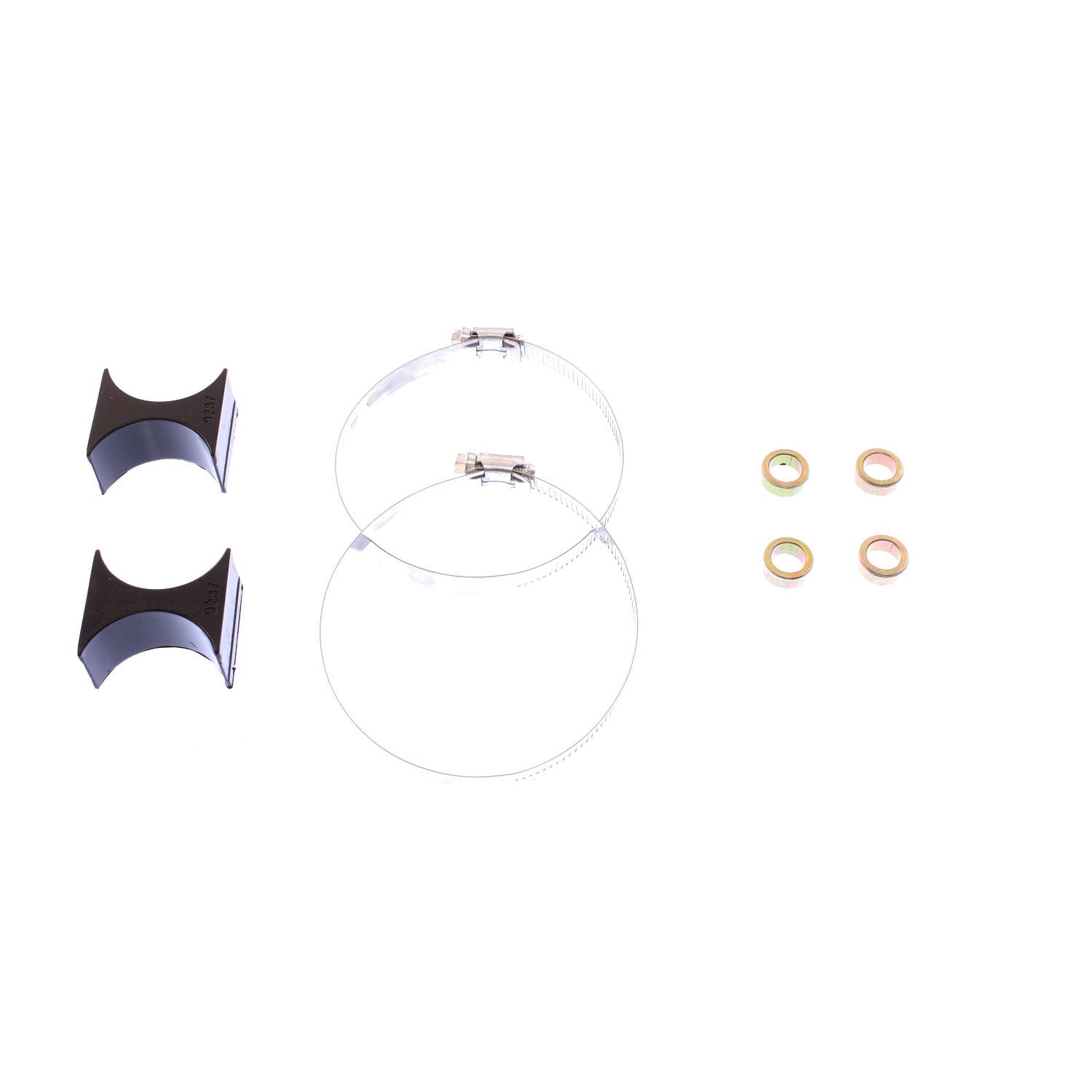

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness
Internal Design: Monotube
Collapsed Length (IN): 14.21
Spring Seat Included: No
Optional Reservoir Clamp: N/A
Extended Length (IN): 24.31
Extended Length (MM): 617.5
Stroke/Travel Length (IN): 10.10
Reservoir: Yes
Upper Mount Type: 1/2in Heim
Piston Diameter: 46mm
Segment: Motorsports
Shaft Diameter (mm): 14.0
Collapsed Length (MM): 360.9
Series: M 7100
Lower Mount Type: 1/2in Heim
Compression @0.52m/s: 800
Finish: Nickel Plated with Clear Powder Coat
Rebound @0.52m/s: 3600
PartType: Shocks / Struts
Stroke/Travel Length (mm): 256.5
Mount Type: Eye-to-Eye
Body Design: Smooth Body (Non-Coilover)
