Bilstein - AK7108R05
M 7100 - Suspension Shock Absorber
46mm Monotube Shock Absorber

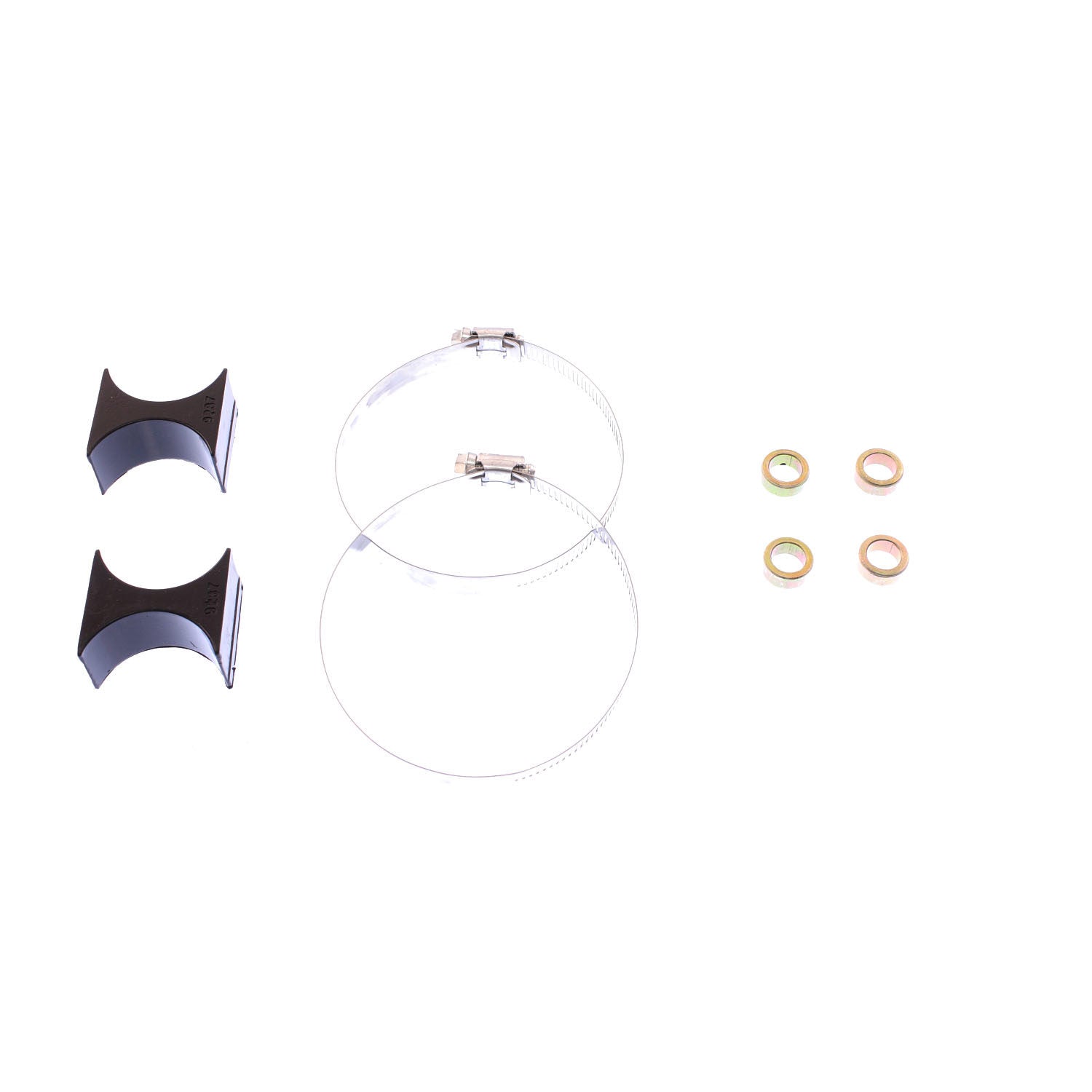

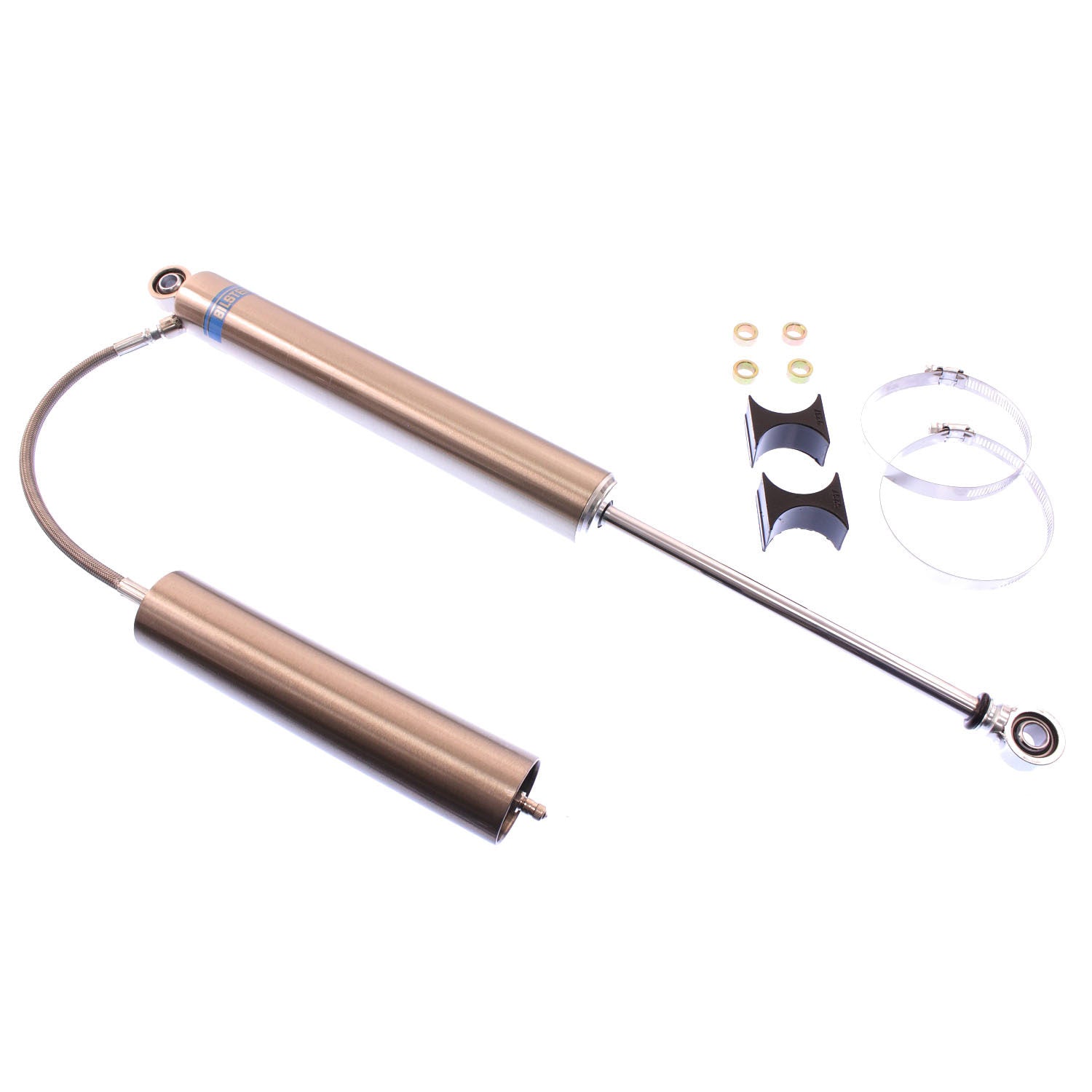

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
PartType: Shocks / Struts
Extended Length (MM): 566.2
Extended Length (IN): 22.29
Reservoir: Yes
Finish: Nickel Plated with Clear Powder Coat
Spring Seat Included: No
Internal Design: Monotube
Mount Type: Eye-to-Eye
Lower Mount Type: 1/2in Heim
Series: M 7100
Rebound @0.52m/s: 2750
Optional Reservoir Clamp: N/A
Collapsed Length (IN): 14.06
Upper Mount Type: 1/2in Heim
Body Diameter (ID): 46mm
Collapsed Length (IN) Rounded: 14
Extended Length (IN) Rounded: 22
Compression @0.52m/s: 780
Body Design: Smooth Body (Non-Coilover)
Collapsed Length (MM): 357.1
Segment: Motorsports
