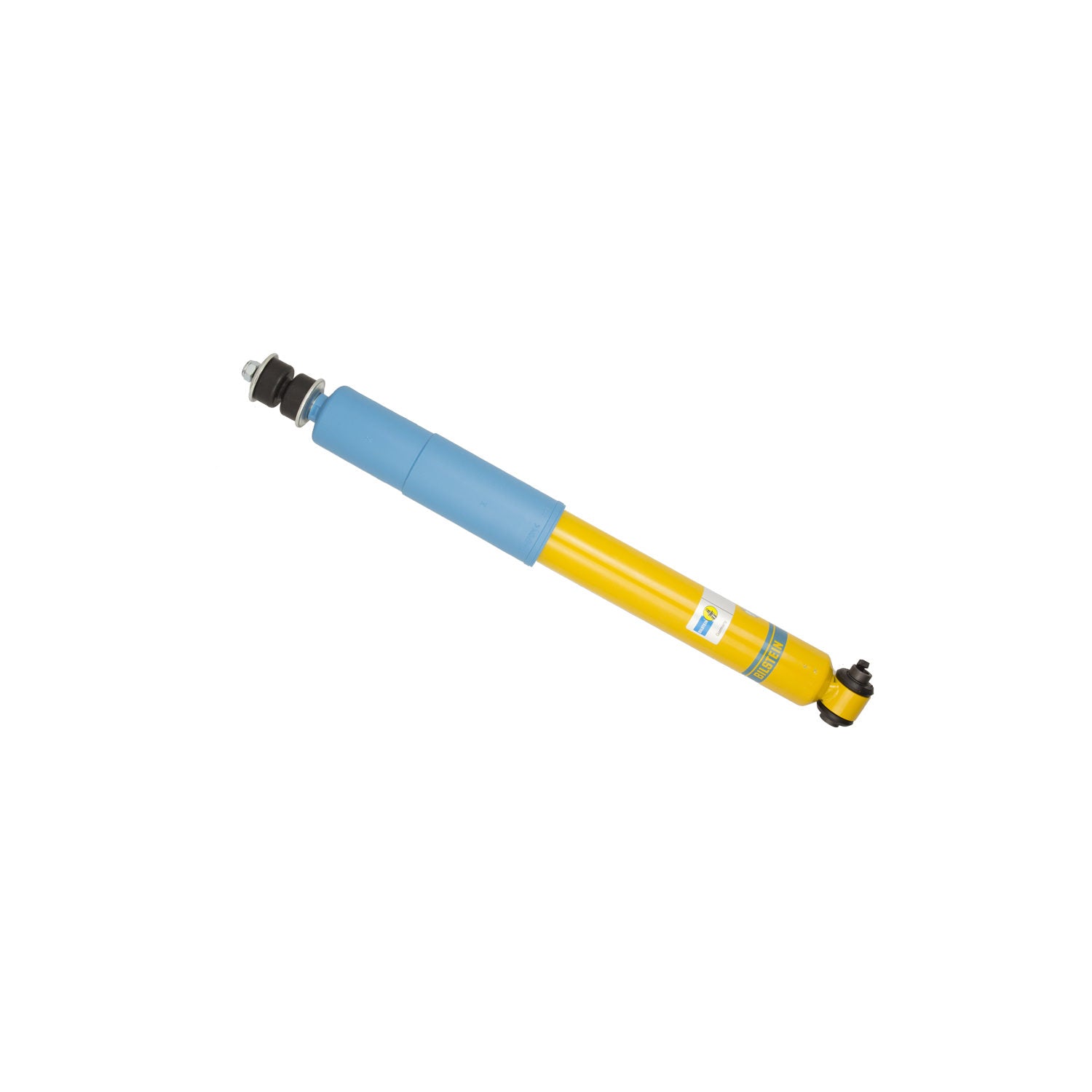

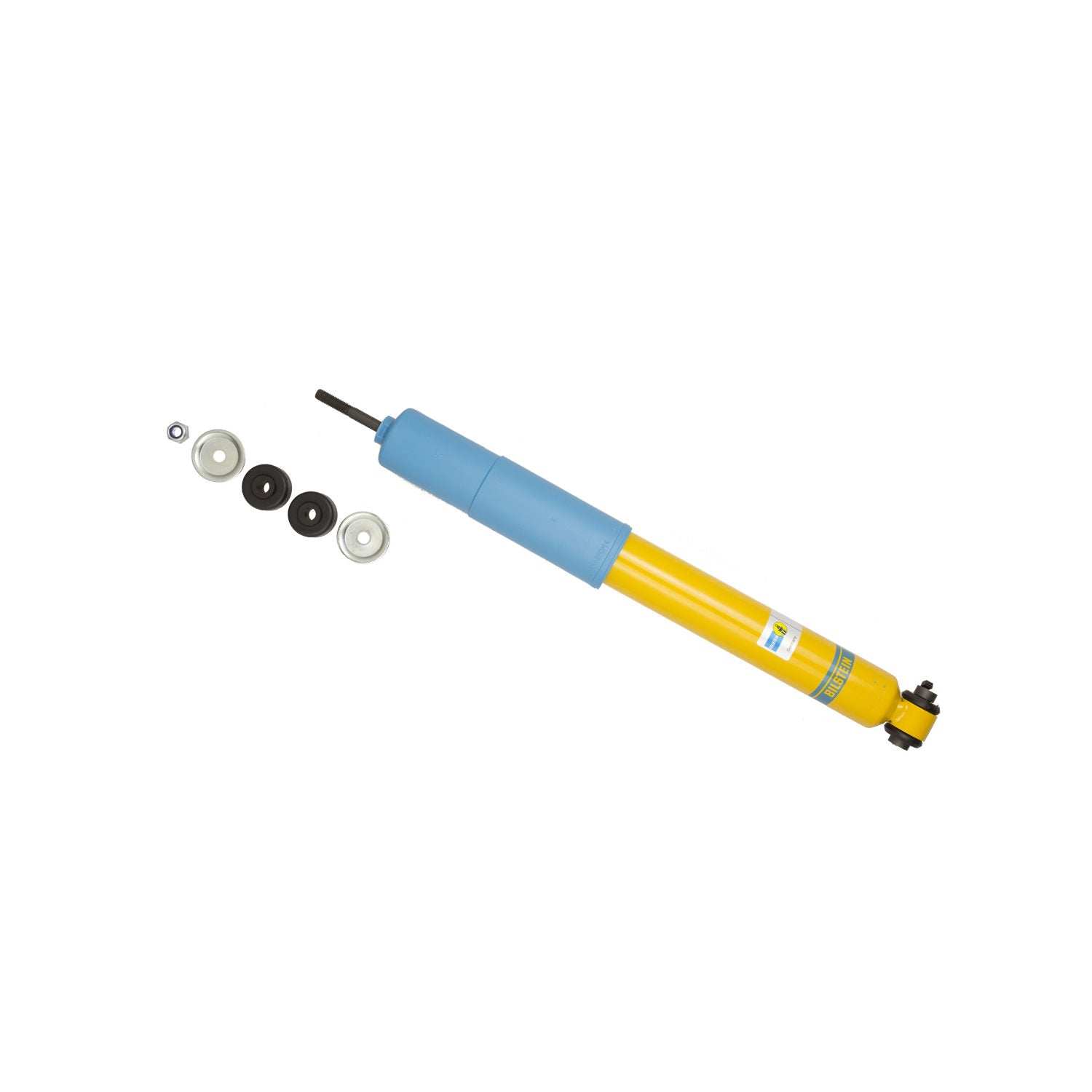

Bilstein AK1198 - Shock Absorbers

Bilstein AK1198 - Shock Absorbers

Bilstein | AK1198
SKU: BIL-AK1198
$132.90 USD
$146.19 USD $132.90 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein AK1198 - Shock Absorbers

Shock - AK Series - Monotube - 12.64 in Compressed / 20.16 in Extended - Linear - Steel - Yellow Paint - Rear - Ford Mustang 1987-93 - Each

46mm Monotube Shock Absorber

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Extended Length (IN): 20.16
Collapsed Length (IN): 12.64
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Extended Length (MM): 512.0
Internal Design: Monotube
Upper Mount Type: Stem
Stroke/Travel Length (IN): 7.52
Body Design: Stock Mount Smooth Body
PartType: Shocks / Struts
Series: AK Series
Body Material: Steel
Stroke/Travel Length (mm): 191.0
Rebound @0.26m/s: 905
Rebound @0.52m/s: 1275
Collapsed Length (MM): 321.0
Compression @0.26m/s: 330
Boot Included: Blue Straight
Compression @0.52m/s: 520
Finish: Yellow Paint
Shaft Diameter: 11mm
Piston Diameter: 46mm
Lower Mount Type: Eye 12mm
Segment: Motorsports
Piston Type: Linear
