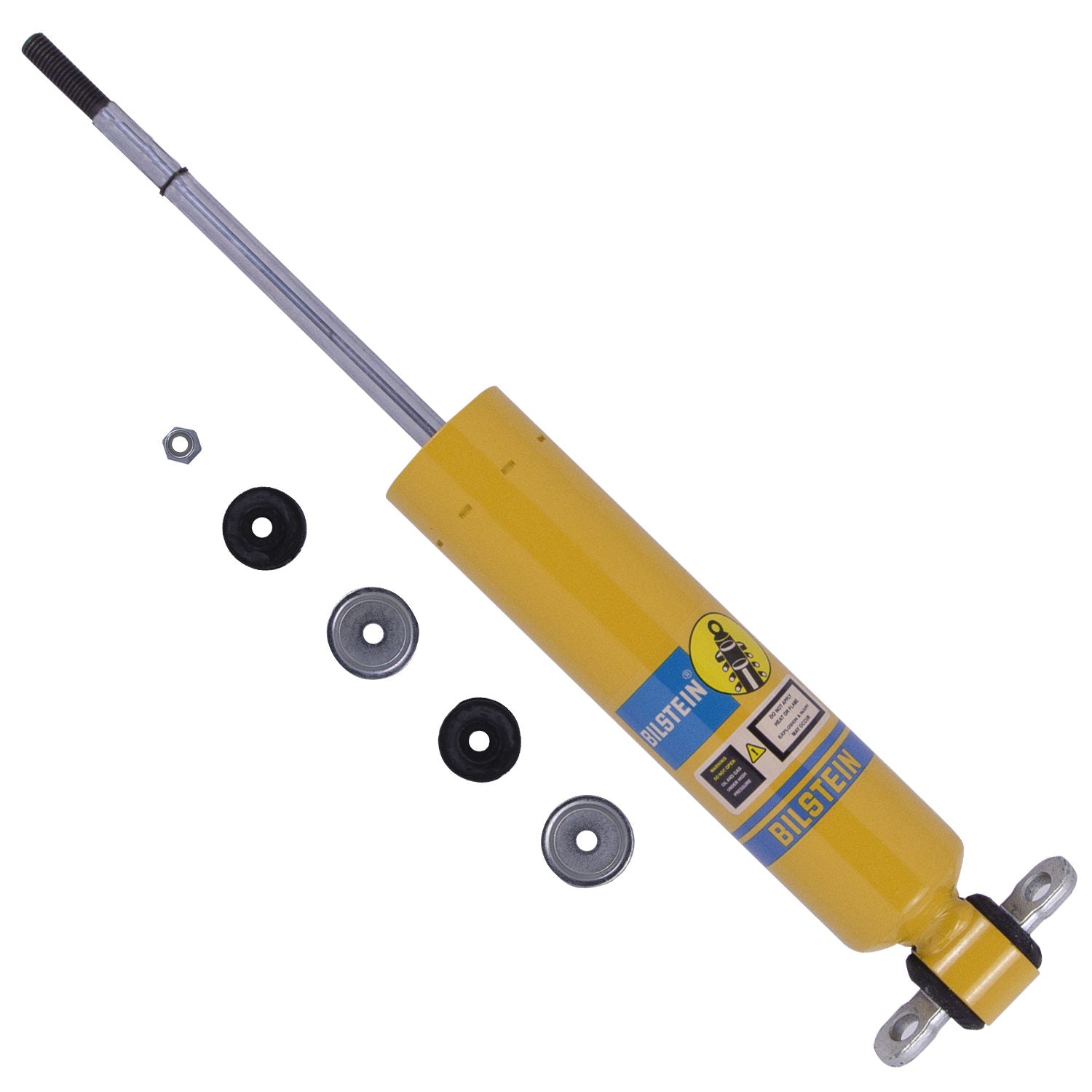

Bilstein AK1195 - Motorsport AK Series Monotube Shock Absorber - 46mm Diameter 13.94in Extended Length

Bilstein AK1195 - Motorsport AK Series Monotube Shock Absorber - 46mm Diameter 13.94in Extended Length

Bilstein | AK1195
SKU: BIL-AK1195
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Bilstein AK1195 - Motorsport AK Series Monotube Shock Absorber - 46mm Diameter 13.94in Extended Length

Shock - AK Series - Monotube - 9.29 in Compressed / 13.86 in Extended - Digressive - Steel - Yellow Paint - Front - Ford 1979-93 - Each

46mm Monotube Shock Absorber

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Body Design: Stock Mount Smooth Body
PartType: Shocks / Struts
Series: AK Series
Body Material: Steel
Stroke/Travel Length (mm): 116.1
Rebound @0.26m/s: 2570
Rebound @0.52m/s: 3090
Collapsed Length (MM): 236.0
Compression @0.26m/s: 1600
Boot Included: No
Compression @0.52m/s: 2000
Finish: Yellow Paint
Shaft Diameter: 11mm
Piston Diameter: 46mm
Lower Mount Type: Bar Pin
Segment: Motorsports
Piston Type: Digressive
Extended Length (IN): 13.94
Collapsed Length (IN): 9.29
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Extended Length (MM): 354.0
Internal Design: Monotube
Upper Mount Type: Stem
Stroke/Travel Length (IN): 4.57
