Bilstein 47-325586 - B8 6112 21-22 Ford Bronco 4WD 2DR Front Suspension Kit Lift Height 0.8-3.6in

Bilstein 47-325586 - B8 6112 21-22 Ford Bronco 4WD 2DR Front Suspension Kit Lift Height 0.8-3.6in

Bilstein | 47-325586
SKU: BIL-47-325586
Regular price $885.00 USD
Regular price $965.00 USD Sale price $885.00 USD
Sale Sold out
Shipping calculated at checkout.

28 in stock

Quantity

Bilstein 47-325586 - B8 6112 21-22 Ford Bronco 4WD 2DR Front Suspension Kit Lift Height 0.8-3.6in

B8 6112 - Suspension Kit

Front Suspension Kit

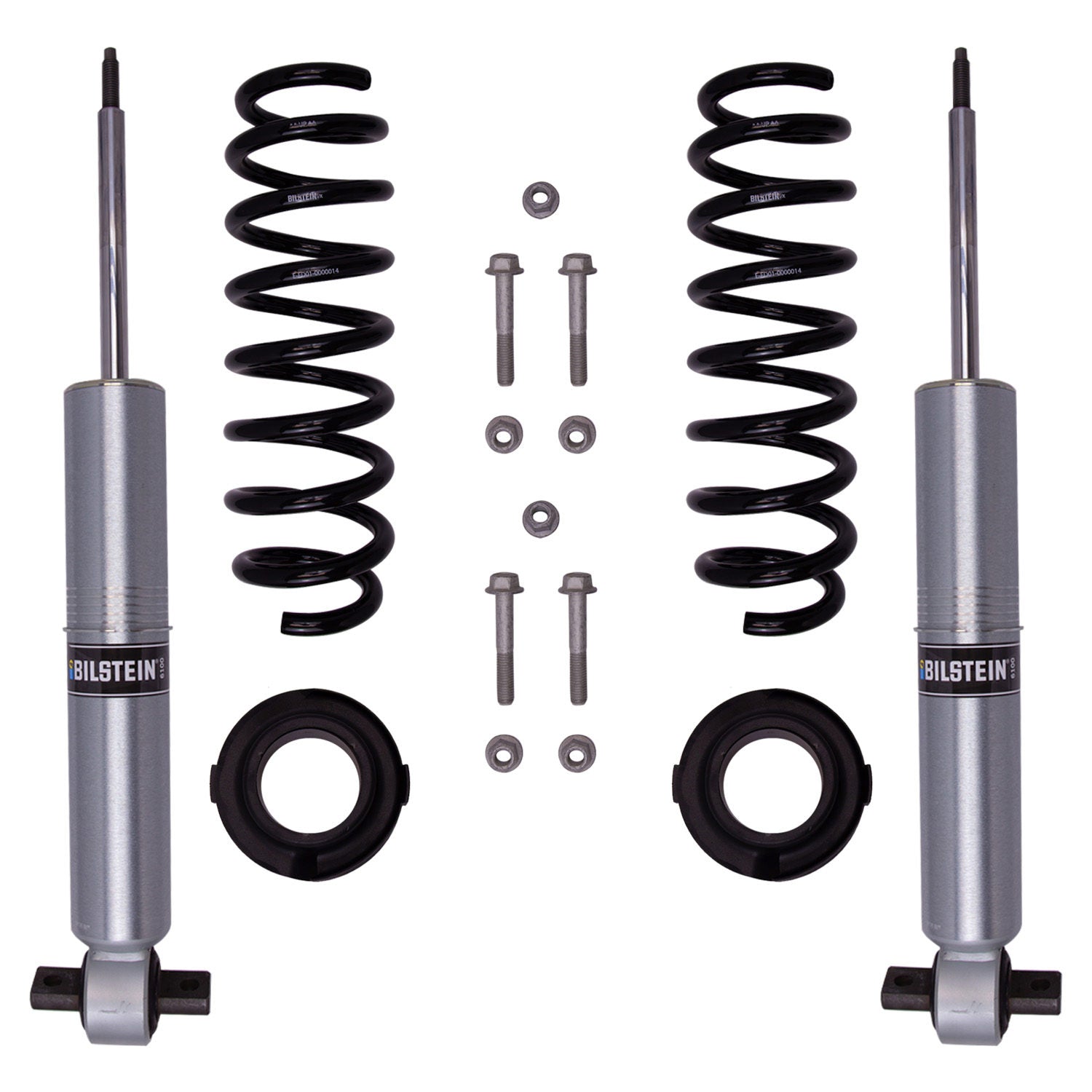

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
Finish: Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in): 374
Extended Length (IN): 22.80
Segment: Light Truck
Adjustable Damping: Non-Adjustable
Aftermarket Upper Arms Required: Yes
Collapsed Length (IN): 16.62
Spring Seat Included: Yes
Stroke/Travel Length (IN): 6.18
Body Design: Snap Ring Grooved Body (Coilover)
Stroke/Travel Length (mm): 157.0
Extended Length (mm): 579.2
Internal Design: Monotube
Reservoir: No
PartType: Suspension Kit
Series: B8 6112
Collapsed Length (mm): 422.2
Piston Diameter: 60mm
Boot Included: No
Shaft Diameter: 18mm
