Bilstein 47-293557 - B8 6112 2019+ GMC Sierra / Chevrolet Silverado 1500 Front Suspension Kit

Bilstein 47-293557 - B8 6112 2019+ GMC Sierra / Chevrolet Silverado 1500 Front Suspension Kit

Bilstein | 47-293557
SKU: BIL-47-293557
Regular price $923.00 USD
Regular price $1,006.85 USD Sale price $923.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein 47-293557 - B8 6112 2019+ GMC Sierra / Chevrolet Silverado 1500 Front Suspension Kit

B8 6112 - Suspension Kit

Front Suspension Kit

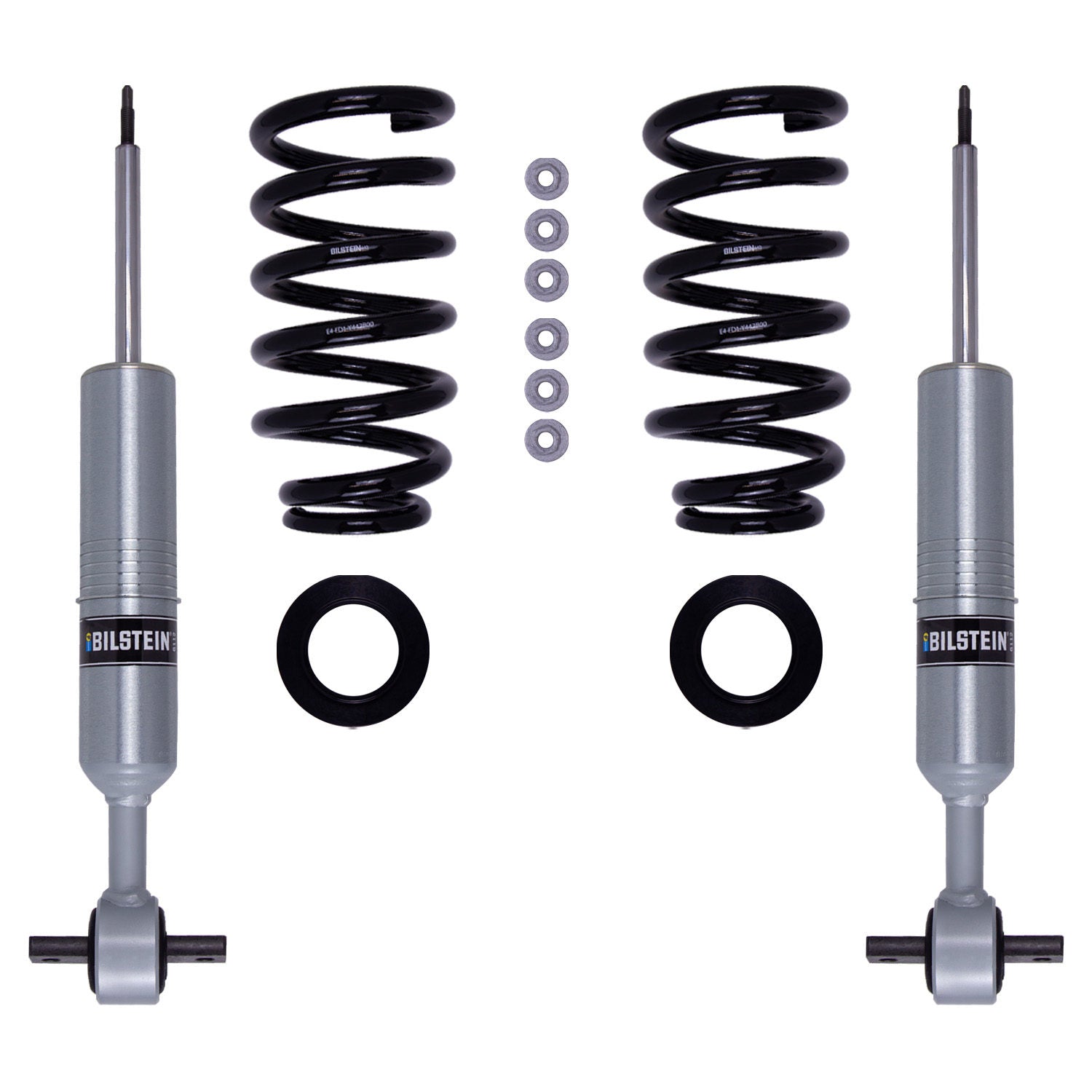

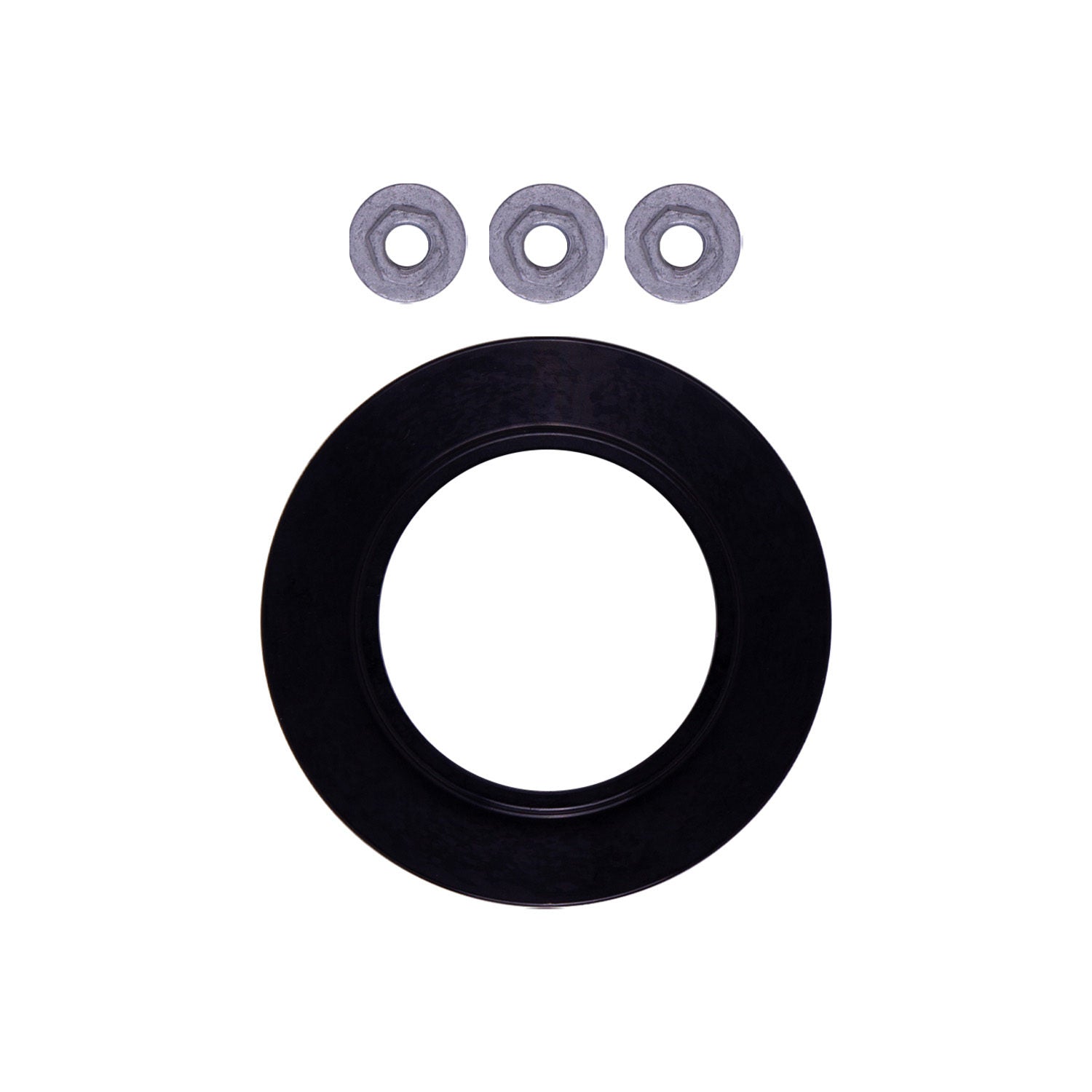

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
Finish: Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in): 600
Extended Length (IN): 21.65
Segment: Light Truck
Collapsed Length (IN): 16.45
Spring Seat Included: Yes
Stroke/Travel Length (IN): 5.20
Body Design: Snap Ring Grooved Body (Coilover)
Stroke/Travel Length (mm): 132.2
Extended Length (mm): 550.0
Internal Design: Monotube
Reservoir: No
PartType: Suspension Kit
Series: B8 6112
Collapsed Length (mm): 417.8
Piston Diameter: 60mm
Boot Included: No
Shaft Diameter: 18mm
