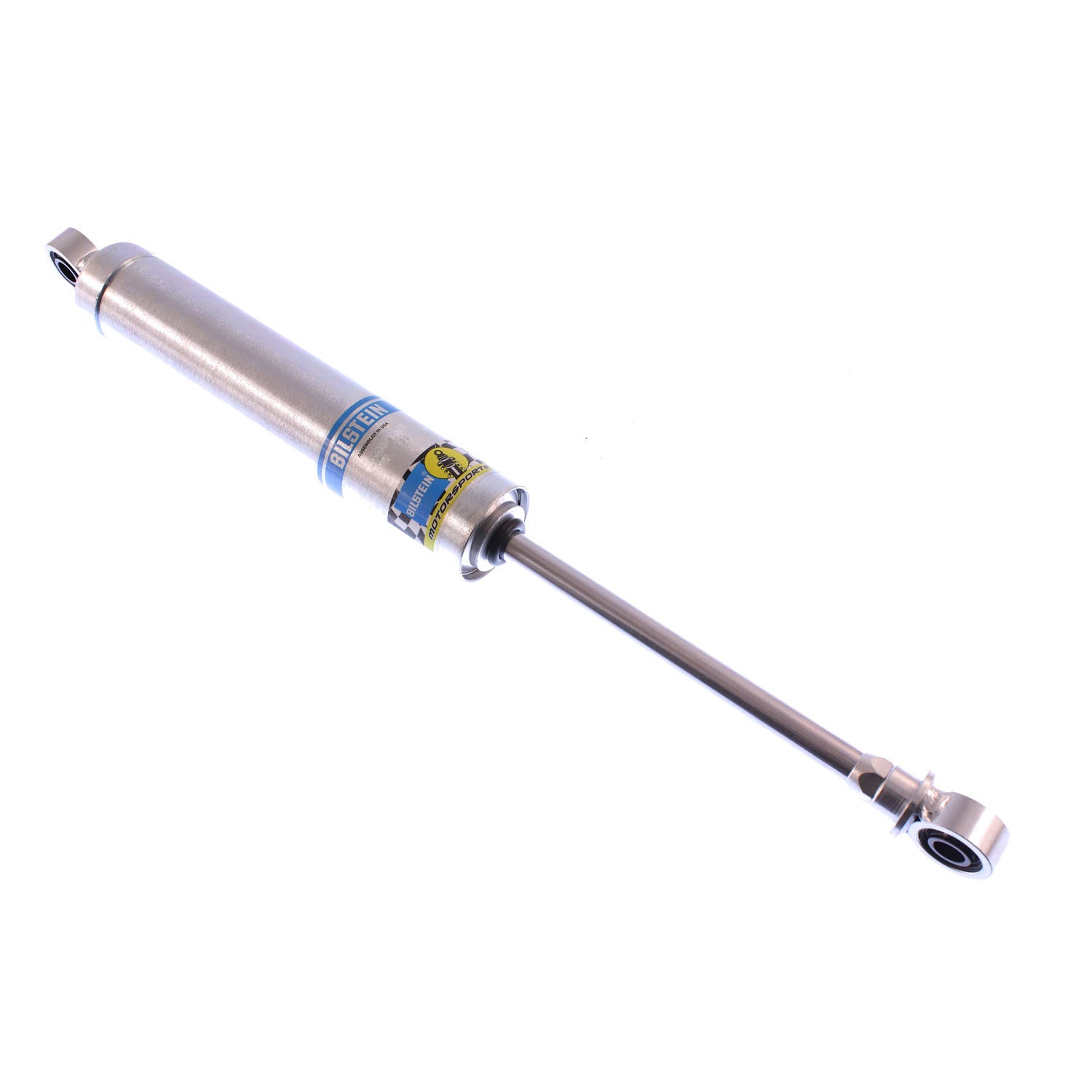

Bilstein - 33-321912
Shock - SZ Series - Monotube - 14.88 in Compressed / 23.52 in Extended - 1.81 in OD - C8-R2 Valve - Digressive - Steel - Zinc Plated - Each
46mm Monotube Shock Absorber
Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- 46mm piston design for maximum damping control
Collapsed Length (MM): 378.0
Rebound @ 10"/sec: 125
Adjustable Damping: Non-Adjustable
Compression @ 10"/sec: 425
Spring Seat Included: No
Body Design: Smooth Body (Non-coilover)
Series: SZ Series
Body Diameter (ID): 46mm
Upper Mount Type: 1/2in Heim
Segment: Motorsports
PartType: Shocks / Struts
Piston Type: Digressive
Collapsed Length (IN): 14.88
Extended Length (MM): 597.5
Extended Length (IN): 23.52
Boot Included: No
Internal Design: Monotube
Finish: Zinc Plated
Body Material: Steel
Lower Mount Type: 1/2in Heim
