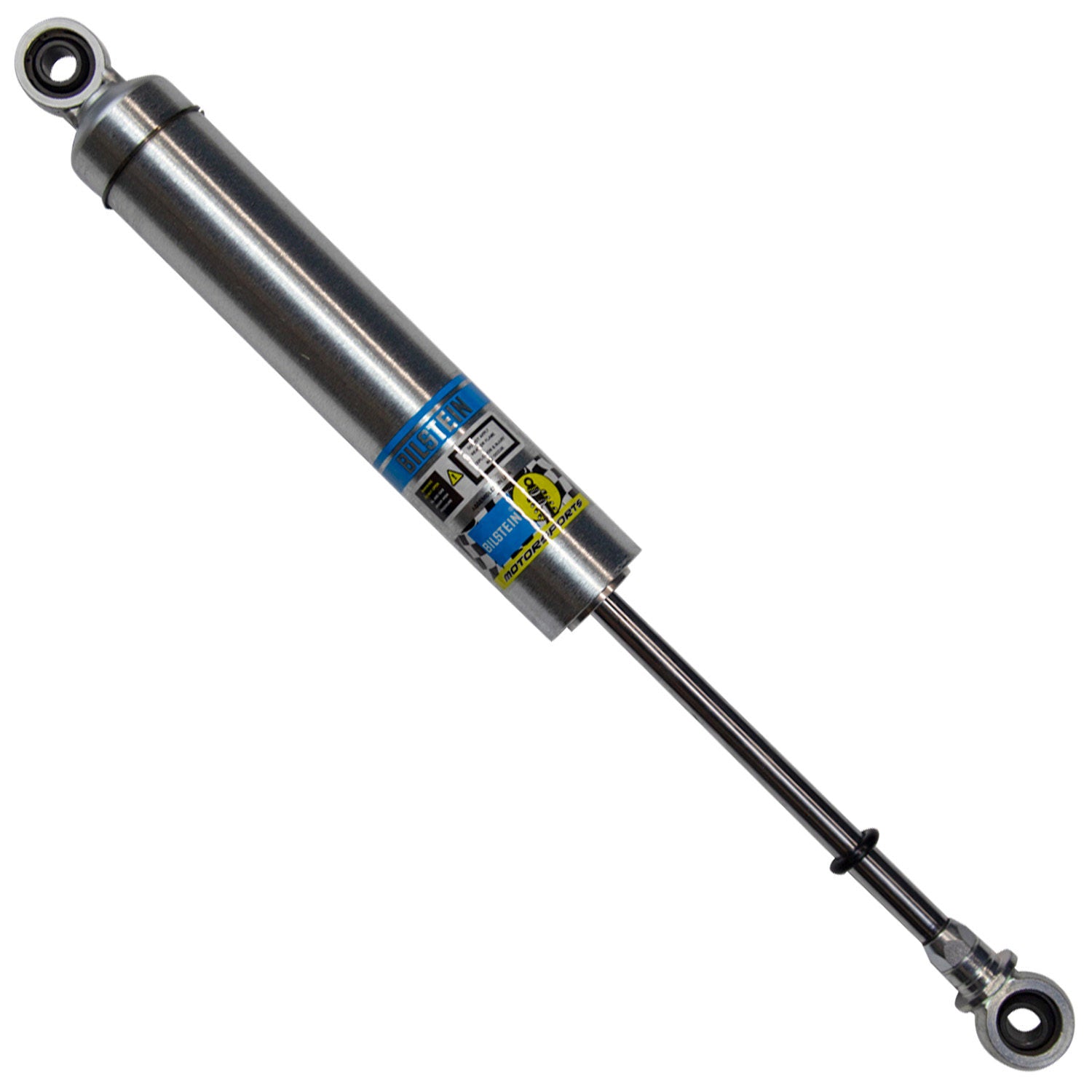

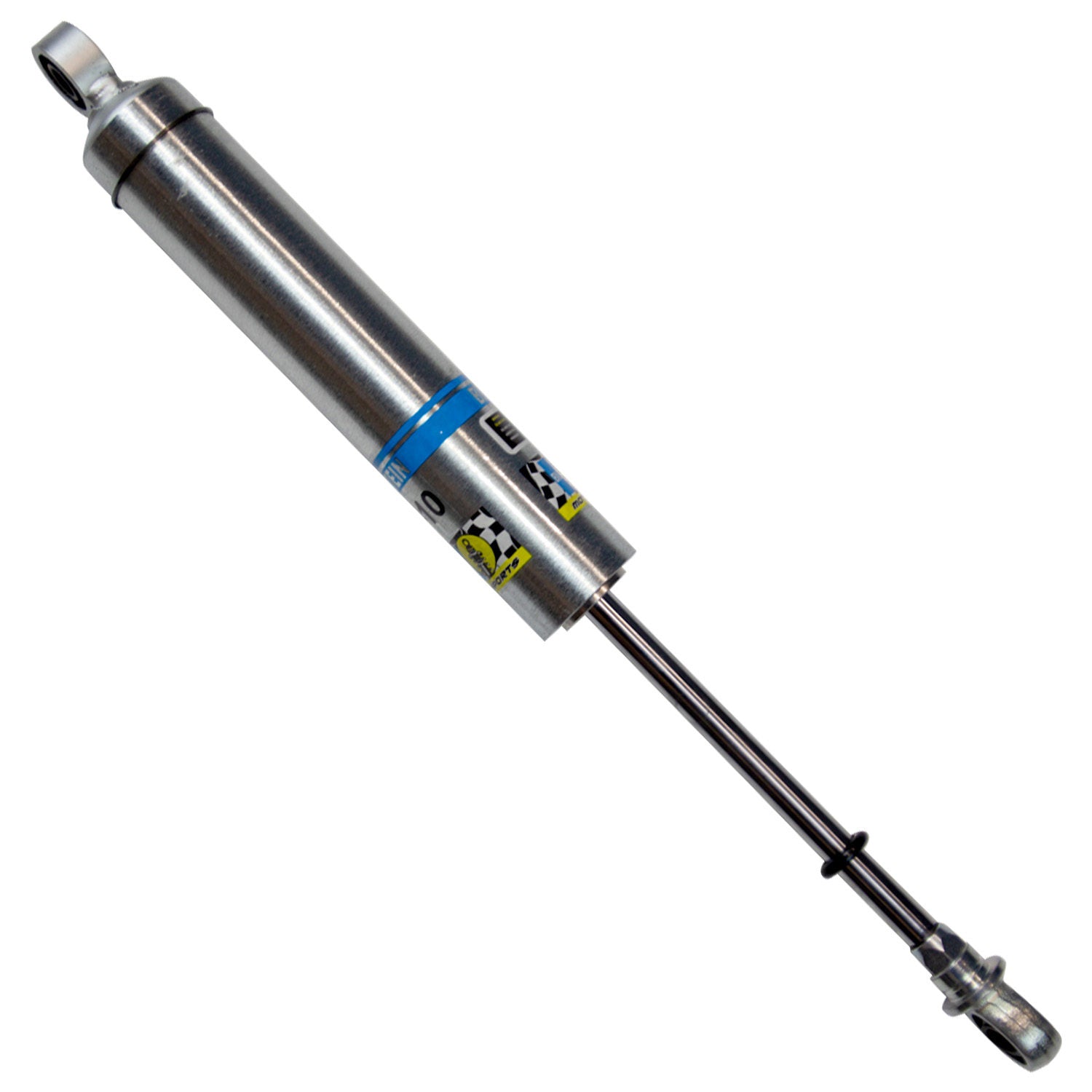

Bilstein - 33-321608
Shock - SZ Series - Monotube - 13.15 in Compressed - 20.08 in Extended - 1.81 in OD - C2-R15 Valve - Steel - Zinc Plated - Each
46mm Monotube Shock Absorber
Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- 46mm piston design for maximum damping control
Collapsed Length (IN): 13.15
Body Material: Steel
Extended Length (IN): 20.08
Spring Seat Included: No
Piston Type: Digressive
Boot Included: No
Finish: Zinc Plated
Rebound @ 10"/sec: 1200
Lower Mount Type: 1/2in Heim
Upper Mount Type: 1/2in Heim
Compression @ 10"/sec: 125
Adjustable Damping: Non-Adjustable
Series: SZ Series
Extended Length (MM): 510.0
Collapsed Length (MM): 334.0
Body Design: Smooth Body (Non-coilover)
Body Diameter (ID): 46mm
Internal Design: Monotube
PartType: Shocks / Struts
Segment: Motorsports
