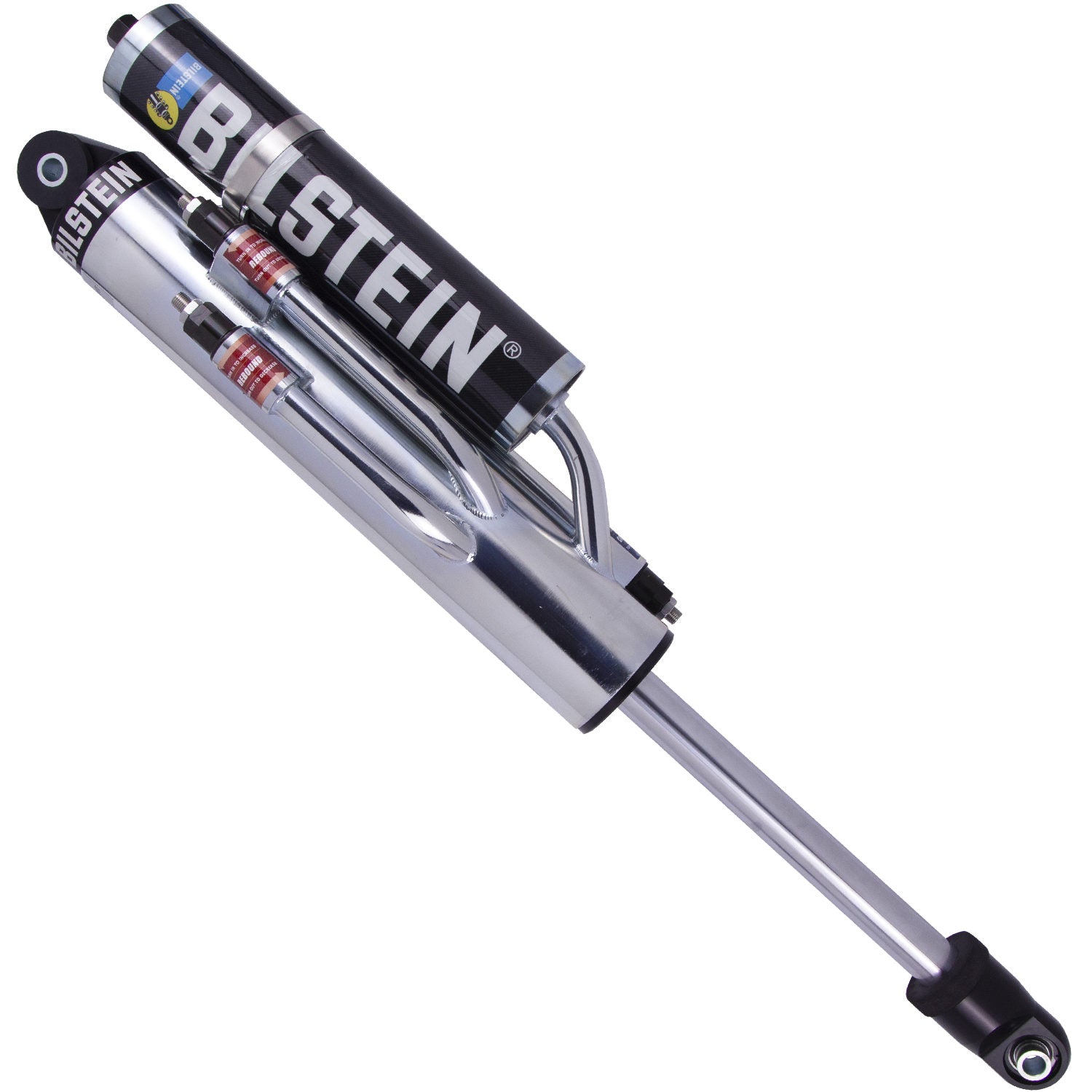

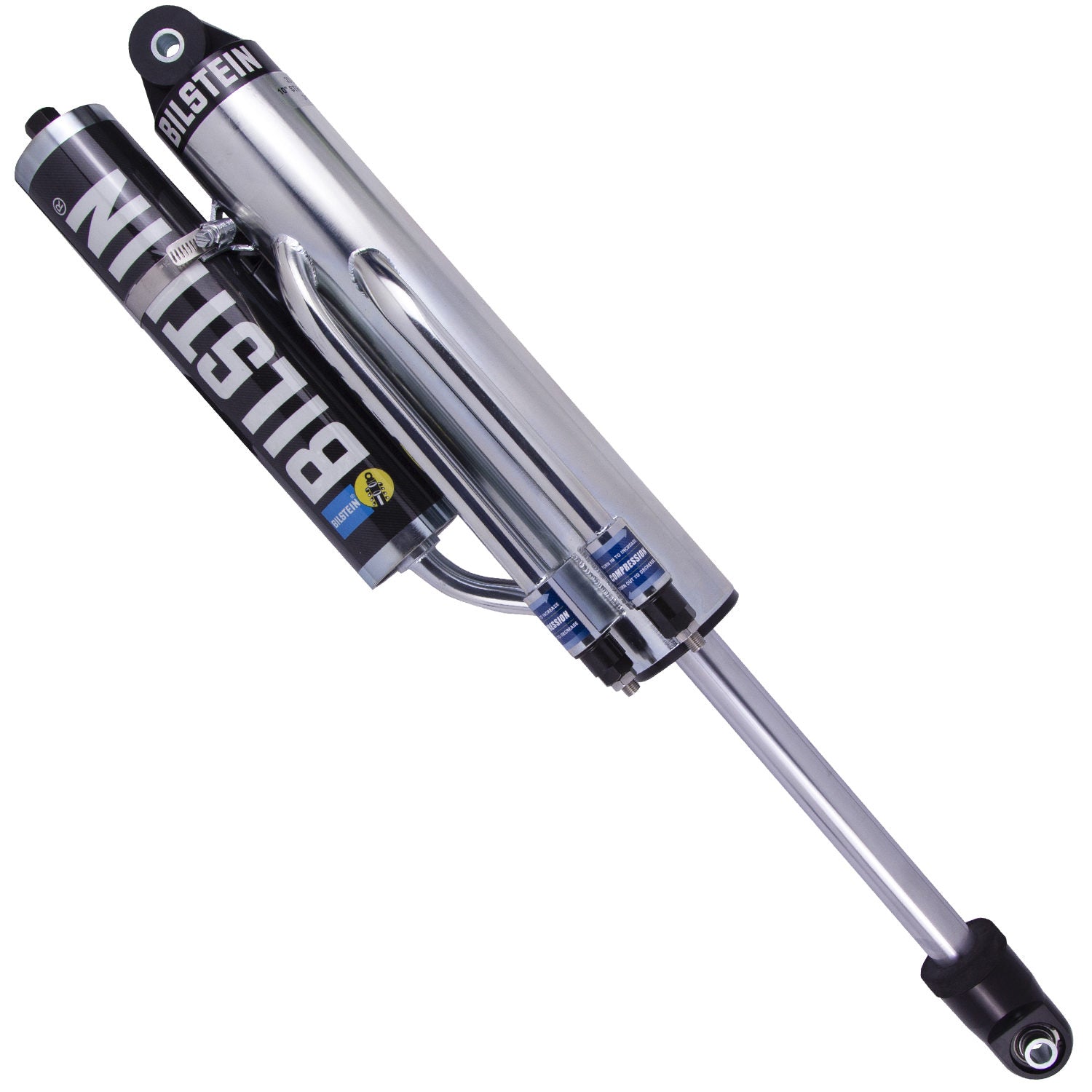

Bilstein 33-250755 - 70mm 4 Tube Bypass 10in Stroke Right M 9200 Shock Absorber

Bilstein 33-250755 - 70mm 4 Tube Bypass 10in Stroke Right M 9200 Shock Absorber

Bilstein | 33-250755
SKU: BIL-33-250755
Regular price $1,476.00 USD
Regular price $1,623.60 USD Sale price $1,476.00 USD
Sale Sold out
Shipping calculated at checkout.

9 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein 33-250755 - 70mm 4 Tube Bypass 10in Stroke Right M 9200 Shock Absorber

M 9200 (Bypass) - Suspension Shock Absorber

70mm Monotube Shock Absorber

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

  • Available in 60mm, 70mm and 83mm monotubes
  • 4-tube, position sensitive with adjustable rebound and compression
  • Multiple stroke lengths available ranging from 8" to 18"
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
Spring Seat Included: No
Collapsed Length (IN): 19.50
Internal Design: Monotube
Body Design: 4-Tube Bypass Screw Top
Extended Length (MM): 749.3
Upper Mount Type: Eye .5x1.5in
PartType: Shocks / Struts
Series: M 9200 (Bypass)
Stroke/Travel Length (IN): 10.00
Stroke/Travel Length (mm): 254.0
Collapsed Length (MM): 495.3
Rebound @0.52m/s: Custom
Reservoir: Yes
Boot Included: N/A
Compression @0.52m/s: Custom
Finish: Zinc Plated
Shaft Diameter: 1-1/8 in.
Piston Diameter: 70mm
Lower Mount Type: Eye .5x1.5in
Shaft Diameter (mm): 28.6
Segment: Motorsports
Extended Length (IN): 29.50
Position: Right
