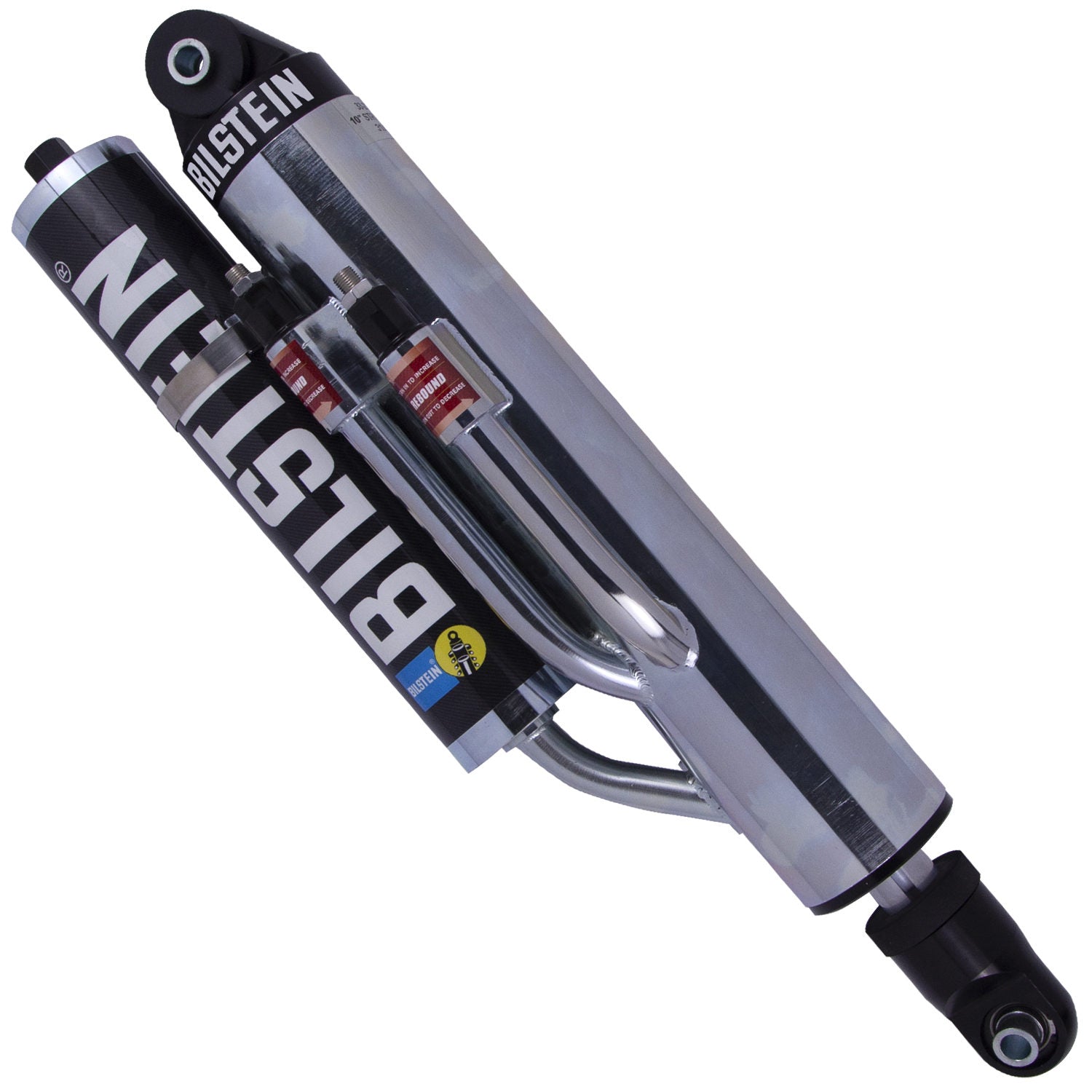

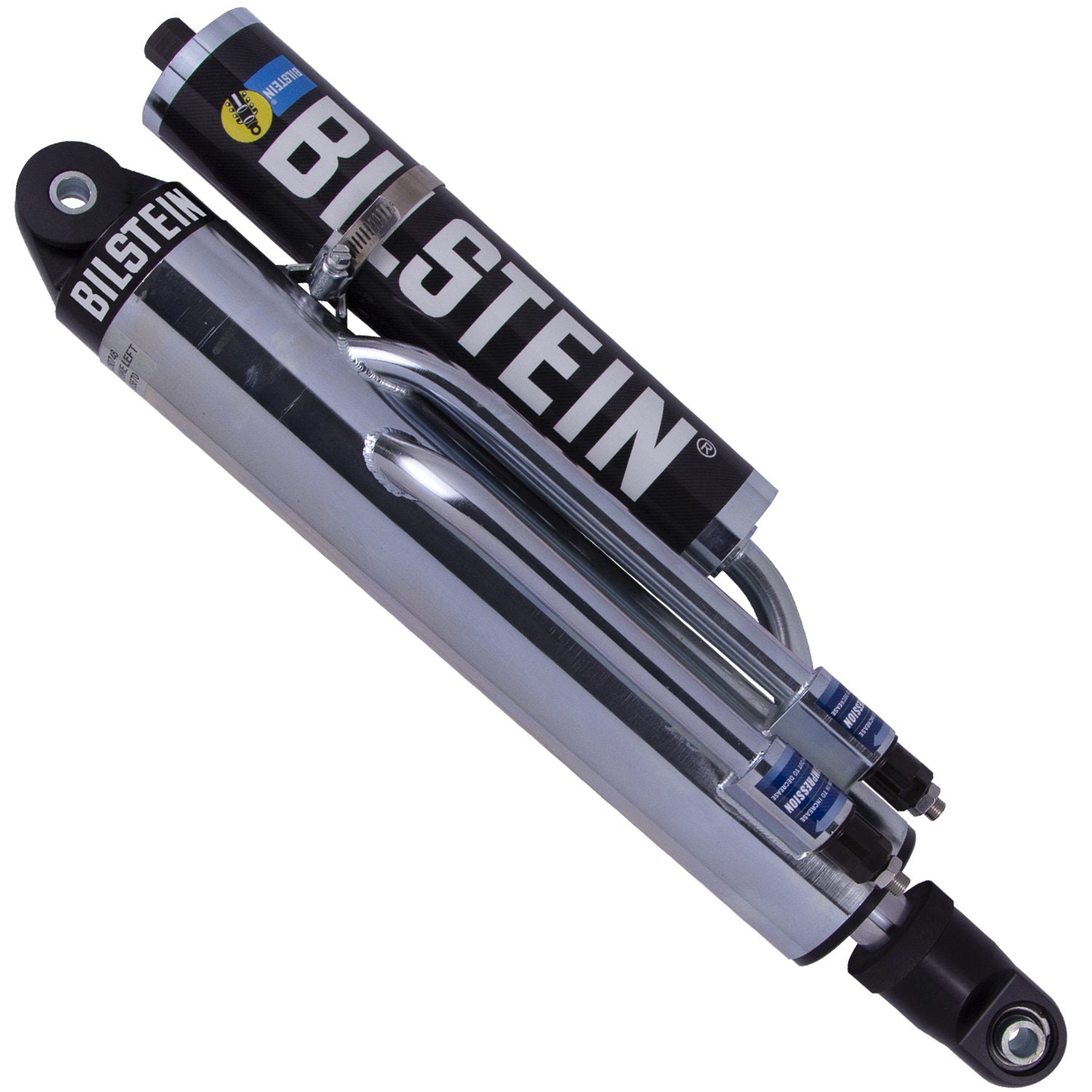

Bilstein - 33-250748
M 9200 (Bypass) - Suspension Shock Absorber
70mm Monotube Shock Absorber
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- 4-tube, position sensitive with adjustable rebound and compression
PartType: Shocks / Struts
Boot Included: N/A
Upper Mount Type: Eye .5x1.5in
Internal Design: Monotube
Extended Length (MM): 749.3
Extended Length (IN): 29.50
Collapsed Length (IN): 19.50
Rebound @0.52m/s: Custom
Lower Mount Type: Eye .5x1.5in
Reservoir: Yes
Position: Left
Collapsed Length (MM): 495.3
Body Design: 4-Tube Bypass Screw Top
Optional Reservoir Clamp: N/A
Spring Seat Included: No
Collapsed Length (IN) Rounded: 20
Mount Type: Eye-to-Eye
Body Diameter (ID): 70mm
Finish: Zinc Plated
Extended Length (IN) Rounded: 30
Series: M 9200 (Bypass)
Compression @0.52m/s: Custom
Segment: Motorsports
