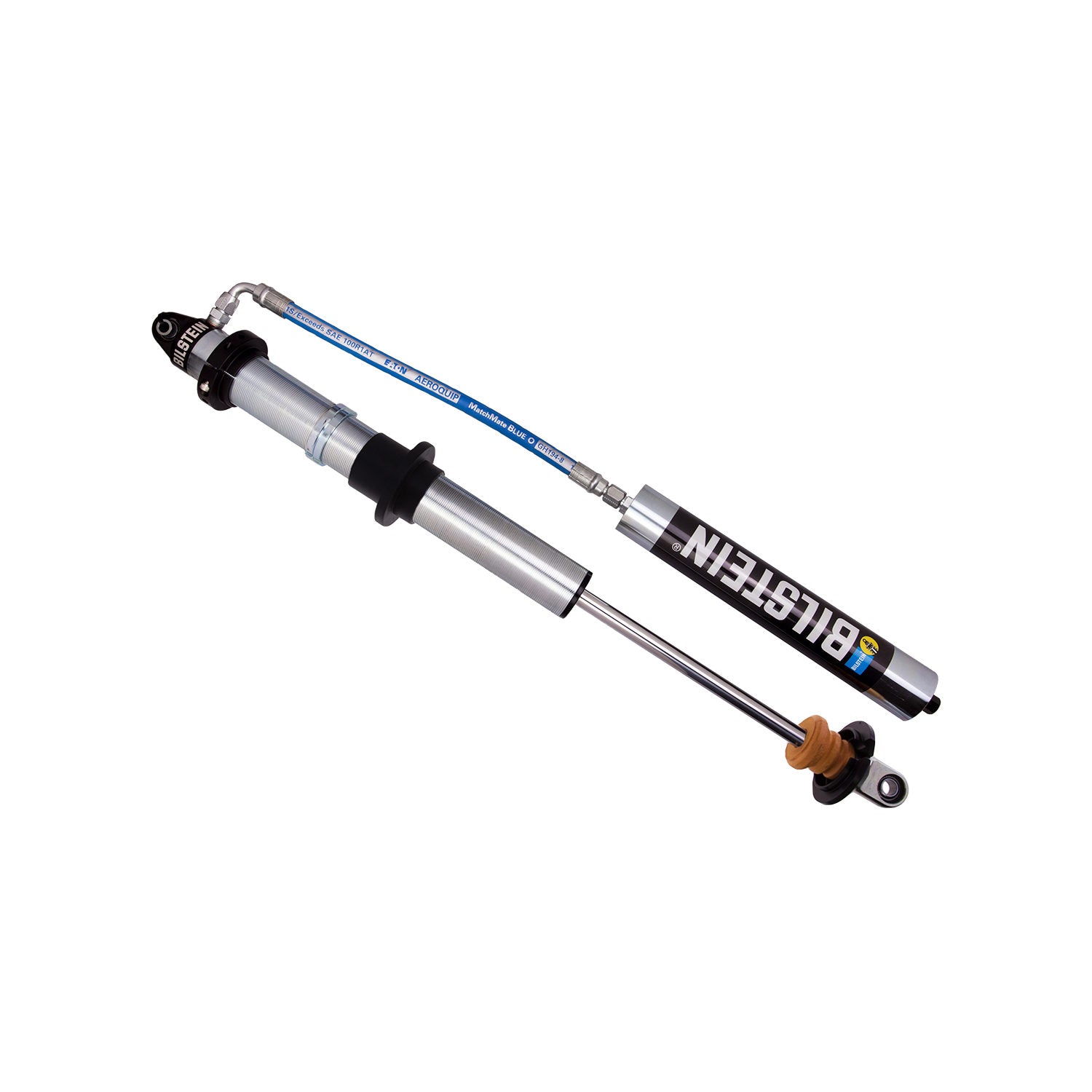

Bilstein 33-244495 - Shock Absorbers

Bilstein 33-244495 - Shock Absorbers

Bilstein | 33-244495
SKU: BIL-33-244495
Regular price $781.00 USD
Regular price $859.10 USD Sale price $781.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein 33-244495 - Shock Absorbers

M 9200 (Coilover) - Suspension Shock Absorber

60mm Monotube Shock Absorber

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

  • Available in 46mm and 60mm monotubes
  • Threaded body with dual-rate coilover hardware
  • Multiple stroke lengths available ranging from 8" to 16"
Internal Design: Monotube
Body Design: Threaded Body (Coilover)
Extended Length (MM): 977.9
Upper Mount Type: Eye .5x1.5in
PartType: Shocks / Struts
Series: M 9200 (Coilover)
Collapsed Length (IN): 24.50
Spring Seat Included: No
Optional Reservoir Clamp: N/A
Mount Type: Eye-to-Eye
Stroke/Travel Length (IN): 14.00
Stroke/Travel Length (mm): 355.6
Collapsed Length (MM): 622.3
Rebound @0.52m/s: 2550
Reservoir: Yes
Boot Included: N/A
Compression @0.52m/s: 1000
Finish: Zinc Plated
Piston Diameter: 60mm
Lower Mount Type: Eye .5x1.5in
Shaft Diameter (mm): 22.0
Segment: Motorsports
Extended Length (IN): 38.50
