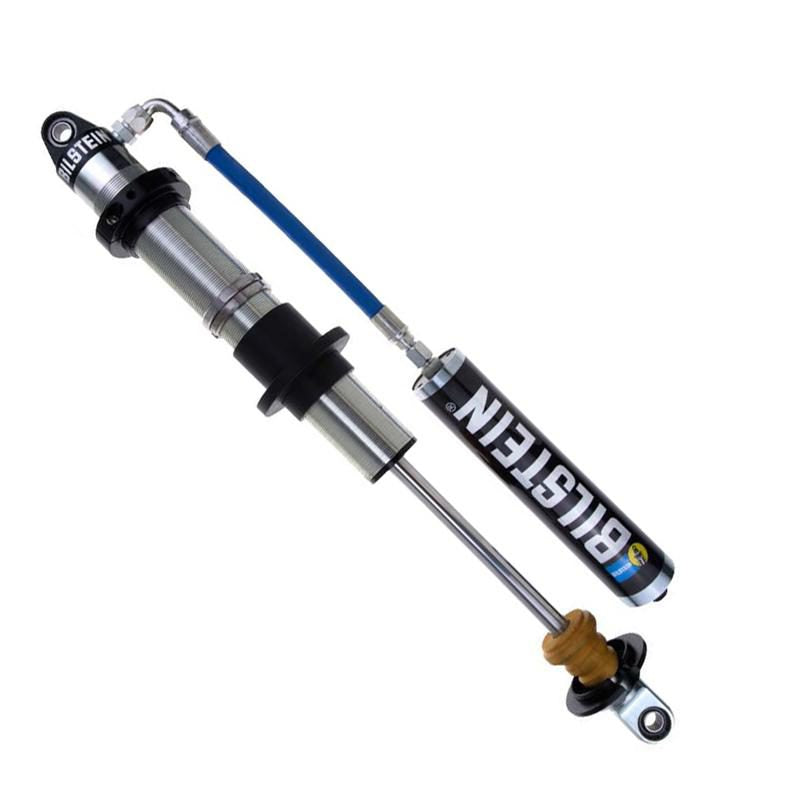

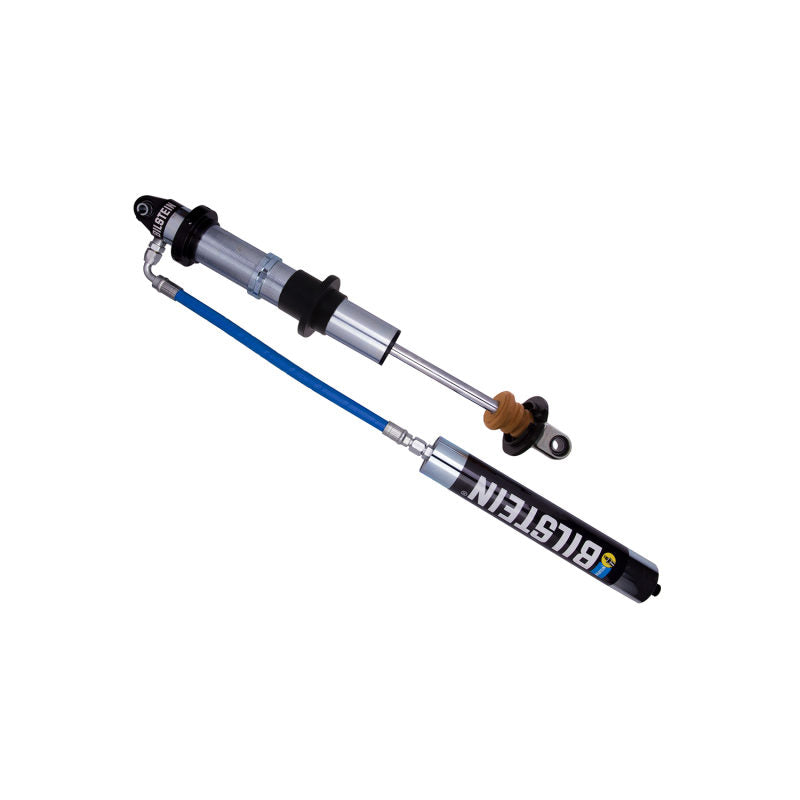

Bilstein - 33-244471
M 9200 (Coilover) - Suspension Shock Absorber
60mm Monotube Shock Absorber
Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
- Available in 46mm and 60mm monotubes
- Threaded body with dual-rate coilover hardware
- Threaded body with dual-rate coilover hardware
PartType: Shocks / Struts
Upper Mount Type: Eye .5x1.5in
Collapsed Length (IN) Rounded: 20
Mount Type: Eye-to-Eye
Extended Length (IN): 29.50
Rebound @0.52m/s: 2550
Extended Length (IN) Rounded: 30
Collapsed Length (IN): 19.50
Body Design: Threaded Body (Coilover)
Boot Included: N/A
Collapsed Length (MM): 495.3
Lower Mount Type: Eye .5x1.5in
Internal Design: Monotube
Compression @0.52m/s: 1000
Reservoir: Yes
Body Diameter (ID): 60mm
Extended Length (MM): 749.3
Finish: Zinc Plated
Series: M 9200 (Coilover)
Optional Reservoir Clamp: N/A
Spring Seat Included: No
Segment: Motorsports
