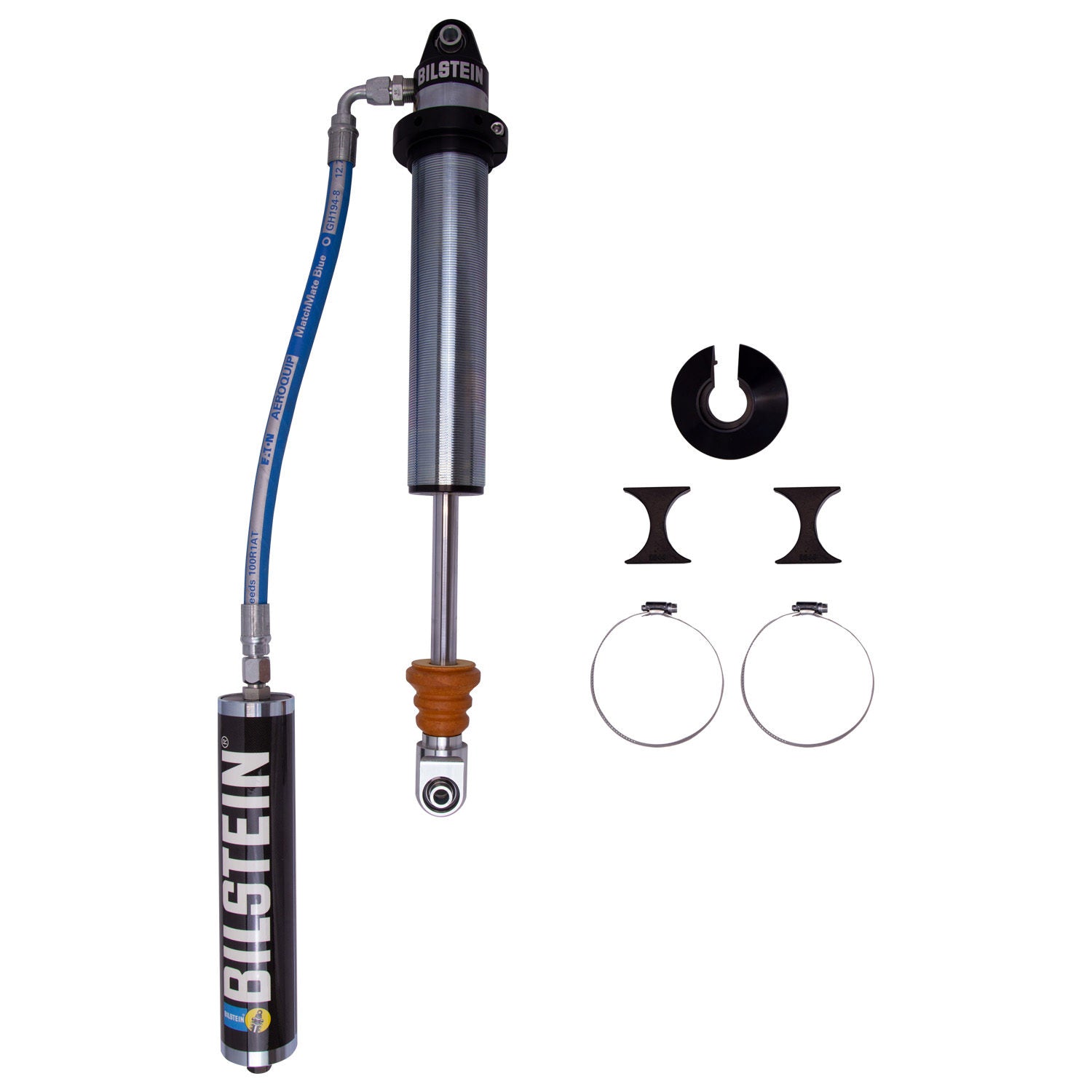

Bilstein 33-244464 - 60MM 8in 255/100 M 9200 Series Coilover

Bilstein 33-244464 - 60MM 8in 255/100 M 9200 Series Coilover

Bilstein | 33-244464
SKU: BIL-33-244464
Regular price $763.99 USD
Regular price $840.39 USD Sale price $763.99 USD
Sale Sold out
Shipping calculated at checkout.

4 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein 33-244464 - 60MM 8in 255/100 M 9200 Series Coilover

M 9200 (Coilover) - Suspension Shock Absorber

60mm Monotube Shock Absorber

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

  • Available in 46mm and 60mm monotubes

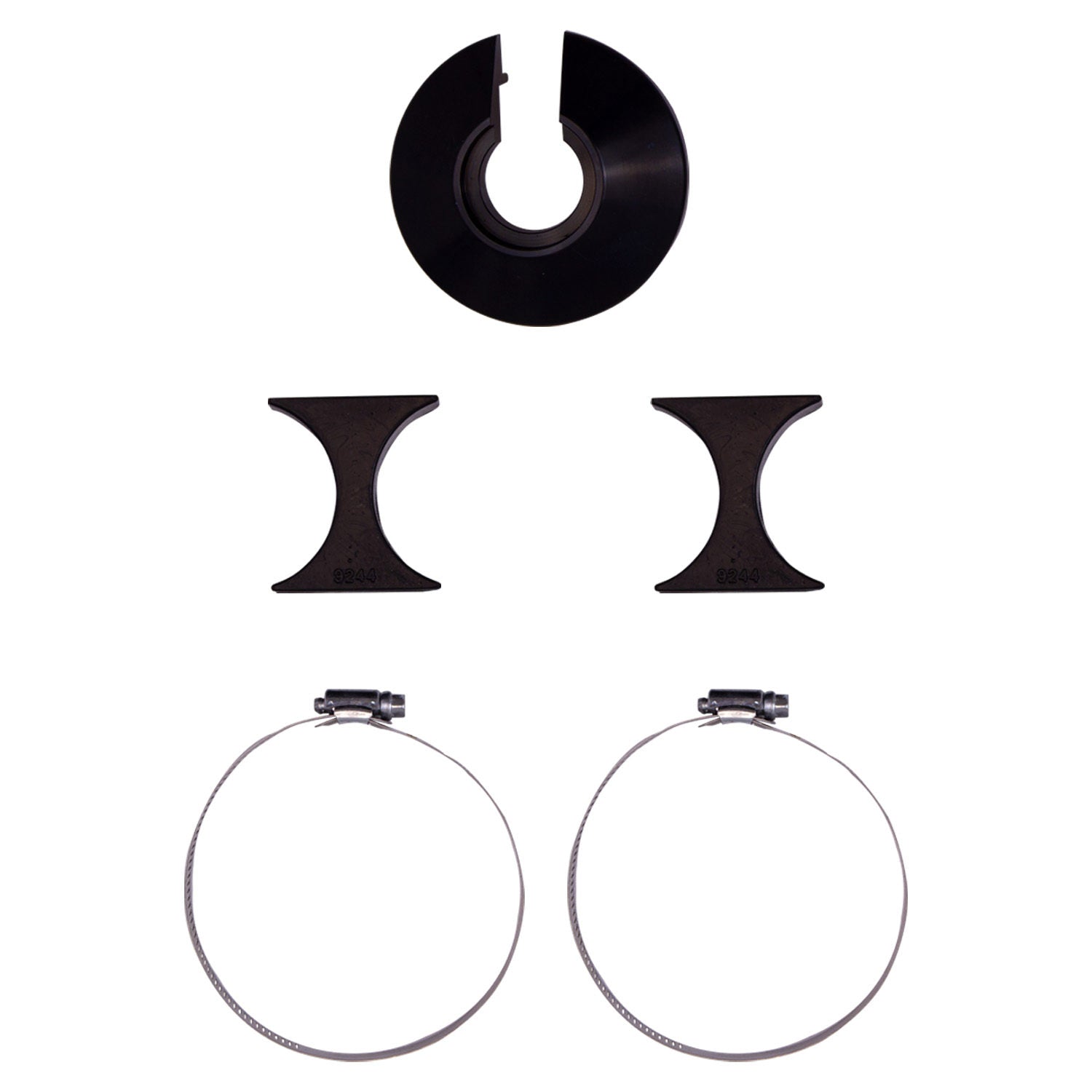

  • Threaded body with dual-rate coilover hardware
  • Multiple stroke lengths available ranging from 8" to 16"
Compression @0.52m/s: 1000
Rebound @0.52m/s: 2550
Lower Mount Type: Eye .5x1.5in
Body Design: Threaded Body (Coilover)
Collapsed Length (MM): 444.5
Shaft Diameter (mm): 22.0
Spring Seat Included: No
Extended Length (IN): 25.50
Upper Mount Type: Eye .5x1.5in
Reservoir: Yes
Mount Type: Eye-to-Eye
Collapsed Length (IN): 17.50
Finish: Zinc Plated
Series: M 9200 (Coilover)
Stroke/Travel Length (IN): 8.00
Stroke/Travel Length (mm): 203.2
Segment: Motorsports
Internal Design: Monotube
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Extended Length (MM): 647.7
Boot Included: N/A
Piston Diameter: 60mm
