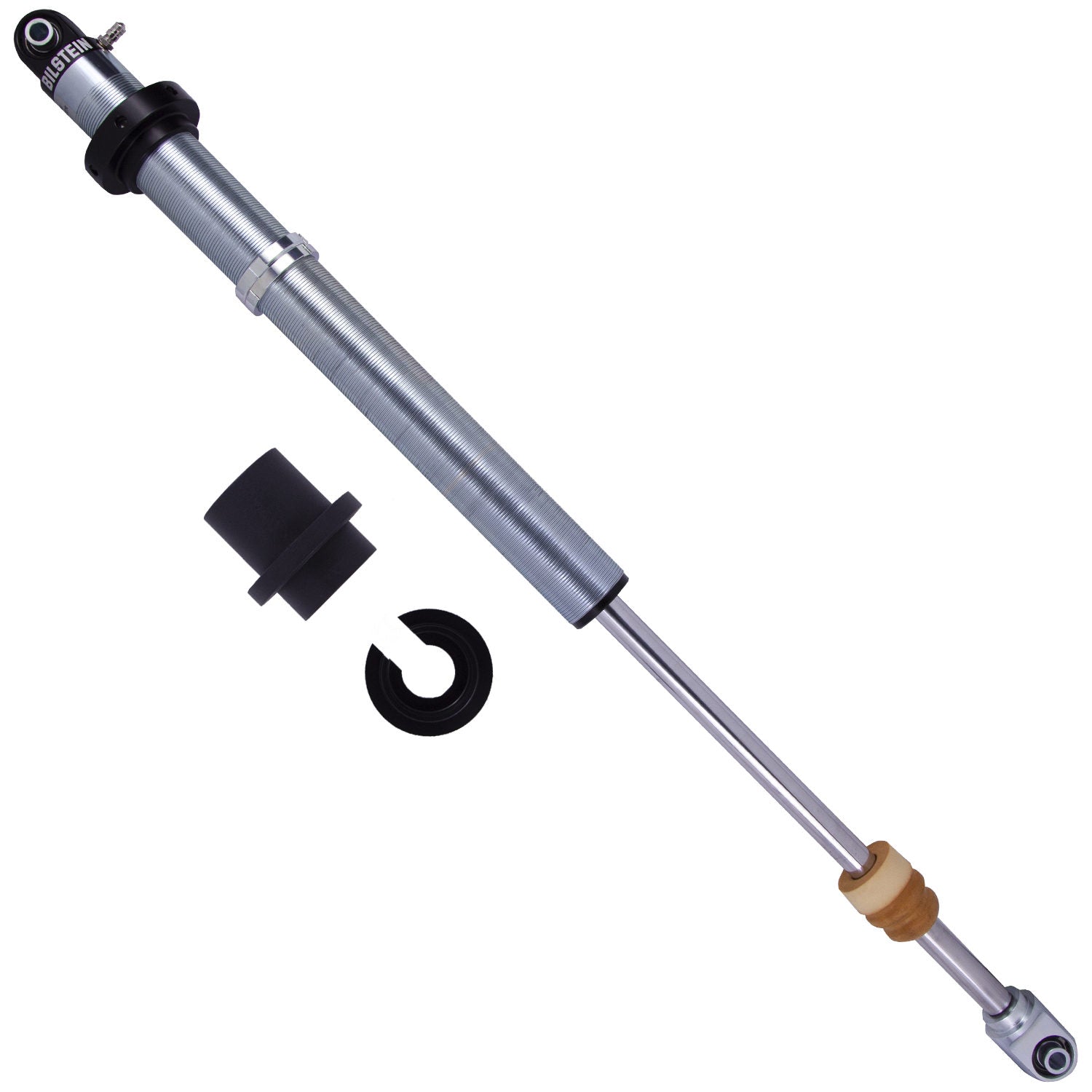

Bilstein - 33-243566
M 9200 (Coil Carrier) - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
- 46mm monotube design
- Designed to hold the coils in place
- Designed to hold the coils in place
PartType: Shocks / Struts
Internal Design: Monotube
Extended Length (IN) Rounded: 40
Boot Included: N/A
Series: M 9200 (Coil Carrier)
Collapsed Length (IN): 23.50
Reservoir: Yes
Upper Mount Type: Eye .5x1.5in
Extended Length (IN): 39.50
Lower Mount Type: Eye .5x1.5in
Mount Type: Eye-to-Eye
Body Diameter (ID): 46mm
Finish: Zinc Plated
Spring Seat Included: No
Compression @0.52m/s: Coil Carrier No Valving
Collapsed Length (IN) Rounded: 24
Rebound @0.52m/s: Coil Carrier No Valving
Extended Length (MM): 1003.3
Optional Reservoir Clamp: N/A
Collapsed Length (MM): 596.9
Body Design: Threaded Body (Coilover)
Segment: Motorsports
