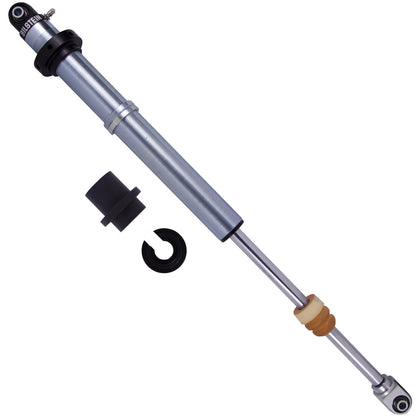

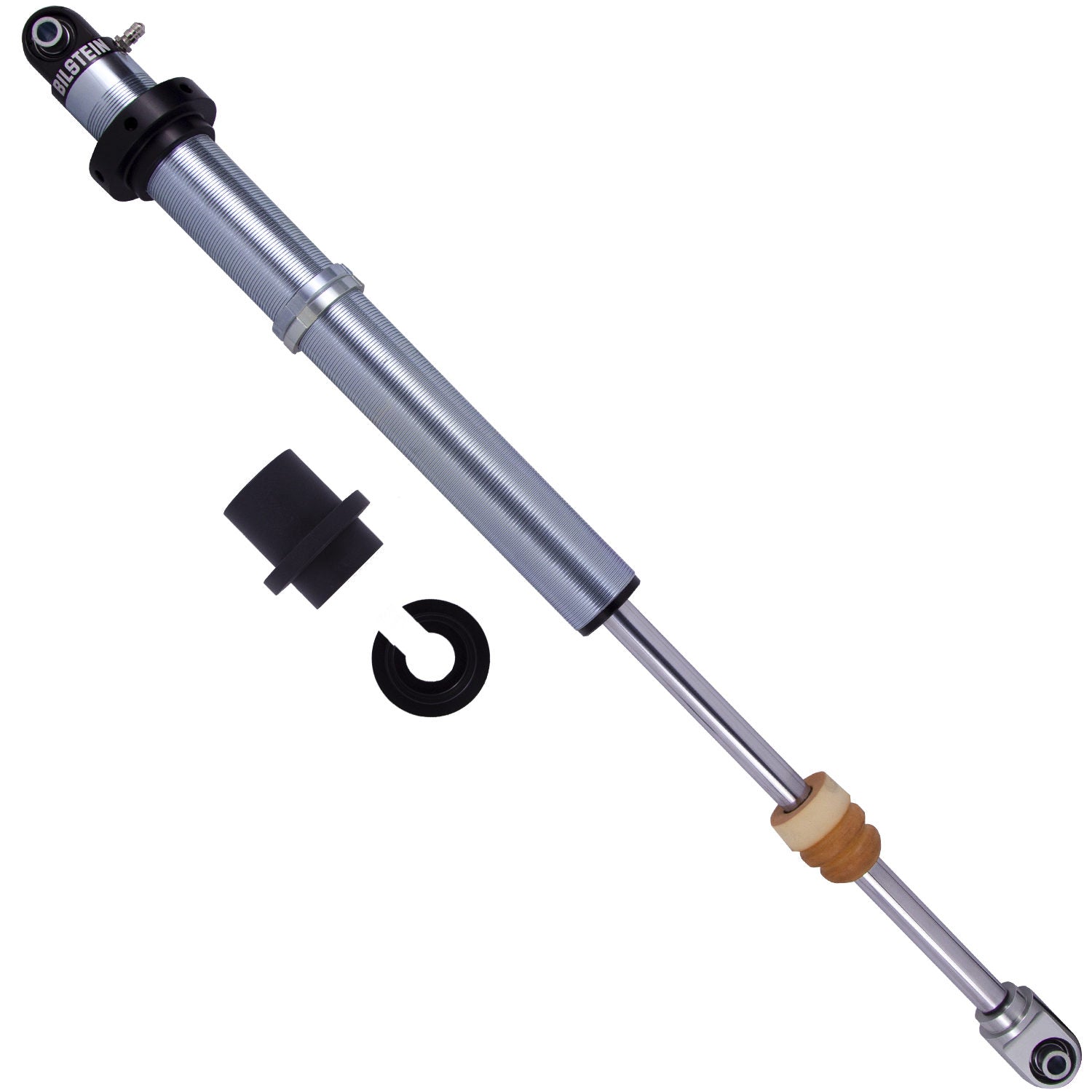

Bilstein 33-243559 - Shock Absorbers

Bilstein 33-243559 - Shock Absorbers

Bilstein | 33-243559
SKU: BIL-33-243559
Regular price $513.00 USD
Regular price $564.30 USD Sale price $513.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein 33-243559 - Shock Absorbers

M 9200 (Coil Carrier) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

  • 46mm monotube design
  • Designed to hold the coils in place
  • To be used in conjunction with Bypass shocks
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
Spring Seat Included: No
Collapsed Length (IN): 21.50
Internal Design: Monotube
Body Design: Threaded Body (Coilover)
Extended Length (MM): 901.7
Upper Mount Type: Eye .5x1.5in
PartType: Shocks / Struts
Series: M 9200 (Coil Carrier)
Stroke/Travel Length (IN): 14.00
Stroke/Travel Length (mm): 355.6
Collapsed Length (MM): 546.1
Rebound @0.52m/s: Coil Carrier No Valving
Reservoir: Yes
Boot Included: N/A
Compression @0.52m/s: Coil Carrier No Valving
Finish: Zinc Plated
Piston Diameter: 46mm
Lower Mount Type: Eye .5x1.5in
Shaft Diameter (mm): 22.0
Segment: Motorsports
Extended Length (IN): 35.50
View full details
