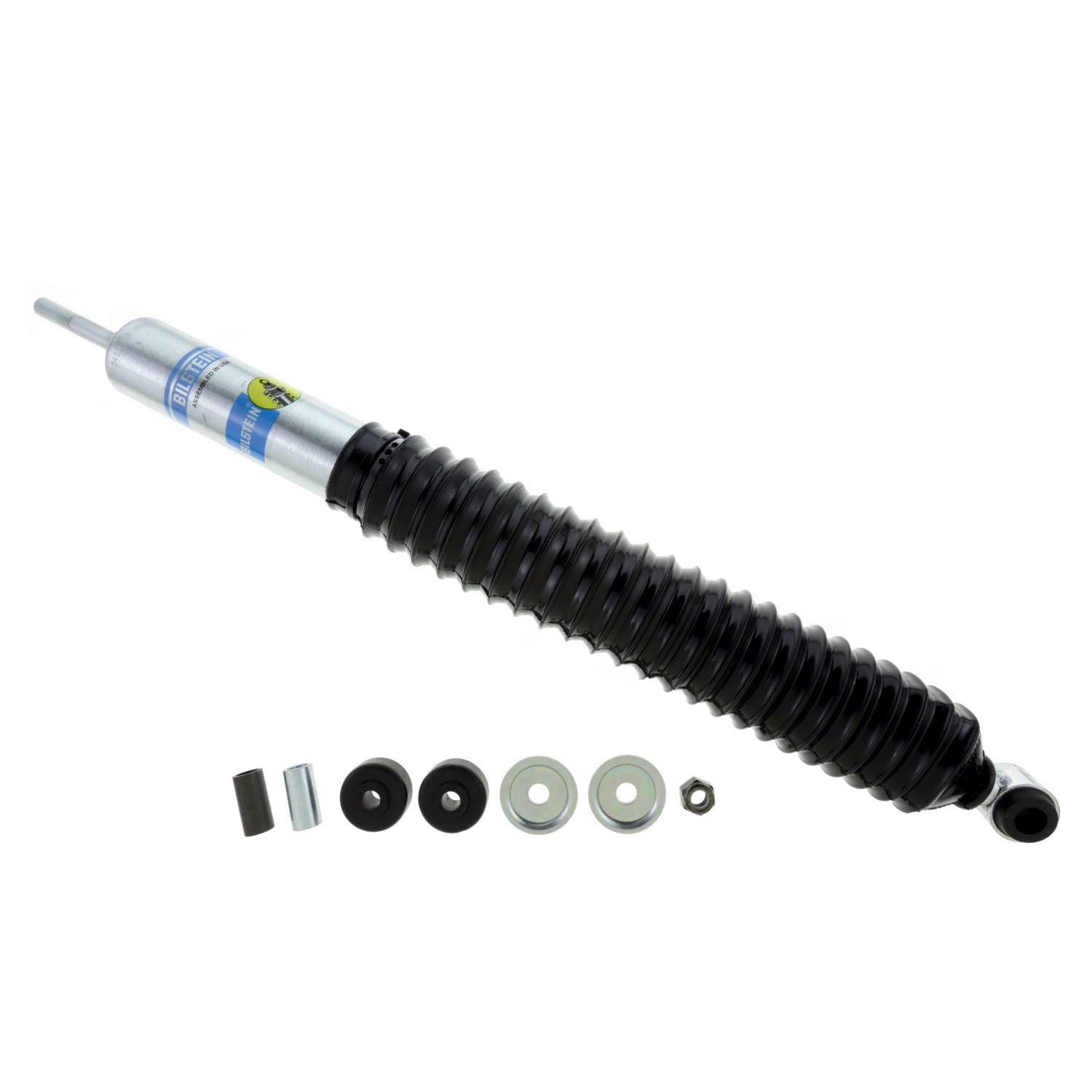

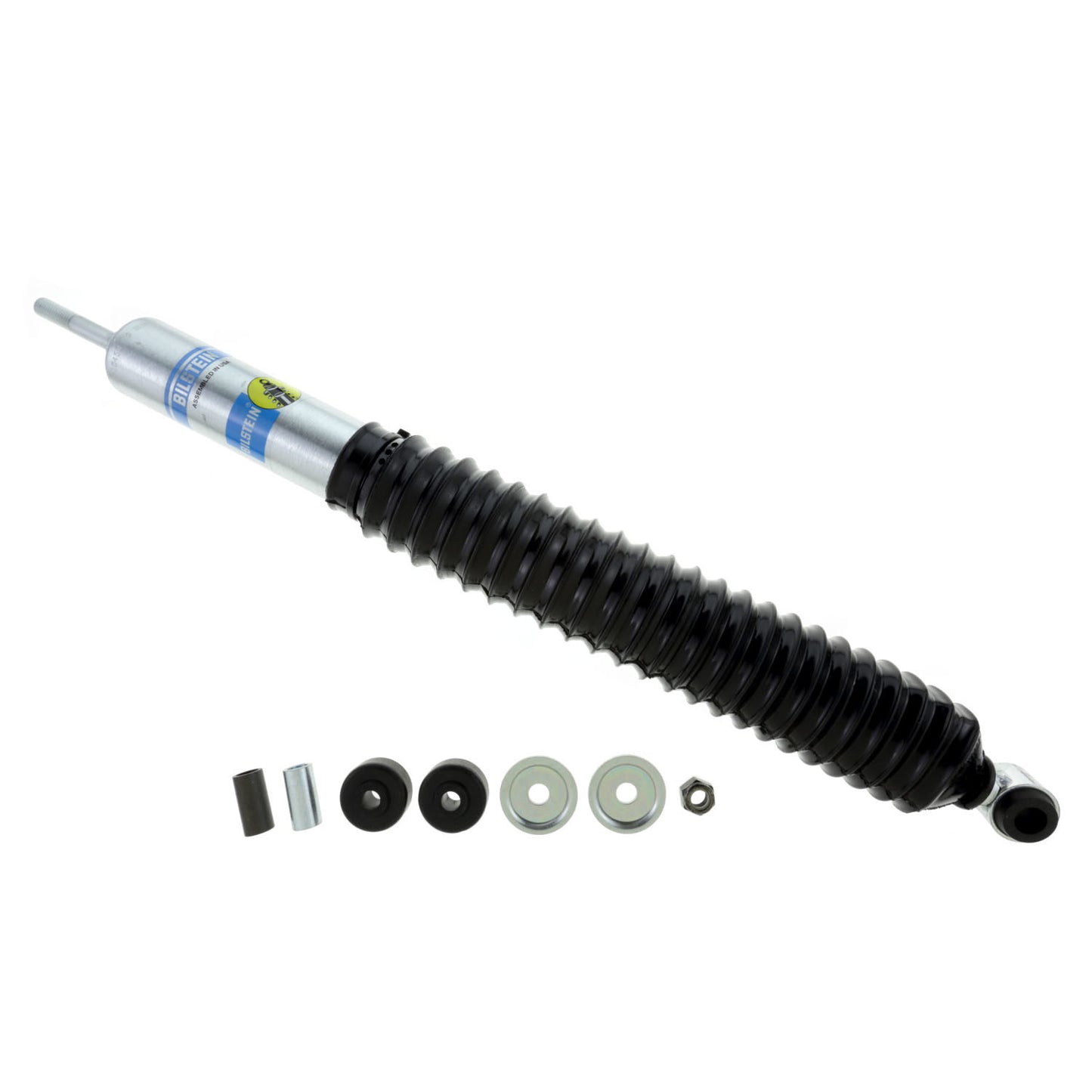

Bilstein 33-230450 - B8 5125 46mm Monotube Shock Absorber

Bilstein 33-230450 - B8 5125 46mm Monotube Shock Absorber

Bilstein | 33-230450
SKU: BIL-33-230450
Regular price $120.00 USD
Regular price $167.82 USD Sale price $120.00 USD
Sale Sold out
Shipping calculated at checkout.

4 in stock

Quantity

Bilstein 33-230450 - B8 5125 46mm Monotube Shock Absorber

B8 5125 - Suspension Shock Absorber

46mm Monotube Shock Absorber

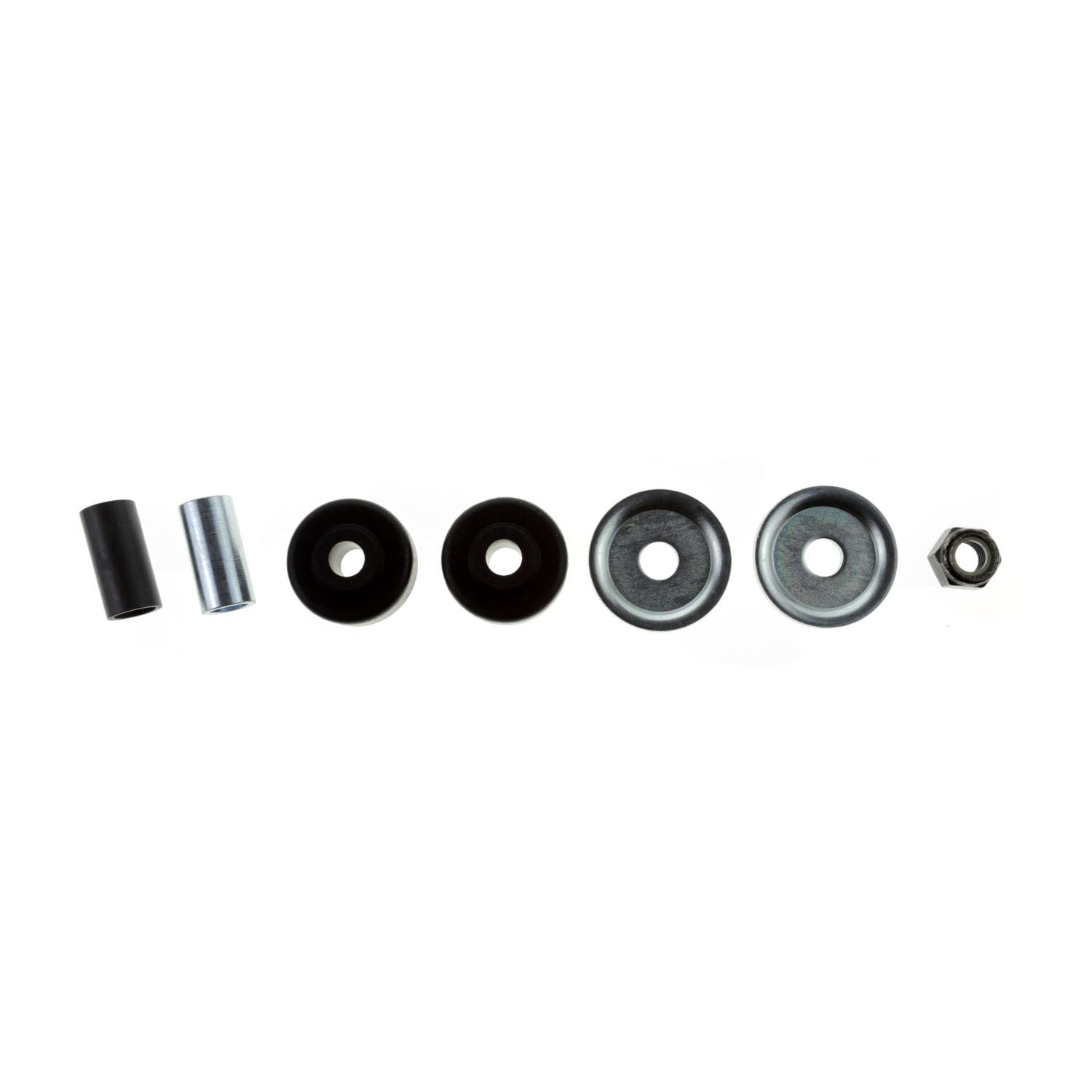

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Internal Design: Monotube
Collapsed Length (IN): 14.32
Spring Seat Included: No
Finish: Zinc Plated
Extended Length (IN): 22.91
Series: B8 5125
Adjustable Damping: Non-Adjustable
Rebound @0.52m/s: 3775
PartType: Shocks / Struts
Stroke/Travel Length (IN): 8.59
Lower Mount Type: Eye 5/8in
Upper Mount Type: Stem
Collapsed Length (MM): 363.7
Stroke/Travel Length (mm): 218.2
Extended Length (MM): 581.9
Reservoir: No
Boot Included: Black Bellows
Body Design: Smooth Body (Non-Coilover)
Mount Type: Stem-to-Eye
Compression @0.52m/s: 755
Piston Diameter: 46mm
Segment: Light Truck
Shaft Diameter: 14mm
