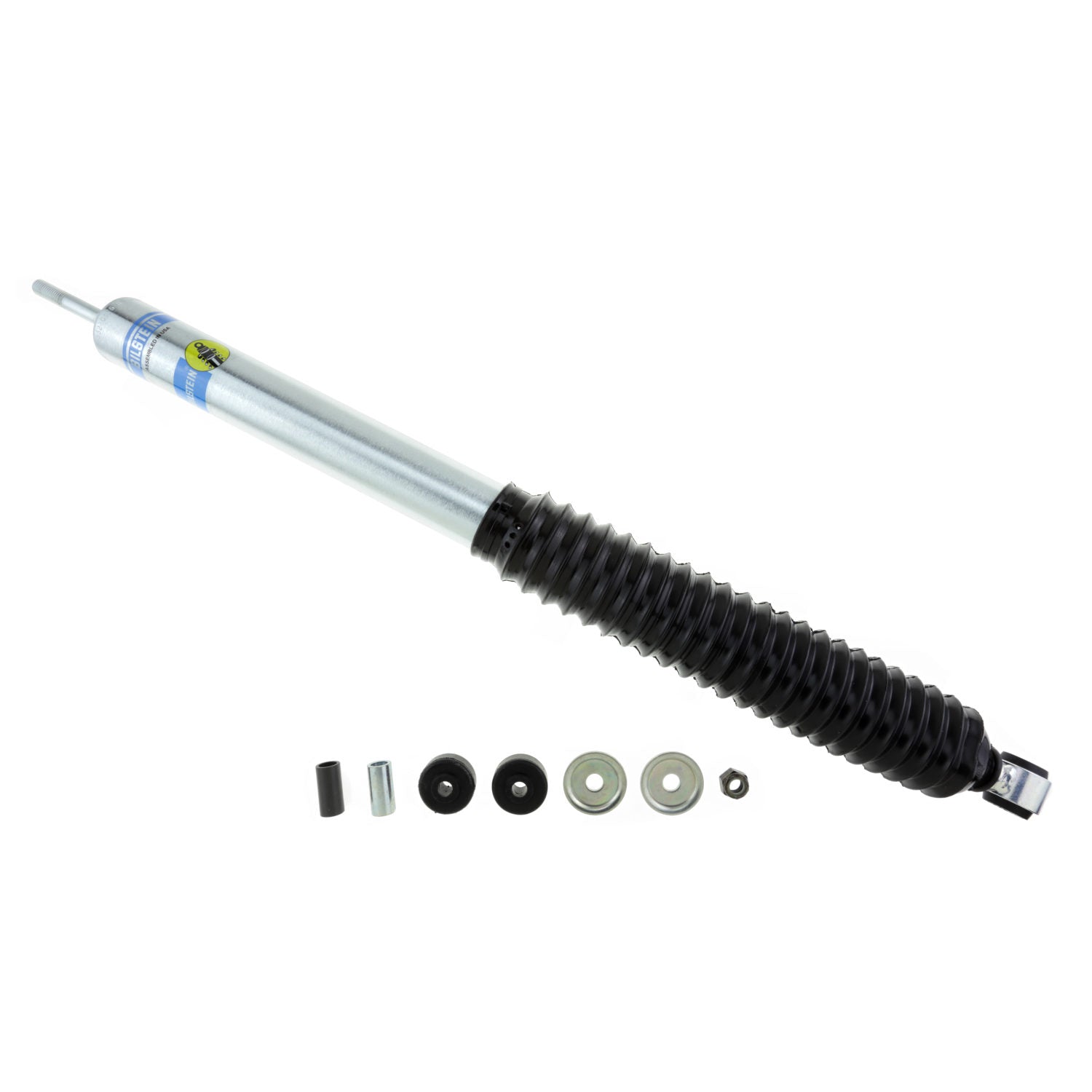

Bilstein - 33-230375
B8 5125 - Suspension Shock Absorber
46mm Monotube Shock Absorber

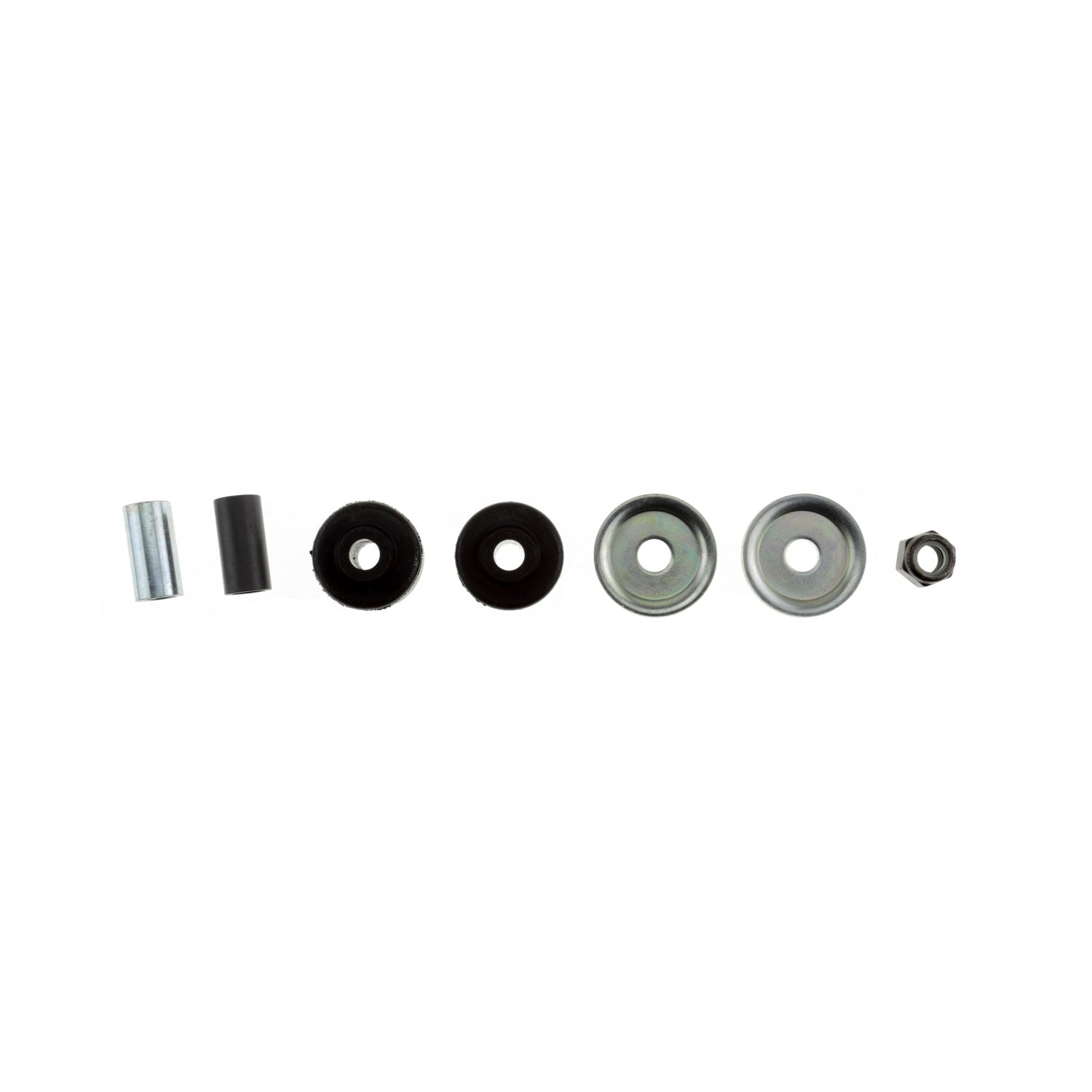

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Patented digressive valving instantly reacts to changing surface conditions
PartType: Shocks / Struts
Segment: Light Truck
Extended Length (IN): 28.35
Compression @0.52m/s: 620
Series: B8 5125
Body Design: Smooth Body (Non-Coilover)
Collapsed Length (IN) Rounded: 17
Internal Design: Monotube
Extended Length (MM): 720.2
Finish: Zinc Plated
Rebound @0.52m/s: 2495
Spring Seat Included: No
Collapsed Length (IN): 17.11
Adjustable Damping: Non-Adjustable
Upper Mount Type: Stem
Collapsed Length (MM): 434.5
Reservoir: No
Extended Length (IN) Rounded: 28
Lower Mount Type: Eye 5/8in
Boot Included: Black Bellows
Mount Type: Stem-to-Eye
Body Diameter (ID): 46mm
