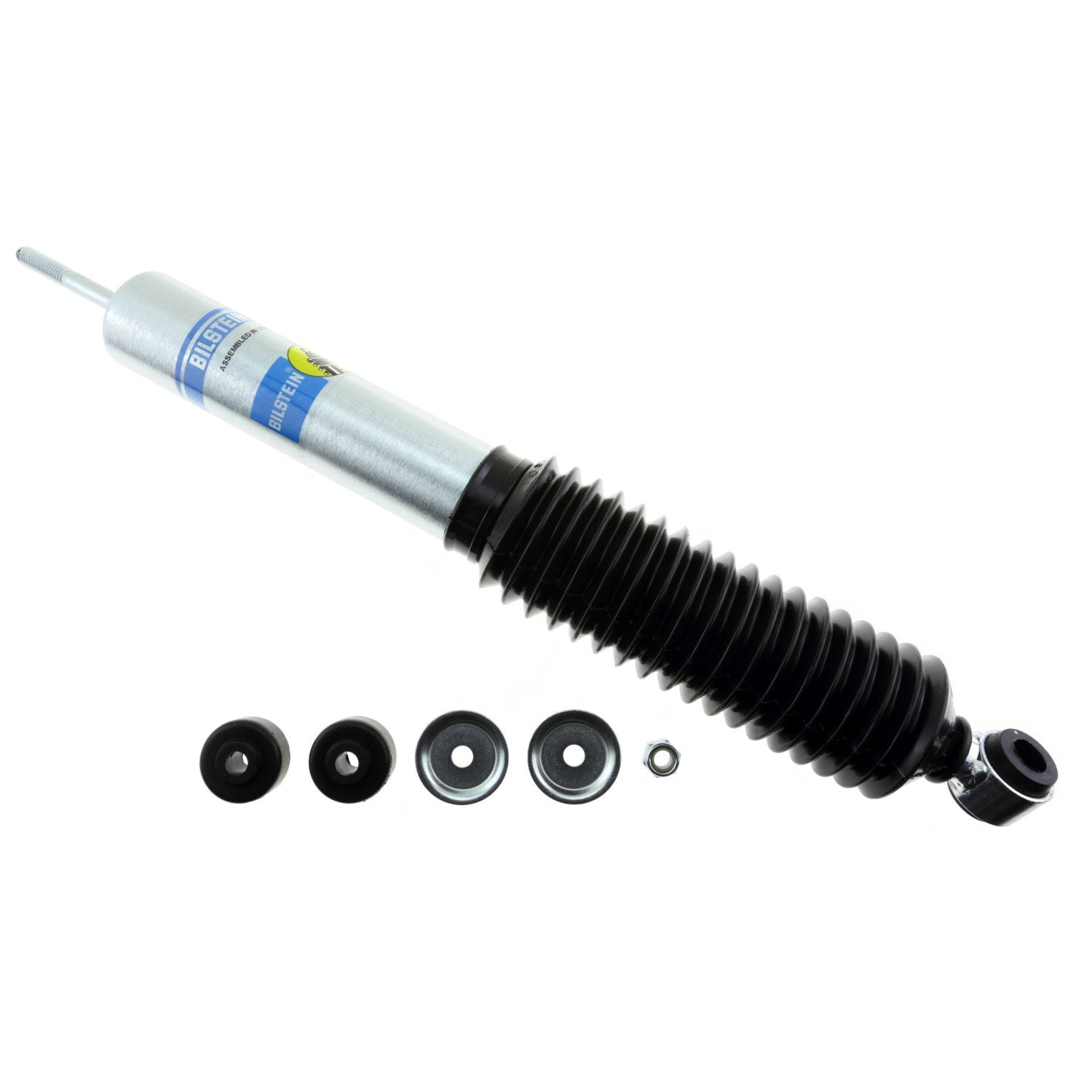

Bilstein 33-186504 - 5100 Series FordF250 4in.liftAsbury2WD 99-F 46mm Monotube Shock Absorber

Bilstein 33-186504 - 5100 Series FordF250 4in.liftAsbury2WD 99-F 46mm Monotube Shock Absorber

Bilstein | 33-186504
SKU: BIL-33-186504
Regular price $120.00 USD
Regular price $167.82 USD Sale price $120.00 USD
Sale Sold out
Shipping calculated at checkout.

72 in stock

Quantity

Bilstein 33-186504 - 5100 Series FordF250 4in.liftAsbury2WD 99-F 46mm Monotube Shock Absorber

B8 5125 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Mount Type: Stem-to-Eye
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Collapsed Length (IN): 11.89
Internal Design: Monotube
Body Design: Smooth Body (Non-Coilover)
Extended Length (MM): 470.6
Upper Mount Type: Stem
PartType: Shocks / Struts
Series: B8 5125
Stroke/Travel Length (IN): 6.64
Stroke/Travel Length (mm): 168.7
Collapsed Length (MM): 301.9
Rebound @0.52m/s: 3560
Reservoir: No
Boot Included: Black Bellows
Compression @0.52m/s: 2175
Finish: Zinc Plated
Piston Diameter: 46mm
Shaft Diameter: 11mm
Lower Mount Type: Eye 5/8in
Segment: Light Truck
Extended Length (IN): 18.53
