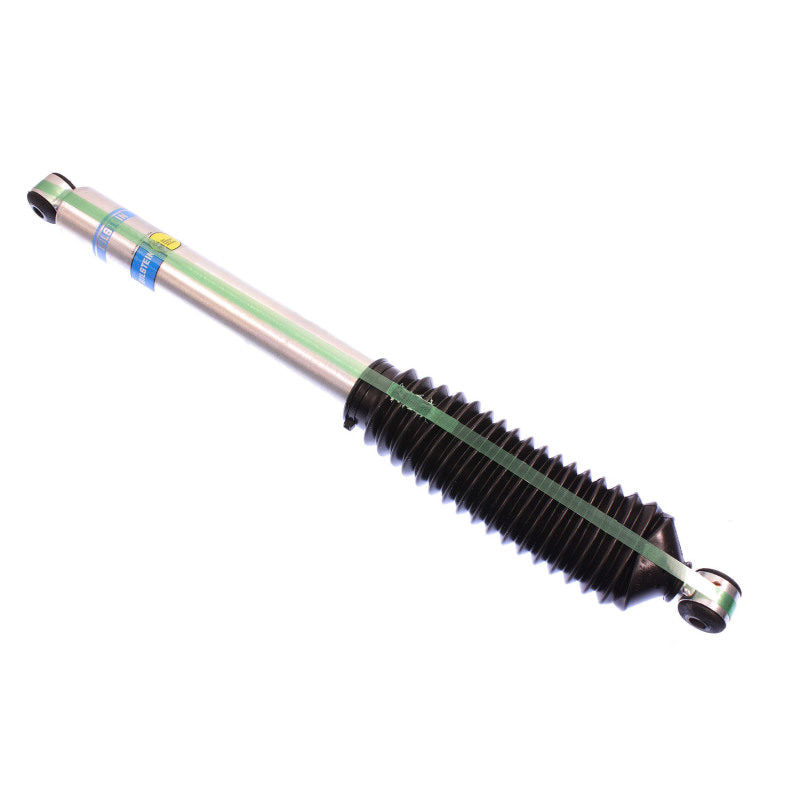

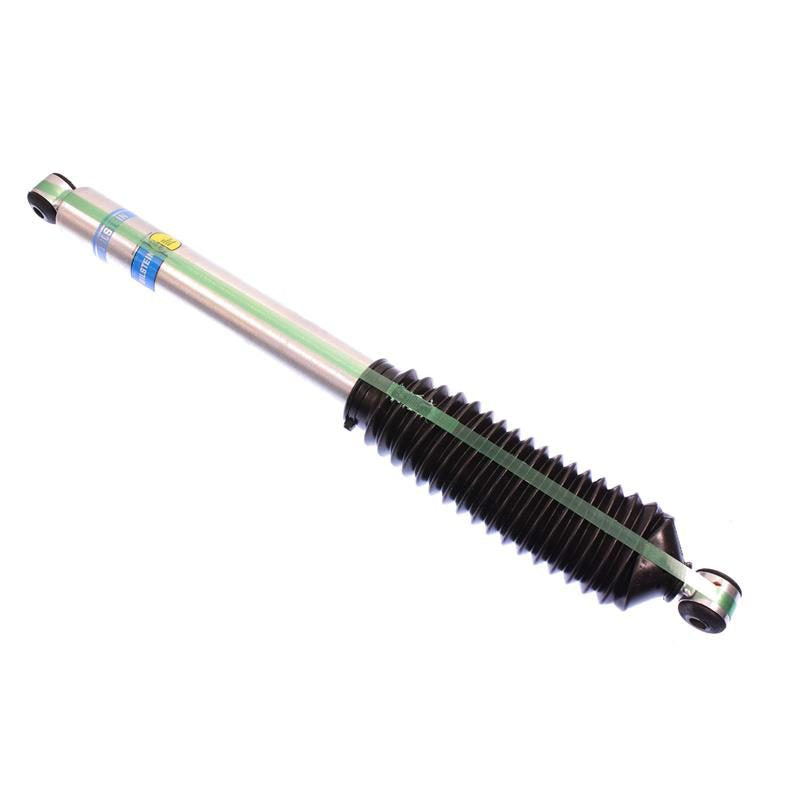

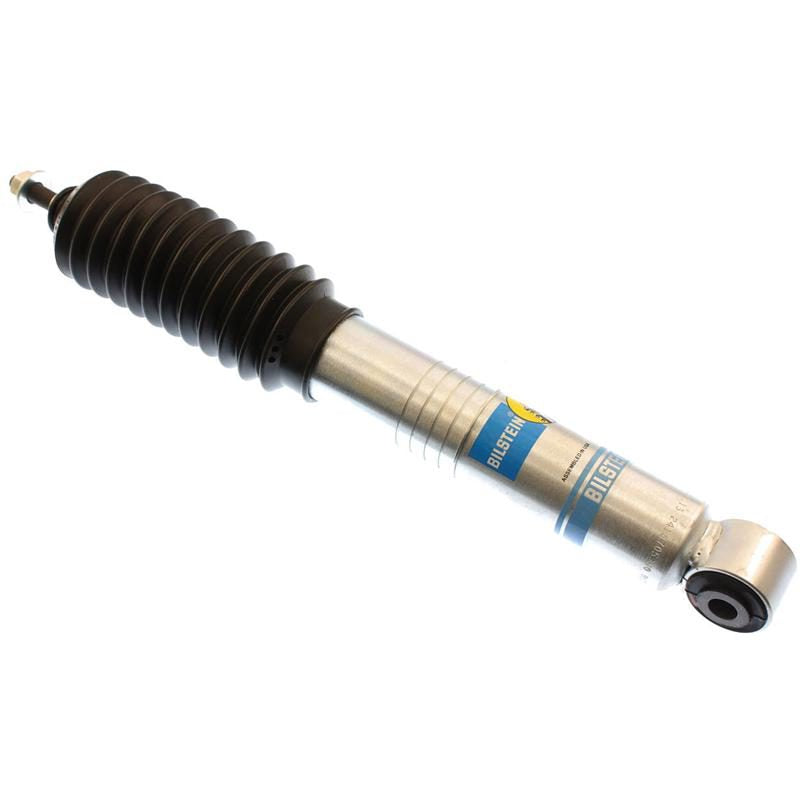

Bilstein 33-186009 - 5100 Series 2004 Ford F-150 Lariat 4WD Rear 46mm Monotube Shock Absorber

Bilstein 33-186009 - 5100 Series 2004 Ford F-150 Lariat 4WD Rear 46mm Monotube Shock Absorber

Bilstein | 33-186009
SKU: BIL-33-186009
Regular price $123.00 USD
Regular price $171.85 USD Sale price $123.00 USD
Sale Sold out
Shipping calculated at checkout.

41 in stock

Quantity

Bilstein 33-186009 - 5100 Series 2004 Ford F-150 Lariat 4WD Rear 46mm Monotube Shock Absorber

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Collapsed Length (IN): 16.69
Internal Design: Monotube
Body Design: Smooth Body (Non-Coilover)
Extended Length (MM): 688.5
Upper Mount Type: Eye 12mm
PartType: Shocks / Struts
Stroke/Travel Length (IN): 10.42
Series: B8 5100
Stroke/Travel Length (mm): 264.7
Collapsed Length (MM): 424.0
Reservoir: No
Boot Included: Black Bellows
Finish: Zinc Plated
Piston Diameter: 46mm
Shaft Diameter: 14mm
Lower Mount Type: Eye 12mm
Segment: Light Truck
Extended Length (IN): 27.11
