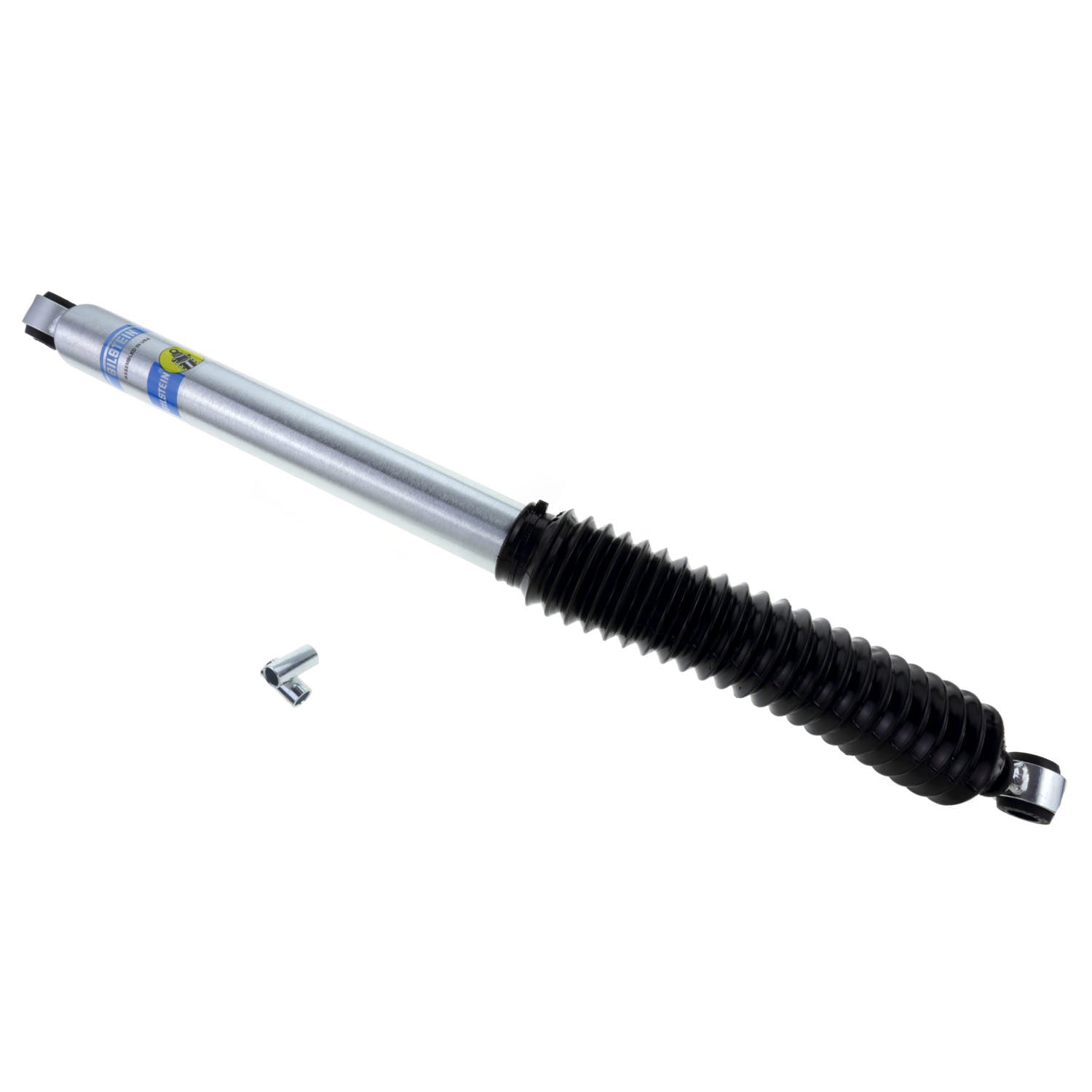

Bilstein 33-185569 - 5100 Series 1987 Chevrolet Blazer Custom Deluxe Rear 46mm Monotube Shock Absorber

Bilstein 33-185569 - 5100 Series 1987 Chevrolet Blazer Custom Deluxe Rear 46mm Monotube Shock Absorber

Bilstein | 33-185569
SKU: BIL-33-185569
Regular price $120.00 USD
Regular price $167.82 USD Sale price $120.00 USD
Sale Sold out
Shipping calculated at checkout.

20 in stock

Quantity

Bilstein 33-185569 - 5100 Series 1987 Chevrolet Blazer Custom Deluxe Rear 46mm Monotube Shock Absorber

Shock - 5100 Series - Monotube - Steel - Zinc Plated - Rear - 6 in Lifted - GM Fullsize SUV / Truck 1975-91 - Each

46mm Monotube Shock Absorber

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Mount Type: Eye-to-Eye
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Collapsed Length (IN): 17.91
Internal Design: Monotube
Body Design: Smooth Body (Non-Coilover)
Extended Length (MM): 754.2
Upper Mount Type: Eye 5/8in
PartType: Shocks / Struts
Series: B8 5125
Stroke/Travel Length (IN): 11.78
Stroke/Travel Length (mm): 299.2
Collapsed Length (MM): 455.0
Rebound @0.52m/s: 2495
Reservoir: No
Boot Included: Black Bellows
Compression @0.52m/s: 620
Finish: Zinc Plated
Piston Diameter: 46mm
Shaft Diameter: 14mm
Lower Mount Type: Eye 5/8in
Segment: Light Truck
Extended Length (IN): 29.69
