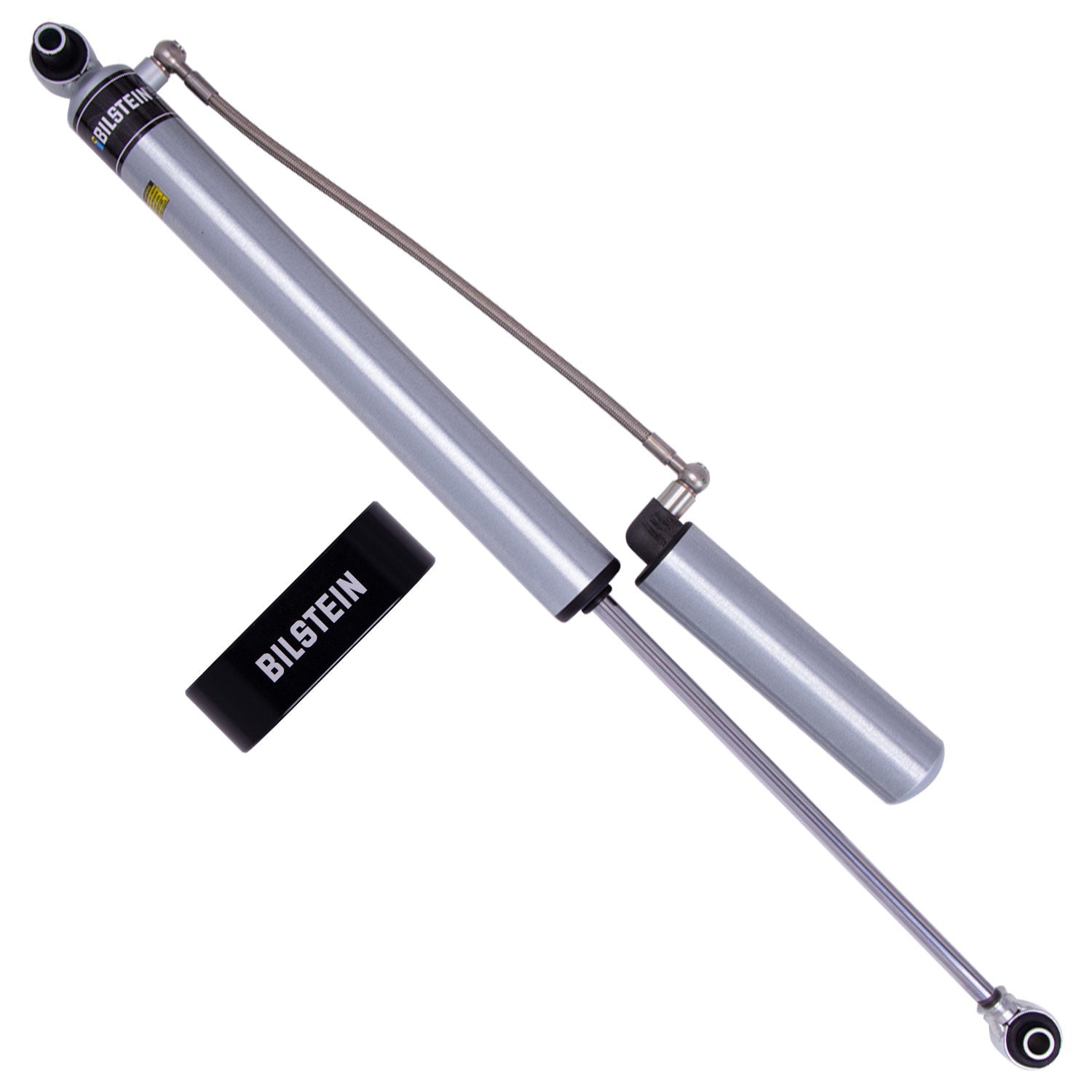

Bilstein 25-329926 - 18-25 Jeep Wrangler B8 5160 Rear Shock Absorber

Bilstein 25-329926 - 18-25 Jeep Wrangler B8 5160 Rear Shock Absorber

Bilstein | 25-329926
SKU: BIL-25-329926
Regular price $299.00 USD
Regular price $328.90 USD Sale price $299.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

Bilstein 25-329926 - 18-25 Jeep Wrangler B8 5160 Rear Shock Absorber

B8 5160 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Internal Design: Monotube
Collapsed Length (MM): 475.5
Collapsed Length (IN): 18.72
Finish: Zinc Plated
Extended Length (IN): 31.86
Body Design: Smooth Body (Non-Coilover)
Series: B8 5160
PartType: Shocks / Struts
Adjustable Damping: Non-Adjustable
Stroke/Travel Length (IN): 13.14
Lower Mount Type: Eye 12.8mm
Upper Mount Type: Eye 12.8mm
Stroke/Travel Length (mm): 333.8
Extended Length (MM): 809.2
Reservoir: Yes
Boot Included: No
Piston Diameter: 46mm
Segment: Light Truck
Shaft Diameter: 14mm
Spring Seat Included: No

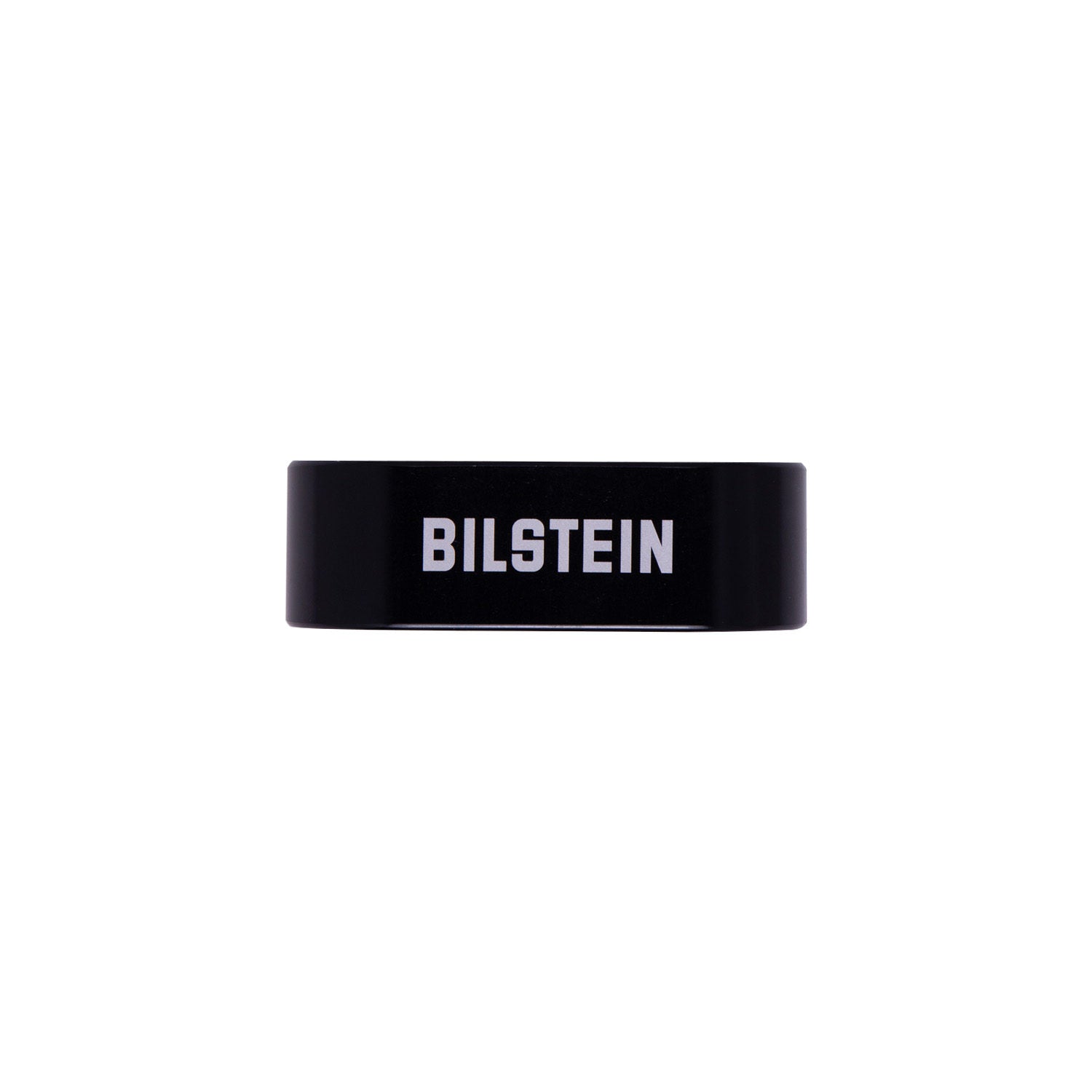

Billet Reservoir Clamp Included: Yes
