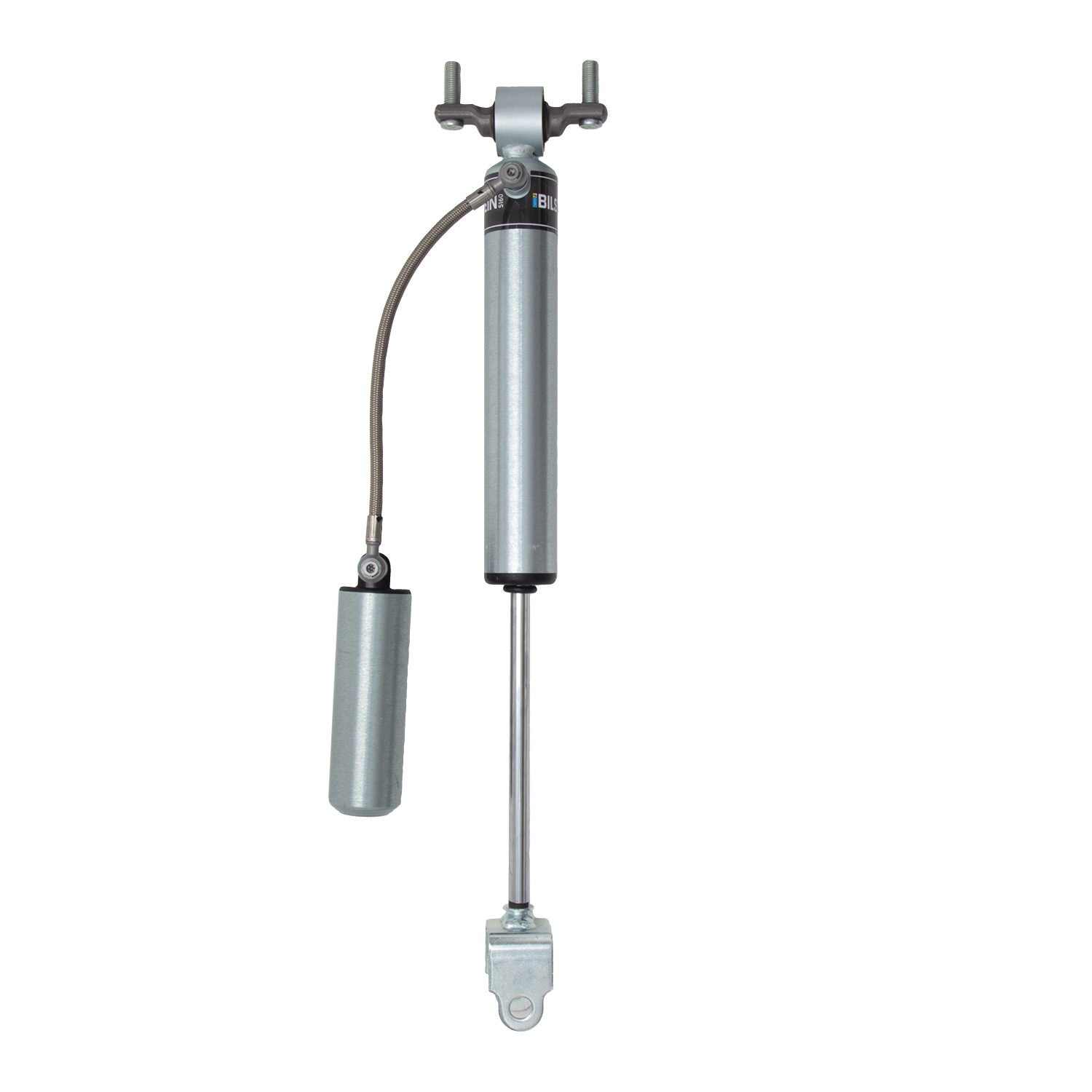

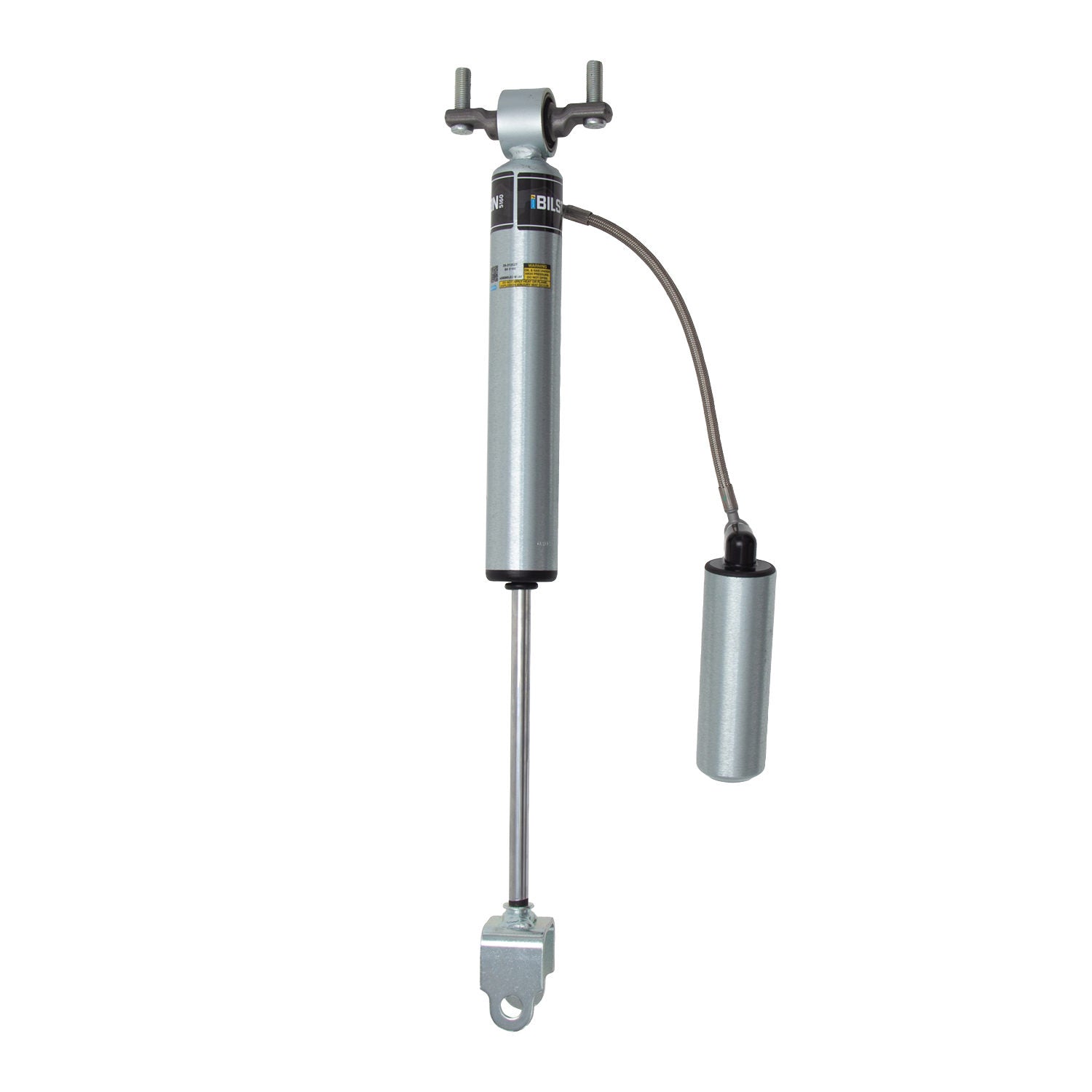

Bilstein 25-312027 - B8 5160 Series GM 2500/3500 HD Silverado/Sierra Front Shock Absorber 4-6in Lifted Height

Bilstein 25-312027 - B8 5160 Series GM 2500/3500 HD Silverado/Sierra Front Shock Absorber 4-6in Lifted Height

Bilstein | 25-312027
SKU: BIL-25-312027
Regular price $299.00 USD
Regular price $328.90 USD Sale price $299.00 USD
Sale Sold out
Shipping calculated at checkout.

5 in stock

Quantity

Bilstein 25-312027 - B8 5160 Series GM 2500/3500 HD Silverado/Sierra Front Shock Absorber 4-6in Lifted Height

B8 5160 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Stroke/Travel Length (IN): 8.69
Stroke/Travel Length (mm): 220.7
Collapsed Length (MM): 394.5
Reservoir: Yes
Boot Included: No
Finish: Zinc Plated
Piston Diameter: 46mm
Shaft Diameter: 14mm
Lower Mount Type: Clevis
Segment: Light Truck
Extended Length (IN): 24.34
Collapsed Length (IN): 15.53
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Billet Reservoir Clamp Included: No
Internal Design: Monotube
Body Design: Smooth Body (Non-Coilover)
PartType: Shocks / Struts
Extended Length (MM): 618.2
Upper Mount Type: Bar Pin
Series: B8 5160
